Description
X613 Mobile Wheel Aligner (No Tablet)
The Launch X-613 is a wireless 3D wheel aligner designed with a streamlined industrial structure. It removes the traditional beam and cabinet setup and utilizes two magnetic measurement units and four wheel clamp targets. These components enable four-wheel alignment detection through wireless networking communication.
The design prioritizes functionality and portability, allowing the X613 to be deployed in various workshop settings. Its setup does not require installation, wiring, or calibration, making it suitable for both fixed workshop use and mobile service operations.
Features:
- Plug-and-Play Operation: Does not require installation, wiring, or calibration; ready to use upon delivery.
- Space Efficiency: Removes the need for beams and cabinets, reducing the space required for operation.
- Measurement Speed: Produces high-precision four-wheel alignment results within 30 seconds.
- Wheel Clamp Design: Patented magnesium alloy single axle clamp, lightweight and durable, with a built-in scale for pre-adjustment based on tire diameter.
- Magnetic Measurement Does not require installation, wiring, or calibration; ready to use upon delivery.

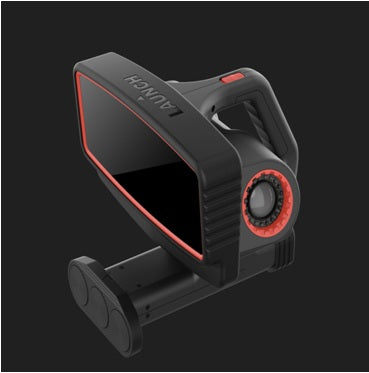

- Magnetic Measurement: Operates without assembly or wiring; designed for immediate use.
- Wireless Communication: Transmits measurement data to a scanner for display and adjustment.
- Compact Packaging: Reduces transport weight and volume by 70-80% compared to traditional 3D wheel alignment systems.
Specifications:
Measurement Parameter, Measurement Range
- Toe Angle, ±20°
- Camber Angle, ±10°
- Caster Angle, ±20°
- Kingpin Inclination, ±20°
- Track Width, 1290~1900mm, (50.79~74.8 in)
- Wheelbase, 1940~4600mm, (76.38~181.1 in)

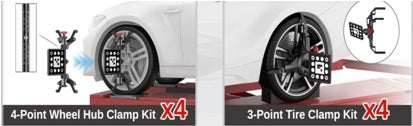

- Hub Diameter (for 4-Point Wheel Hub Clamp), 275~640mm, (10.83~25.2 in)
- Tire Diameter (for 3-Point Tire Clamp), 470~1100mm, (18.5~43.31 in)
Functions:
-
Four-wheel alignment measurement: It supports standard measurement and quick measurement and can measure key parameters such as toe, camber, caster, kingpin inclination, and thrust angle. Supports additional measurements such as wheelbase, wheel
track, axle offset, wheel offset, diagonal, center offset, etc - Database: Supports positioning data of 50,000+ global vehicle models, and supports user-defined database
-
Terminal wireless connection: : Measurement data is transmitted wirelessly, and the four-wheel alignment process is displayed
with the ST13 intelligent connection terminal -
Test report: Generate professional test reports, support data comparison before and after adjustment, and support report sharing

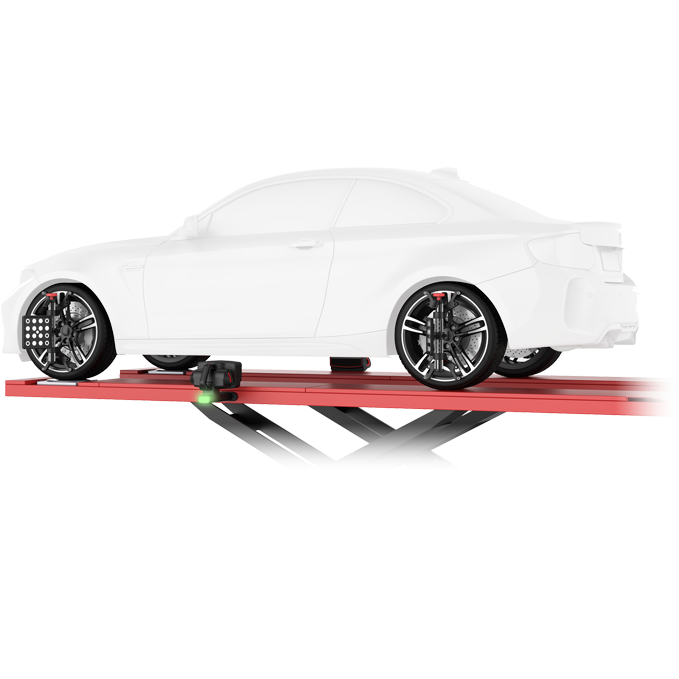

do not contact the wheel hub. Both types of wheel clamps are universal for target - No need to modify the lift: the calibration units are directly magnetized to the lift, no need to process the lift, suitable for large
scissor lift and 4-post lift
