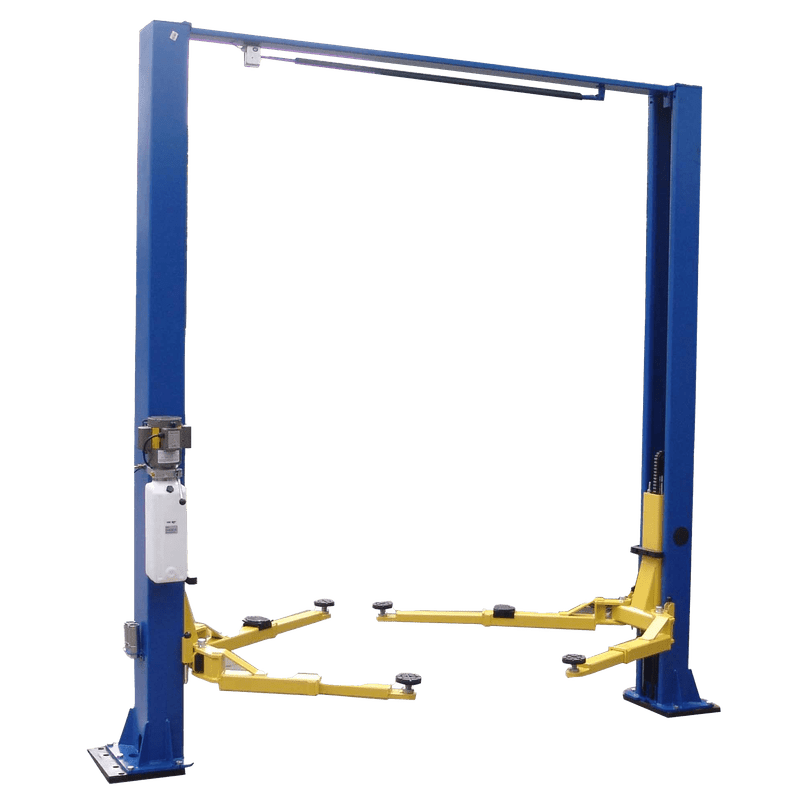

Tuxedo TP9KSCX 9,000 lb Two Post Lift — Stronger, Smarter, and Built for Performance
Looking for a heavy-duty lift that saves space without cutting corners? The Tuxedo TP9KSCX is your answer. With a solid 9,000 lb capacity and a slimmer overall width, it’s designed to handle cars, SUVs, and light trucks while fitting neatly into tighter garage spaces.
Engineered with a single-piece column for maximum stability and internal hose routing to protect and organize hydraulic lines, this lift keeps safety and efficiency front and center. A padded overhead shut-off bar with a kill switch adds extra protection, while the drop-in swivel pads with height adapters ensure quick and easy positioning. Plus, rubber door guards help keep your vehicle’s finish flawless.
Delivering pro-level reliability at a value-packed price, the TP9KSCX proves you don’t need to spend big to get top-tier performance.
Contact us for discounted Warehouse Pick Up
Tuxedo - iDEAL - Launch Tech USA
- 200 N 3rd St, Elwood, IN 46036
- 42660 Rio Nedo Rd, Temecula, CA 92590
- 1640 Airport Rd #112, Kennesaw, GA 30144
- 1401 Tradeport Dr, Orlando, FL 32824
- 1203 Freeway Dr., Reidsville, NC 27320
- 8320 US-67, Alvarado, TX 76009
- 19520 County Rd 81, Osseo, MN 55311
- 115 Little Rock Rd, Reading, PA 19605
- 340 Central Ave, Bohemia, NY 11716
- 1766 Redwood Depot Ln, Salt Lake City, UT 84104
Features
- 9,000 lb Capacity — Handles cars, SUVs, and light trucks effortlessly.
- Symmetric Arms — Provides stable, balanced lifts every time.

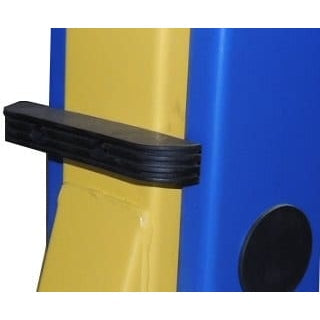

- Rubber Door Guards — Prevent dings and scratches while working close.
- Chain Drive Cylinders — Durable, smooth operation you can count on.
- Dual Point Lock Release — Easy, secure control at all times.
- Automatic Arm Restraints — Locks arms in place for worry-free lifting.
- One-Piece Column Design — Built tough for long-term stability.

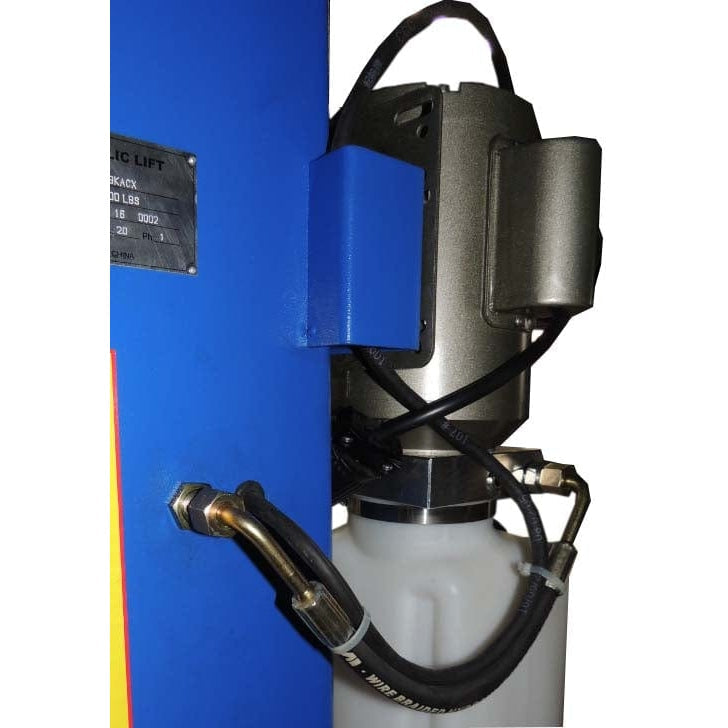

- Internal Hose Routing — Cleaner setup, safer operation.

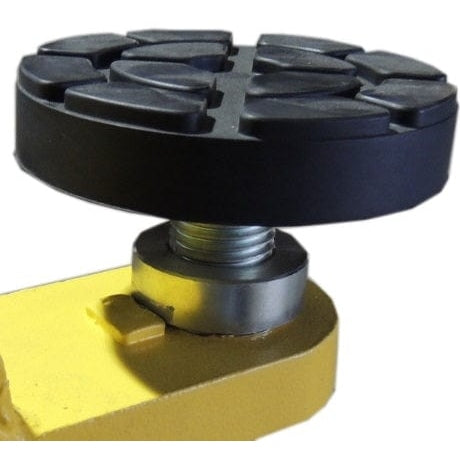

- Low Profile Spin-Up Pads — Quick contact with lower vehicles.

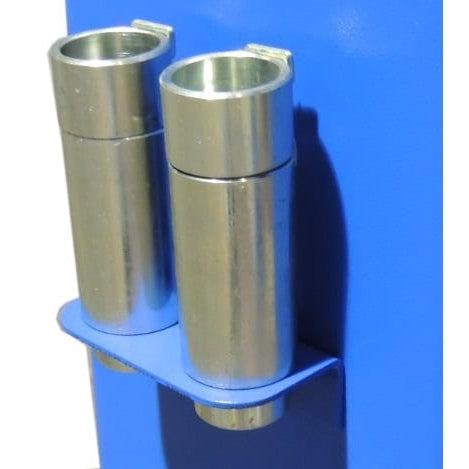

- Stackable Adapters — Simple adjustments for a wide range of vehicles.

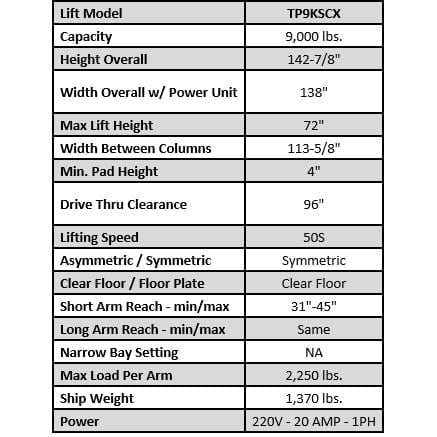

Specifications
| Specification | Details |
|---|---|
| Lift Model | TP9KSCX |
| Capacity | 9,000 lbs |

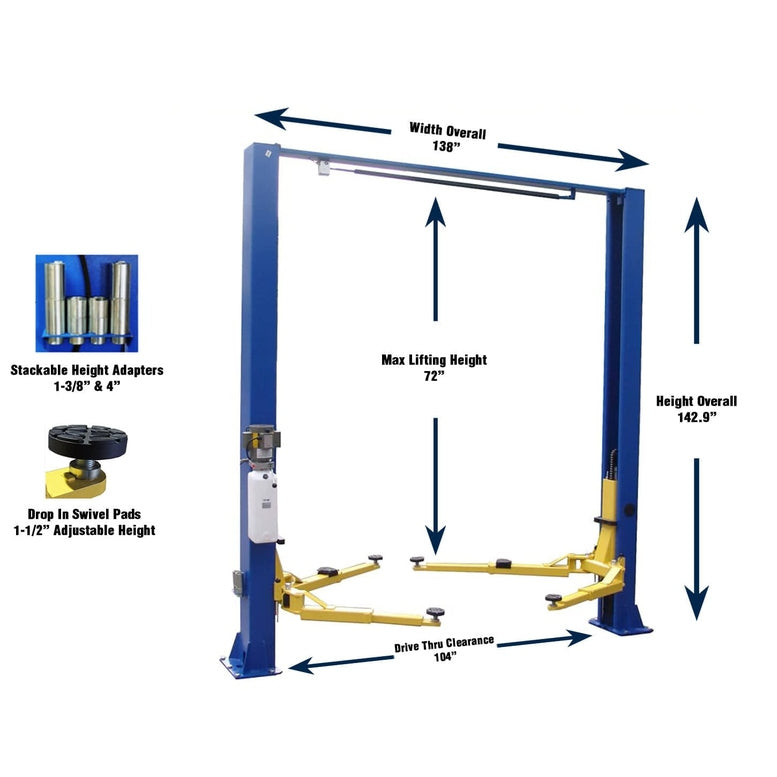

| Height Overall | 142-7/8 inches |
| Width Overall (with Unit) | 138 inches |
| Max Lift Height | 72 inches |
| Width Between Columns | 113-5/8 inches |
| Minimum Pad Height | 4 inches |
| Drive Thru Clearance | 96 inches |
| Lifting Speed | 50 seconds |
| Arm Type | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short & Long Arm Reach | 31" to 45" |
| Max Load Per Arm | 2,250 lbs |

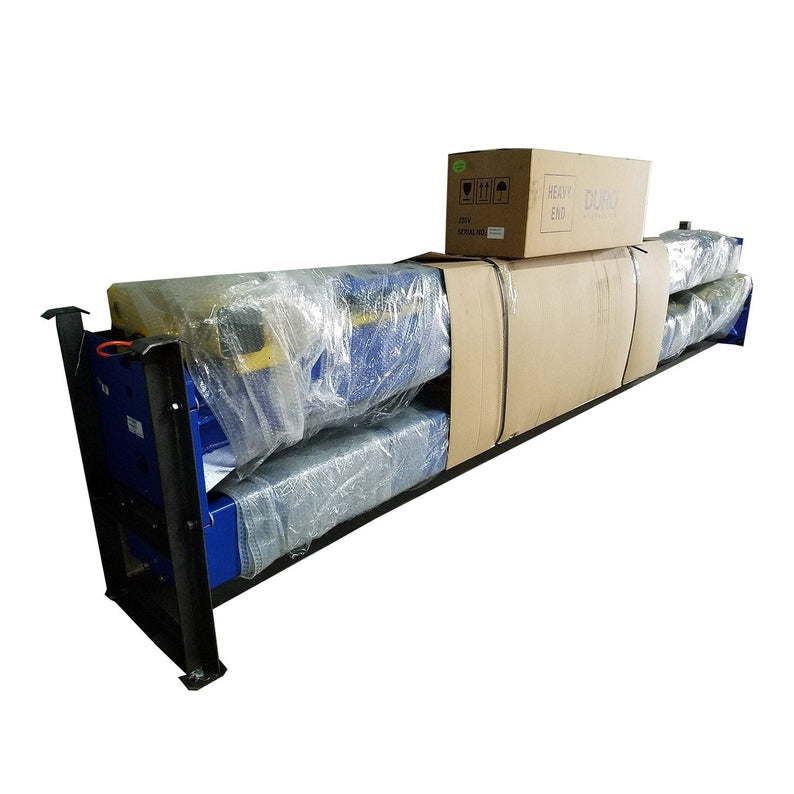

| Ship Weight | 1,370 lbs |

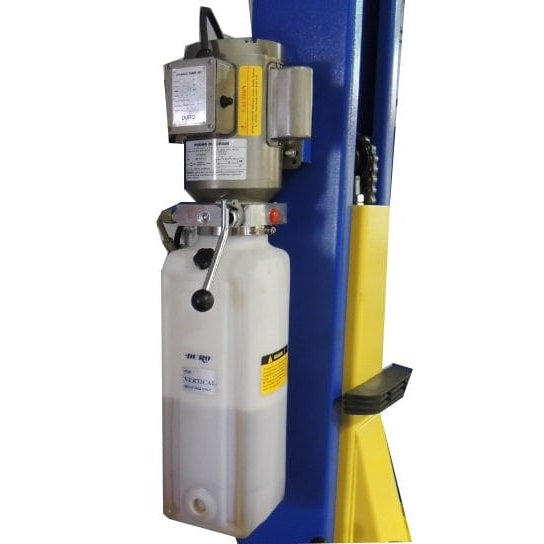

| Power | 220V, 20 AMP, 1 PH |
