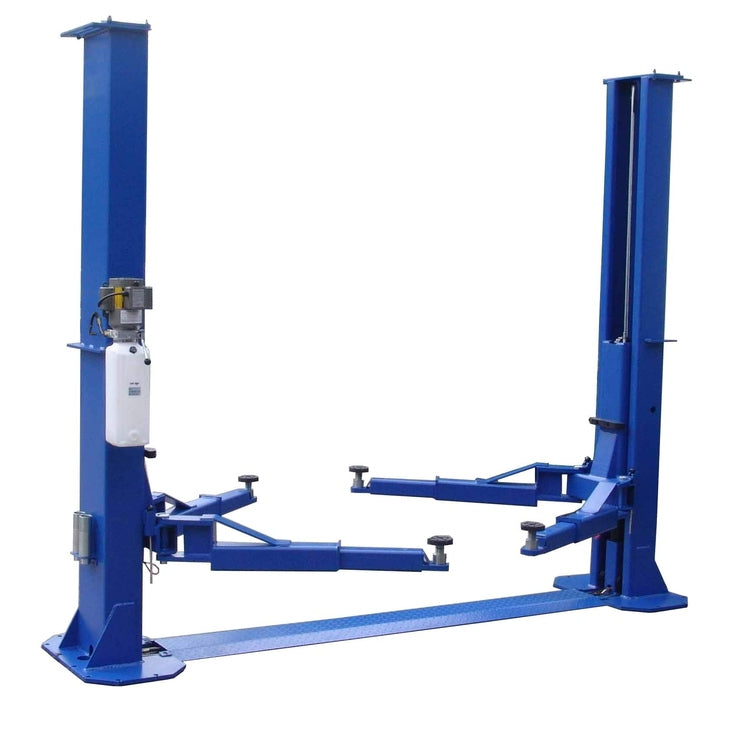

Tuxedo TP12KFX 12,000 lb Two Post Floor Plate Lift — Power Meets Precision
Introducing the upgraded workhorse for your shop: the Tuxedo TP12KFX from the ‘X HD Series’ — engineered to make heavy-duty lifting simple, safe, and efficient. Built to handle tough jobs, this lift blends strength with smart design so every lift feels effortless.
With a massive 12,000 lb capacity and symmetrical arms for stable balance, the TP12KFX takes on trucks, vans, and commercial vehicles with ease — raising not just vehicles, but the standard of your entire workspace.
Contact us for discounted Warehouse Pick Up
Tuxedo - iDEAL - Launch Tech USA
- 200 N 3rd St, Elwood, IN 46036
- 42660 Rio Nedo Rd, Temecula, CA 92590
- 1640 Airport Rd #112, Kennesaw, GA 30144
- 1401 Tradeport Dr, Orlando, FL 32824
- 1203 Freeway Dr., Reidsville, NC 27320
- 8320 US-67, Alvarado, TX 76009
- 19520 County Rd 81, Osseo, MN 55311
- 115 Little Rock Rd, Reading, PA 19605
- 340 Central Ave, Bohemia, NY 11716
- 1766 Redwood Depot Ln, Salt Lake City, UT 84104
Features
- 12,000 lb Capacity — Built to handle your heaviest vehicles.
- Symmetrical Arms — Ensure balanced, secure lifting every time.

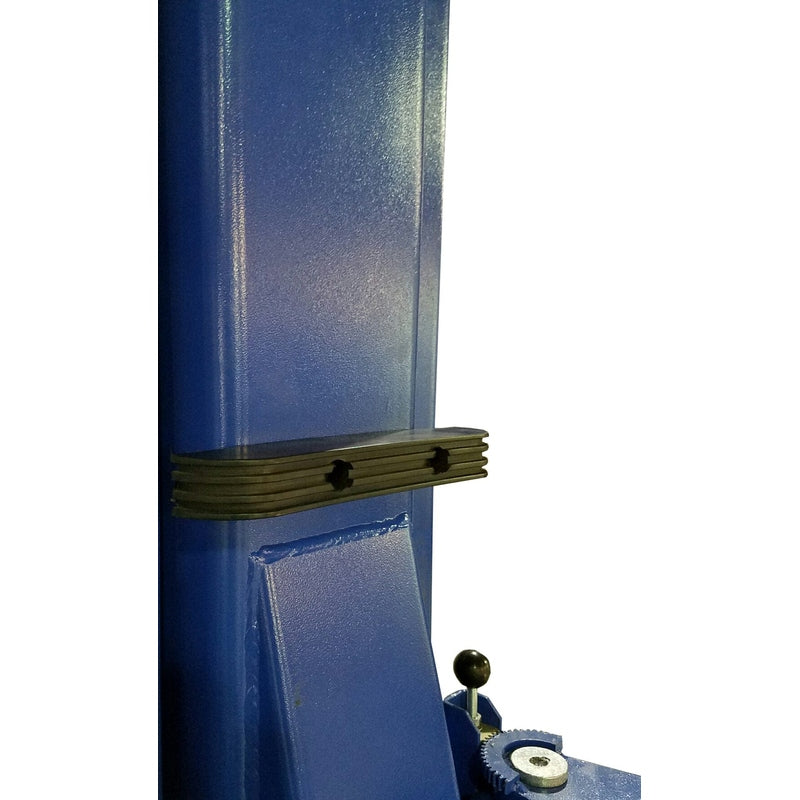

- Rubber Door Guards — Protects vehicle paint and finish.
- Chain Drive Cylinders — Durable and consistent lifting power.
- Dual Point Lock Release — Easy safety and control.
- Auto Arm Restraint System — Arms stay locked during operation.

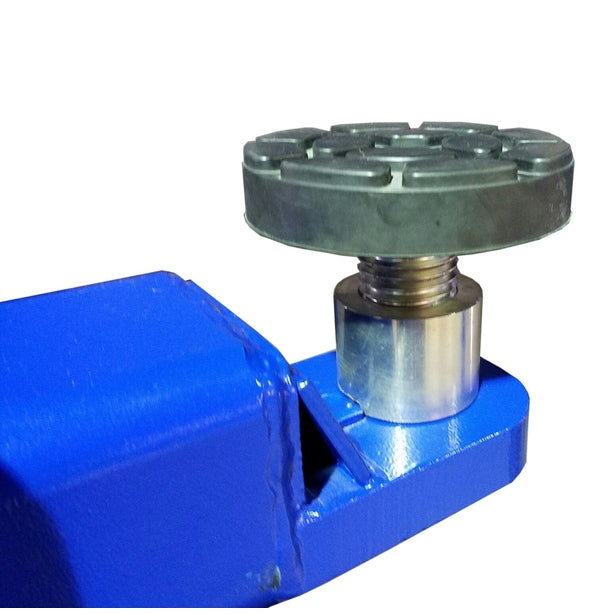

- Spin-Up Lift Pads — Quick adjustments to fit different vehicles.

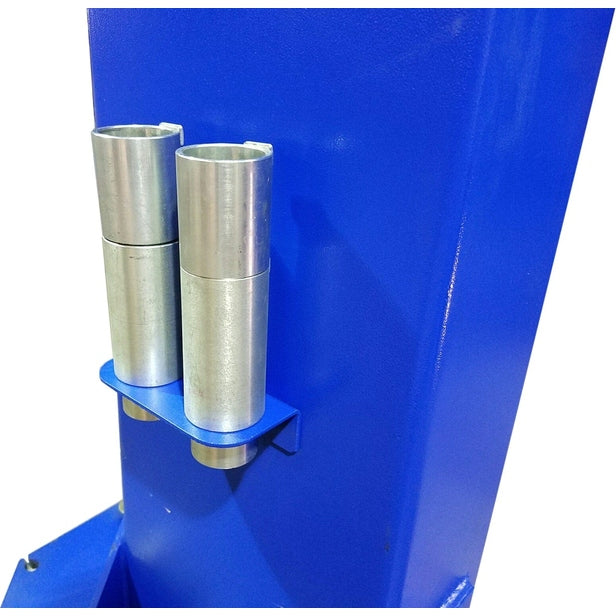

- Stackable Adapters Included — Flexible for multiple vehicle sizes.
- Internal Hose Routing — Cleaner look and better protection.
- Padded Overhead Shut-Off Bar with Kill Switch — Built-in safety safeguard.

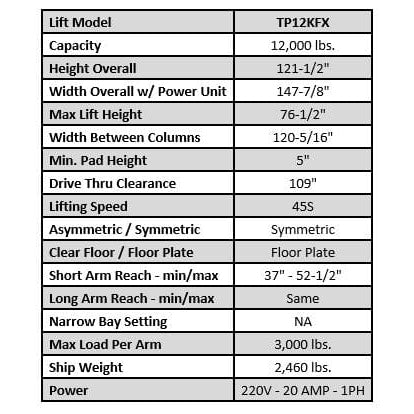

Specifications
| Specification | Details |
|---|---|
| Model | TP12KFX |
| Capacity | 12,000 lbs |

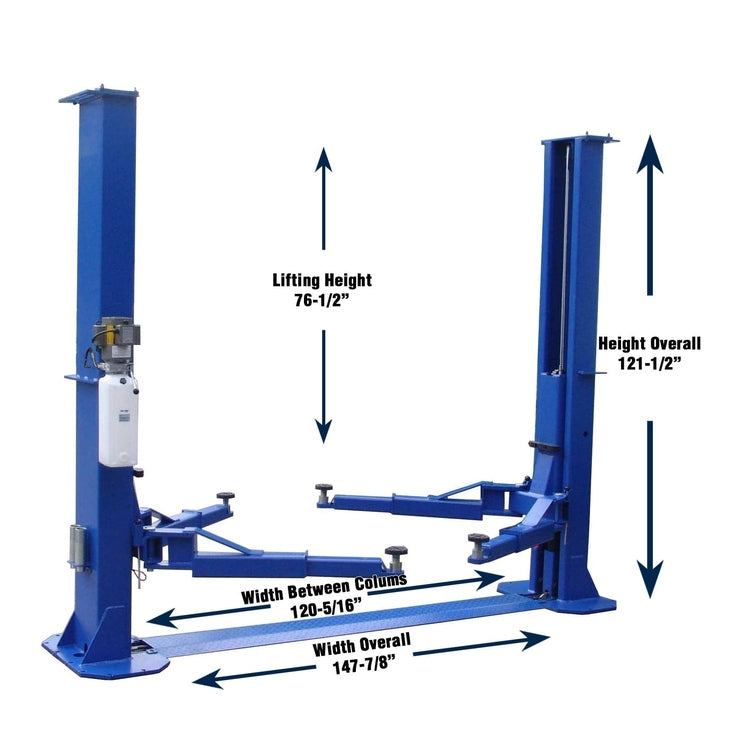

| Overall Height | 121-1/2 inches |
| Overall Width (with Unit) | 147-7/8 inches |
| Maximum Lift Height | 76-1/2 inches |
| Width Between Columns | 120-5/16 inches |
| Minimum Pad Height | 5 inches |
| Drive-Thru Clearance | 109 inches |
| Lifting Speed | 45 seconds |
| Arm Design | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Short Arm Reach | 37" to 52-1/2" |
| Long Arm Reach | Same as short arm |
| Max Load Per Arm | 3,000 lbs |
| Ship Weight | 2,460 lbs |
| Power | 220V, 20 Amp, 1 PH |
TP12KFX Manual:
