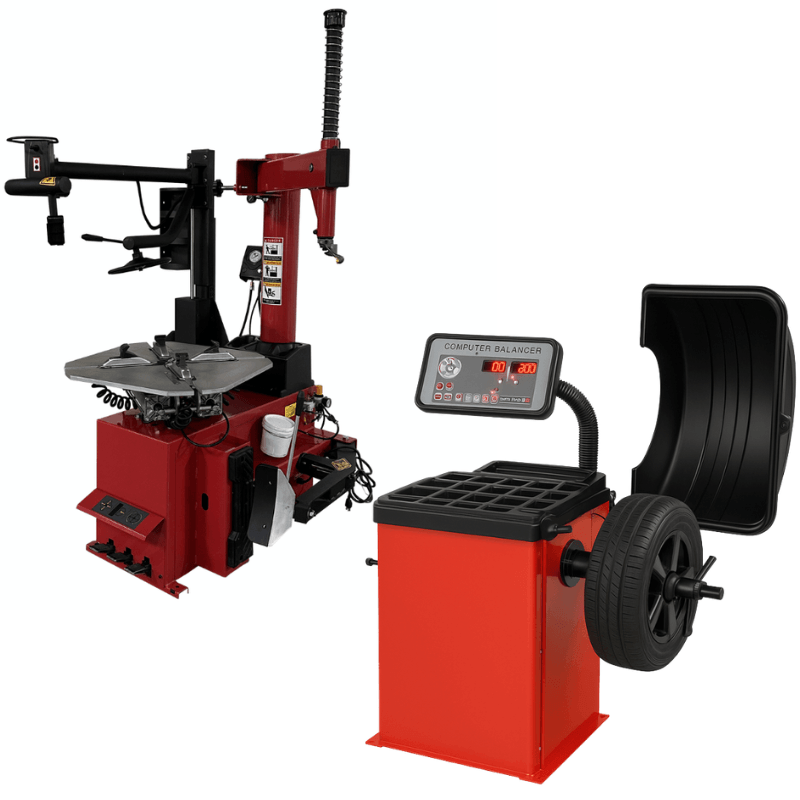

CK-TC950WPA-WB953 Tire Changer and Wheel Balancer Combo

The Tuxedo CK-TC950WPA-WB953 Tire Changer and Wheel Balancer Combo delivers a complete wheel service solution by combining the powerful TC-950-WPA Tire Changer with the precision-focused WB-953 Wheel Balancer. Together, they provide the tools needed to mount, demount, and balance wheels efficiently while minimizing the risk of wheel damage.

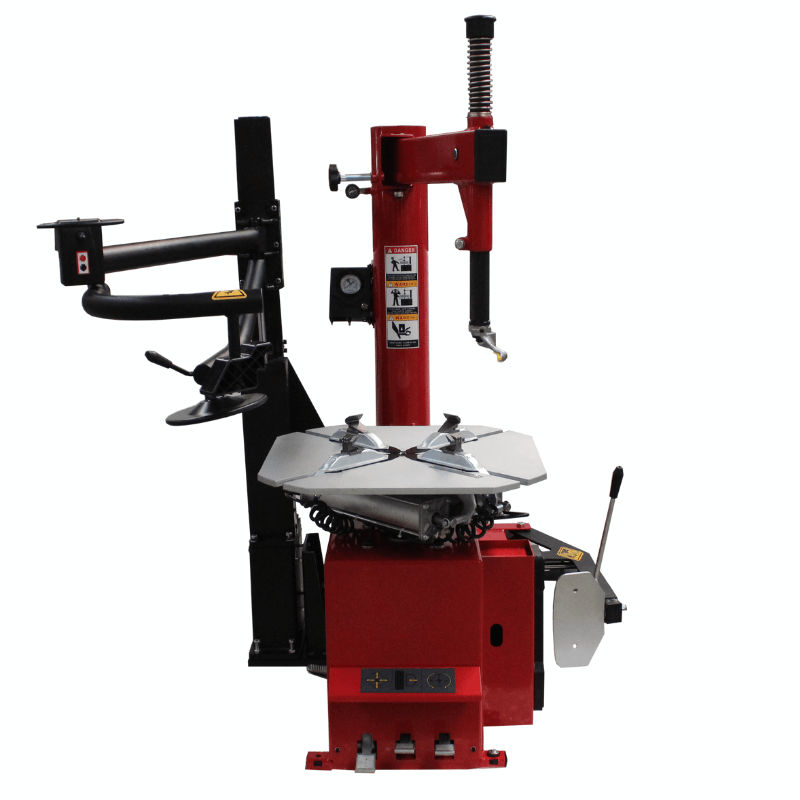

The TC-950-WPA features a swing-arm design, integrated press arm, and side-mounted bead breaker for tackling low-profile and performance tires with ease. Paired with the WB-953 Wheel Balancer's advanced balancing programs, self-calibration capabilities, and 1-gram accuracy, this combo helps improve workflow, increase service capacity, and deliver professional balancing results for a wide range of vehicles.

Tire Changer TC-950-WPA Specification:

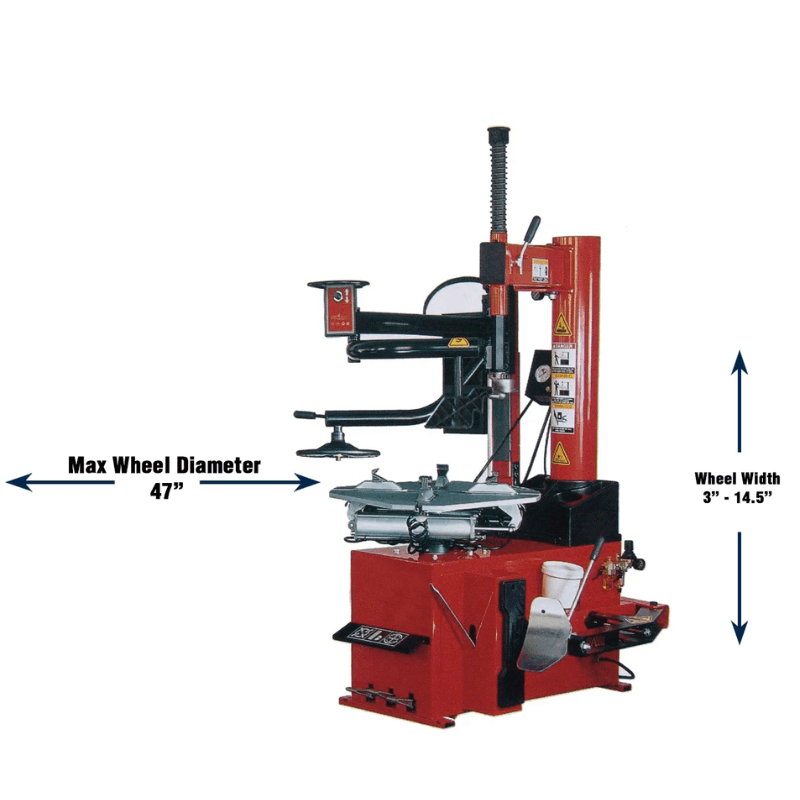

• Max Wheel Diameter 47”
• Wheel Width 3” – 15”
• Inside – Rim Clamp Range 15” – 28”
• Outside – Rim Clamp Range 13” – 24”
• Power 110V – 15 Amp – 1PH
• Working Pressure 125 psi
• Ship Weight 880 lbs
• Pallet Dimensions: 37"L 51"W 60"H

Wheel Balancer WB 953 Specifications:

• Data Entry: Keypad
• Max Wheel Diameter: 39”
• Rim Width: 1.5” – 20”
• Rim Diameter: 10” – 24”
• Wheel Weight Capacity: 150 lbs
• Accuracy: 1 gram
• Power: 110V – 15 Amp – 1PH
• Ship Weight: 335 lbs
• Pallet Dimensions: 28"L 39"W 46"H

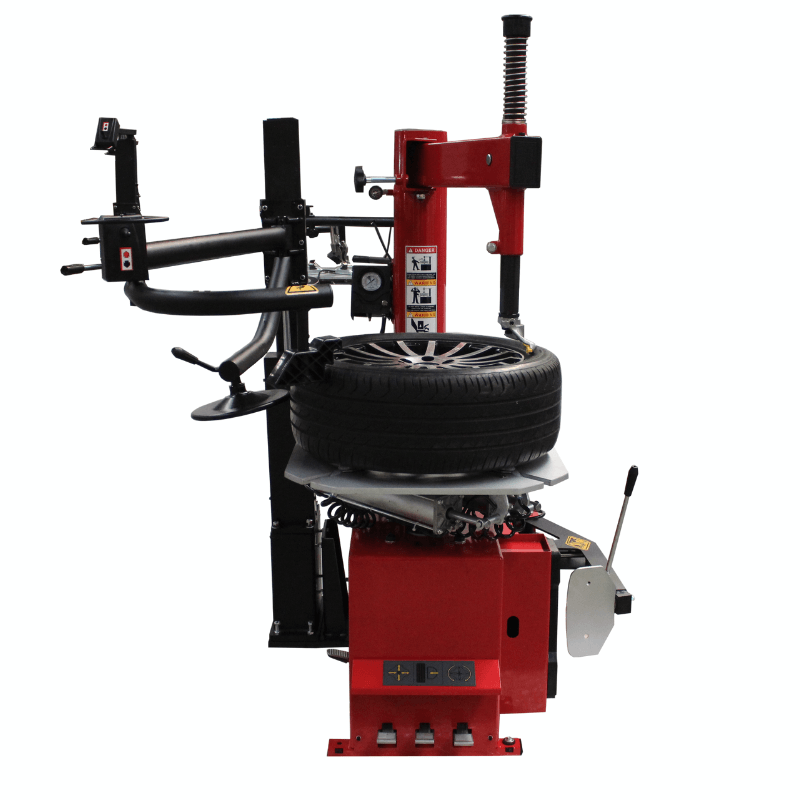

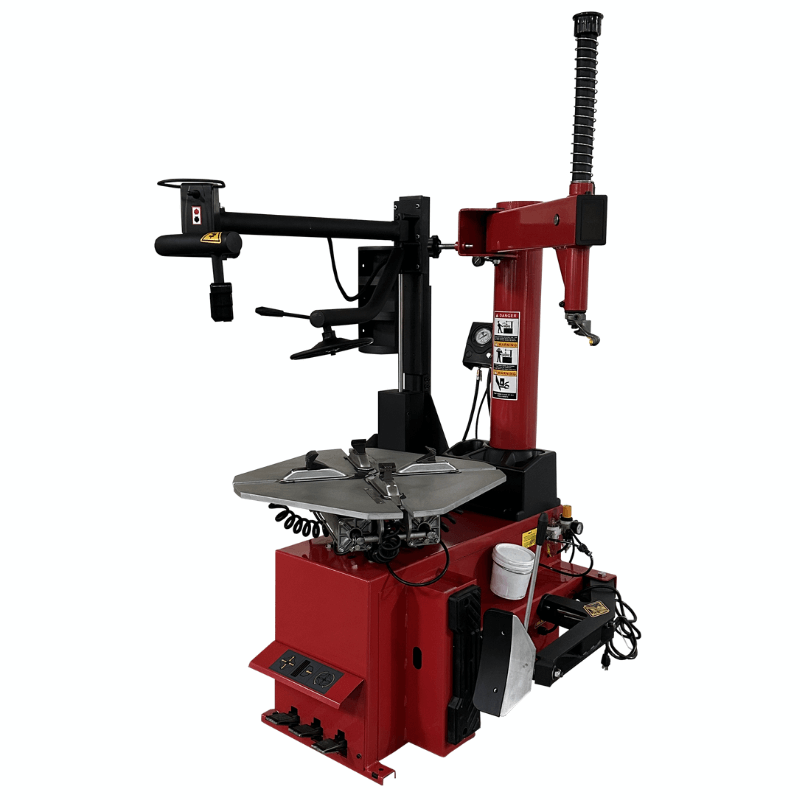

Tire Changer TC-950-WPA Special Features:

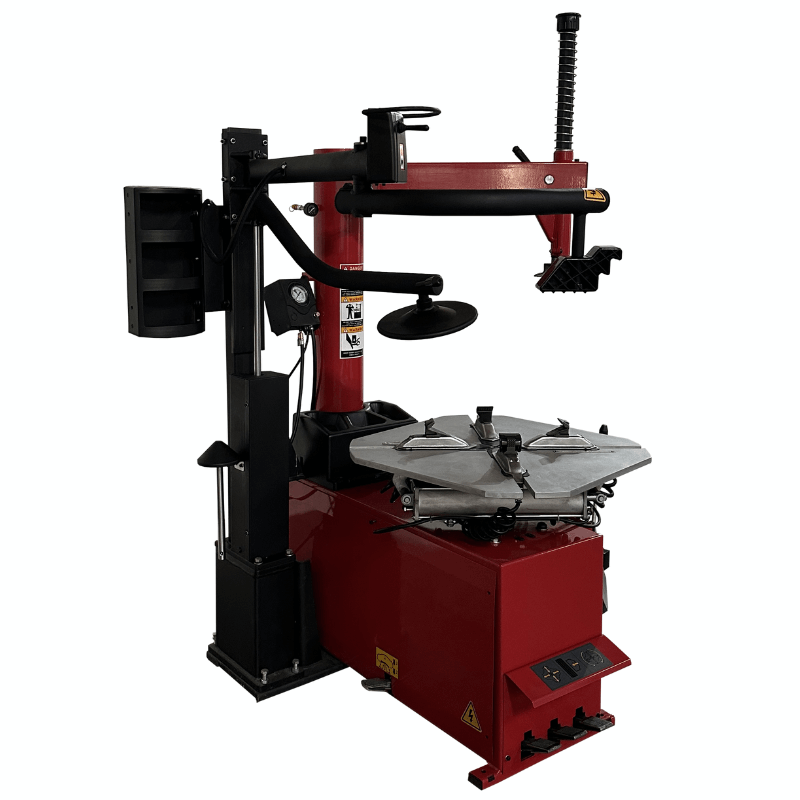

• Swing Arm Design

• Handles tire to 47″ and rim widths to 15″

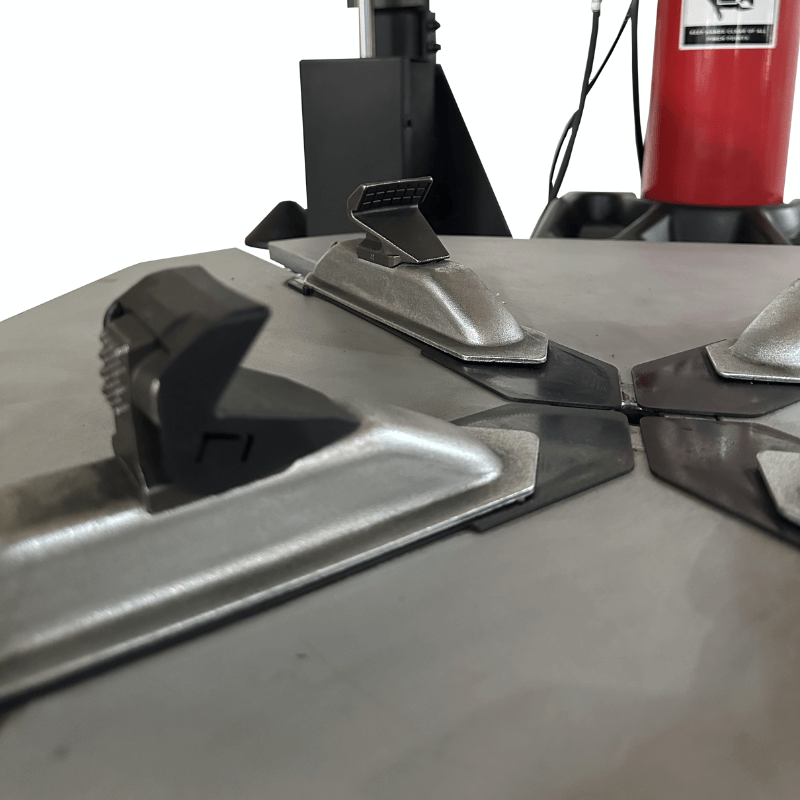

• Four pneumatic clamps and double acting cylinders
• Side mounted bead breaker

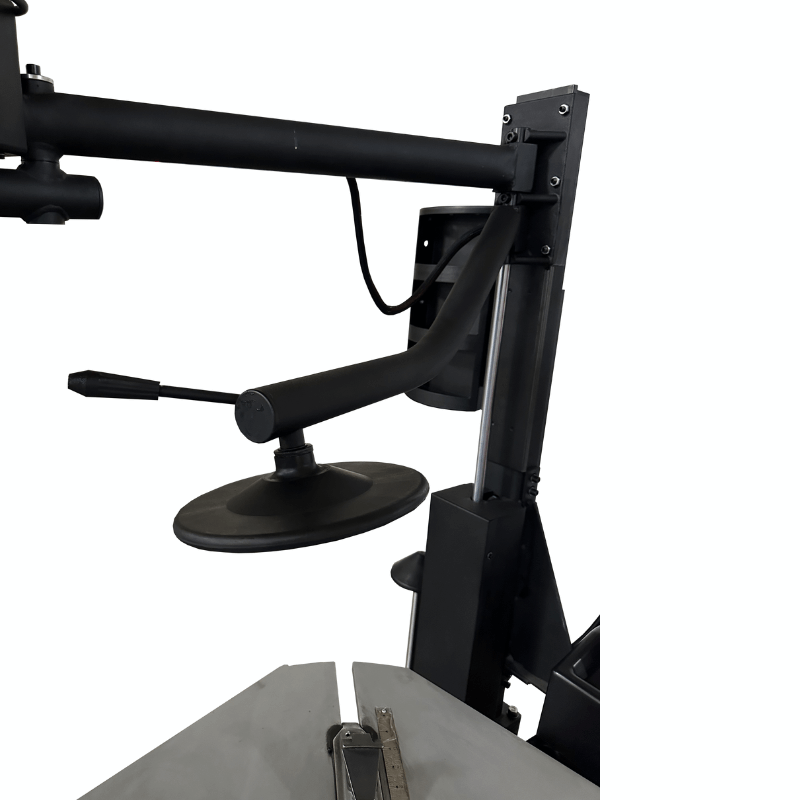

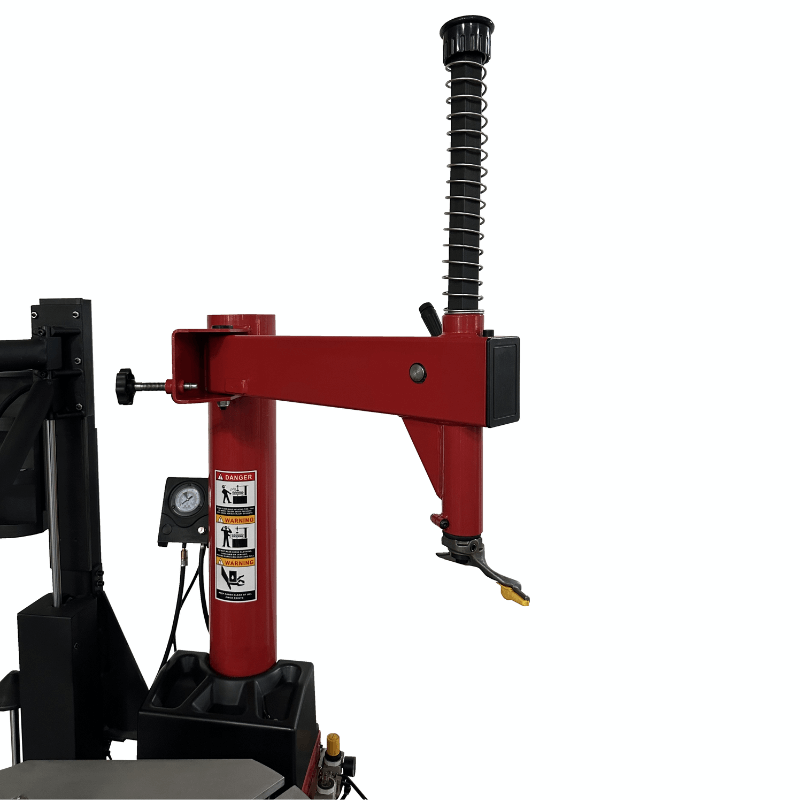

• Press arm for low profile tires
• Bead seating inflation jets in clamping jaws
• No scratching. Machine never contacts rim

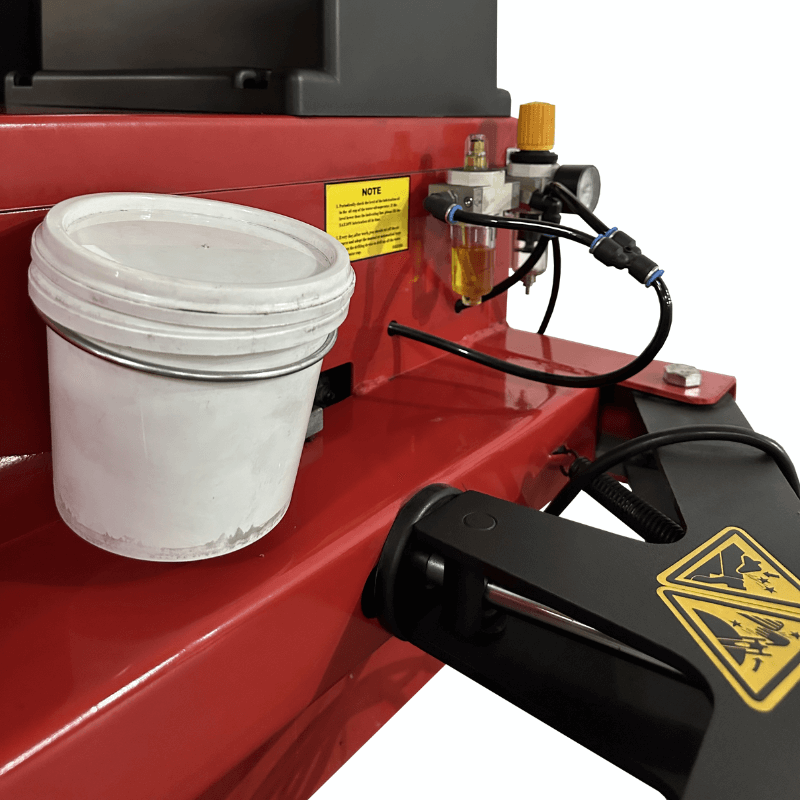

• Pressure regulator, oiler and water separator standard
• Lubricator, separator and air pressure
• Tuxedo Warranty:
  One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
• Includes: Set of plastic clamp protectors as well as 2 sets of duck head inserts

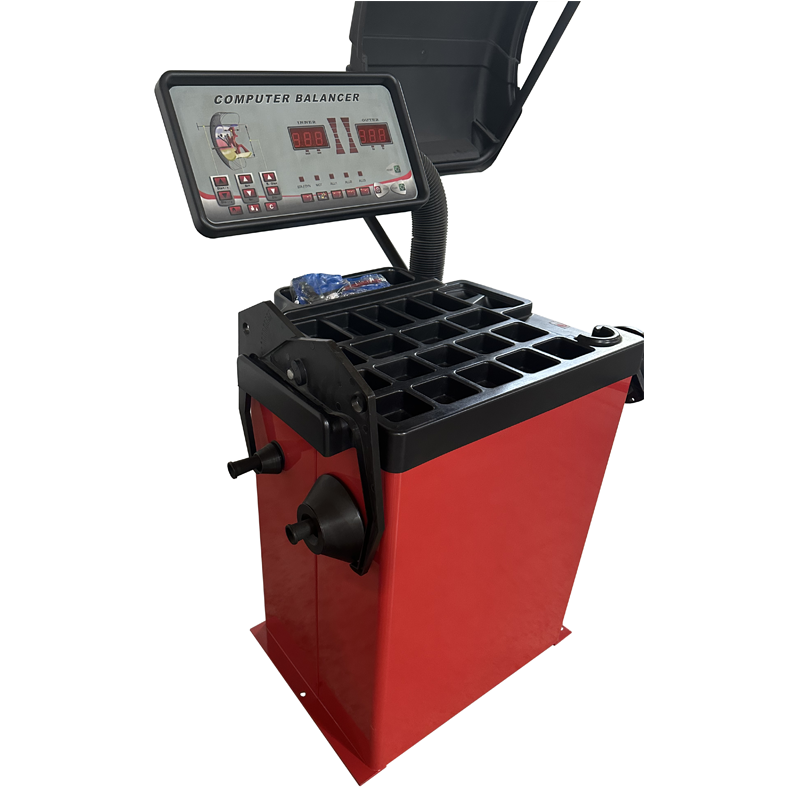

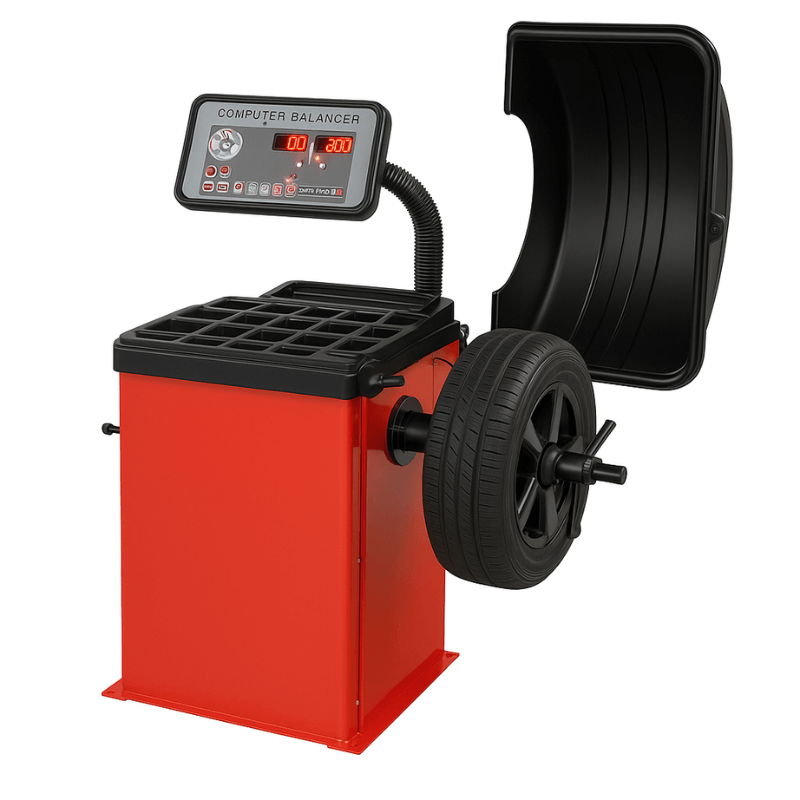

WB 953 Balancer Special Features:

• User Friendly Operation – LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.
• Large Rim Diameter Balancing – able to balance up to 24” Rim diameter & 39” overall Wheel Diameter.
• Multi-Mode Vehicle Balancing – standard with Car & Motorcycle balancing modes.
• Ease-Of-Use – with manual measurement input for distance & diameter with Static / Dynamic & 3 ALU modes.
• Self-Calibrating & Self Diagnosis – for improved efficiency & serviceability.
• Integrated Measurement Indicator – allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
• Multi-User Operation – allows two operators to work simultaneously with different settings.
• Integrated Centering Spring – to assist with quick and proper wheel mounting on balancing shaft.
• Electronic Braking System – conveniently slows wheel down after balancing cycle.
• Heavy Duty Balancing Shaft – 36mm diameter balancing shaft accommodates wide range of wheels of different sizes and shapes.
• Speed-Nut Mounting – the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
• Multi Pocket Wheel Weight Shelf – 23 articulated pockets, over 1.5” deep, allowing plenty of storage weights, tooling & cones.

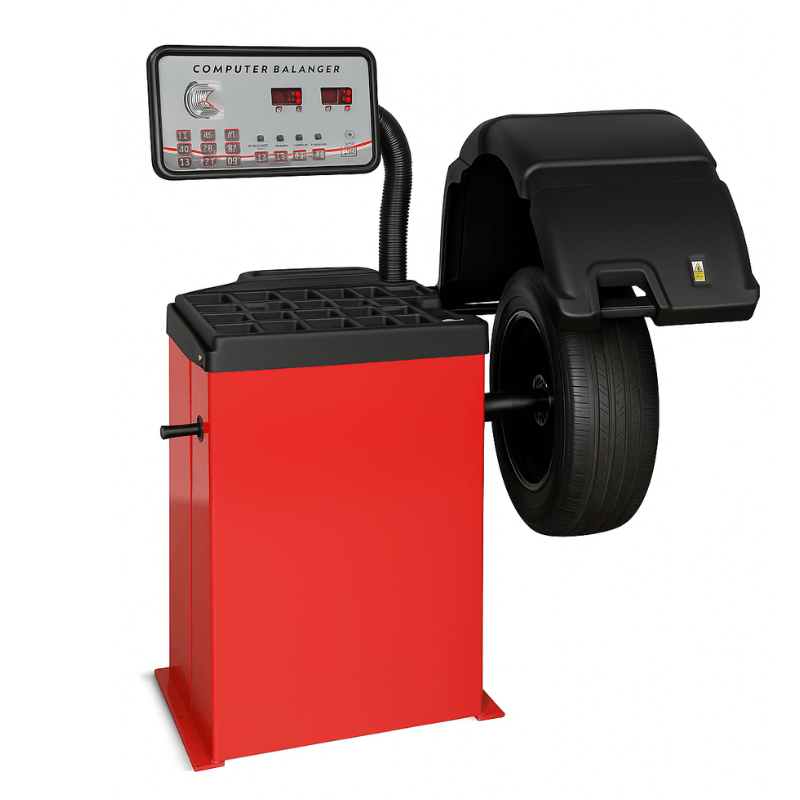

• Large Wheel Hood – the large 38” hood / shroud prevents debris from flying off the tire while in use.
• Storage Pegs – for convenient storing of balancer cones & caliper on side of housing.
• Tuxedo Warranty:
  One-year (12 months) warranty on all parts and against all product defects free of charge to our customers, on all equipment.
