Description
New Release

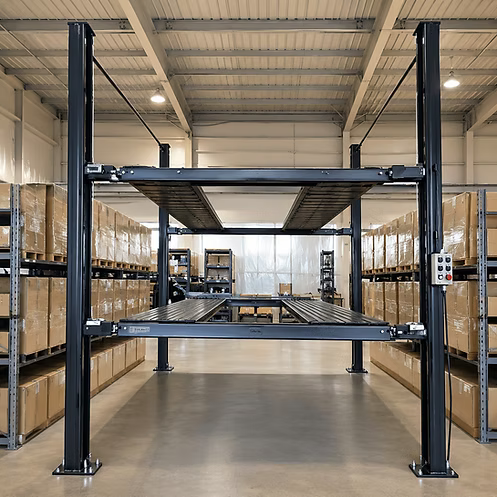

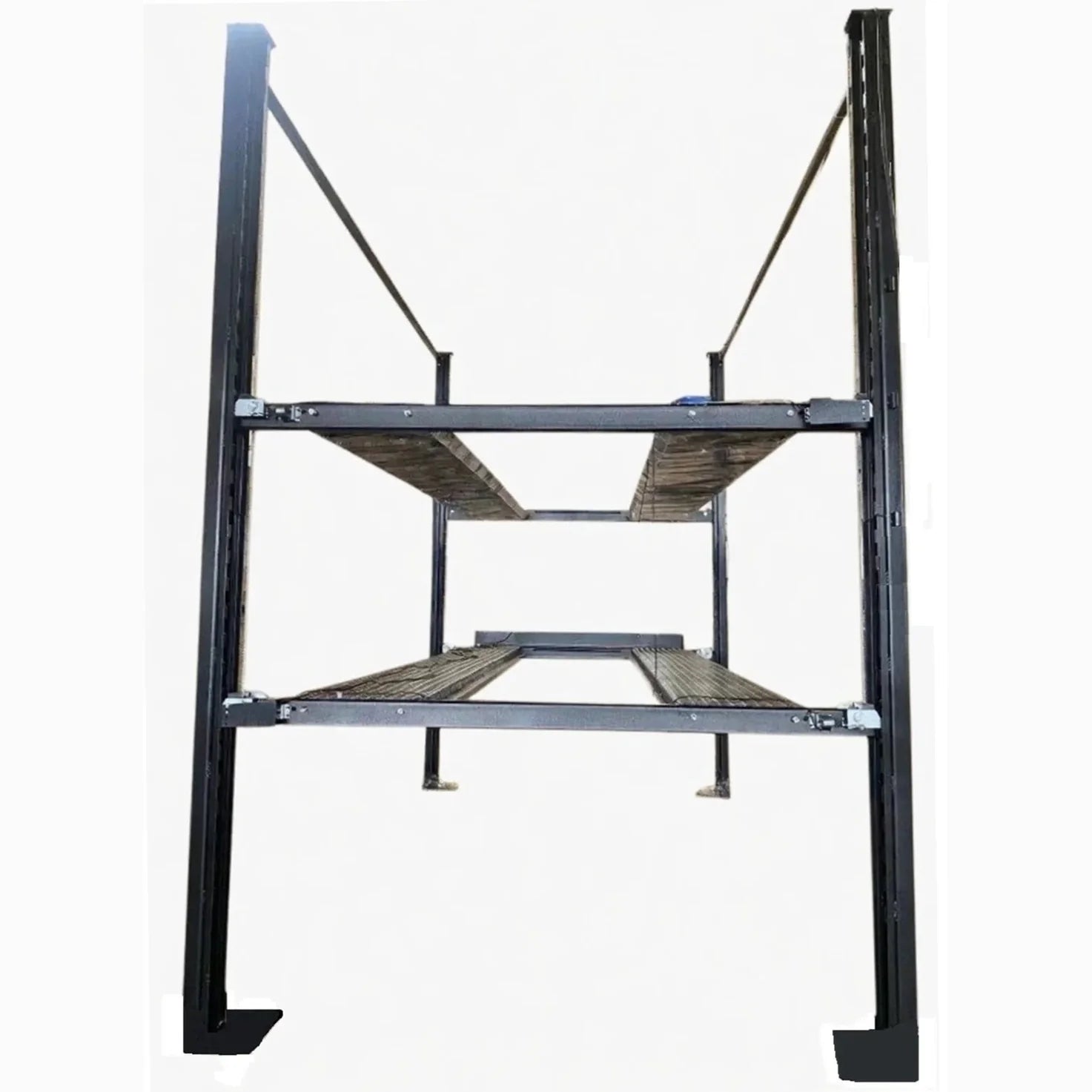

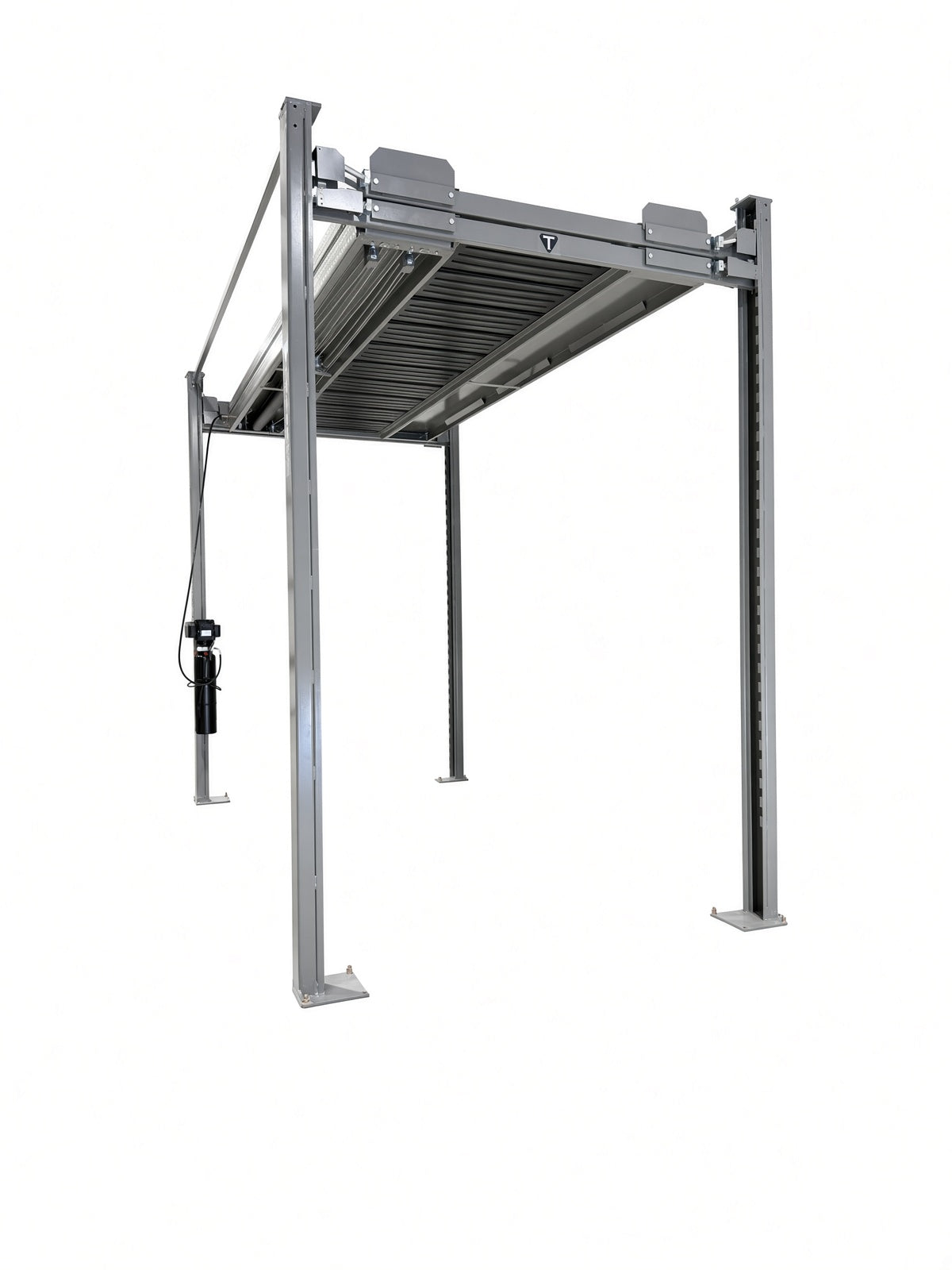

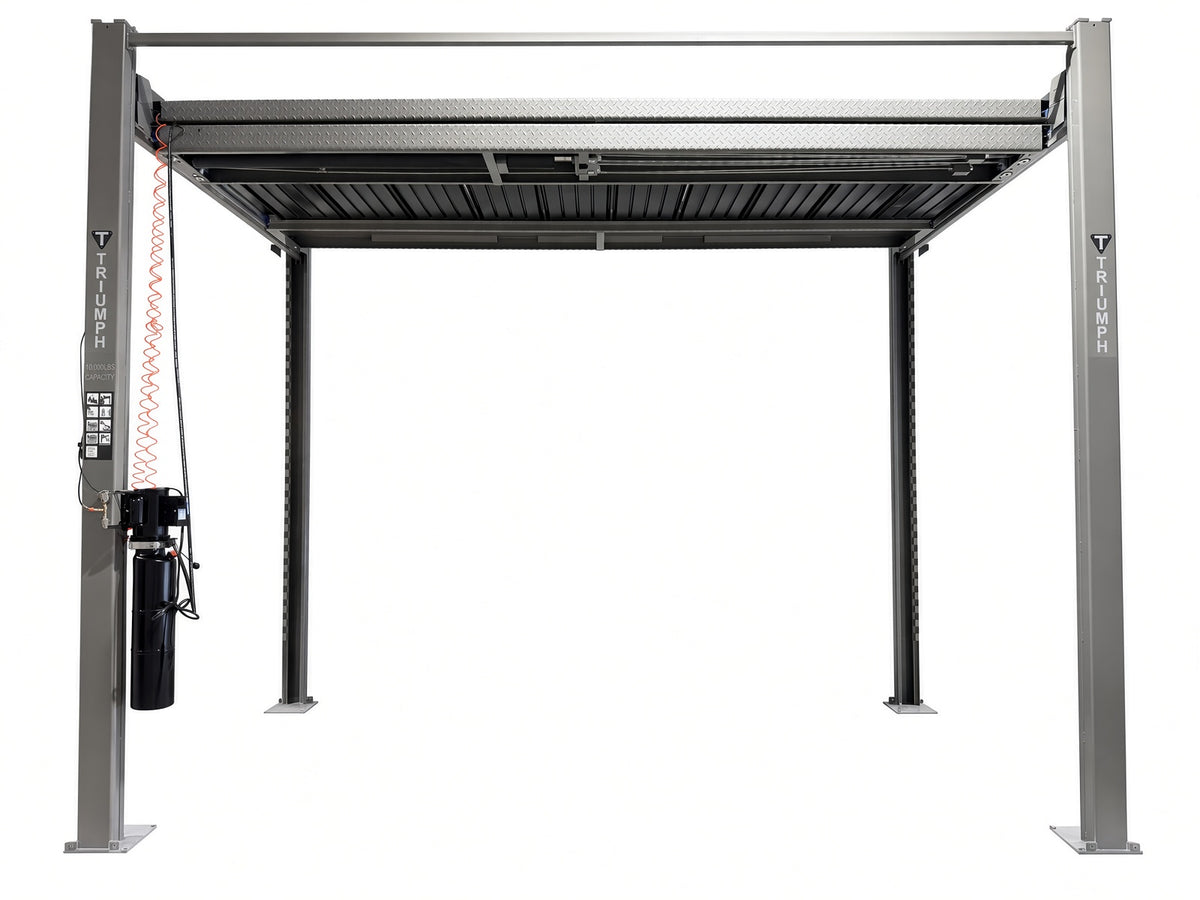

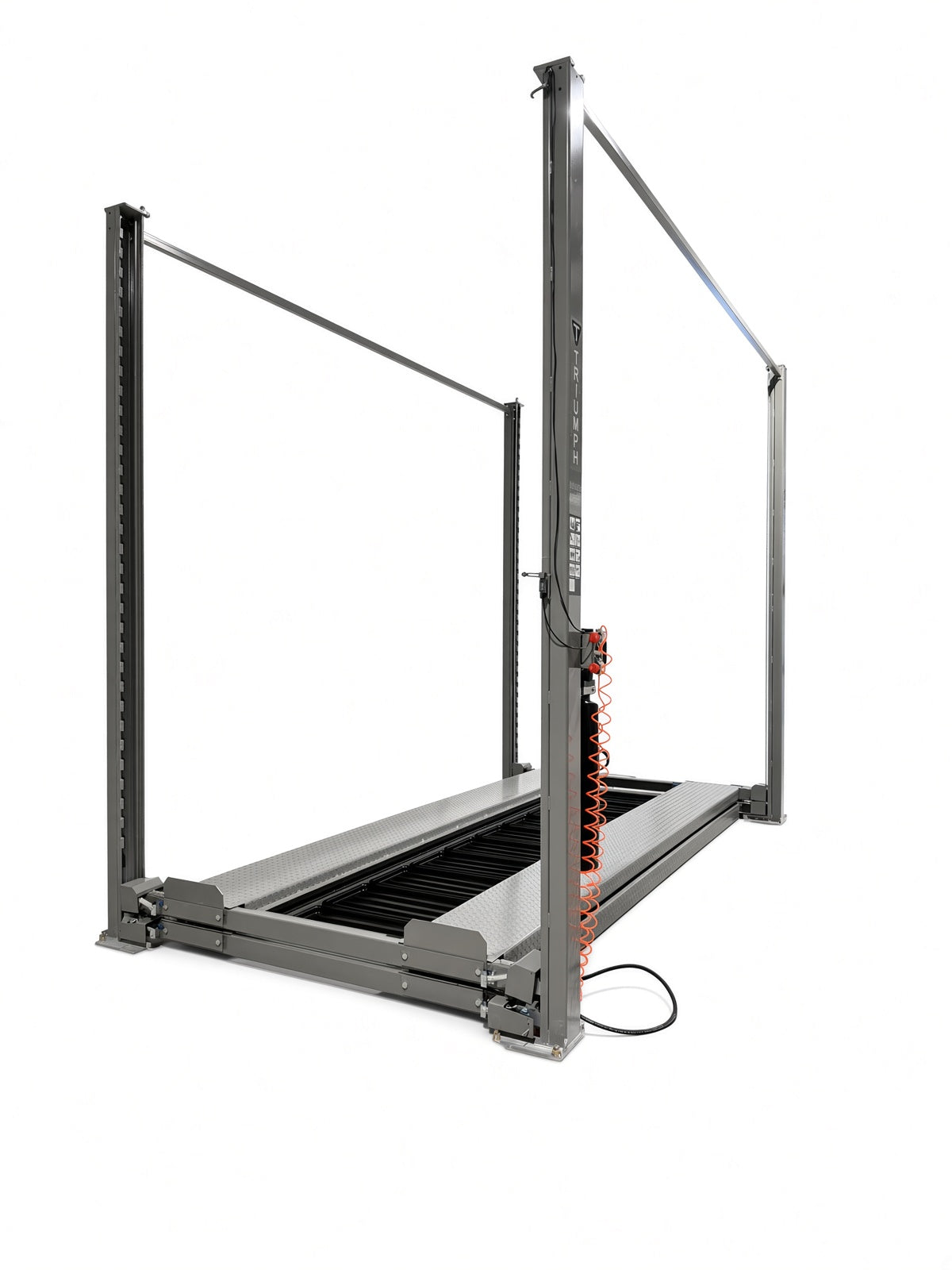

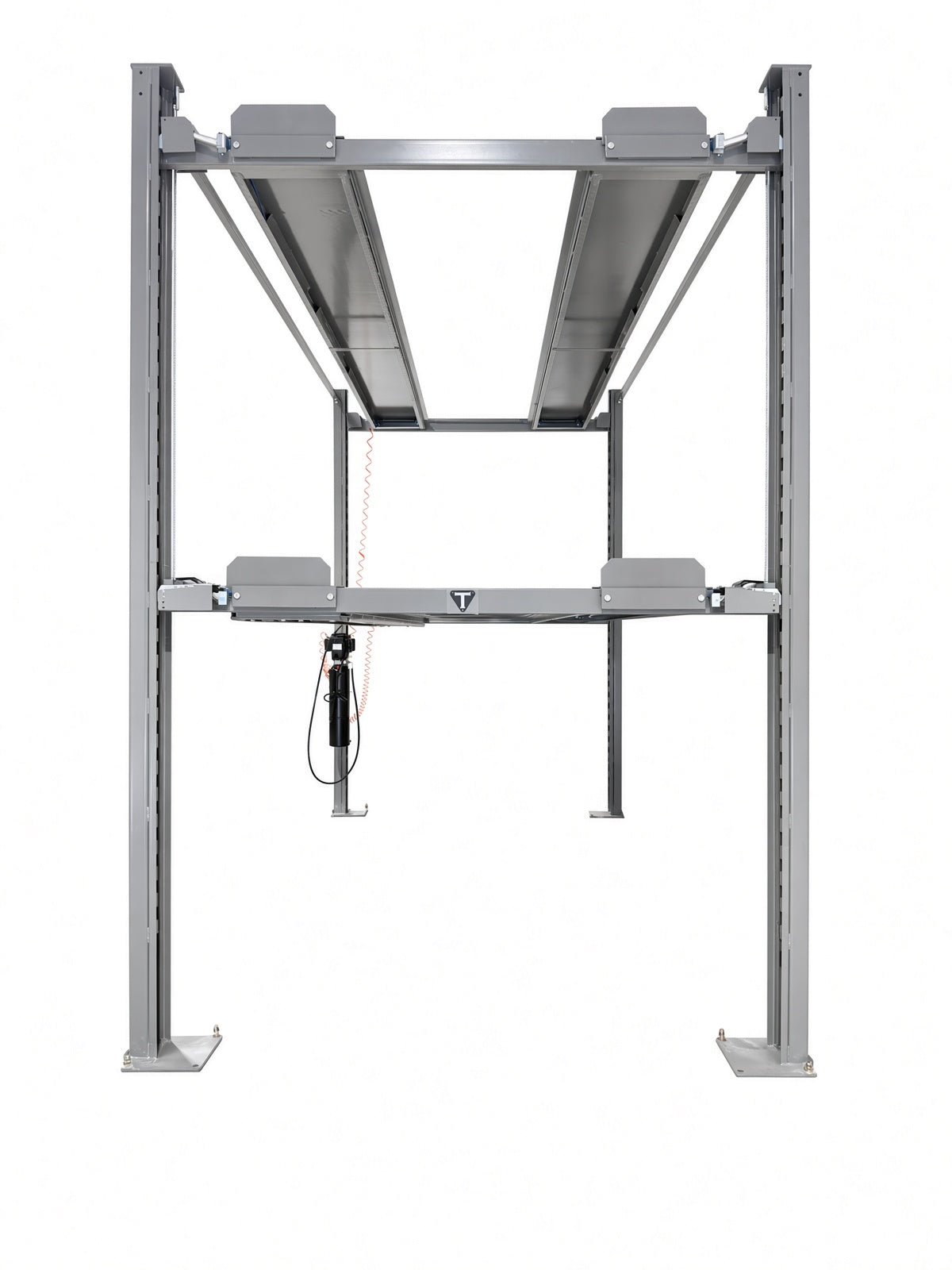

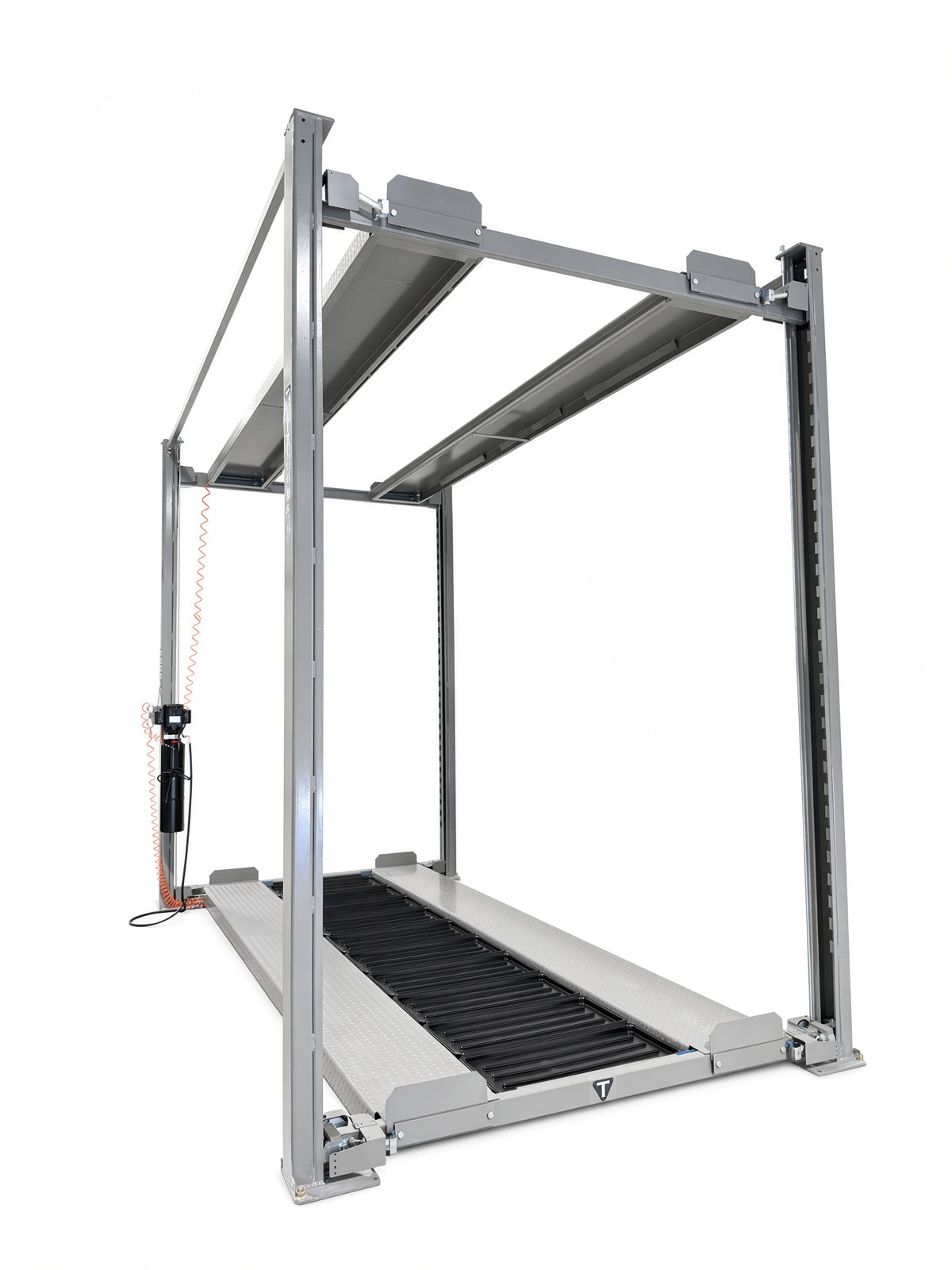

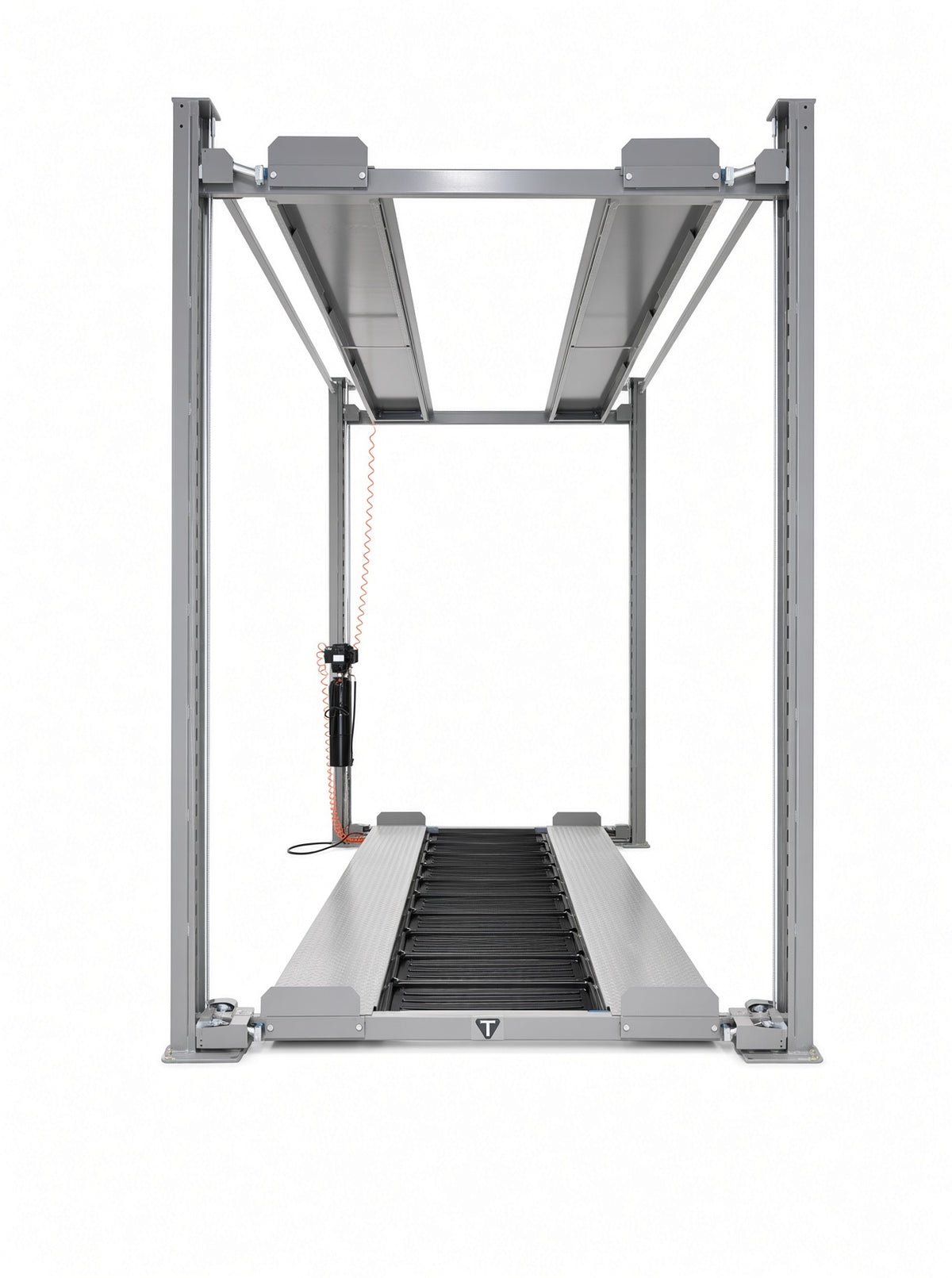

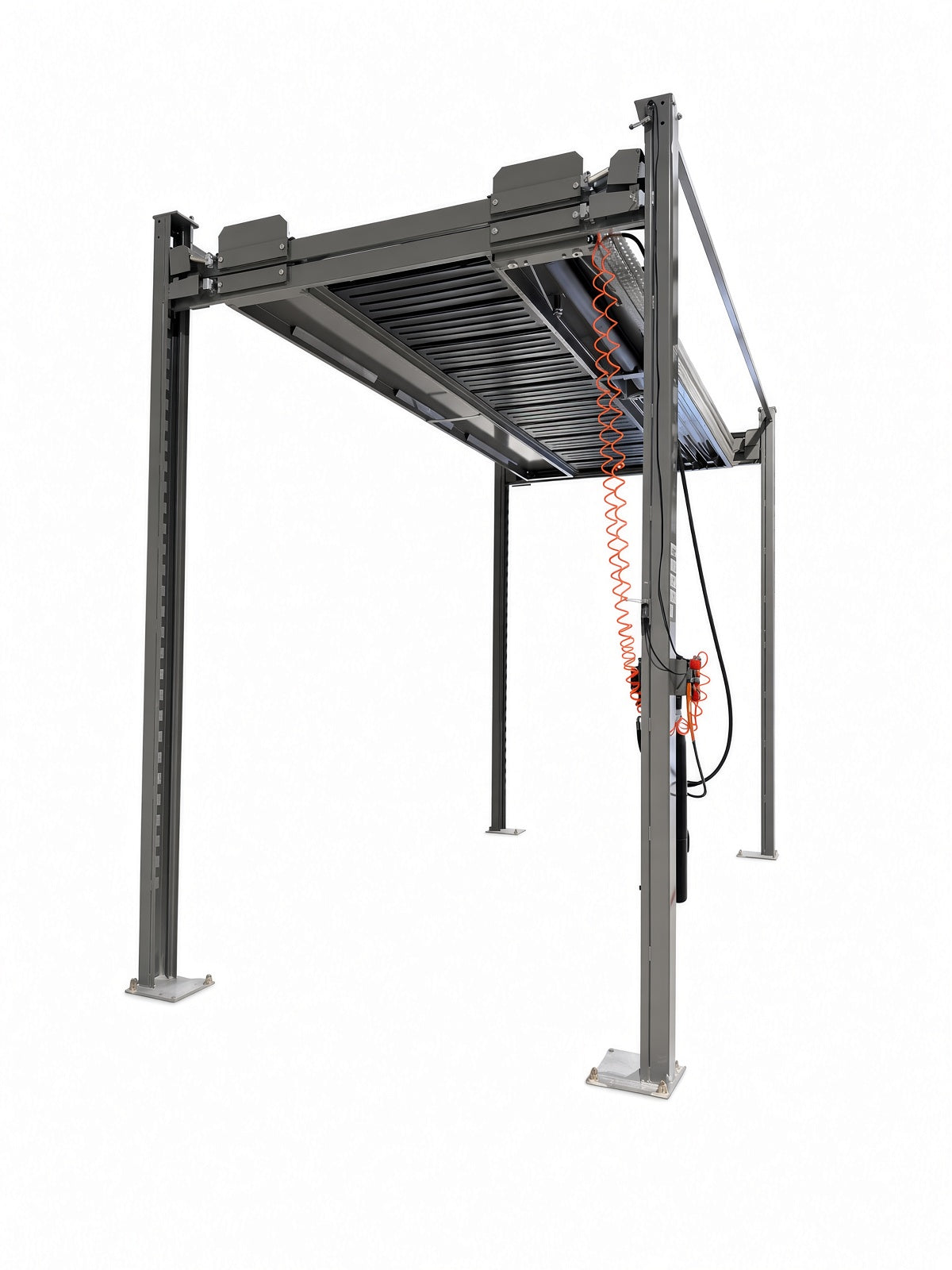

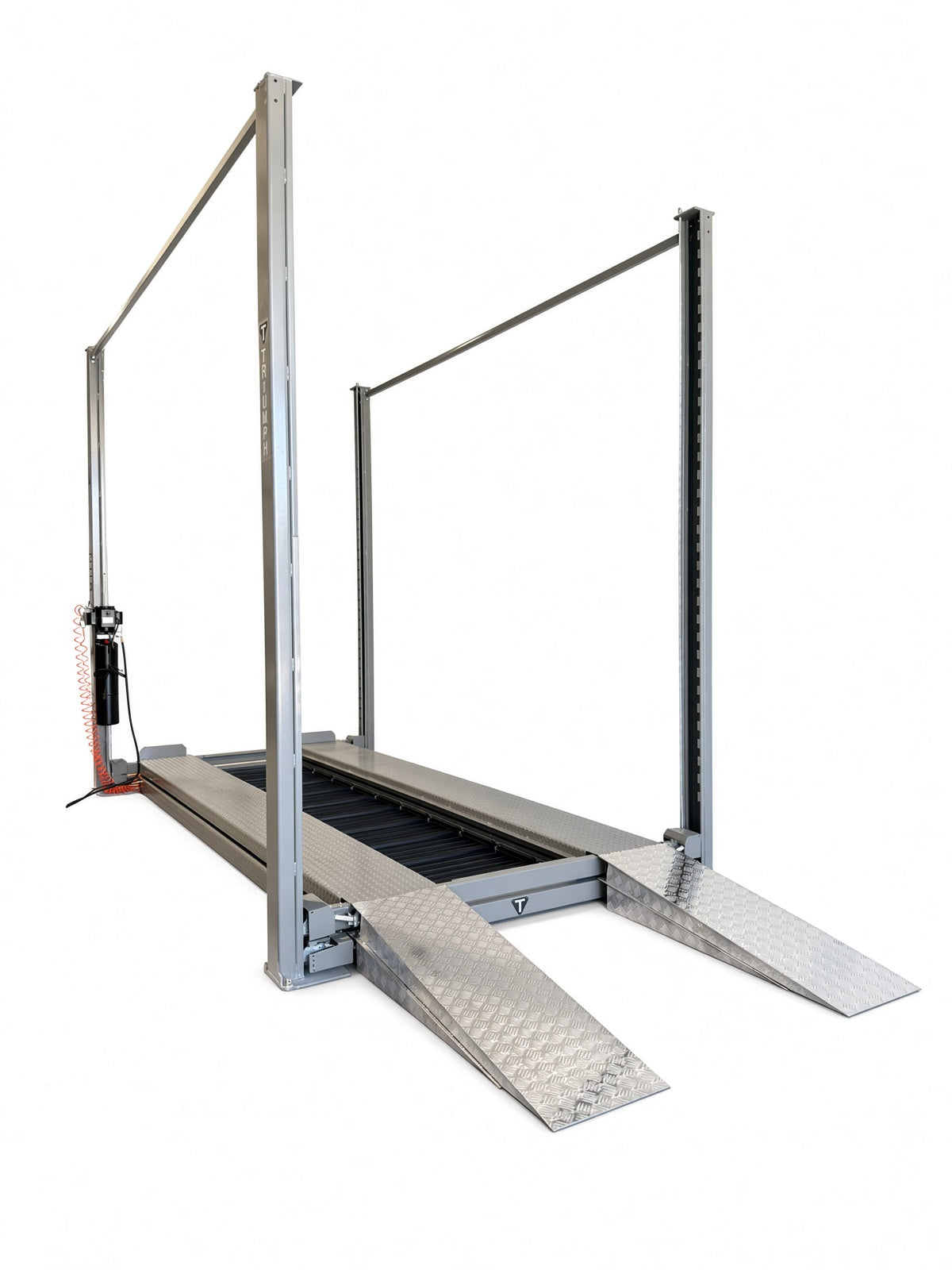

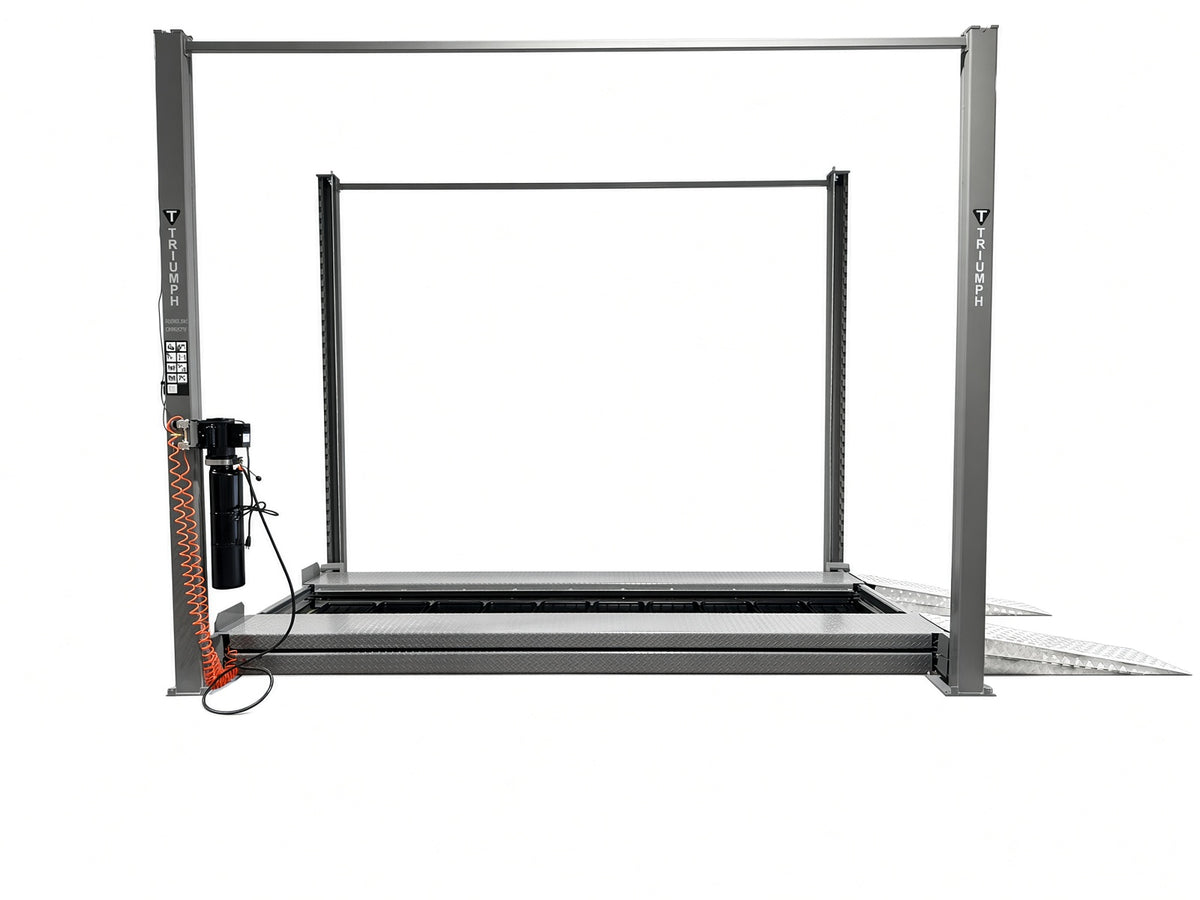

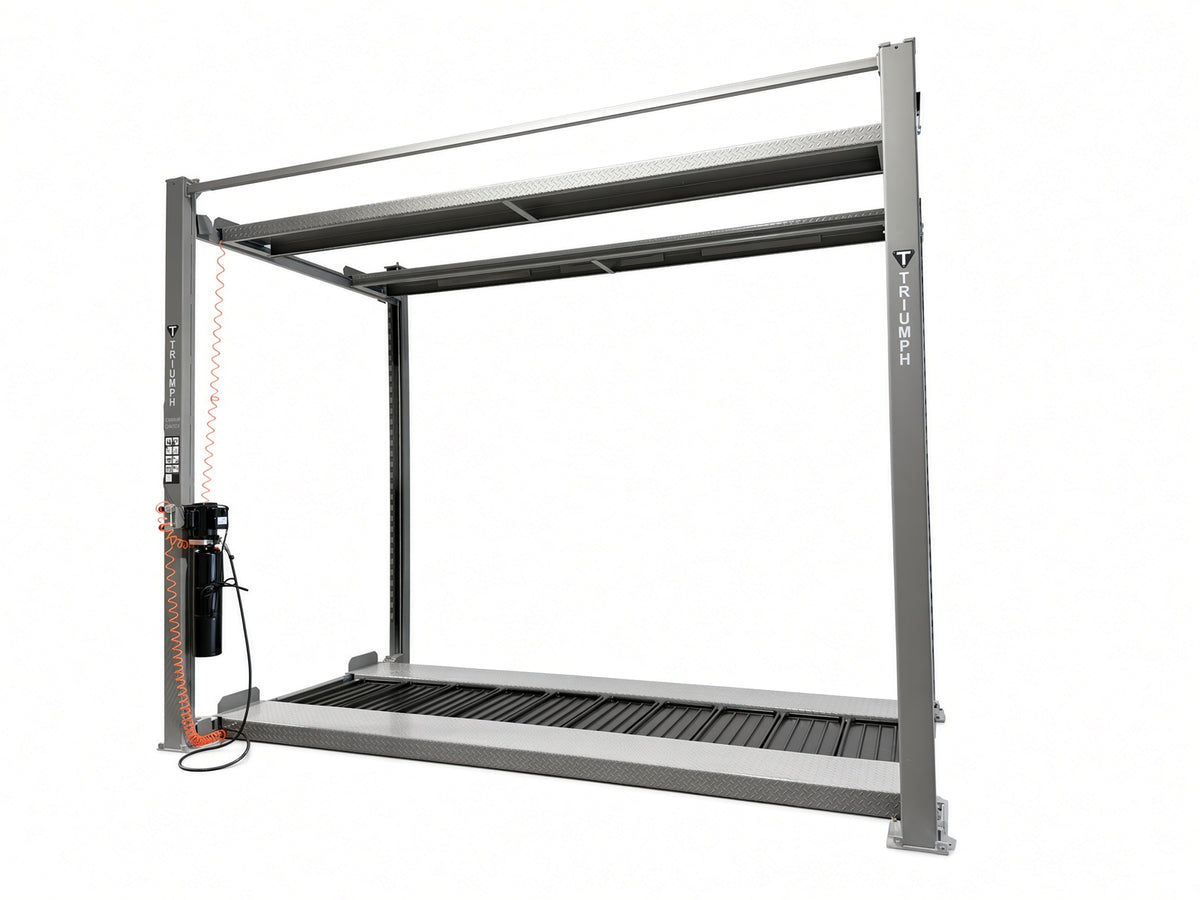

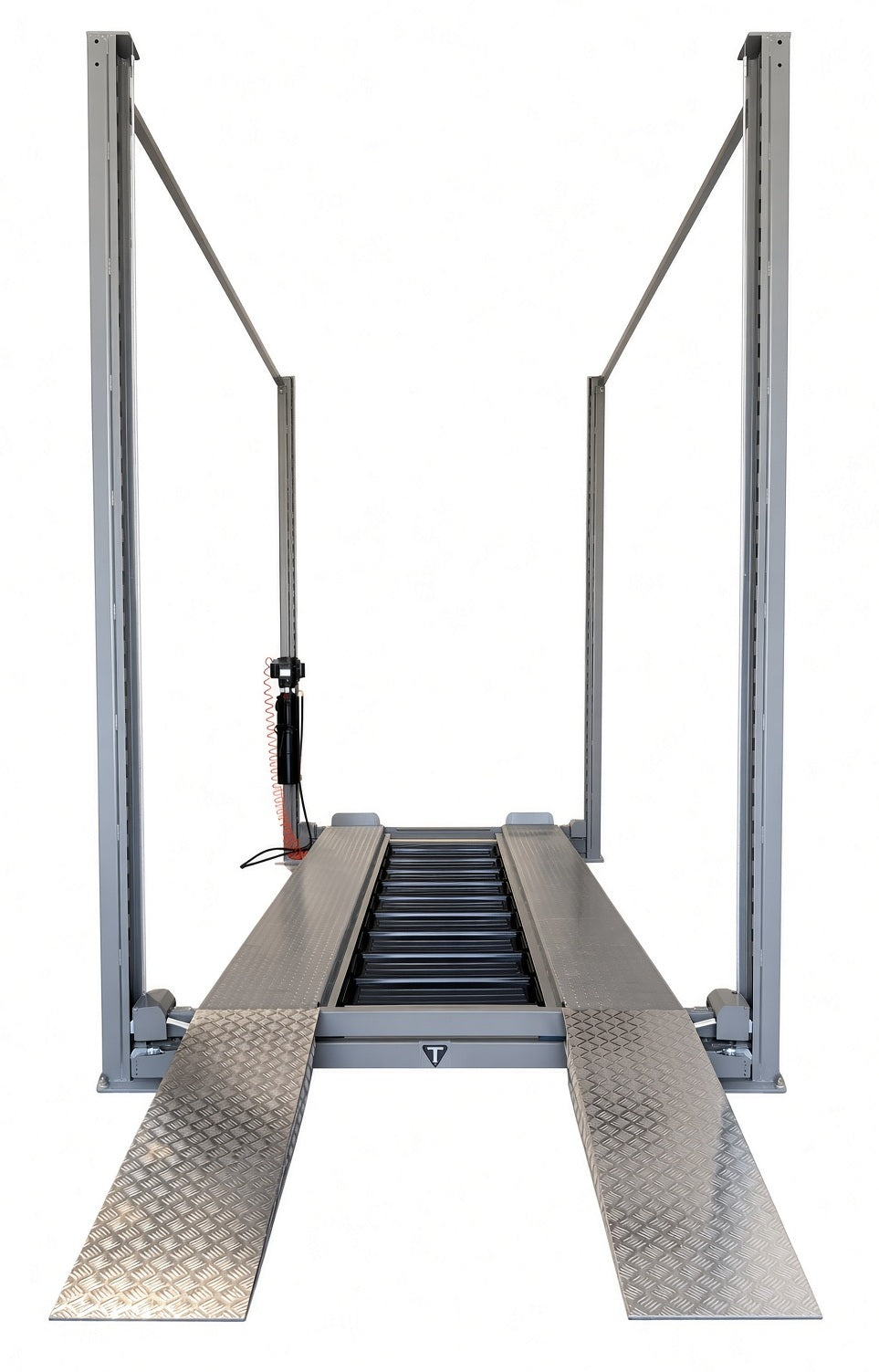

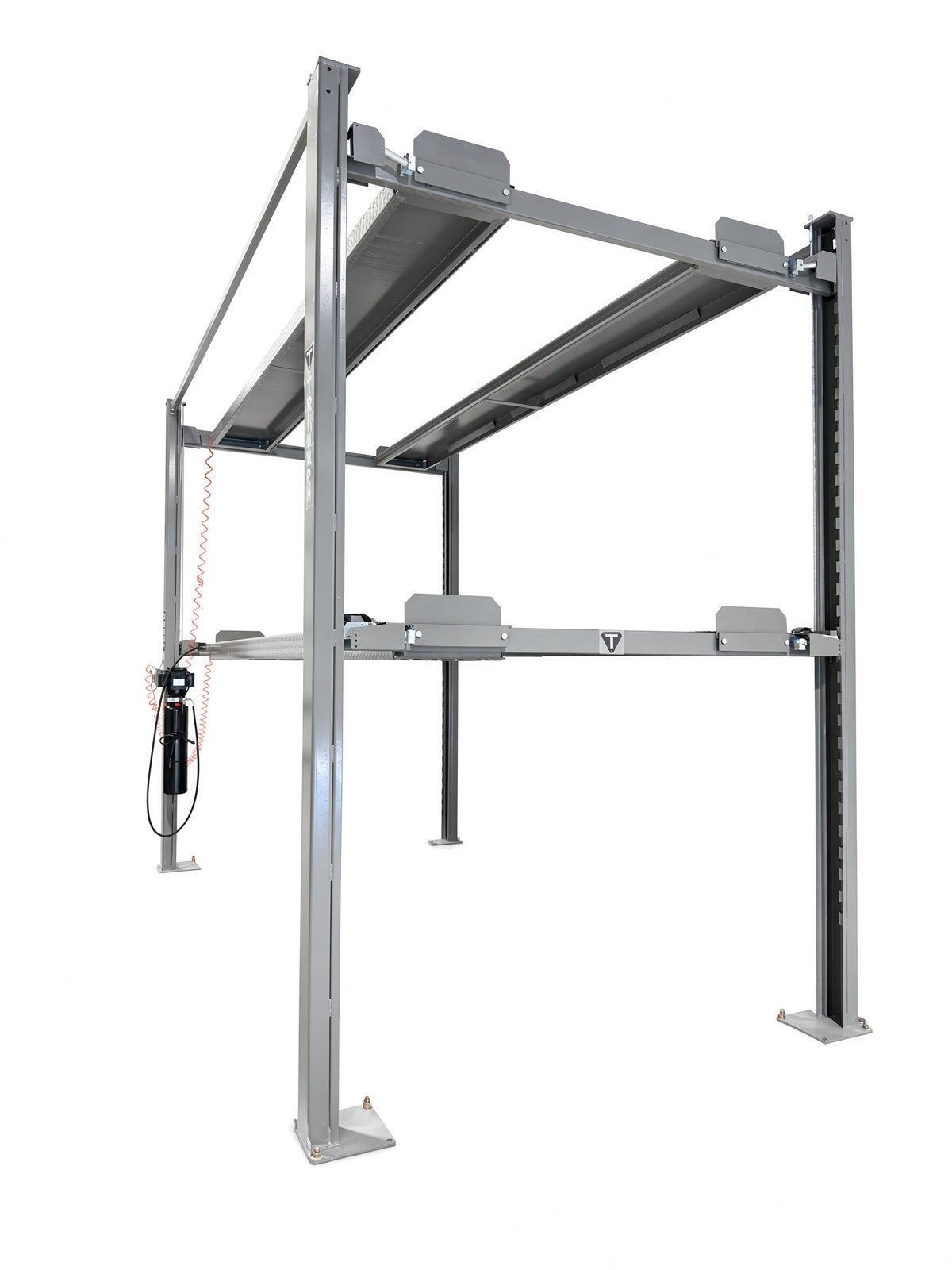

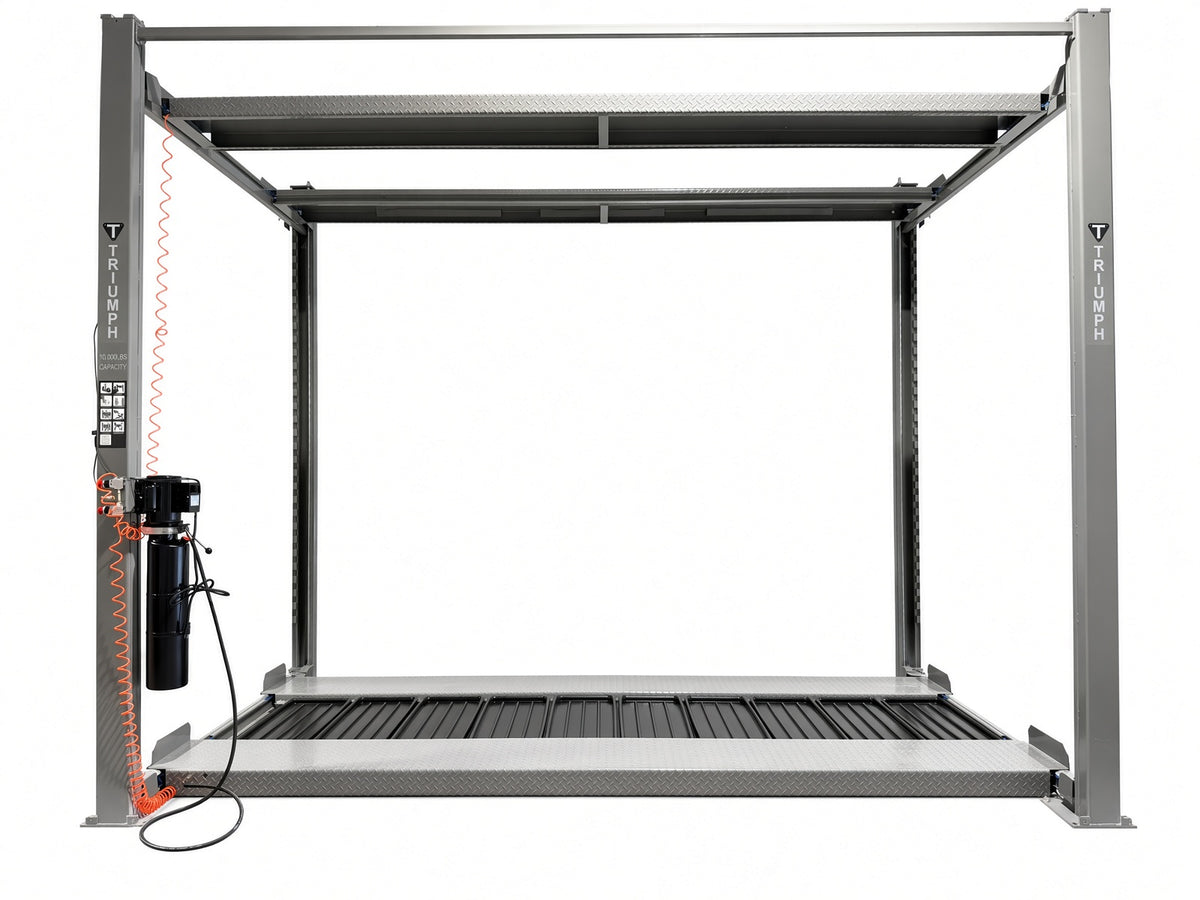

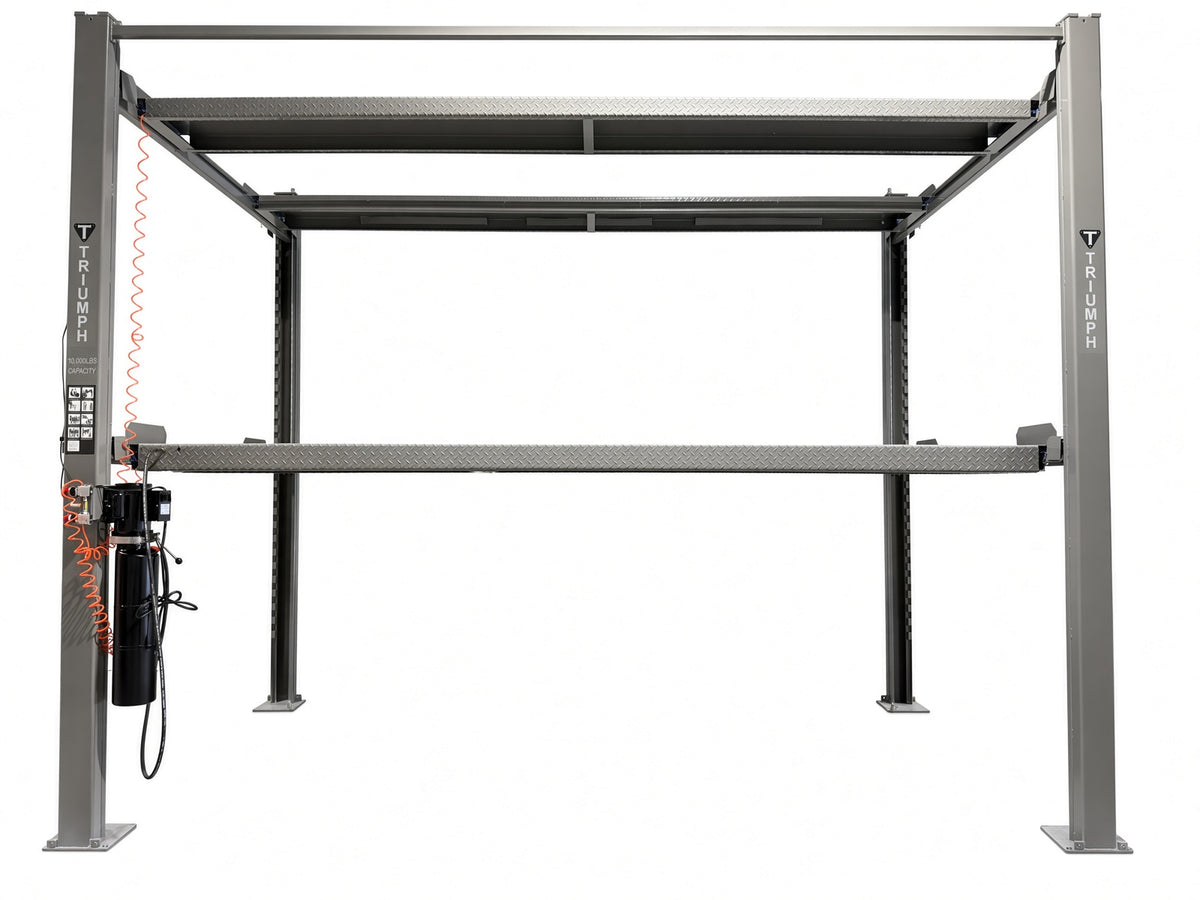

Double-stacker four-post storage lift that parks three vehicles in the footprint of one, two vehicles elevated on stacked runways and a third on the floor beneath them. Each runway is rated to 5,000 lb, for a combined 10,000 lb of lifting capacity, so a single bay becomes three parking spots for collector storage, a multi-car garage, or a shop that needs to keep extra vehicles off the ground.
Six drip trays sit between the decks so fluid from an upper vehicle stays off the one below it. Automatic electric locks engage as the runways rise, and a single-point 24-volt electric release lowers all locks together when you are ready to bring a vehicle back down. The lift runs on standard 110-volt power and ships in its standard grey finish.
Features
- Three vehicles, one footprint. Two cars park on the stacked runways with a third on the floor underneath, turning a single bay into three parking spots.
- 5,000 lb per runway. Each deck is rated to 5,000 lb, for 10,000 lb combined across the two elevated vehicles.
- Six drip trays included. Trays between the decks catch fluid from an upper vehicle before it reaches the vehicle below.
- Automatic electric locks. Locks engage automatically as the runways rise; a single-point 24-volt electric release lowers them together.

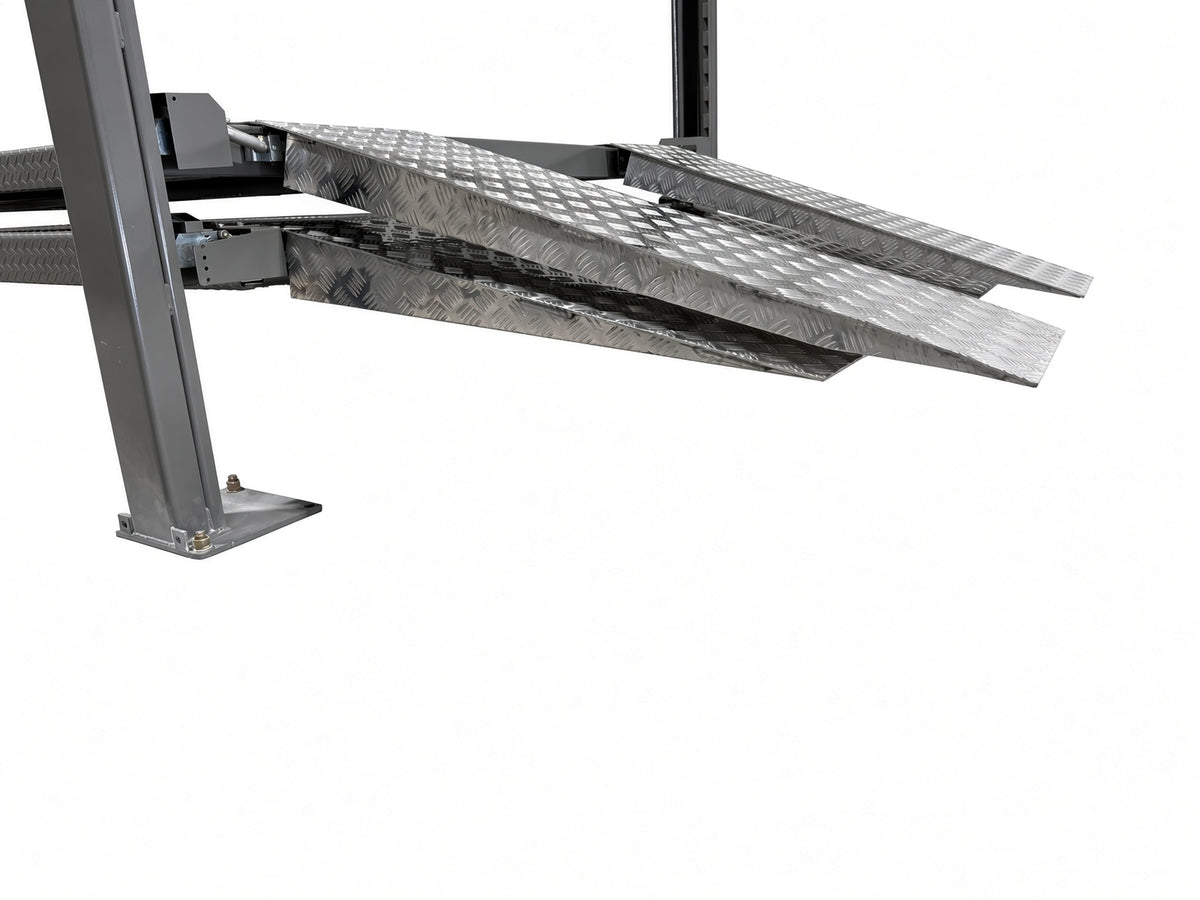

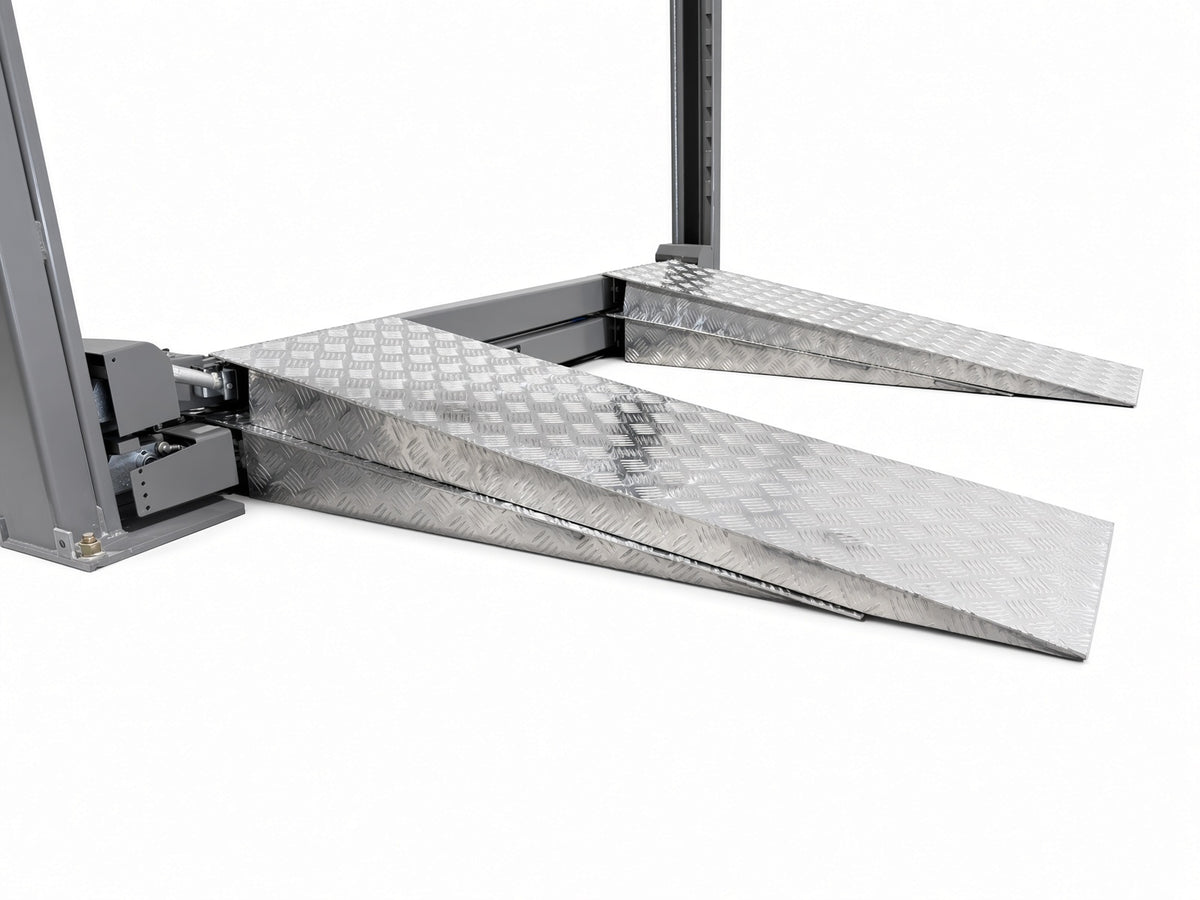

- Drive-through design. A 93-inch drive-through width and 180-inch runways let vehicles pull straight on and off.
- Low 5-inch lowered height. The runways drop to 5 inches at their lowest, easing drive-on for lower-clearance vehicles.
- Standard 110-volt power. Runs on a common 110-volt supply with a 125-second full lift time.

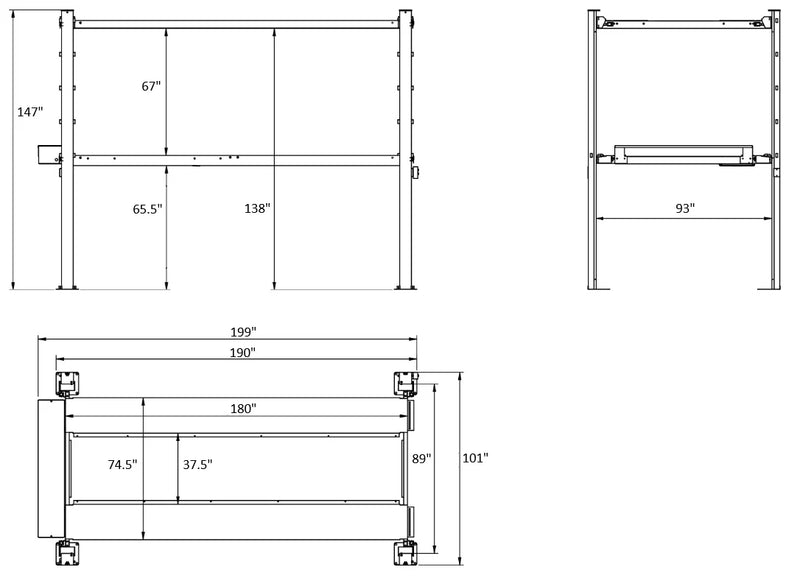

Specifications
| Triumph NSS-5x2 Specifications | |
|---|---|
| Capacity | 5,000 lb per vehicle (10,000 lb combined) |
| Lift Height | 143" top runway, 71" middle runway |
| Height Under Runway | 65.5" |
| Overall Height | 147" |
| Overall Length (without approach ramps) | 199" |
| Overall Length (with approach ramps) | 225" |
| Overall Width | 101" |
| Drive-Through Width | 93" |
| Runway Length | 180" |
| Runway Width | 19" |
| Between Runways | 37.5" |
| Lowered Height | 5" |
| Lock Release | Single-point 24-volt electric |
| Lift Time | 125 seconds |
| Power | 110 volts |
| Shipping Weight | 3,500 lb |
Pick Up Locations:
Warranty
Triumph lifts carry a 1-year parts warranty (parts only, no labor). If a covered part fails, call MGS to troubleshoot the problem over the phone; the replacement part and ground shipping are both free. Labor to install the replacement is not covered, though most repairs are straightforward for a mechanic to handle.
Hydraulic cylinders carry a 30-day full warranty; after 30 days, a seal kit is provided. Rubber lifting pads are not covered.
FAQ
How many vehicles does the NSS-5x2 hold?
Three. Two vehicles park on the stacked runways and a third parks on the floor underneath, all within a single bay.
How much weight does each level carry?
Each runway is rated to 5,000 lb, for 10,000 lb combined across the two elevated vehicles.
How much ceiling height do I need?
The upper runway carries a vehicle to a 143-inch lift height, and the lift's overall height is 147 inches (12 feet 3 inches). Confirm your ceiling clears the vehicle you plan to store on the top deck before ordering.
What are the power requirements?
The NSS-5x2 runs on standard 110-volt power. Lock release is a single-point 24-volt electric system, and a full lift cycle takes about 125 seconds.
