Stratus SAE-C10X Extra Wide Asymmetric & Symmetric 2-In-1 Clear Floor Direct Drive 10,000 LBS Capacity Single Point Manual Release Car Lift
Meet the Stratus Lift 2-In-1 Clear Floor Car Lift SAE-C10X! This impressive 2-Post Clear Floor Car Hoist combines both asymmetric and symmetric lifting capabilities. It's not just versatile - with 10,000 lbs capacity, it's also incredibly strong. Its direct drive is powered by a single-point manual release, giving you optimal control over your lift. Plus, its extra-wide design means it can handle all shapes and sizes of vehicles. Designed with a clear floor, this extra-wide 2-post lift gives you an unobstructed workspace underneath the car. It's the perfect addition to any garage or workshop space!

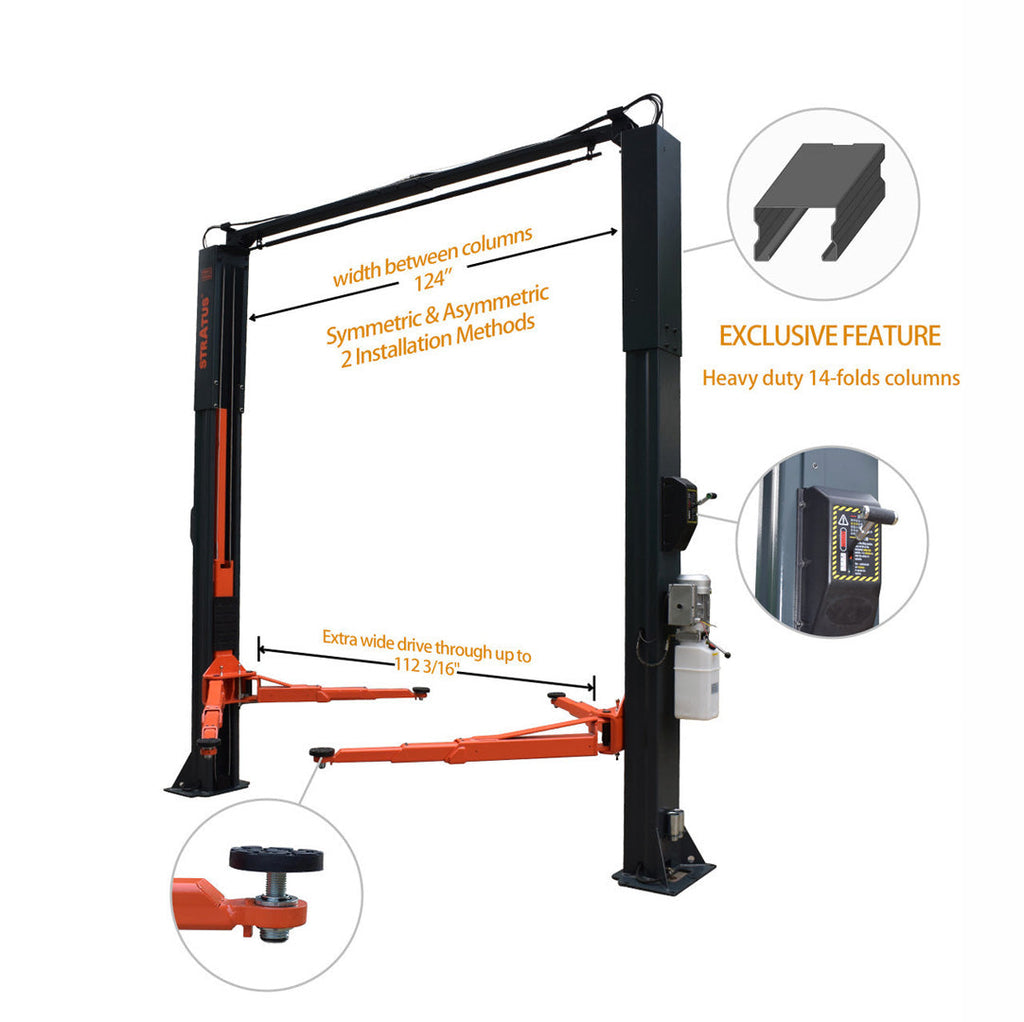

- Extra wide drive-through:
- -112”- Symmetrical
- -107 11/16"- Asymmetrical
- Heavy-duty 14-fold columns
- Clear floor
- Symmetric & Asymmetric 2-in-1 design
- Electric safety lock release
- Direct drive
- 2 top limiter switches
- Anti-surge valves
- Automatic arms restraints
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Includes

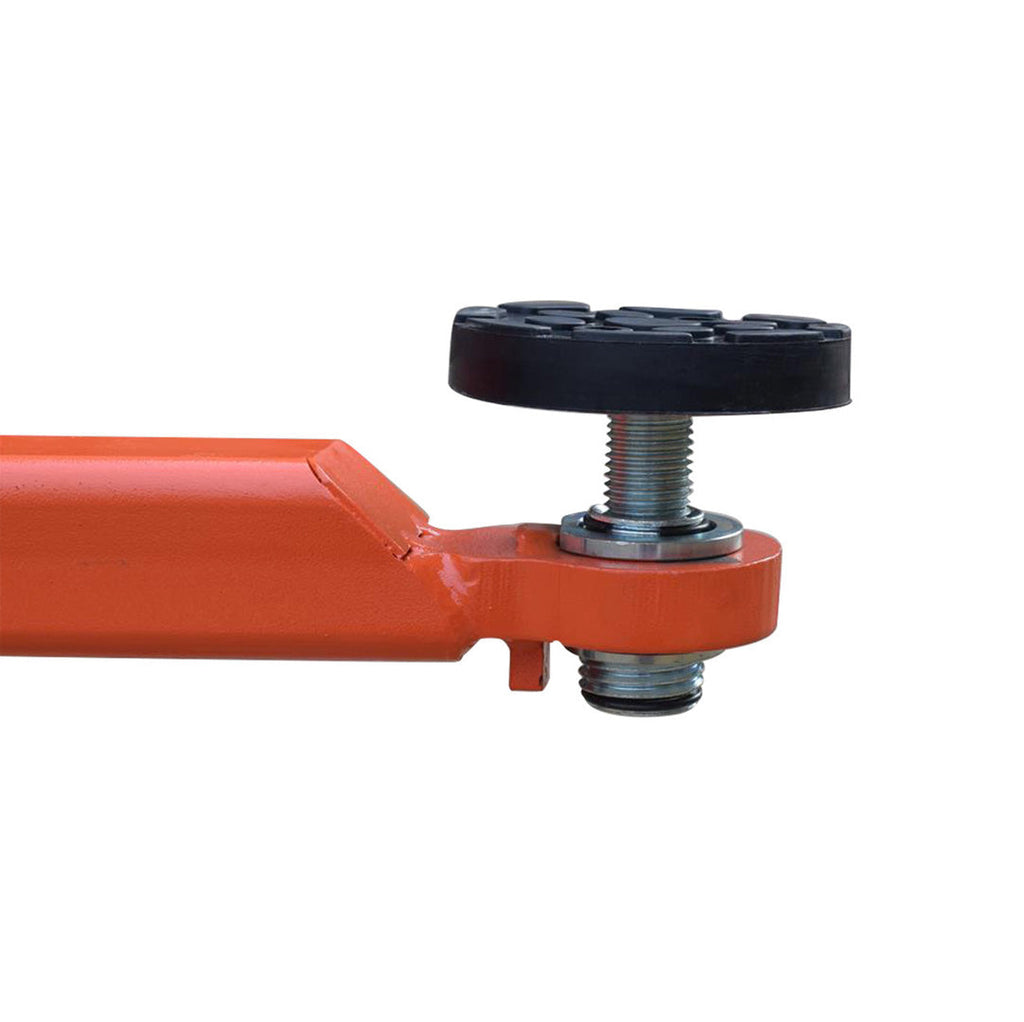

4pcs Screw-up rubber pads - Peg 50mm (4")
4pcs 4" Truck Adaptors - Peg 50mm (4")

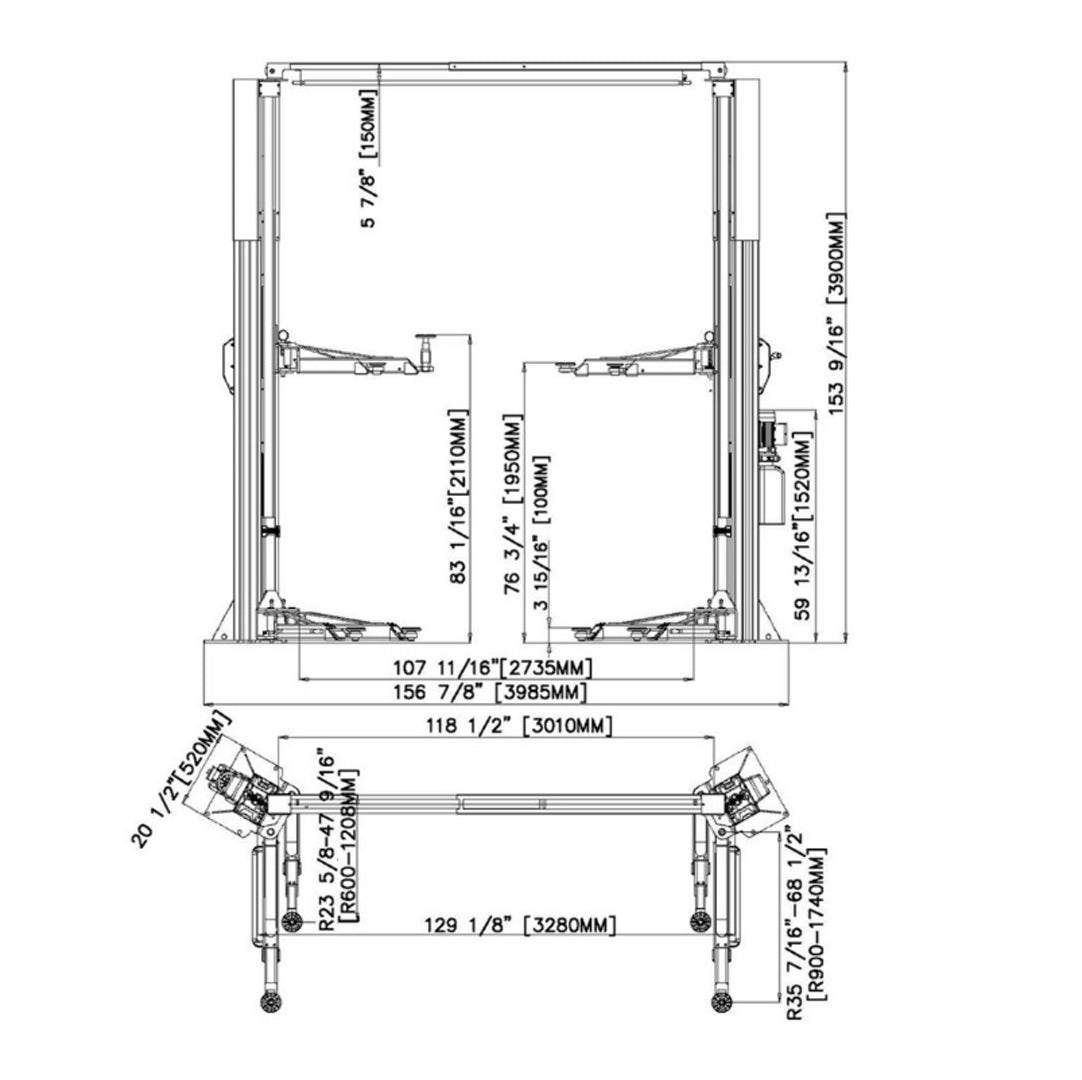

| Model - SYMMETRICAL | SAE-C10X |
| Capacity | 10,000 lbs |
| Max Lifting Height with Adaptors |
83 1/16"(2110mm) |
|
Min Lifting Height with Adaptors |
10 1/4" (261mm) |
|
Max Lifting Height without Adaptors |
76 3/4" (1950mm) |
|
Min Lifting Height without Adaptors |
3 15/16" (100mm) |
|
Rise Time |
~50 sec |
|
Overall Height |
153 9/16" (3900mm) |
|
Overall Width |
20 1/2" (520mm) |
|
Overall Length |
150 13/16" (3900mm) |
| Inside Columns | 124" (3150mm) |
| Drive Through | 112 3/16 (2850mm) |
| Front Arm Reach Max |
68 1/2" (1740) |
| Front Arm Reach Min | 35 7/16" (900) |
| Rear Arm Reach Max | 47 9/16" (1208) |
| Rear Arm Reach Min | 23 5/8" (600) |
| Motor | 3 HP, 220V, 60 HZ, 1PH |
| Oil | AW32 or AW46 |
| Breaker | 30A |
| Weight | 1718 lbs |
| Dimensions Flat | 115"L x 29"W x 35"H |
| Dimensions Tall | 117"L x 29"W x 44"H |
| Drive Thru | 107 1/4" (2724mm) |
| Requirements | 6" - 3000 psi |
| Model - ASYMMETRICAL | SAE-C10X |
| Capacity | 10,000 lbs |
| Max Lifting Height with Adaptors |
83 1/16"(2100mm) |
|
Min Lifting Height with Adaptors |
10 1/4" (261mm) |
|
Max Lifting Height without Adaptors |
76 3/4" (1950mm) |
|
Min Lifting Height without Adaptors |
3 15/16" (100mm) |
|
Rise Time |
~50 sec |
| Overall Height | 153 9/16" (3900mm) |
| Overall Width | 20 1/2" (520mm) |
| Overall Length | 156 7/8" (3985mm) |
| Front Arm Reach Max | 107 11/16" (2735mm) |
| Front Arm Reach Min | 35 7/16" (900mm) |
| Rear Arm Reach Max | 47 9/16" (1208mm) |
| Rear Arm Reach Min | 23 5/8" (600mm) |
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
