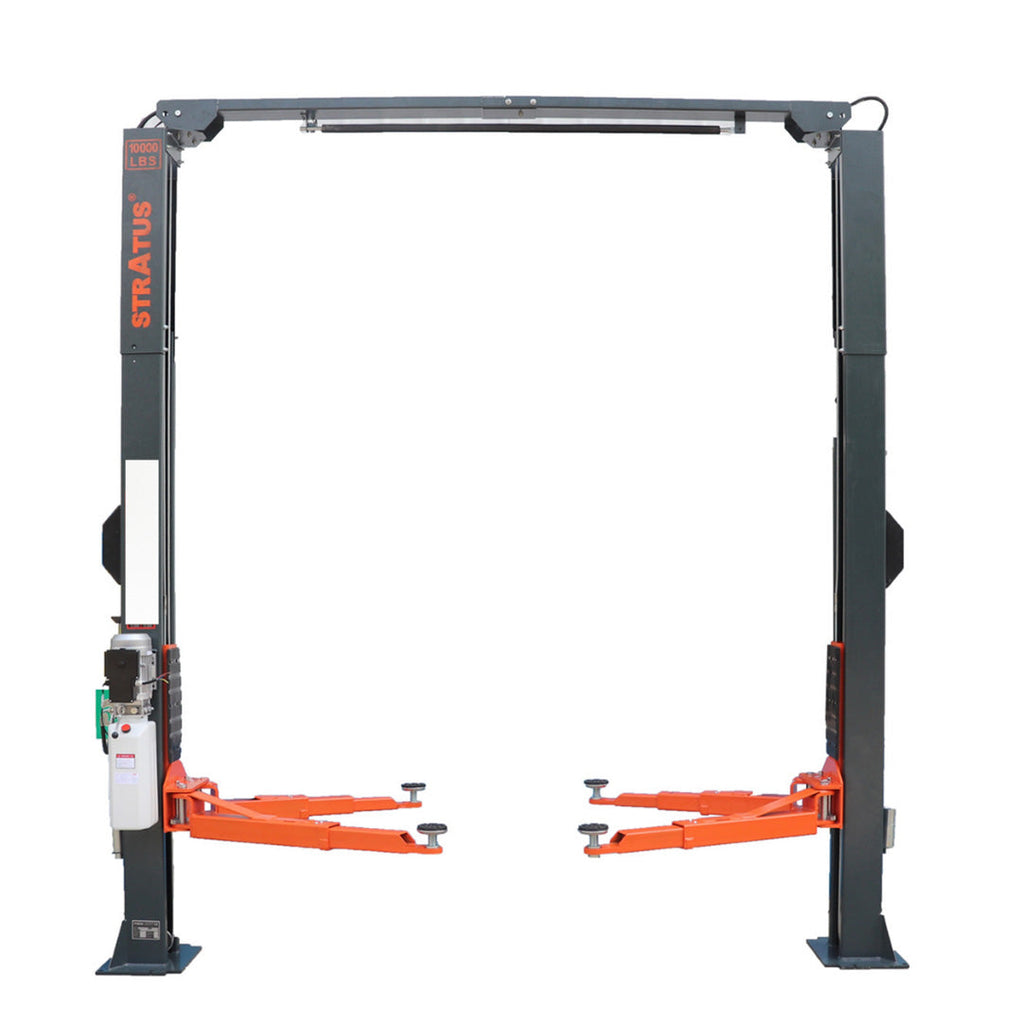

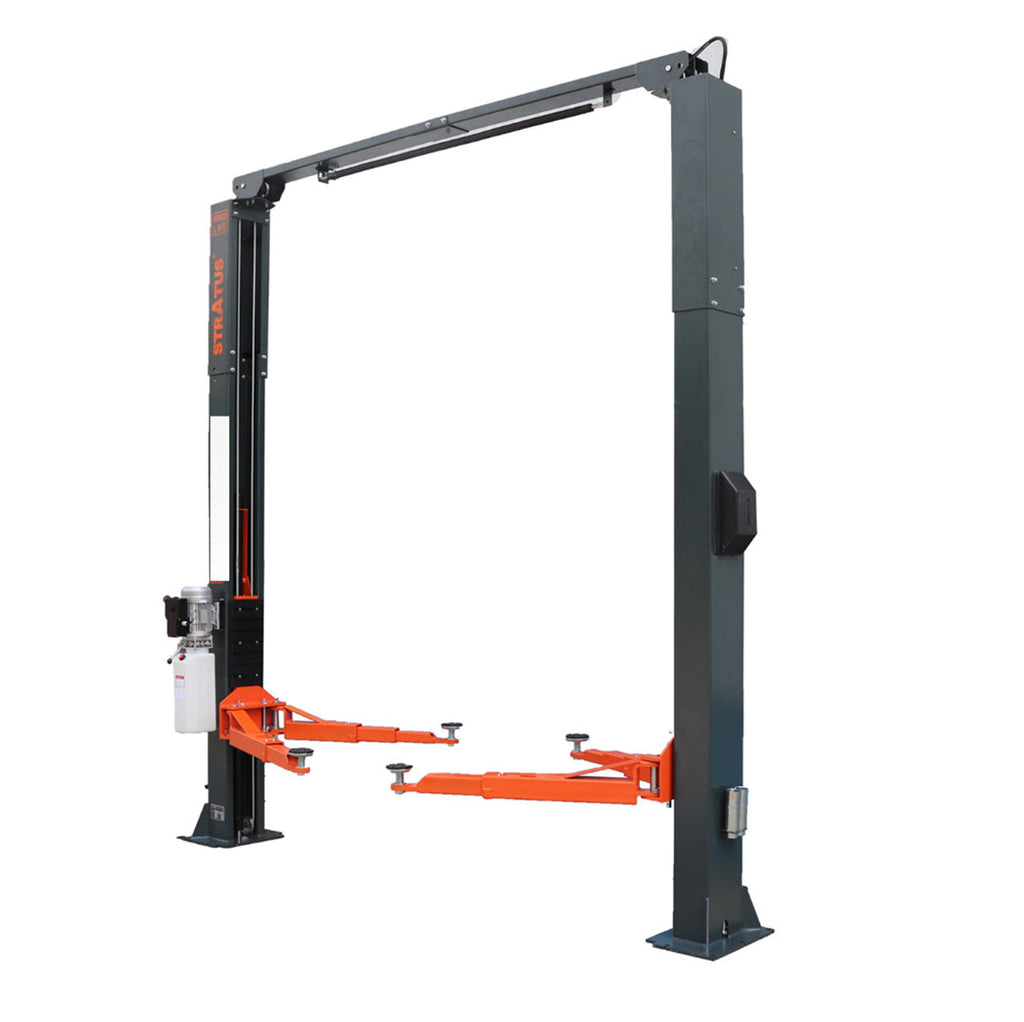

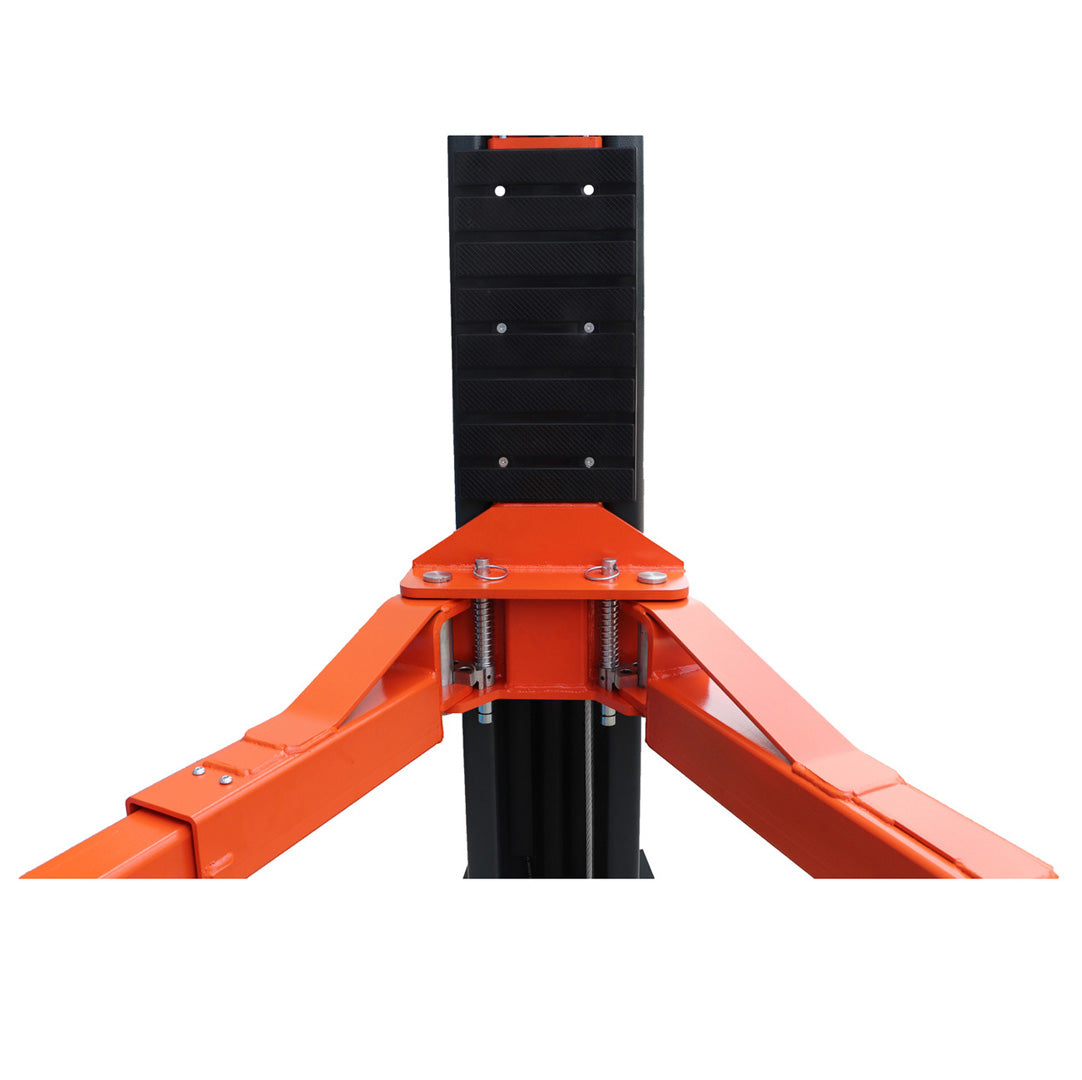

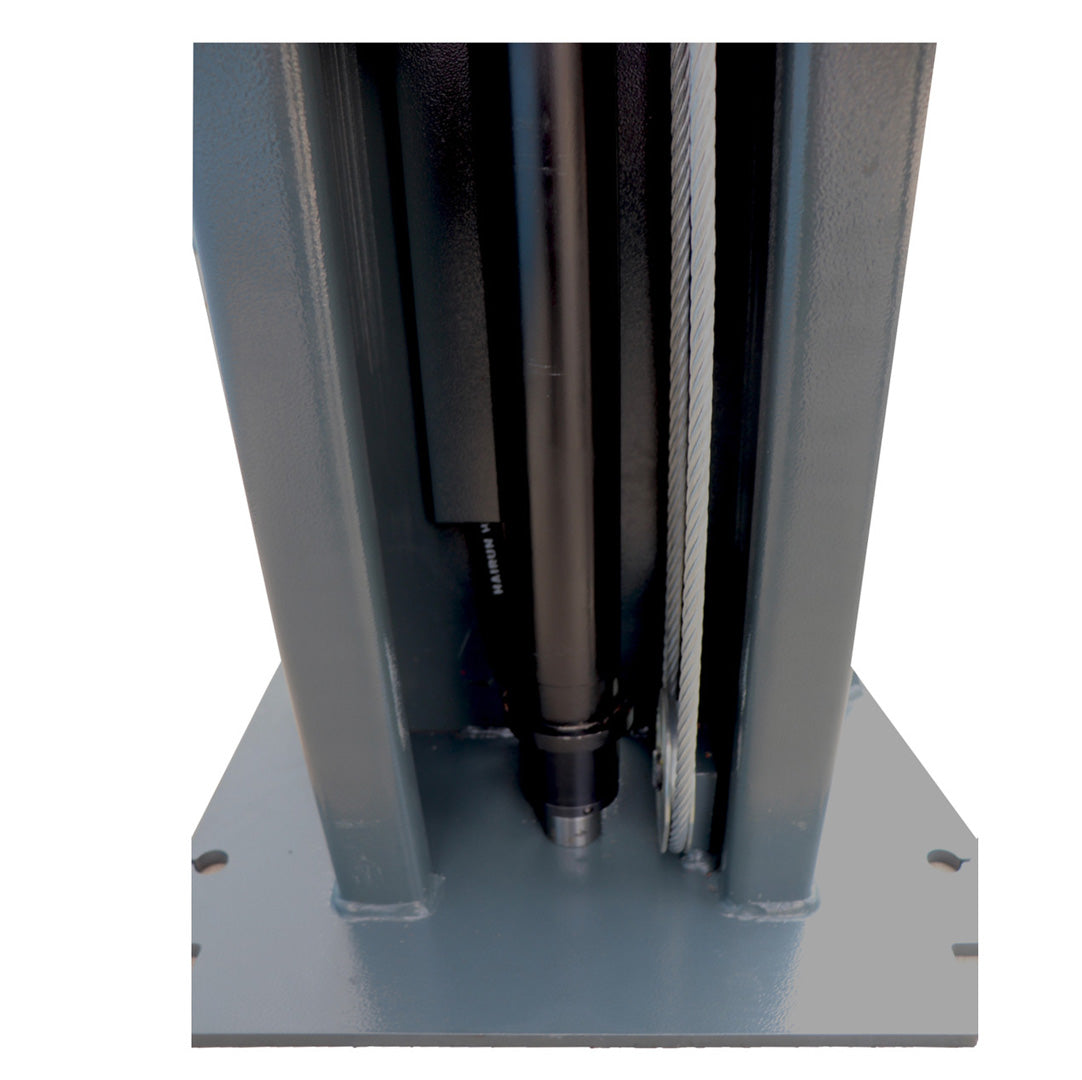

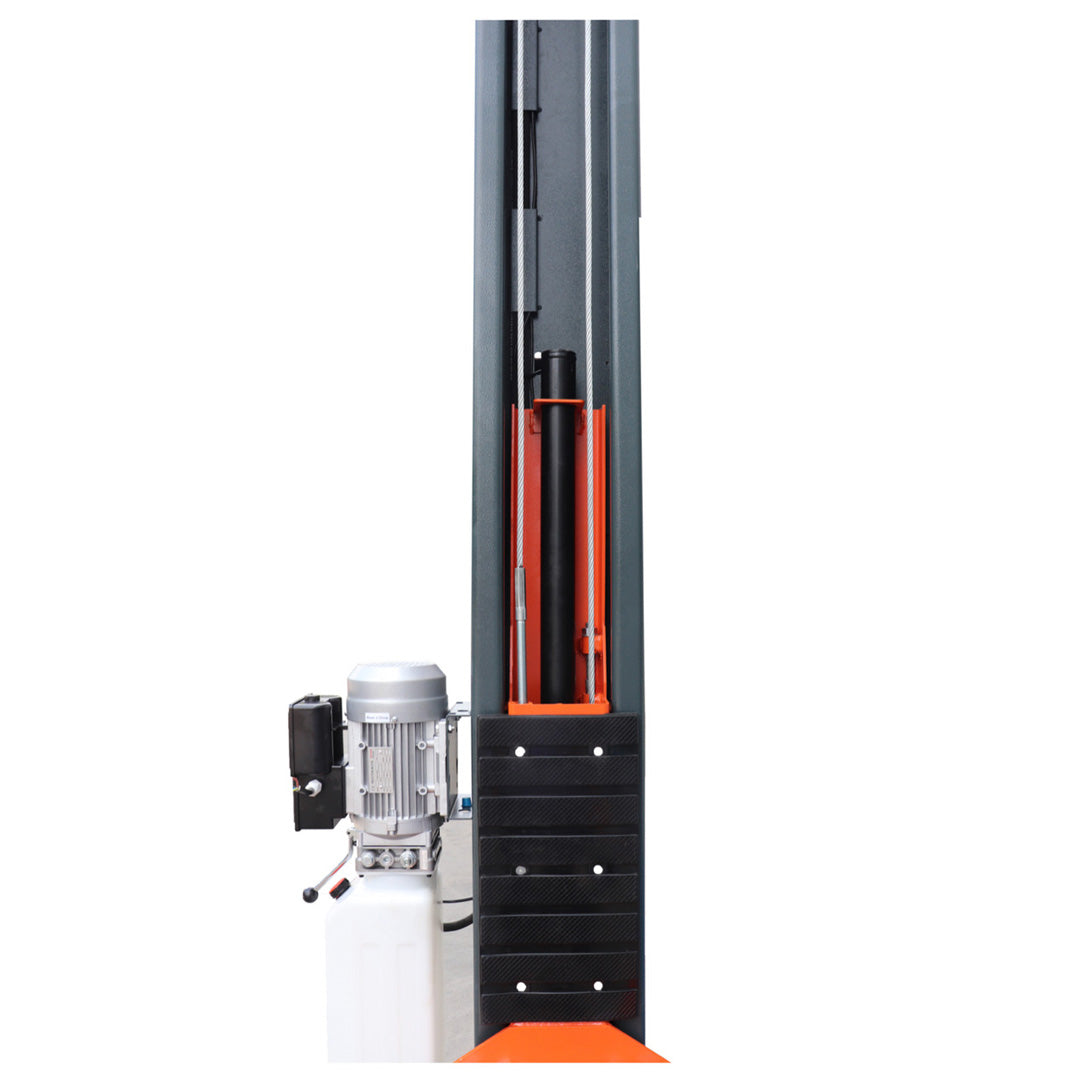

Stratus SAE-C10P Pro Asymmetric & Symmetric 2-in-1 Clear Floor Direct Drive 10,000 LBS Capacity Single Point Manual Release Car Lift
The Stratus Pro Asymmetric & Symmetric 2-in-1 Clear Floor Direct Drive 10,000 lbs capacity Car Lift. With its two-post design and a clear floor feature, it’s about to become your garage’s best friend. Its robust capacity of 10,000 lbs makes it versatile for a range of vehicles. The single-point manual release offers convenience and safety. Buy this 2-post clear floor car hoist and see the difference yourself!
- Installation methods: Symmetric & Asymmetric
- Overhead / Clear floor design

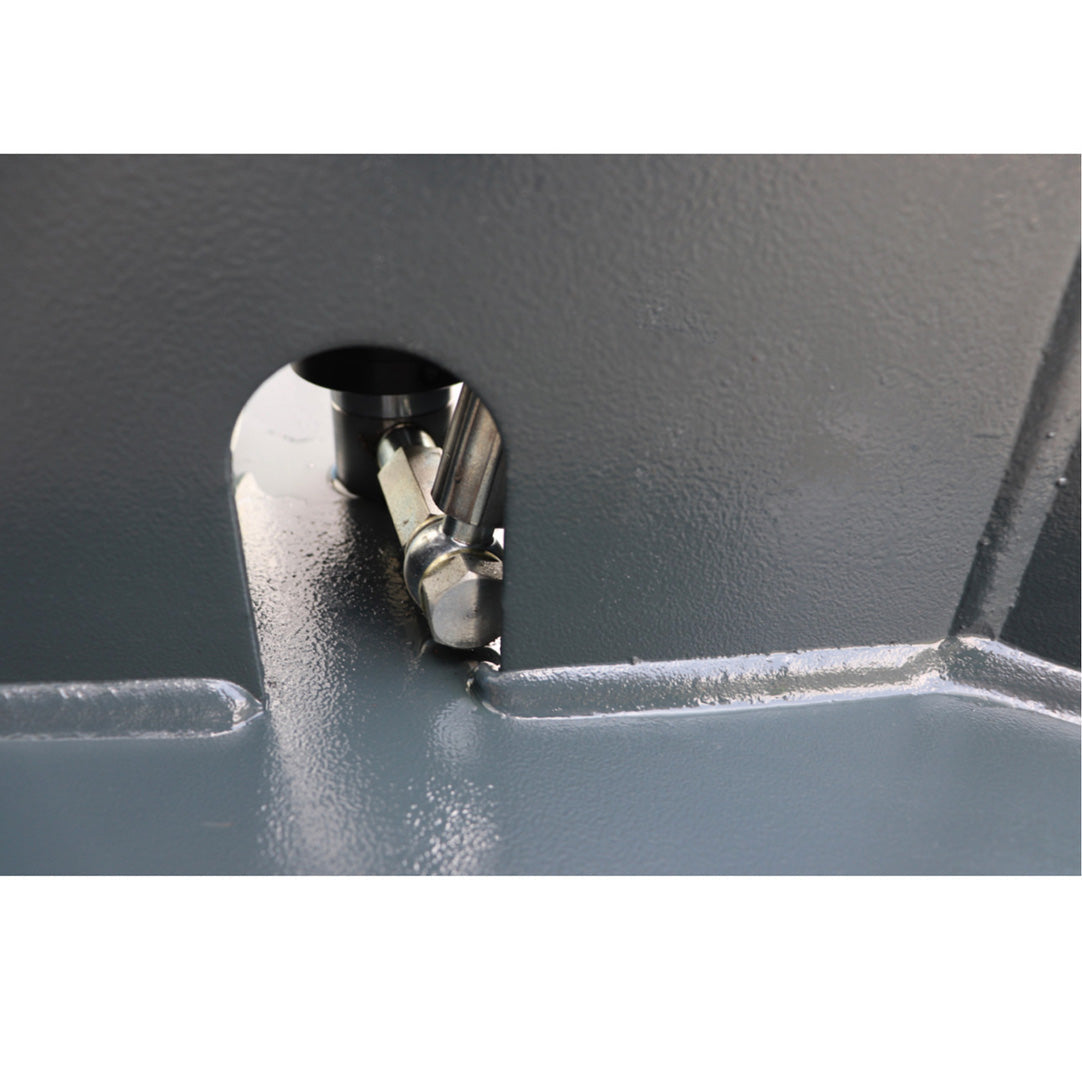

- Single-point manual release
- Direct Drive
- 2 Top limiter switch
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Includes
4pcs Screw-up rubber pads - Peg 50mm (4")

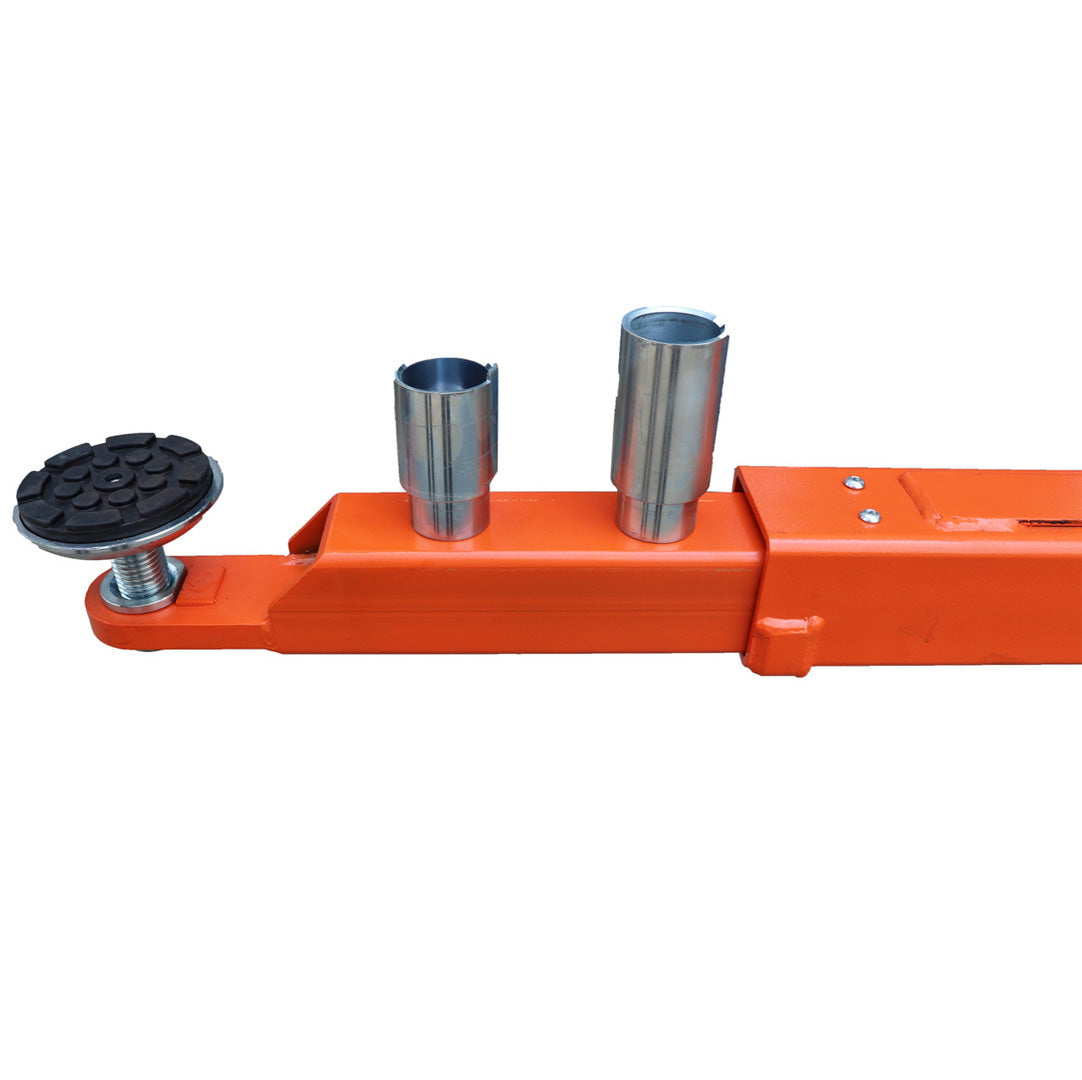

8pcs Truck Adapators - 4pcs of each height 2 3/4" & 4"

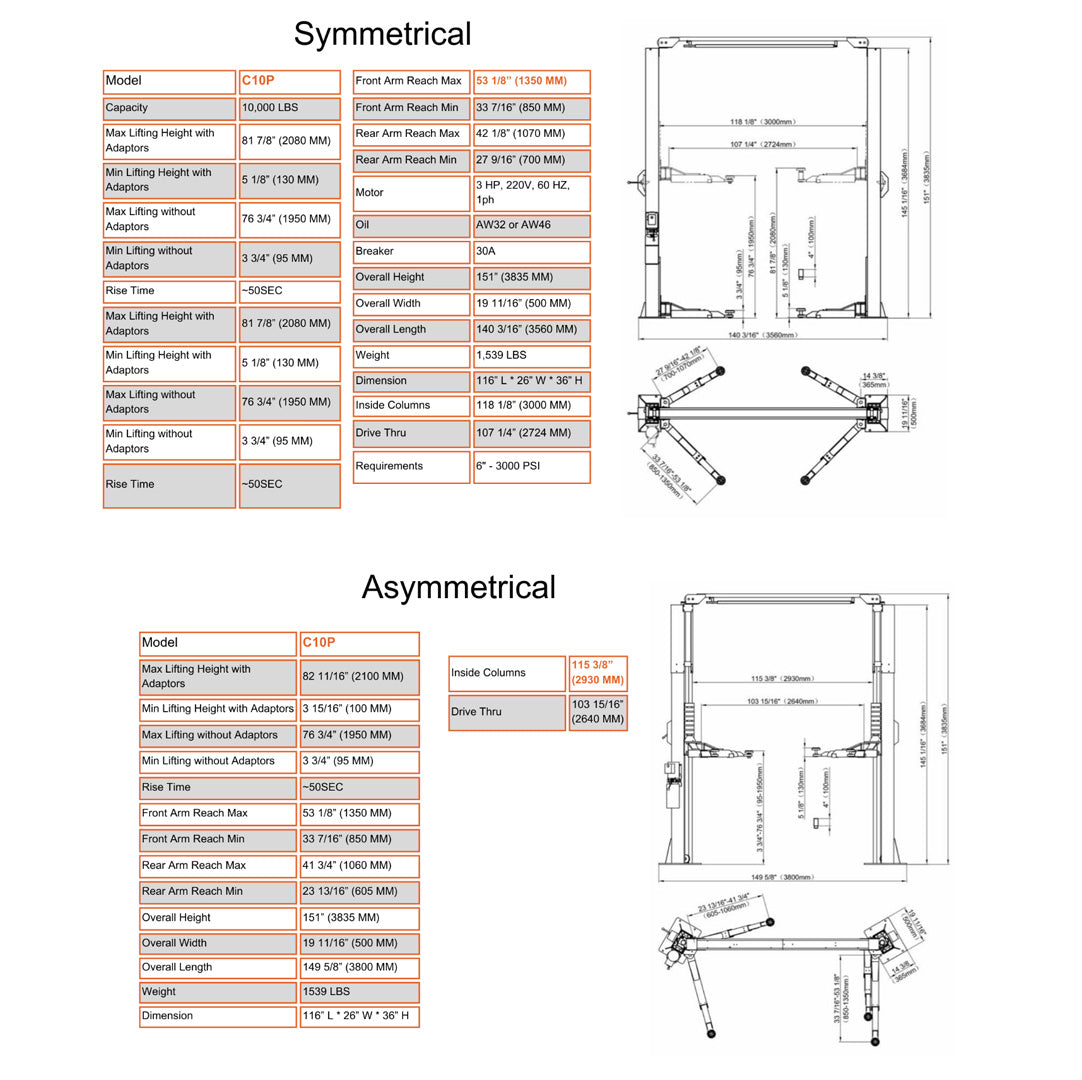

| Model - SYMMETRICAL | SAE-C10P |
| Capacity | 10,000 lbs |
| Max Lifting Height with Adaptors |
81 7/8"(2080mm) |
|
Min Lifting Height with Adaptors |
5' 1/8" (130mm) |
|
Max Lifting Height without Adaptors |
76 3/4" (1950mm) |
|
Min Lifting Height without Adaptors |
3 3/4" (95mm) |
|
Rise Time |
~50 sec |
|
Min LIfting Height with Adaptors |
76 3/4" (1950mm) |
|
Max Lifting without Adaptors |
129 15/16" (3300mm) |
|
Min Lifting without Adaptors |
3 3/4" (95mm) |
| Rise Time | 50 sec~ |

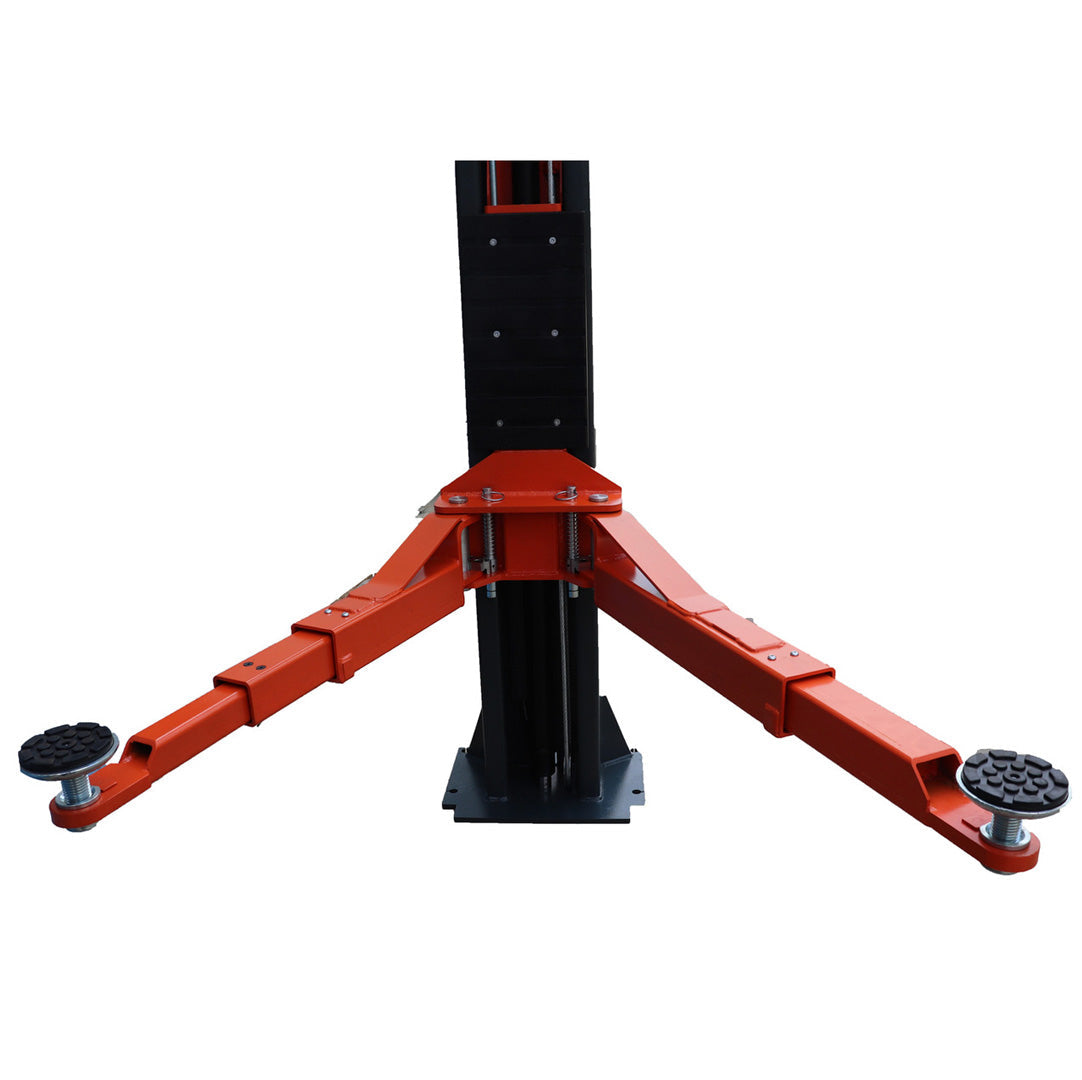

| Front Arm Reach Max |
53 1/8" (1350) |
| Front Arm Reach Min | 33 7/16" (850) |
| Rear Arm Reach Max | 42 1/8" (1070) |
| Rear Arm Reach Min | 27 9/16" (700) |

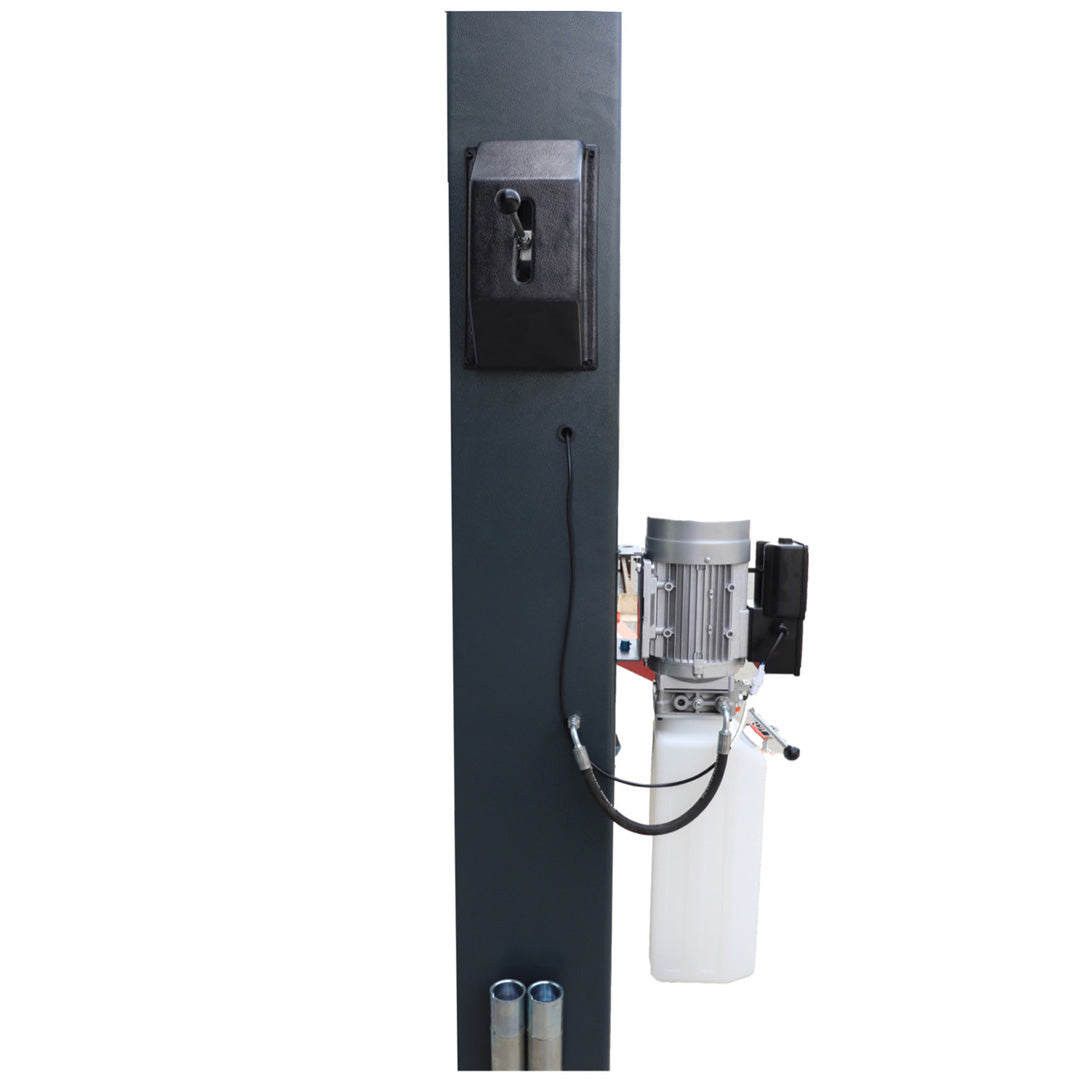

| Motor | 3 HP, 220V, 60 HZ, 1PH |
| Oil | AW32 or AW46 |
| Breaker | 30A |
| Overall Height | 151" (3835mm) |
| Overall Width | 19 11/16" (500mm) |
| Overall Length | 140 3/16" (3560mm) |
| Weight | 1539 lbs |
| Dimensions | 116"L x 26"W x 36"H |
| Inside Column | 118 1/8" (3000mm) |
| Drive Thru | 107 1/4" (2724mm) |
| Requirements | 6" - 3000 psi |
| Model - ASYMMETRICAL | SAE-C10P |
| Capacity | 10,000 lbs |
| Max Lifting Height with Adaptors |
82 11/16"(2100mm) |
|
Min Lifting Height with Adaptors |
3' 5/16" (100mm) |
|
Max Lifting Height without Adaptors |
76 3/4" (1950mm) |
|
Min Lifting Height without Adaptors |
3 3/4" (95mm) |
|
Rise Time |
~50 sec |
| Front Arm Reach Max |
53 1/8" (1350) |
| Front Arm Reach Min | 33 7/16" (850) |
| Rear Arm Reach Max | 41 3/4" (1060) |
| Rear Arm Reach Min | 23 13/16" (605) |
| Overall Height | 151" (3835mm) |
| Overall Width | 19 11/16" (500mm) |
| Overall Length | 149 5/8" (3800mm) |
| Weight | 1539 lbs |
| Dimensions | 116"L x 26"W x 36"H |
| Inside Column | 115 3/8" (2930mm) |
| Drive Thru | 103 15/16" (2640mm) |
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
