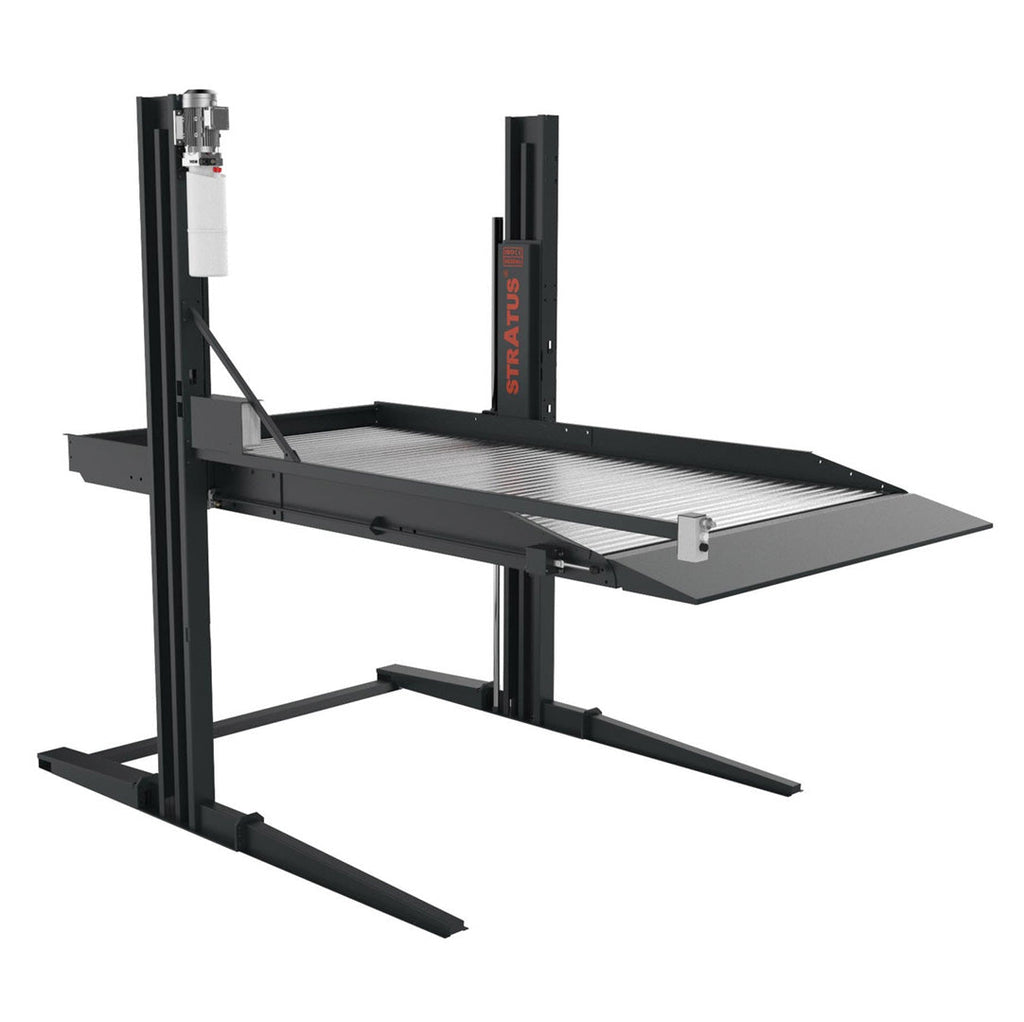

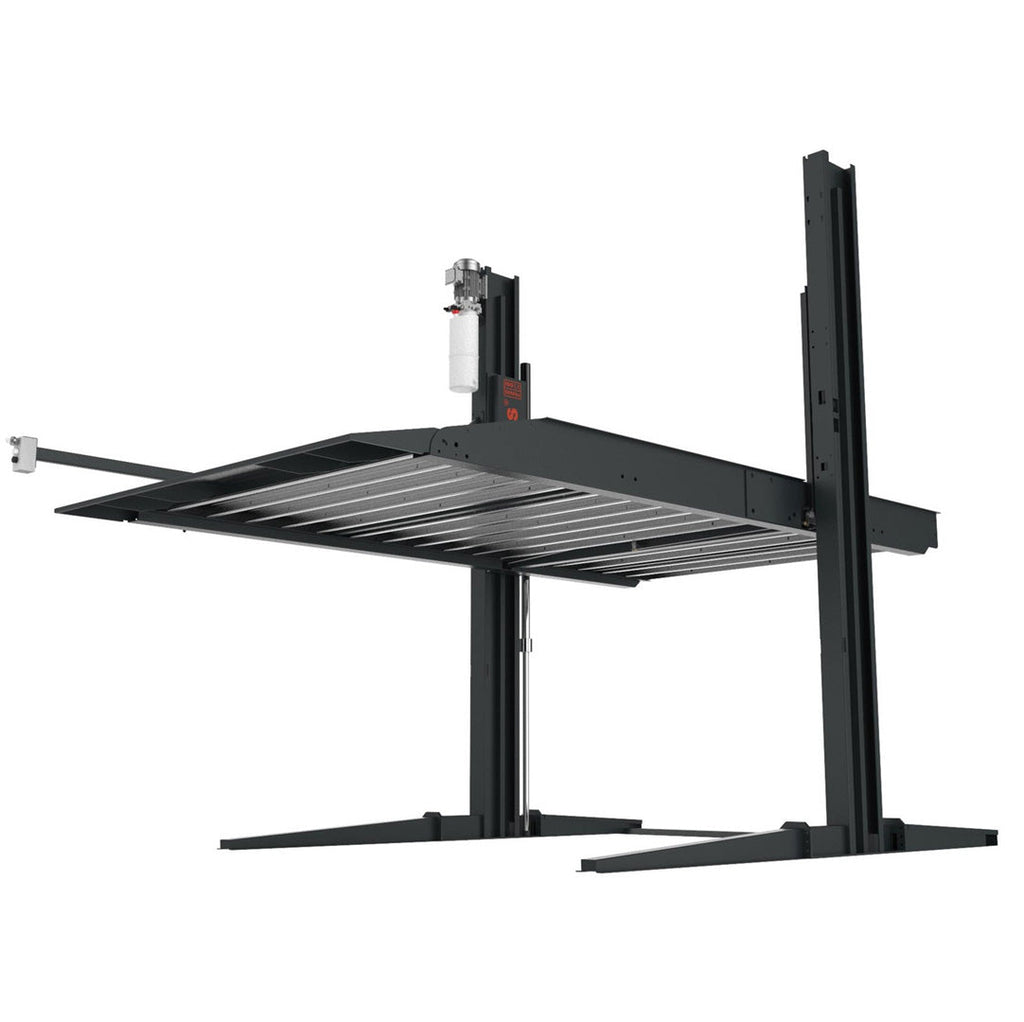

Stratus 2 Post 7,000 lbs Parking Lift, Electrical Safety Lock Release SKU SAE-P27
The Stratus 2 Post Double Car Parking Stratus Lift System is a robust and reliable car lifting system boasting a hefty 7,000 lbs capacity. Designed for heavy-duty purposes, it features a practical electrical safety lock release for seamless functionality. Its hard-wearing mechanism aids in effortless vehicle lifting, making it ideal for both small garages and professional automotive workshops. The best part? Its straightforward installation and operation mean you don't need a degree in engineering to use it. Let the Stratus Parking Lift take care of your heavy lifting.
- Electrical safety lock release parking lift

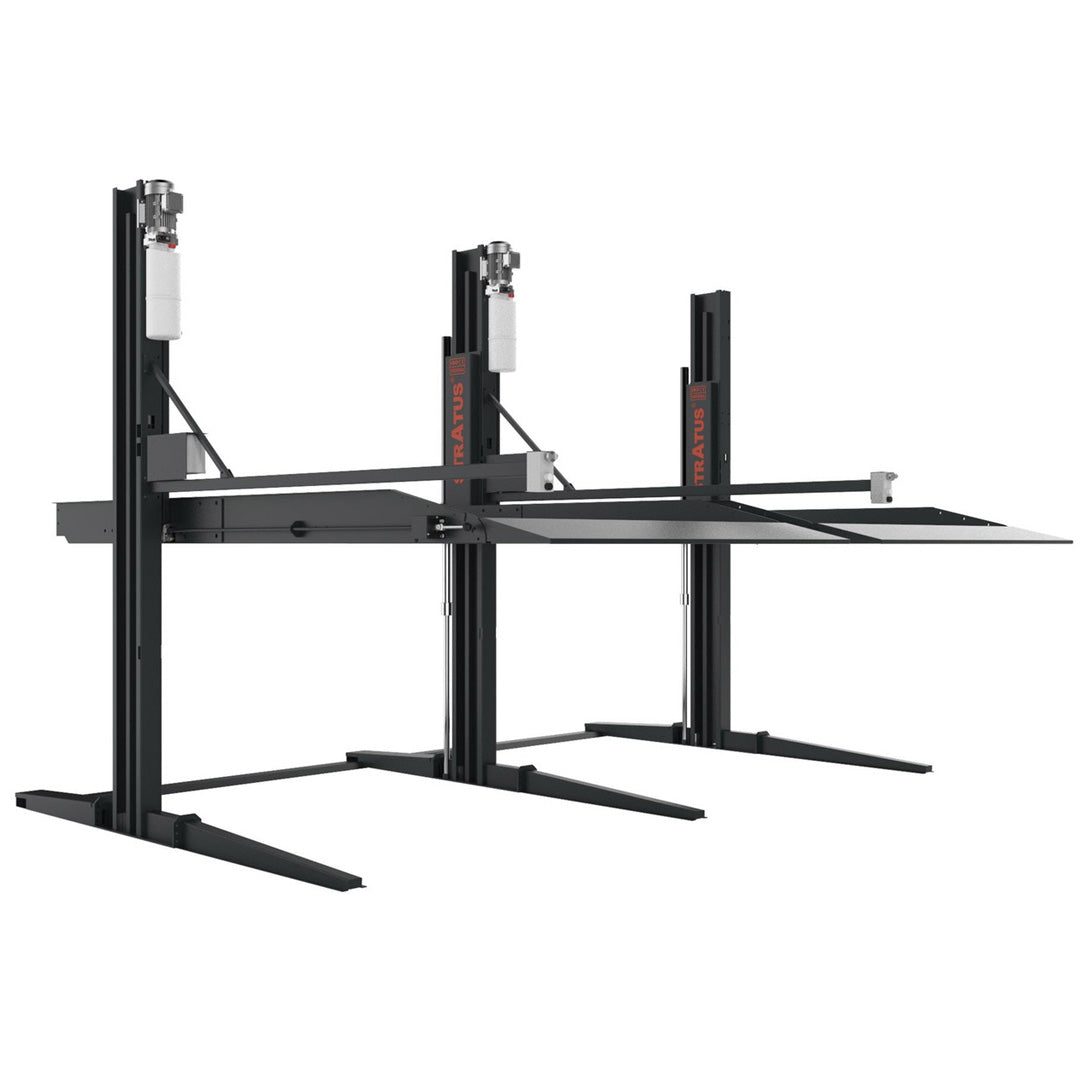

- Ability to connect multiple lifts together
- Direct Drive
- Fully enclosed vehicle lifting platform design
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Reinrage (RAL 2004)

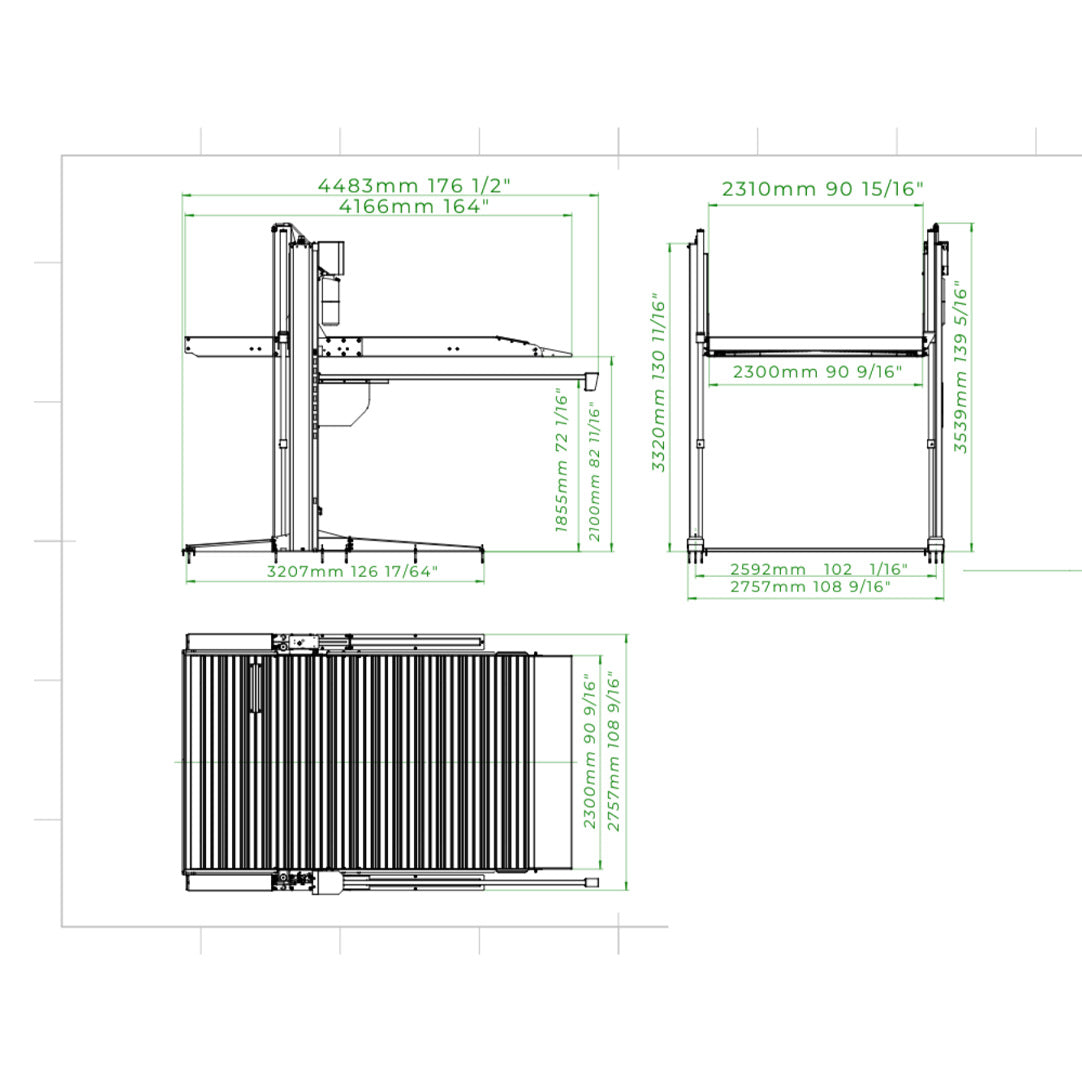

| Model | P27 |
| Capacity | 7,000 lbs |
| Max Lifting Height |
82 11/16"(2100mm) |
|
Min Lifting Height |
3 15/16" (100mm) |
|
Rise Time |
~50 sec |
|
Overall Height |
139 5/16" (3526mm) |
|
Overall Width |
108 9/16" (2639mm) |
|
Overall Length |
174 3/8" (4429mm) |
|
Inside Columns |
102 1/16" (2592mm) |
|
Drive Thru |
90 9/16" (2300mm) |
| Motor | 3 HP, 220V, 60 HZ, 1PH |
| Oil | AW32 or AW46 |
| Breaker | 30A |
| Weight | 3003 lbs |
| Dimensions | |
| Requirements | 6" - 3000 psi |
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
