Description

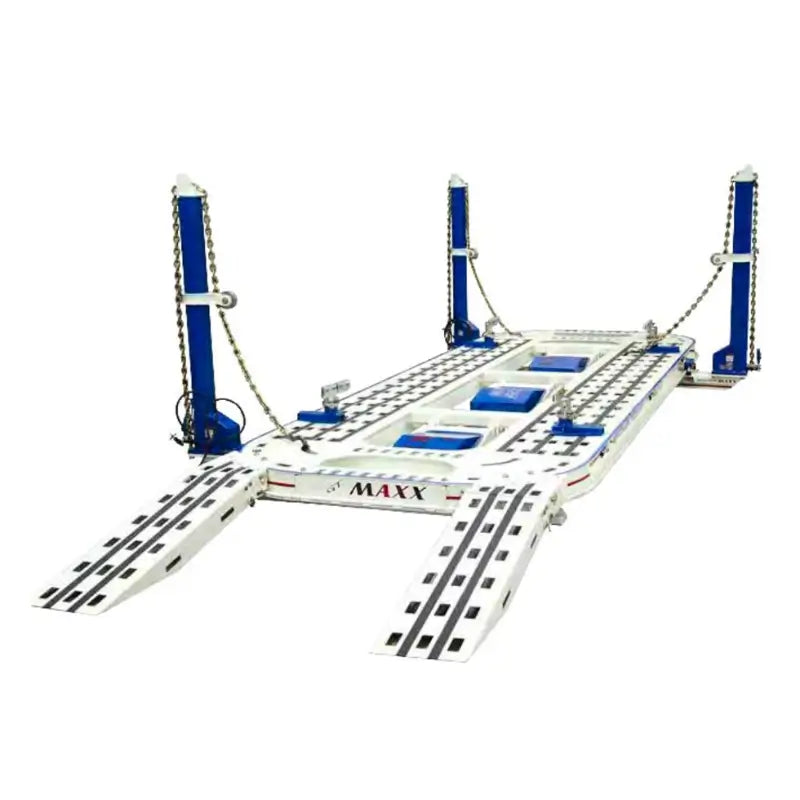

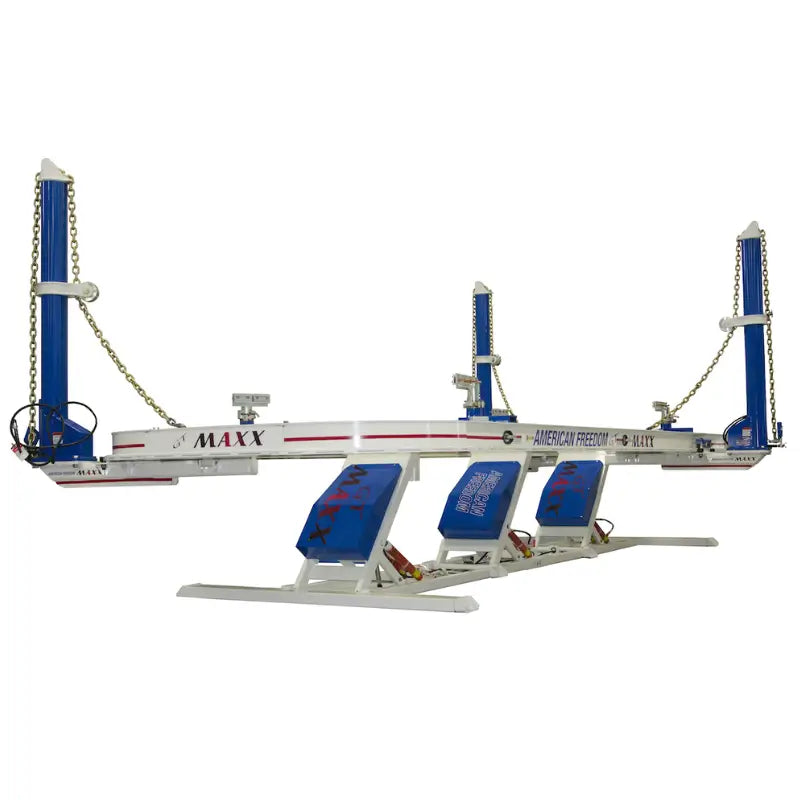

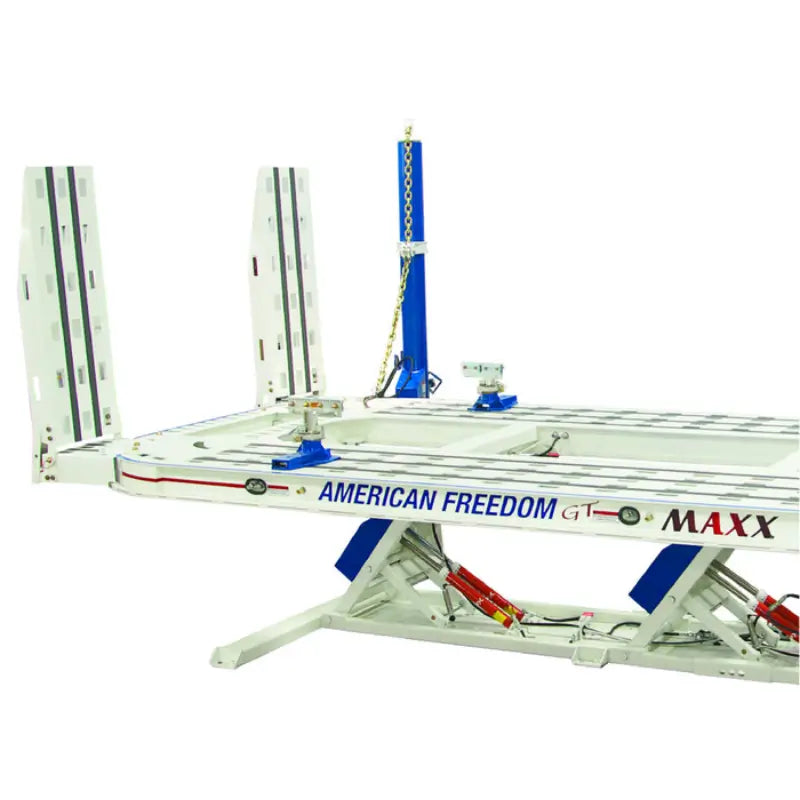

With a 22-foot bed, four powerful towers, and a robust hydraulic system, this frame machine is designed to handle everything from small passenger cars to large trucks with ease. Its familiar design ensures a short learning curve, enabling technicians to get to work quickly and efficiently.
Equipped with a centralized hydraulic system and a handheld remote with a 25-foot cord, the GT MAXX offers unmatched mobility and control during repairs. This freedom of movement allows technicians to work from any angle, fully inspect damage, and perform repairs with maximum accuracy. The four-tower configuration provides complete 360-degree pulling capability, making it an essential tool for heavy-duty collision repair facilities.
Built with a rugged steel construction, wide treadways, and adjustable working heights, the American Freedom GT MAXX delivers long-term durability and operator comfort. Whether you’re working on structural alignment, pulling, or other frame restoration tasks, this machine provides the pulling power, load capacity, and ergonomic design you need to boost productivity and maintain top-quality repair standards.
GT MAXX 22 Specification
-
Length of Bed (Top): 22 ft. (671 cm)
-
Length with Towers Extended: 26 ft. 11 in. (820 cm)
-
Width of Bed: 96 in.
-
Width with Towers Extended: 12 ft. 9 in.
-
Width of Treadway: 30.5 in.
-
Width Between Treadways: 35 in.
-
Overall Height: 9 ft. 11 in. (302 cm)
-
Tower Heads Lowered Height: 9 ft. 1 in. (277 cm)
-
Loading Height: 14 in.
-
Working Height: 16 in. up to 42 in. (107 cm)
-
Hydraulics: 10 ton (9 metric ton), all electric over hydraulic
-
Power Required: 120V, 20 amp
-
Tower Configuration: 4 towers
-
Tie Downs: 222
-
Lift Capacity: 15,000 lbs.
Frame Rack Special Features
-
Heavy-duty four-tower configuration for maximum pulling versatility.
-
Centralized hydraulic system with 25-foot handheld remote for greater mobility.
-
22-foot bed length accommodates a wide range of vehicle sizes.
-
Adjustable working height from 16" to 42" for ergonomic operation.
-
10-ton pulling power with all-electric over hydraulic operation.
-
Rugged steel construction built for years of professional use.
-
Designed for familiar operation, reducing training time.
-
Ideal for collision repair centers handling both light and heavy vehicles.
-
Warranty: 2 Years (Machine & Hydraulics)
