Description
Proudly made in the U.S.A., this rugged frame rack provides the stability and durability needed to handle a wide range of vehicle types. Designed with technician familiarity in mind, the AF 9014224T model offers a seamless transition from traditional frame machines, ensuring your team can operate it with minimal training.

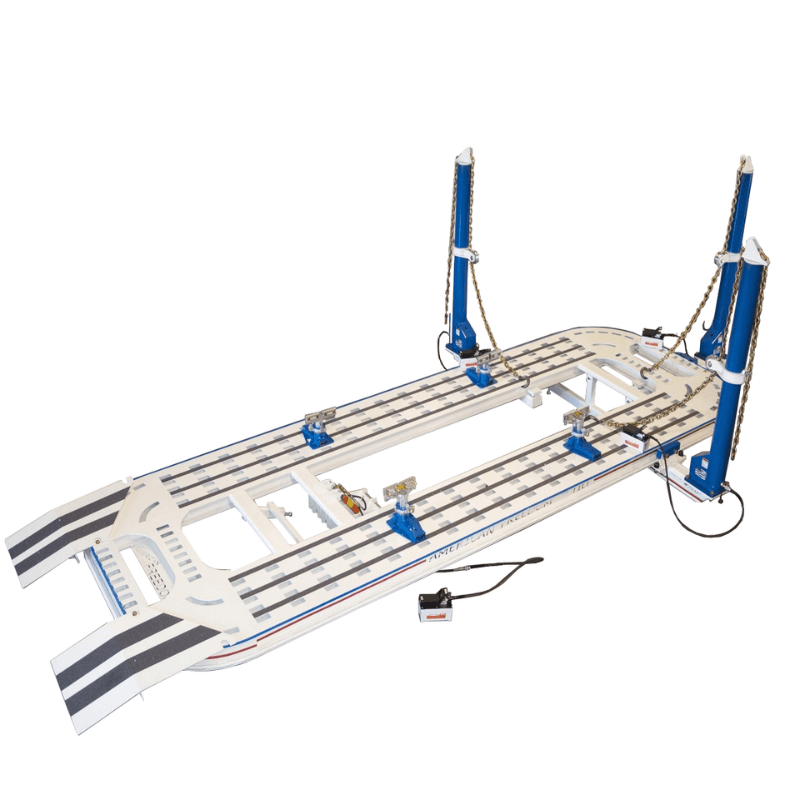

With its four-tower configuration and 22-foot treadways, this machine allows complete access to vehicles of varying widths while maintaining a secure working platform. The 88-inch total bed width accommodates everything from compact cars to full-size trucks, giving you versatility without compromising structural integrity. Optional tower setups of two, three, or four towers provide flexibility to match your shop’s workflow, making this machine ideal for both independent garages and larger body shops.
Safety and performance are at the forefront of the AF 9014224T. Equipped with a 10-ton hydraulic system and dual-ram lift capacity upgrade up to 12,000 lbs, it offers reliable lifting power for heavy-duty frame repair. Technicians benefit from optimal ergonomics with a working height of 21 inches and thoughtfully spaced treadways, making long repair sessions more comfortable and productive. Built for efficiency, this frame machine ensures every repair is precise, safe, and time-effective.
4 Tower Frame Machine AF 9014224T Tilt 22" Specification
-
Length of bed (top): 20 ft. (610 cm)
-
Length with towers extended: 24 ft 6 in. (750 cm)
-
Width of bed: 88 in. (224 cm)
-
Width with towers extended: 11 ft 4 in. (348 cm)
-
Width of treadway: 26.25 in. (67 cm)
-
Width between treadways: 35.50 in. (98 cm)
-
Overall height: 9 ft 4 in. (289 cm)
-
Working height: 21 in. (54 cm)
-
Hydraulics: 10 ton
-
Power required: Air – 100 psi
-
Optional tower configurations: 2, 3, or 4 towers
-

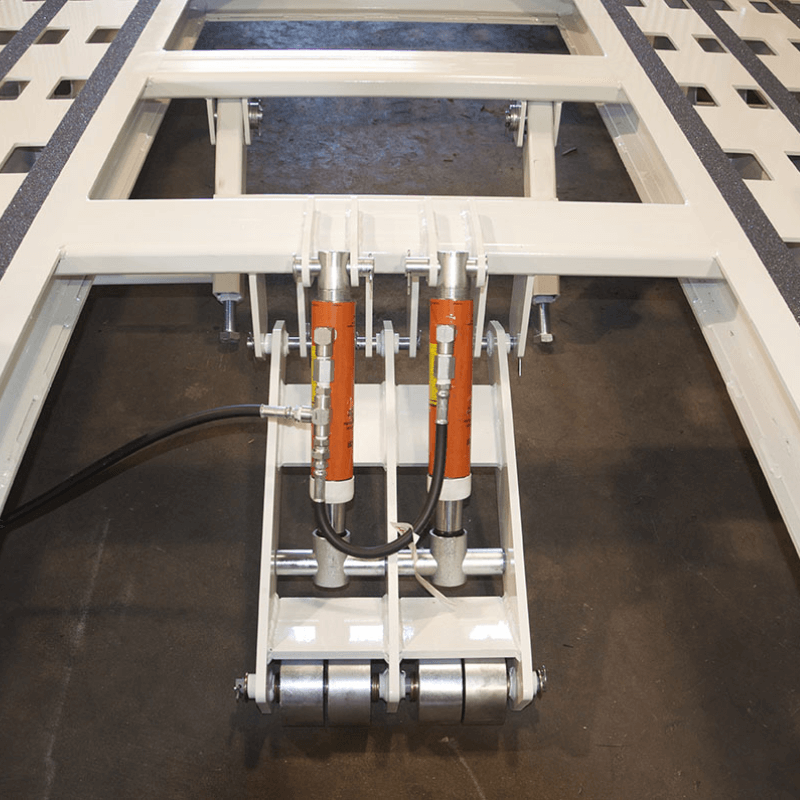

Lift capacity: 9,000 lbs (12,000 lbs with dual ram upgrade)
AF Tilt 4 Tower Frame Machine Special Features
-
Precision-engineered tilt frame machine for vehicle alignment and repairs
-
Four-tower design with optional configurations for flexible shop setups
-
Wide treadways and 88-inch bed width for vehicles of various sizes
-
Heavy-duty hydraulic lift system for stable and reliable operation
-
U.S.A. made with durable construction for long-term performance
-
Ergonomic working height for technician comfort and efficiency
-
Dual-ram upgrade option for increased lifting capacity
-
Warranty: 2 Years (Machine & Hydraulics)
