Description

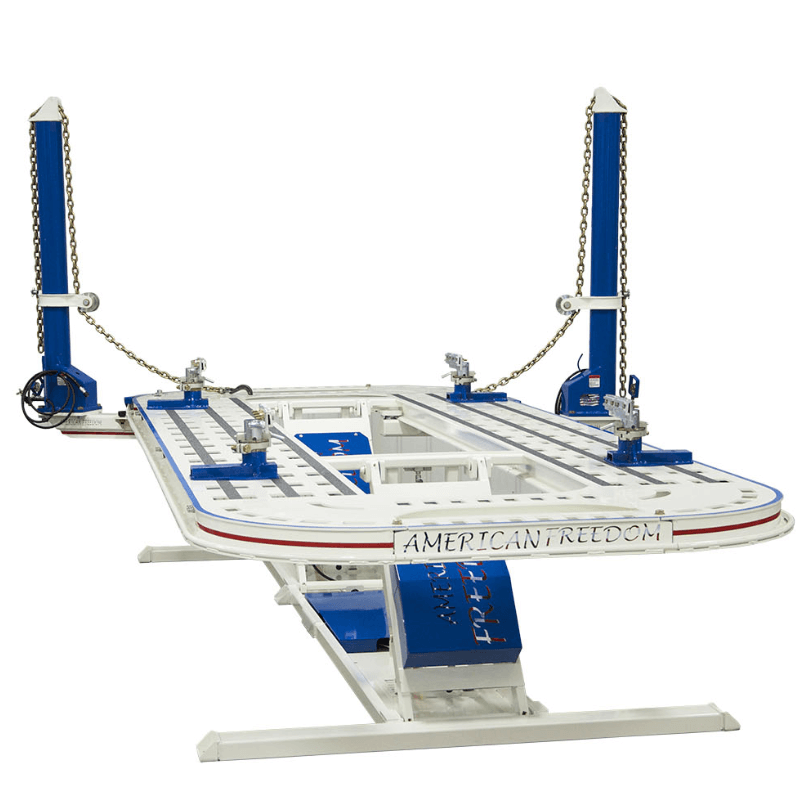

Proudly made in the U.S.A., this high-quality frame rack delivers dependable performance and is designed for ease of use. Resembling traditional frame machines, the AF 9014224 allows technicians to quickly adapt, minimizing training time and boosting productivity in busy repair environments.
This model features 22-foot treadways and an 88-inch total bed width, accommodating a wide variety of vehicle sizes from small sedans to large trucks. The four-tower configuration offers full access to the vehicle from multiple angles, while the centralized hydraulic system—operated via a handheld remote with a 25-foot cord—provides mobility and control for precise adjustments. Optional configurations of three, four, or five towers allow for customization based on shop needs, making it adaptable for diverse repair demands.
Equipped with dual hydraulic systems rated at 10 and 5 tons and a 10,000 lb lift capacity, the AF 9014224 is designed to handle heavy-duty jobs with ease. The 31-inch working height ensures an ergonomic setup, reducing strain and improving comfort during long repair sessions. Built to last, this frame machine provides consistent results, safety, and efficiency—making it a valuable investment for any professional auto body shop.
4 Tower Frame Machine AF 9014224 Specification
-
Length of bed (top): 20 ft. (610 cm)
-
Length with towers extended: 24 ft. 3 in. (739 cm)
-
Width of bed: 88 in. (224 cm)
-
Width with towers extended: 14 ft. 4 in. (437 cm)
-
Width of treadway: 28 in. (71 cm)
-
Width between treadways: 32 in. (81 cm)
-
Overall height: 9 ft. 3 in. (282 cm)
-
Working height: 31 in. (79 cm)
-
Hydraulics: 10 & 5 ton (9 & 4.5 metric ton) (5 tower machine)
-
Power required: 120v, 20 amp dedicated service
-
Optional tower configurations: 3, 4, or 5 towers
-
Lift capacity: 10,000 lbs
AF 22" 4 Tower Frame Machine Special Features
-
U.S.A.-made heavy-duty frame machine for vehicle alignment and repairs
-
4-tower configuration with optional 3 or 5 tower setups for flexibility
-
Centralized hydraulic system with 25-foot remote cord for mobility
-
Wide treadways and 88-inch bed width for various vehicle sizes
-
Dual hydraulic systems for powerful and precise performance
-
Ergonomic 31-inch working height for technician comfort
-
Built to last with durable, shop-ready construction
-
Warranty: 2 Years (Machine & Hydraulics)
