Description
Designed to handle a wide range of vehicles, this frame rack ensures technicians can complete inspections and repairs efficiently while maintaining the highest safety standards.
Its familiar, traditional frame machine design minimizes training time, allowing operators to get up to speed quickly. With 20-foot or 22-foot treadways, an 88-inch total bed width, and multiple tower configurations, it offers flexibility to accommodate small cars, SUVs, and light trucks. The heavy-duty hydraulic system, combined with tilt functionality, makes loading and positioning vehicles smoother and faster.
Available in 2, 3, or 4 tower configurations, the American Freedom Tilt Frame Machine is a reliable choice for collision centers seeking long-term durability and performance. With robust steel construction, precision-engineered hydraulics, and user-friendly controls, it’s a shop investment that will maximize productivity and profitability.

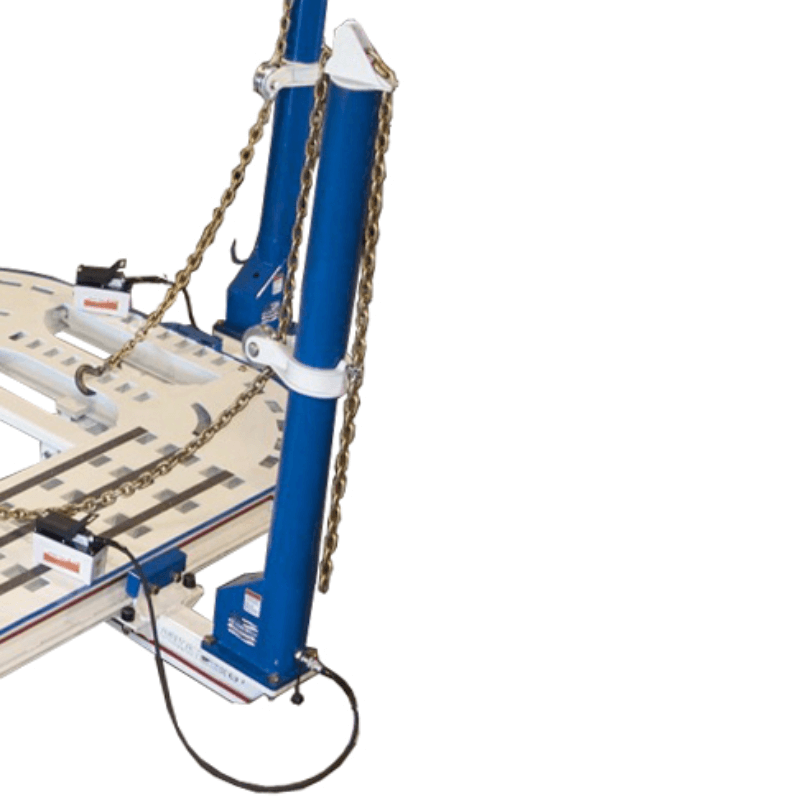

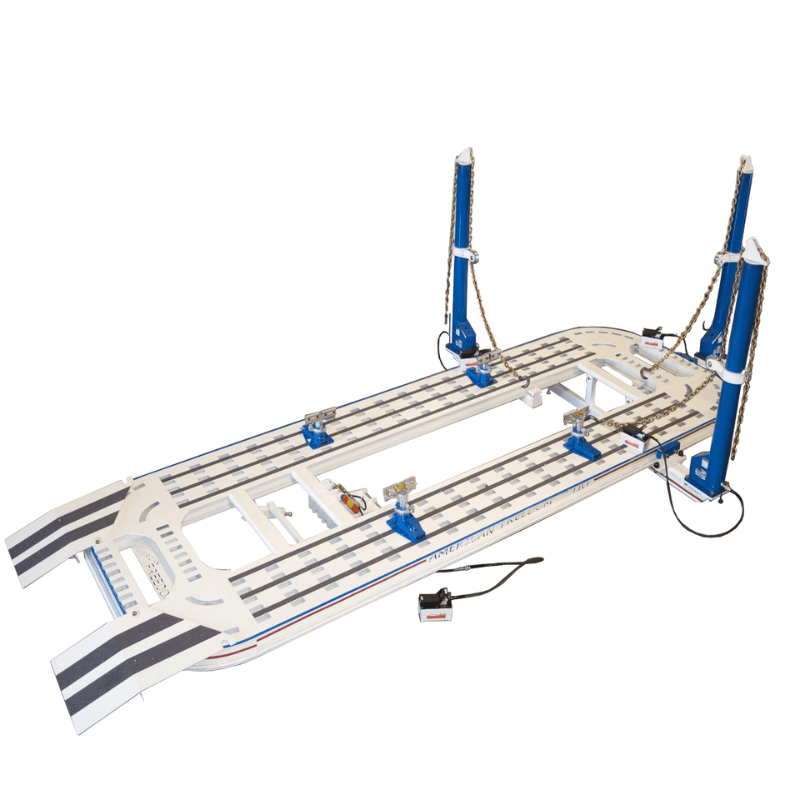

4 Tower Frame Machine AF 9014204T Tilt Specification
-
Length of Bed: 20 ft. (610 cm)
-
Length with Towers Extended: 24 ft 6 in. (750 cm)
-
Width of Bed: 88 in. (224 cm)
-
Width with Towers Extended: 11 ft. 4 in. (348 cm)
-
Width of Treadway: 26.25 in. (67 cm)
-
Width Between Treadways: 35.50 in. (98 cm)
-
Overall Height: 9 ft. 4 in. (289 cm)
-
Working Height: 21 in. (54 cm)
-
Hydraulics: 10 ton capacity
-
Power Required: Air – 100 PSI
-
Optional Tower Configurations: 2, 3, or 4 towers
-
Lift Capacity: 9,000 lbs (12,000 lbs with dual ram upgrade)
AF Tilt 20" 4 Tower Frame Machine Special Features
-
Proudly made in the U.S.A. for exceptional build quality
-
Heavy-duty hydraulic system for powerful pulling and lifting
-

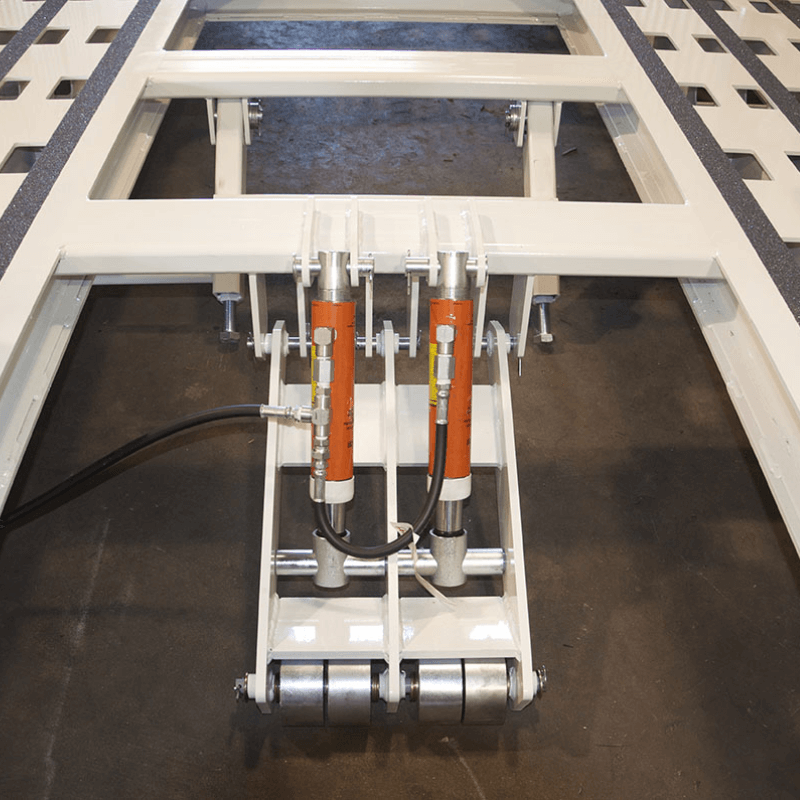

Tilt functionality for faster, easier vehicle loading
-
Wide bed and treadway spacing to fit a variety of vehicle sizes
-
Familiar design for quick technician training and operation
-
Available in multiple tower configurations for flexibility
-
Engineered for collision repair shops seeking productivity and durability
-
Warranty: 2 Years (Machine & Hydraulics)
