Description
Designed with a classic style that technicians recognize, this machine ensures a shorter learning curve and immediate productivity gains. The innovative tilt design allows for smooth vehicle loading and improved accessibility, streamlining repairs from start to finish.

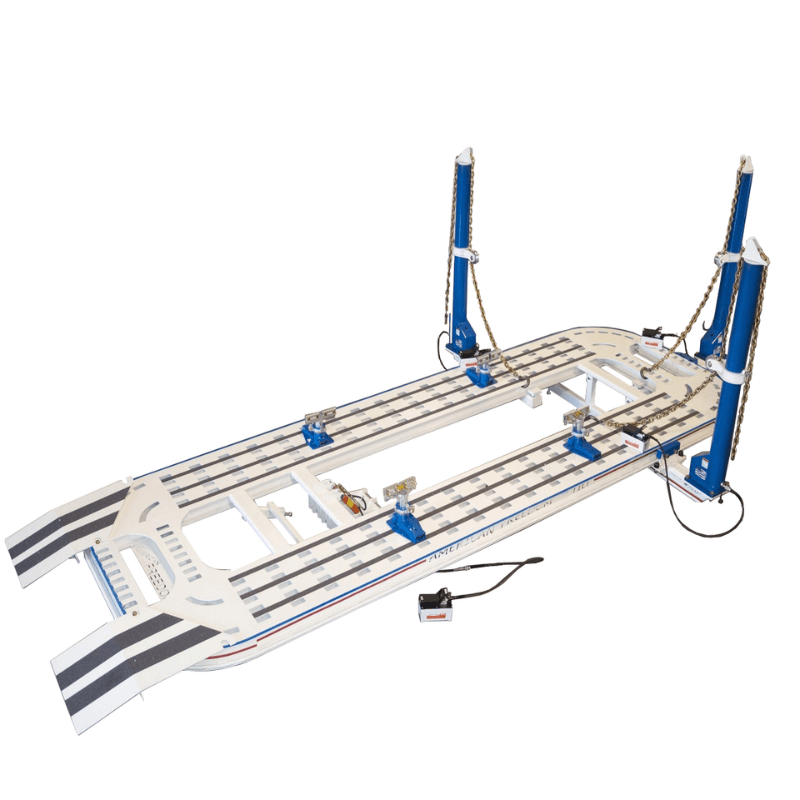

Engineered for efficiency, the American Freedom Tilt Frame Machine comes in multiple tower configurations and features a spacious 20-foot treadway with an 88-inch bed width. This makes it capable of handling a wide range of vehicle sizes, from standard passenger cars to light-duty trucks. Its rugged 10-ton hydraulic power ensures precision pulling and reliable performance for demanding collision repair work.
Whether you choose the standard 9,000-lb lift capacity or upgrade to a robust 12,000-lb dual ram system, this frame machine offers the flexibility, strength, and performance your shop needs. With the American Freedom Tilt Frame, you’re not just buying equipment—you’re investing in speed, efficiency, and repair accuracy.
2 Tower Frame Machine AF 9014202T Specification
-
Length of bed: 20 ft. (610 cm)
-
Length with towers extended: 24 ft. 6 in. (750 cm)
-
Width of bed: 88 in. (224 cm)
-
Width with towers extended: 11 ft. 4 in. (348 cm)
-
Width of treadway: 26.25 in. (67 cm)
-
Width between treadways: 35.50 in. (98 cm)
-
Overall height: 9 ft. 4 in. (289 cm)
-
Working height: 21 in. (54 cm)
-
Hydraulics: 10 ton
-
Power required: Air – 100 psi
-
Optional tower configurations: 2, 3, or 4 towers
-

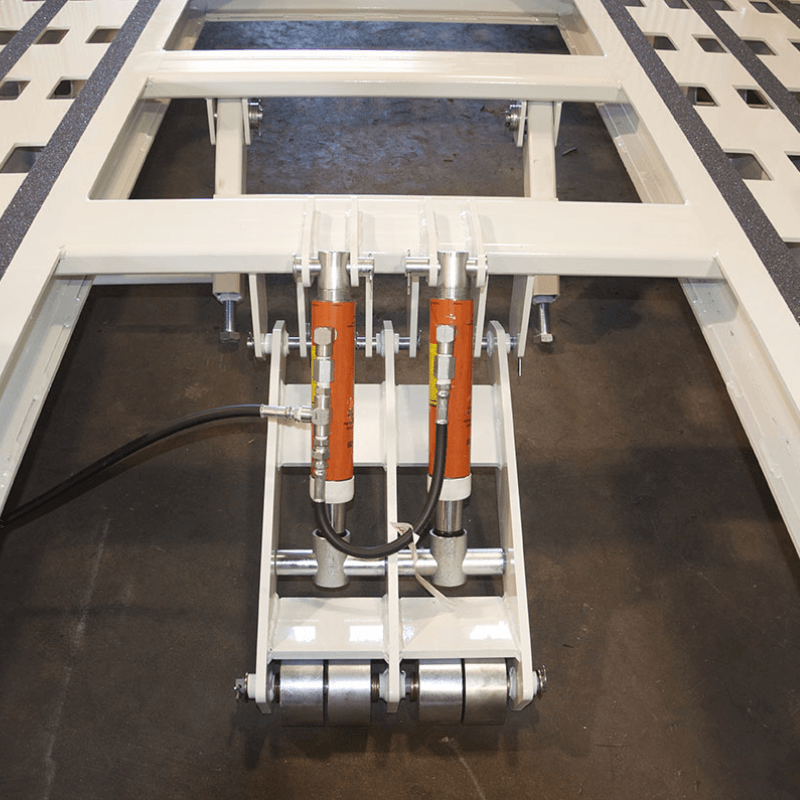

Lift capacity: 9,000 lbs (upgradeable to 12,000 lbs with dual ram)
AF 20" Tilt 2 Tower Frame Machine Special Features
-
Classic frame rack design for easy technician training
-
Tilt function for smoother vehicle loading and positioning
-
Wide 20-foot treadway fits a variety of vehicle sizes
-
Heavy-duty 10-ton hydraulics for precise pulling power
-
Upgradeable lift capacity for heavier vehicle repairs
-

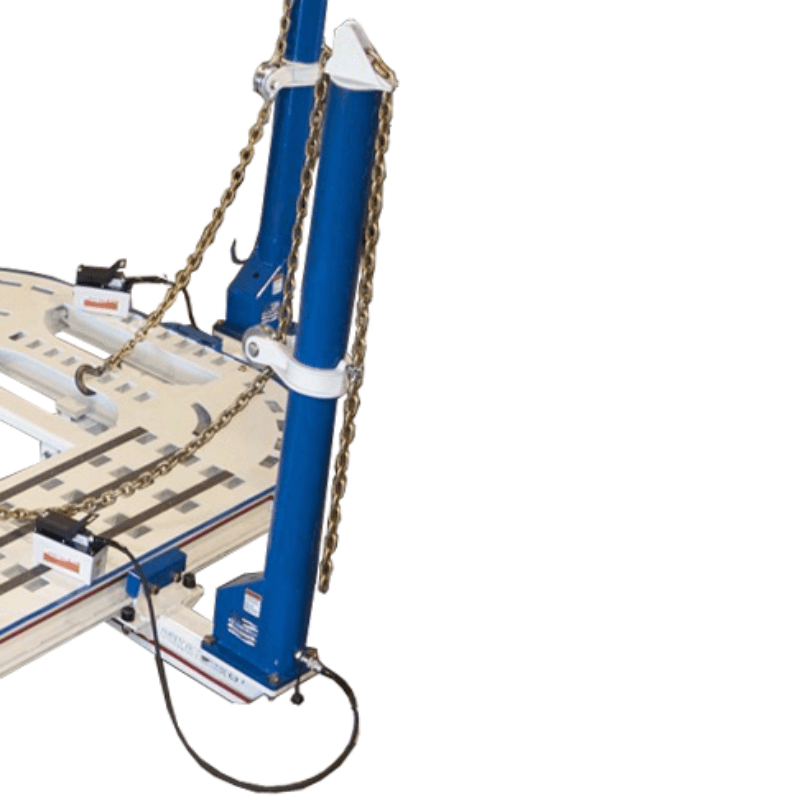

Multiple tower configurations for versatile pulling angles
-
Built for durability and consistent performance in busy shops
-
Warranty: 2 Years (Machine & Hydraulics)
