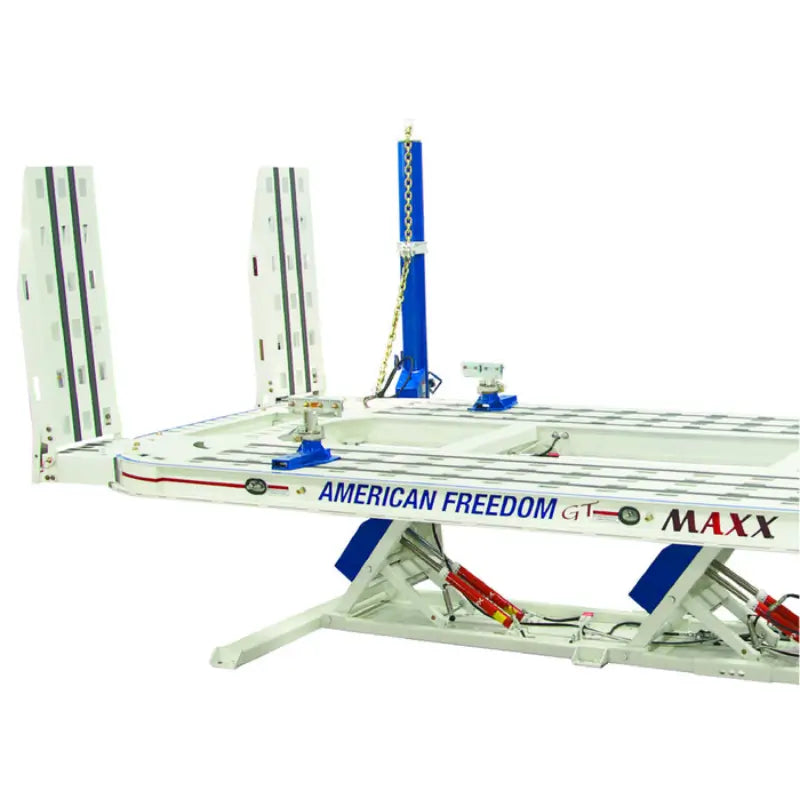

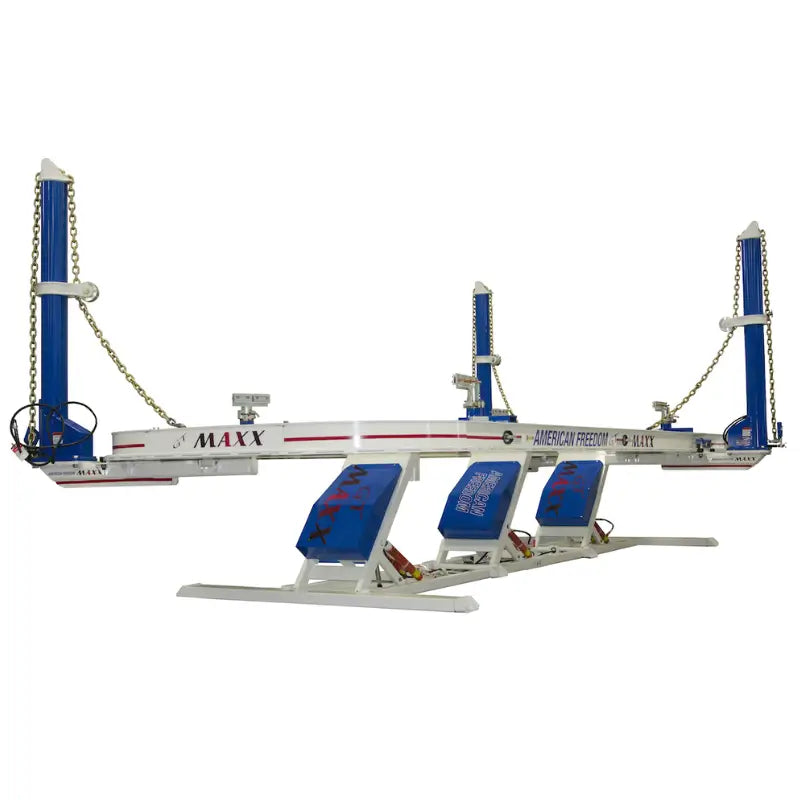

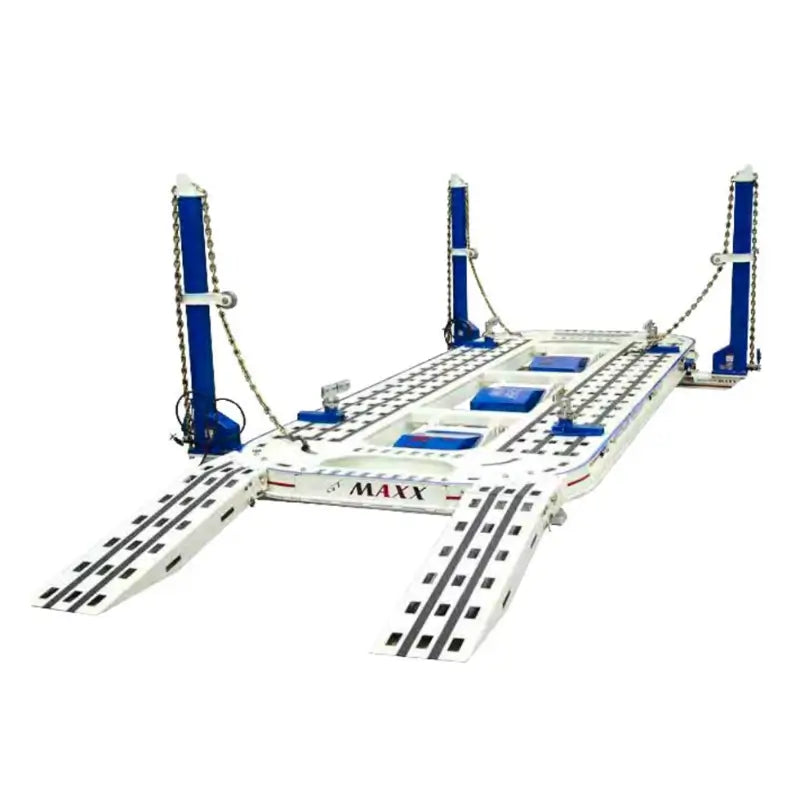

Designed to handle everything from light cosmetic work to heavy structural repairs, this powerhouse of a frame machine is built to keep your shop running at maximum productivity.

Its design closely mirrors traditional frame machines that seasoned technicians already know, so there’s no steep learning curve. The hand-held remote with a generous 25-foot cord gives you the freedom to move around the vehicle while staying in control of the centralized hydraulic system — because the less time you spend walking back and forth, the more time you spend getting the job done.

With a 22-foot treadway and a 96-inch bed width, the GT MAXX easily accommodates a wide variety of vehicles, from compact sedans to oversized trucks. Whether you choose the 2, 3, or 4-tower configuration, you’ll have the flexibility and raw pulling power needed to restore vehicles to precise factory specifications.

Proudly made in the USA, this frame rack isn’t just another tool in the shop — it’s an investment in speed, efficiency, and quality workmanship.

Frame Rack American Freedom GT MAXX Specification

• Length of Bed (Top): 22 ft.

• Length with Towers Extended: 26 ft. 11 in.

• Width of Bed: 96 in.

• Width with Towers Extended: 12 ft. 9 in.

• Width of Treadway: 30.5 in.

• Width Between Treadways: 35 in.

• Overall Height: 9 ft. 11 in.

• Loading Height: 14 in.

• Working Height: 16 in. up to 42 in.

• Hydraulics: 10 ton, all electric over hydraulic

• Power Required: 120v, 20 amp dedicated service

• Optional Tower Configurations: 2, 3, or 4 towers

• Tie Downs: 222

• Lift Capacity: 15,000 lbs.

American Freedom GT MAXX Frame Rack Special Features

• Made in the USA – Built with American craftsmanship and high-quality materials.

• Multiple Tower Configurations – Available in 2, 3, or 4 tower options to match your repair needs.

• Extra-Large Bed – 22 ft. treadway and 96 in. total width for accommodating a wide range of vehicles.

• High Load Capacity – Handles up to 15,000 lbs. for heavy-duty repairs.

• Powerful Hydraulic System – 10-ton pulling capacity with all electric-over-hydraulic operation.

• Enhanced Mobility – 25 ft. corded remote for complete control from any position around the vehicle.

• Adjustable Working Height – 16 in. to 42 in. range for ergonomic operation.

• Extended Reach – Towers extend overall length to 26 ft. 11 in. for large vehicle access.

• Durable Construction – Designed for long-lasting performance in busy repair shops.

• Secure Tie-Downs – Includes 222 tie-down points for safe and stable vehicle positioning.

• Warranty: 2 Years (Machine & Hydraulics)
