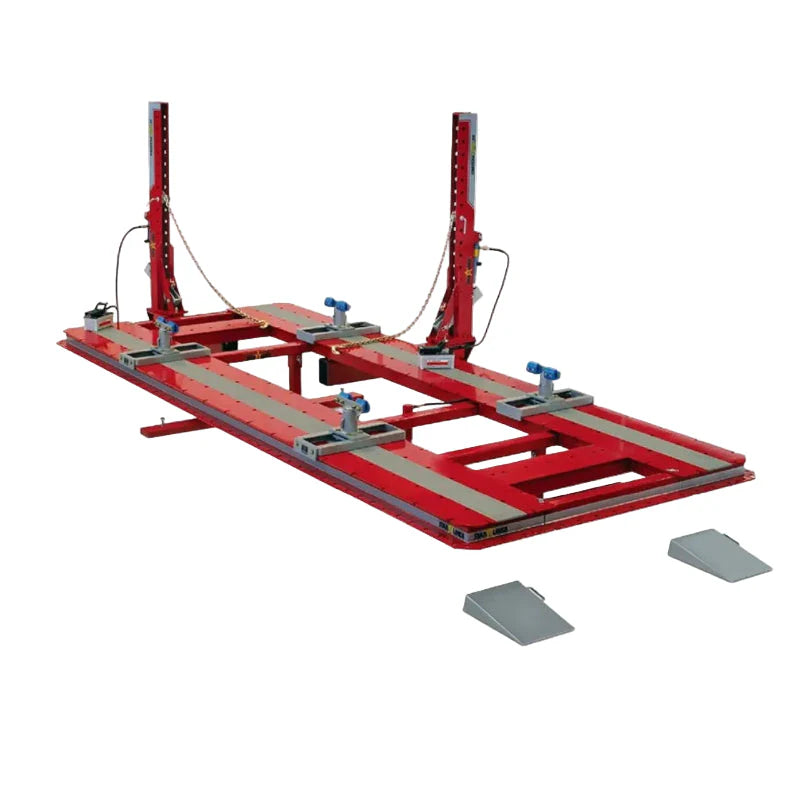

The Star-A-Liner Cheetah 18' Three Tower Frame Machine with Hydraulics (Part ID: 9011183) is a professional-grade collision repair system built for maximum pulling power and repair flexibility. With its 18-foot bed, three hydraulic towers, and a 10-ton pulling capacity, this machine is designed to handle unibody cars, SUVs, and full-size heavy-duty trucks with ease. Its 360-degree pulling radius allows technicians to approach repairs from any angle, reducing setup time and increasing efficiency.

Built for strength and performance, the Cheetah 18' Three Tower Frame Machine provides a stable 4,400 lb. platform and a 24-inch working height—ideal for precise auto body work. With the added versatility of a third tower, shops gain greater reach and pulling options, making it easier to handle complex frame straightening and collision damage repairs. Its hydraulic power system, requiring just 100 psi of air, ensures reliable, consistent pulling performance.

Engineered for busy collision repair shops, this frame rack comes ready with hydraulic assemblies, clamps, ramps, and pulling chains, giving technicians all the tools needed to start working right away. Whether handling light repairs or heavy-duty frame realignment, the Cheetah 18' Three Tower Frame Machine delivers professional-grade results every time.

3 Tower Frame Machine 9011183 Cheetah 18 Specification

• Part ID: 9011183 Cheetah 18’ III W/HYD Three Tower

• Length of Bed (Top): 18 ft. (549 cm)

• Length with Towers Extended: 23 ft. 9 in. (724 cm)

• Width of Bed: 84 in. (213 cm)

• Width with Towers Extended: 13 ft. 4 in. (406 cm)

• Width of Treadway: 24 in. (61 cm)

• Width Between Treadway: 36 in. (91 cm)

• Overall Height: 7 ft. 9 in. (236 cm)

• Tower Height: 6 ft. (183 cm)

• Working Height: 24 in. (61 cm)

• Weight: 4,400 lbs. (1,995 kg)

• Power Required – Hydraulics: 100 psi air (6.89 bar)

• Pulling Power Hydraulics: 10 ton (9 metric ton)

• Pulling Radius: 360 degrees

• Standard Equipment Included

  • 1 pump and hose assembly for each tower (3 total)

  • 4 pinch weld anchor bases with T-tops and jaws

  • 2 loading ramps for easy vehicle setup

  • 1 Grade 100 pulling chain with slip hook per tower (3 total)

Cheetah 18' Three Tower Frame Machine Special Features

• Heavy-duty 18-foot three-tower frame machine for collision repair

• 10-ton hydraulic pulling system with 360-degree pulling radius

• Triple hydraulic towers provide maximum reach and repair flexibility

• Strong 4,400 lb. construction for long-term shop use

• Includes pumps, hoses, clamps, ramps, and pulling chains

• 24-inch working height improves technician accessibility

• Handles unibody cars, full-size trucks, and heavy-duty vehicles

• Professional-grade design for efficient, accurate repairs

• Warranty: 5 Years (Machine & Hydraulics)
