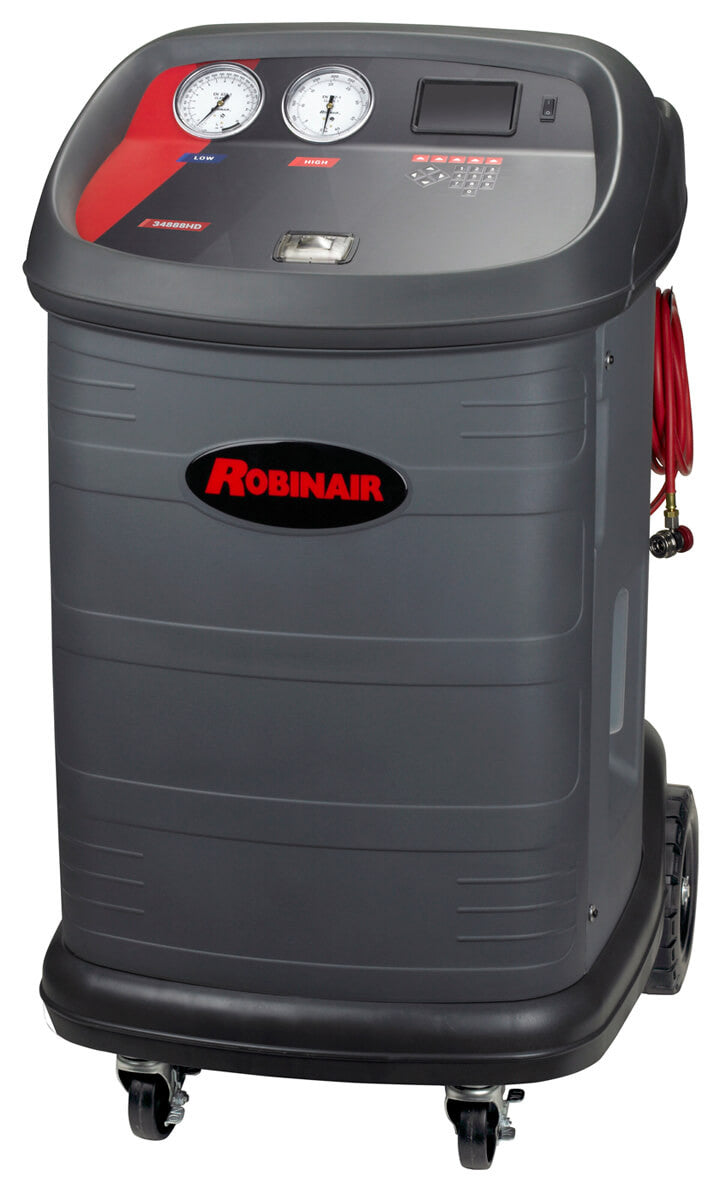

Robinair 34888HD Advanced R134A Heavy-Duty Recover, Recycle, Recharge Machine

The Robinair 34888HD heavy duty machine recovers, recycles, evacuates, leak-tests and recharges R-134a with 98.5% efficiency in both small and large mobile air conditioning systems. The new design features a large capacity, removable tank and a liquid pump to tackle those larger A/C systems typically found in buses. The product also is equipped with a nitrogen port which allows a technician to use nitrogen to dry and leak test the vehicle's A/C system. The machine is fully automatic and is capable of recovering, evacuating, leak testing, charging and oil drain/inject – putting A/C lubricant back into the system. The 34888HD also boasts the ability to add a printer for capturing and retaining vehicle service data.

Keep your machine operating with 34724 replacement filters or 13172 maintenance kits.

Includes:

• 34888HD Recover, Recycle, Recharge Machine
• 50 lb R134A DOT Refrigerant tank
• Operator's Manual
• Service center Listing Sheet
• Vacuum Pump Oil SDS Sheet
• Compressor oil SDS sheet
• EPA Registration Sheet
• Mobile Vehicle A/C Equipment certification form
• Scale Calibration weight

Features:

• Fully-Automatic Function: Program to recover, vacuum, leak test and charge without operating panel valves.
• Automatic Oil Drain: A display reminds you to empty the graduated container to show the amount of oil to replace.
• Oil Inject: Automatically inject oil back into the vehicle’s A/C systems.
• Visual & Audible Alarm: Notifies the user when service is complete, or if a problem has occurred.
• Nitrogen Port: Inject nitrogen into the vehicle's A/C system to dry or leak check the system.
• Automatic Air Purge: Eliminates system-damaging air without monitoring gauges or opening valves.
• Vacuum Feature: Defaults to 15 mins, programmable up to 99 mins. “Remaining time” is displayed.
• Removable External Tank: The ability to switch tanks when performing multiple recoveries on large mobile A/C systems.
• Display: Multilingual
• Refrigerant Management System: Displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains.
• Refrigerant Charging: Select a charge mode from high or low side, or use both sides.
• Optional Printer (Sold Separately)
• Uses 34724 filter or 13172 maintenance kit

Specifications:

• Operating Temp Range | 32° - 120°F (0°-50°C)
• Recovery Performance | >95% at 70 to 75° F (21 to 24°C) <30 minutes
• Voltage | 125 VAC 60 Hz
• Charge Performance | +/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)
• Display | 5 cm x 9 cm graphical display
• Filter-Drier Capacity | 300 lb (136kg), spin-on type
• Hoses | 18 ft (5.5 m)
• Weight | Approximately 295 lbs. (133 kg)
• Compressor | 3/8 hp, pressure protected, oiled, hermetically sealed
• Dimensions(HxWxD) | 49 in x 28 x 39 (124.5 cm x 71 cm x 99 cm)
• Vacuum Pump | 5.0 cfm Dual Stage, 29.9 InHg
• Languages | English, French, Spanish
• Cylinder | External 50 lb. DOT
• Certifications | SAE J2788
• Uses 34724 filter or 13172 maintenance kit
• Weight | 280.00 lb

Related Parts & Accessories (Sold Separately):

• 30038 Printer
• 34214 3-Pack Printer Paper
• 3475 50 lb. Refillable Tank, D.O.T. Approved, for 12134A, 34700, 34100 Series
• 34724 Recycling Filter-Driers
• 13172 Maintenance Kit
