Description

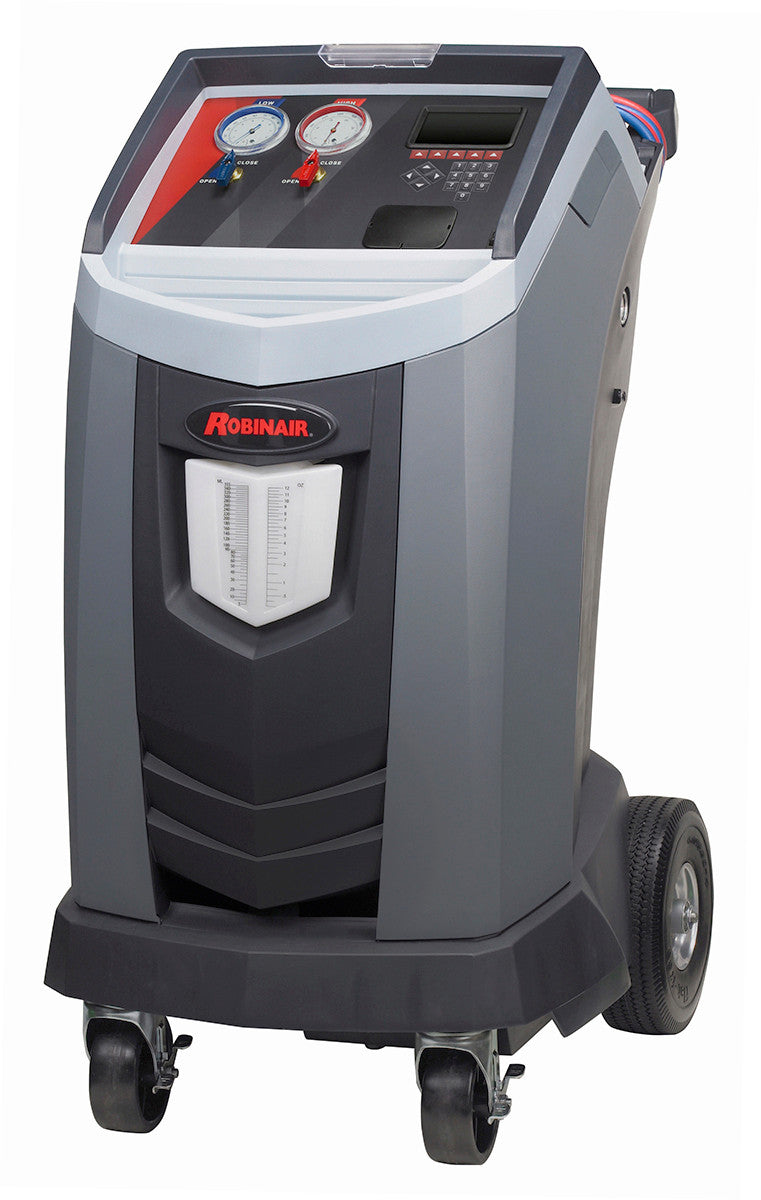

Robinair 34288NI New Economy R-134A Recover, Recycle, Recharge Machine
The 34288NI combines simple operation with superior accuracy. It recovers, recycles, evacuates and recharges R-134A mobile A/C systems quickly and accurately. The product outperforms the most current SAE J-2788 standards for accuracy and efficiency, recovering more than 95% of the refrigerant in a vehicle's A/C system and charging to better than +/- 1/2 oz of the programmed charge amount.
Tech Specifications:
- Dimensions | 29.00in x 24.00in x 42.00in
- Weight | 161.00 lb
Product Specifications:
- Dimension | 107 cm x 61 cm x 76 cm
- Display | 5 × 9 cm (4.3-in. diag) graphical LCD
- Filter Capacity | 68 kg (150 lb)
- Humidity | 32.2°C (90°F), 80% RH non-condensing
- Gauges | Ø 80 mm (3.15 in.)
- Max Pressure | Maximum Pressure
- Noise | <70 dB(A)
- Operating Voltage | 115V, 60 Hz
- Oil Drain Bottle Capacity | 355 ml (12 oz)
- Operating Temperature | 10°C to 50°C (50°F to 122°F)
- Vacuum Pump | 1.5 CFM (42 L/m) @ 60 Hz
- Service Hoses | 2.75 m (9 ft) / SAE J2196
- Internal Tank Capacity | 10 kg (22 lb)
- Weight | 73 kg (161 lb)
Includes:
- 34288NI ACS machine
- Operating Instructions
- Scale calibration check weight
- Service Center listing sheet
- Vacuum pump oil wtih global complaint SDS sheet
- Compressor oil with global compliant SDS sheet
- EPA registration sheet/envelope
- MACS 609 certification info sheet
- Mobile Vehicle A/C equipment certification form
Features:
- Automatic Oil Drain: Automatically drains oil recovered during the recovery operation and puts the oil in a graduated container showing the user how much needs to be injected back into the system.
- Automatic Air Purge: Eliminates damaging air without monitoring gauges or opening valves.
- 4.3 in full color graphics display
- Programmable Vacuum Function: Defaults to 15 mins, programmable up to 99 mins. “Remaining time” is displayed.
- Optional Refrigerant & Oil Database: A/C system capacities for North American market vehicles (Not included with the machine)
- Refrigerant Management System: Displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains
- Optional Printer: Add the ability to print service summaries from the machine (Not included with the machine)
Related Parts & Accessories:
- 17499 Dust Cover for A/C RRR machines
- 34412 A A/C Capacities Database - 2016
- 18480 INJECTOR, OIL R134A PAG
- 18490 INJECTOR, OIL R134A POE
Replacement Parts:
- Recycling Filter-Driers
- Premium High Vacuum Pump Oil, Quart Bottle (case of 12 bottles)
- Premium High Vacuum Pump Oil
