Description
Simple Assembly We made our modular system plug-and-play so you can quickly customize your vehicle power whenever you want. Simply stack a battery to increase capacity or plug in a solar panel for faster charging.
Power Kits integrates water, electricity, and access control systems for smart vehicle monitoring. It offers remote control of charging and discharging, independent management of 16 DC circuits, and reads power usage for each circuit and total charging/discharging amounts.
Free Energy with Zero Upkeep Cost Save energy bills and reduce your carbon footprint by utilizing green power and avoiding generator maintenance spendings.
- High 5kVA output power, to run 2 × 13500 BTU rooftop a/c units at the same time.
- X-Fusion technology, stable electricity and protects appliances even with weak shore power.
- As quiet as 48 dB, a volume lower than a quiet office.
- 45kWh capacity for up to 7 days off-grid.
- 4 multiple charging methods: shore power, solar, vehicle alternator, and generator.
- Charge 11kWh in only 1 hour.

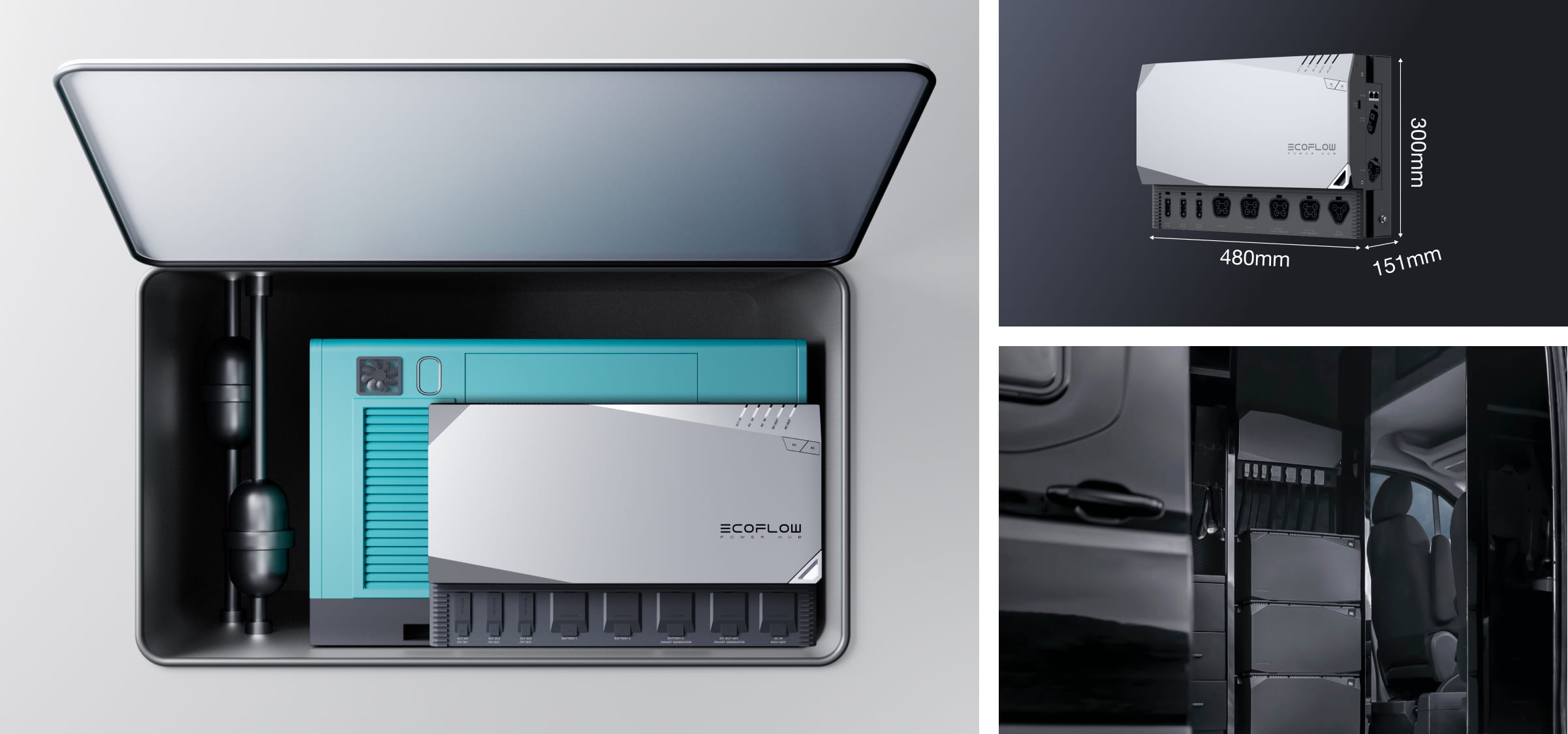

- Compact & lightweight, stores easily.
Technical Specifications
| Feature | Specification |
|---|---|
| Net Weight | 35.5kg (78.4 lb) |
| Dimension (HWD) | 300 x 480 x 151 mm (11.8 x 18.9 x 5.9 in) |
| Communication | Wi-Fi(2.4G, 5G), Bluetooth |
| GPS | Supported |
| IP Rating | IP20 |
| AC Output (Discharge Only) | 120V-4000W, 5000VA, 60Hz (Surge 10KVA) |
| X-Fusion (Power Assist) | 33.3A Max, 500VA Max |
| 48V DC Output / Smart Generator (48V) | 51.2V-55A Max |
| EF BUS Output (x2) | 12V-total 12A Max |
| USB A Output | 5V-2.4A Max |
| Total Output | 8752W Max |
| AC Input (Charge Only) | 100-120V-4000W Max, 50Hz/60Hz |
| Alternator Input 1 / PV Input 1 | 13-60V-100A Max, 4000W Max |
| Alternator/PV Input 2/3 | 13-60V-30A Max, 1600W Max |
| BATTERY 3 / Smart Generator | 40-57.6V-100A Max per port, total 270A Max |
| Charge | 40-57.6V-100A Max per port, total 270A Max |
| Operating Temperature | -25°C to 60°C (-13°F to 140°F), derating 40°C (104°F) |
| Discharging Temperature | -25°C to 60°C (-13°F to 140°F), derating 40°C (104°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Altitude | < 2,000 m (6,562ft) |
| Warranty | 5 years |
