Description

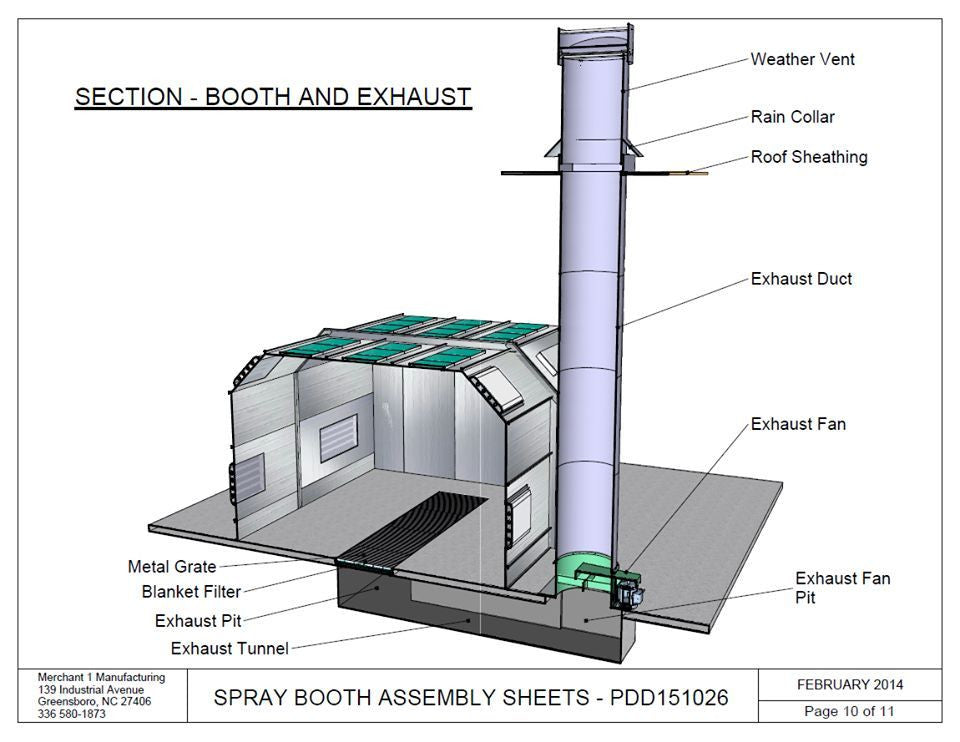

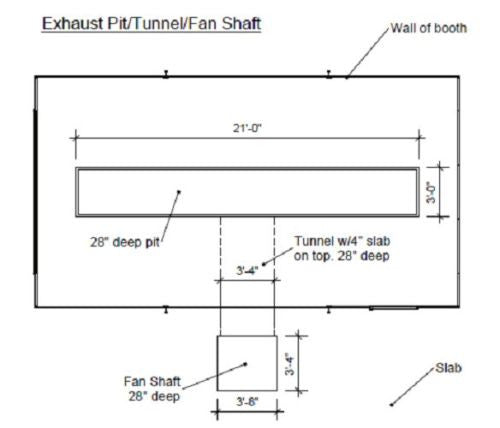

Pitted down-draft booth much like the side down-draft provide a top-down air flow but exhausting is sub-surface and are most often employed as a replacement of another PDD or where the facility has infrastructure to support it. This booth can also be equipped with an air intake box and heating unit.
- US-manufactured paint booths - built in Reidsville, NC
- Designed for extended service and production requirements.
- 18-gauge G-90 Galvanized steel
- Certified sub-components (Fan/Motor; Filters; LED Lights)
- OSHA and NFPA-33 compliant
- Optimal / Code-compliant coating environment
- Standard and Custom size booths
- Multiple air flow types (or variants)
Why…..Merchant 1 Manufacturing:
- US manufactured booths – standard and custom-sized paint / spray booths
- Free Shipping and Crate subject to freight and fuel surcharges
- On-line and up-front pricing and expedited ‘total acquisition’ quotes
- Standard and customized booths for painting, powder-coating, storage, welding, blasting, etc.
- Highly configurable and adaptive manufacturing process
- A person that answers the phone, listens, and….works w/you toward a solution.
- Best pricing in the market -- no bells and whistles, unless you ask for it!
Customer Responsibilities:
- Offloading of delivery truck
- Construction / Installation to include electrical
- Local permitting and fire suppression (if req’d)

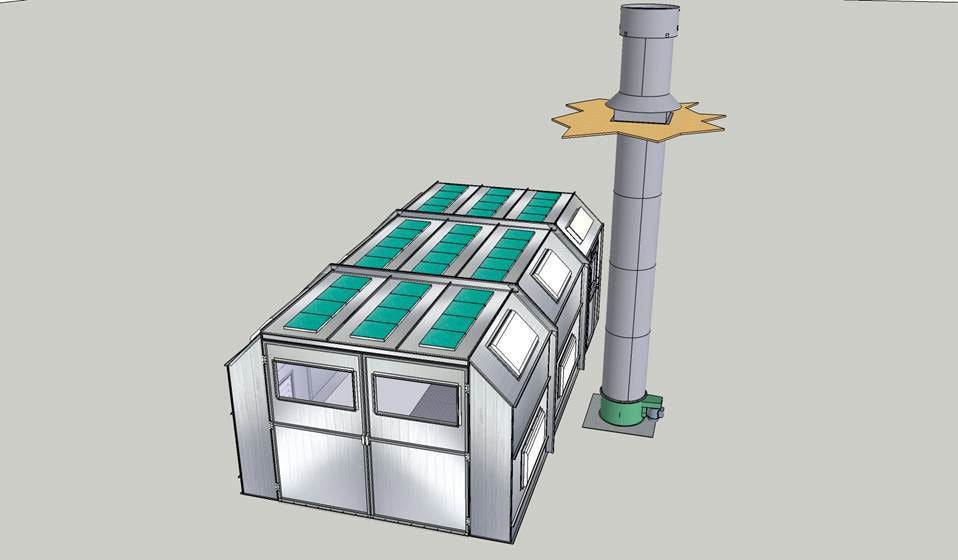

PITTED DOWN DRAFT PAINT BOOTH W/FILTER TOP
|
MODEL NUMBER: |
PDD141026 |
|

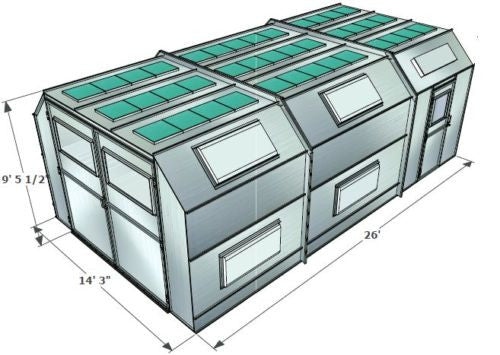

INSIDE DIMENSIONS |
14'WIDE X 9'4"TALL X 25'9" LONG |
|
OUTSIDE DIMENSIONS |
14'3'WIDE X 9'10"TALL X 26'LONG |
|
CONSTRUCTION |
18 GAUGE G-90 GALVANIZED STEEL |
|
FRONT DOOR OPENING DIMENSIONS |
9'TALL X 10'WIDE w/ LARGE OBSERVATION GLASS |
|
MAN DOOR ACCESS DIMENSIONS |
1 DOOR WITH WINDOW @ 7'TALL X 3'WIDE |
|
LIGHTING |
TEN 2' X 4', LED FIXTURES W/GLASS, LIGHT OVER DOOR (CLASS 1 DIV 2) |
|
EXHAUST SYSTEM |
30" DIA TUBEAXIAL FAN; 5HP-3PHASE MOTOR; 15680 CFM @ 1/2"S.P. |
|
FILTRATION |
20" X 20" INTAKE & EXHAUST BLANKET FILTER |
|
MANOMETER/DRAFT GAUGE, HARDWARE AND SEALANTS |
INCLUDED |
| PDD141026 OPTIONS: |
| AIR INTAKE BOX FOR HEAT |
| 30" DIA X 8' LONG EXHAUST DUCTWORK PACKAGE |
| DRIVE-THRU DOORS |
| POWDER COATED BRIGHT WHITE COMPLETE BOOTH |
| CONTROL PANEL FOR LIGHTS & FAN |
| CONTROL PANEL w/VFD (Variable Freq. Drive) |
