Description

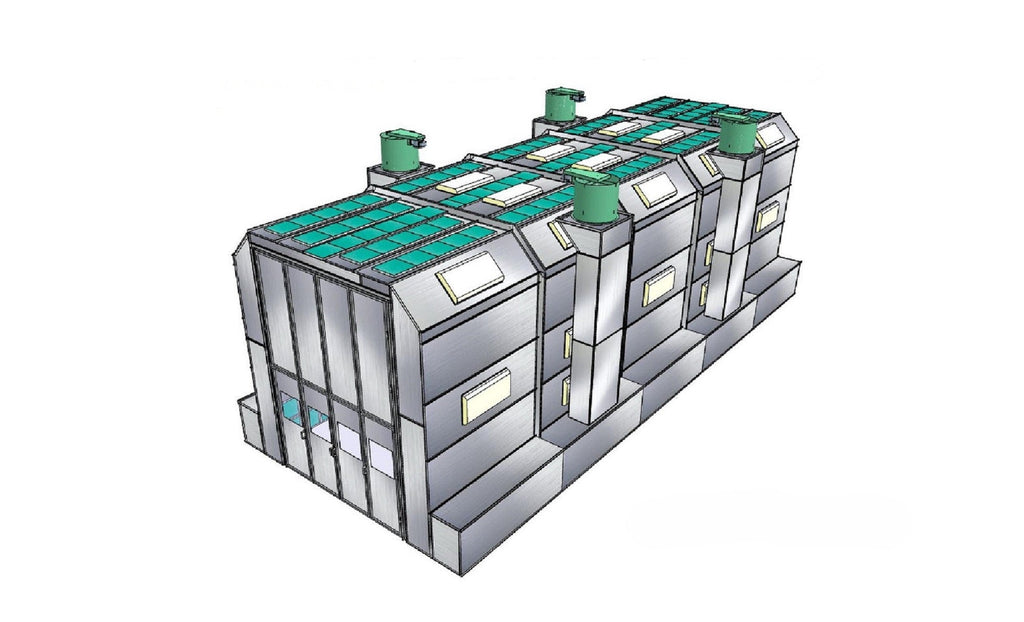

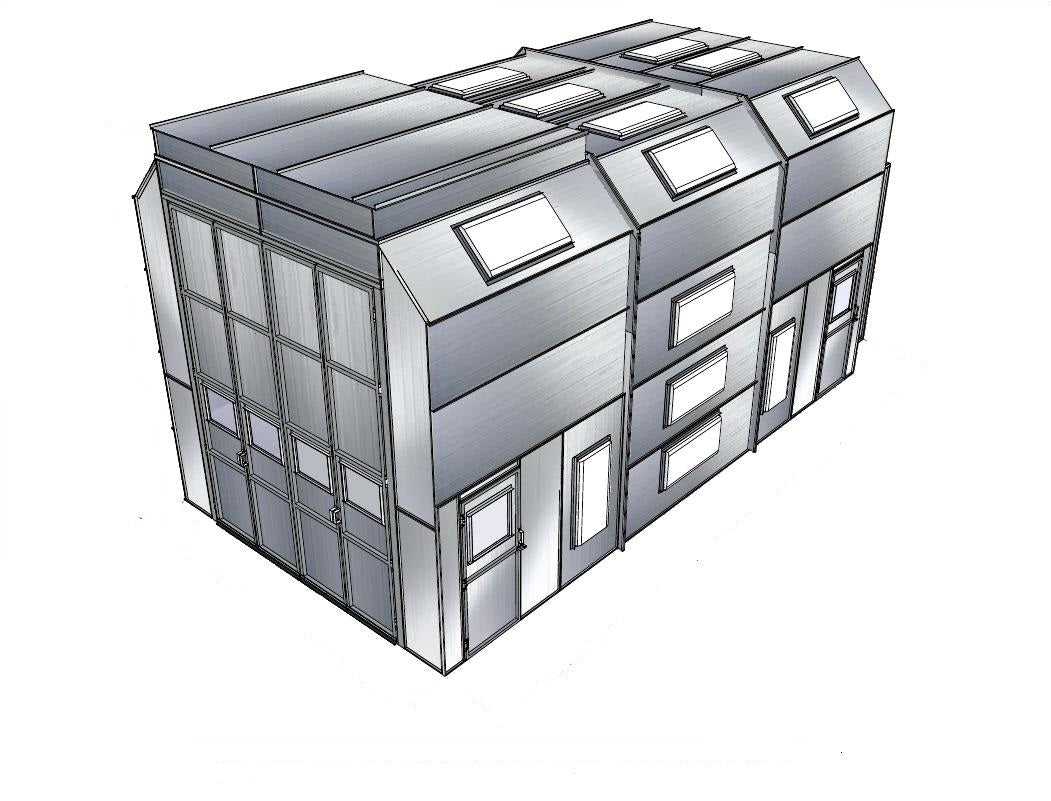

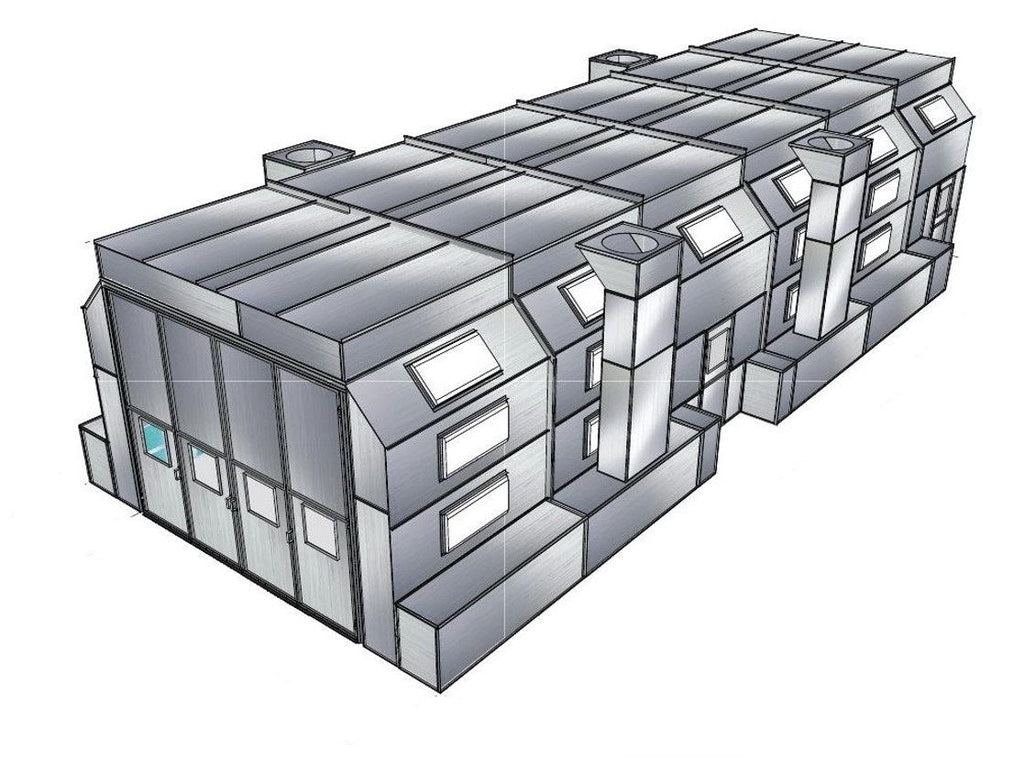

The Side Down Draft (SDD) truck booth provides the optimal air flow for the highest quality (paint) finishes. Higher-end booth with top-down air flow and multiple chimney exhausts. Like the semi-down the side down draft can support the addition of an air make-up/heating unit with the addition of a solid intake box.
- Engineered with 18 gauge galvanized steel
- Certified sub-components (Fan/Motor; Filters; LED Lights)
- OSHA and NFPA-33 compliant Optimal / Code-compliant coating environment
- Customization Available - Engineered to your needs – We can build any dimensions.
Side Down Draft Paint Booth Specifications:
| MODEL NUMBER | PBTSDD161764 |
| INSIDE DIMENSIONS | 16'Wide x 16'6"Tall x 60'Deep |
| OUTSIDE DIMENSIONS | 20'Wide x 16'8"'Tall x 64'Deep |
| CONSTRUCTION | 18 GAUGE G-90 GALVANIZED STEEL |
| FRONT DOOR OPENING DIMENSIONS | 11'Wide x 15'Tall |
| LIGHTING | TWENTY-TWO 2'X 4' LED FIXTURES W/GLASS |
| EXHAUST SYSTEM (4x Chimneys) | (4) 30" Fan; 3HP-3PHASE MOTOR; 25,600 CFM @ 1/2 S.P. |
| FILTRATION | 20" X 20" INTAKE & EXHAUST FILTER PADS |
| MANOMETER/DRAFT GAUGE, HARDWARE AND SEALANTS | INCLUDED |
TRUCK SIDE DOWN DRAFT MODELS & SIZES:
|
|
|
Add-On Options:
- Single Phase Motor
- 42″ Dia X 8′ Long Exhaust Ductwork Package
- Powder Coated Bright White Complete Booth
- Control Panel for Lights & Fan
- High end VFD Control Panel with UL listed Components
- Converts single phase to three phase
- Converts three phase to three phase
- Drive Through Doors
Reach out to our sales team for a complete quote with additional options.
Customer Responsibilities:
- Offloading of delivery truck; Forklift required for unloading crate
- A forklift with 60” fork length is recommended for off loading equipment
- Construction / Installation to include electrical.
- Installation Instructions provided. Our in house design team is available to answer any questions during installation.
- All electrial installation for Paint Booth and AMU should be performed by a licensed electrician familiar with national, local electrical codes and regulations in your area. Failure to do so, could possibly result in costly damages and/or personal injury.
- Local permitting and fire suppression (if required)
