Description

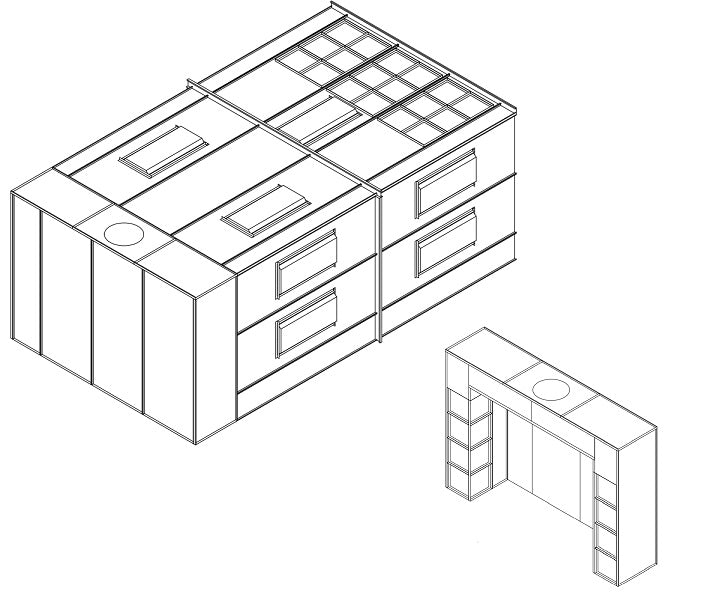

This (SD) booth is an entry-level automotive paint booth that supports a wide range of the most common vehicles at a competitive/economical cost and ROI. Built-to-order with box plenum (FT) or horseshoe/bridge plenum (FT-H). The bridge configuration (FT-H) provides 2'9" of additional inside work room and can be configured to support a drive-thru door. More importantly, both models facilitate the addition of an air in-take box for air make-up (heat) unit for the booth should it be desired either at the time of purchase or at a later date.

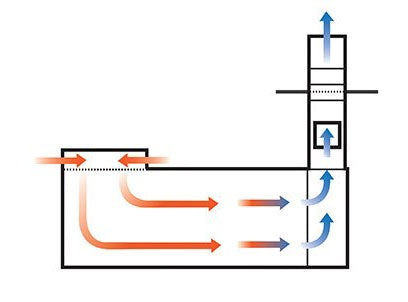

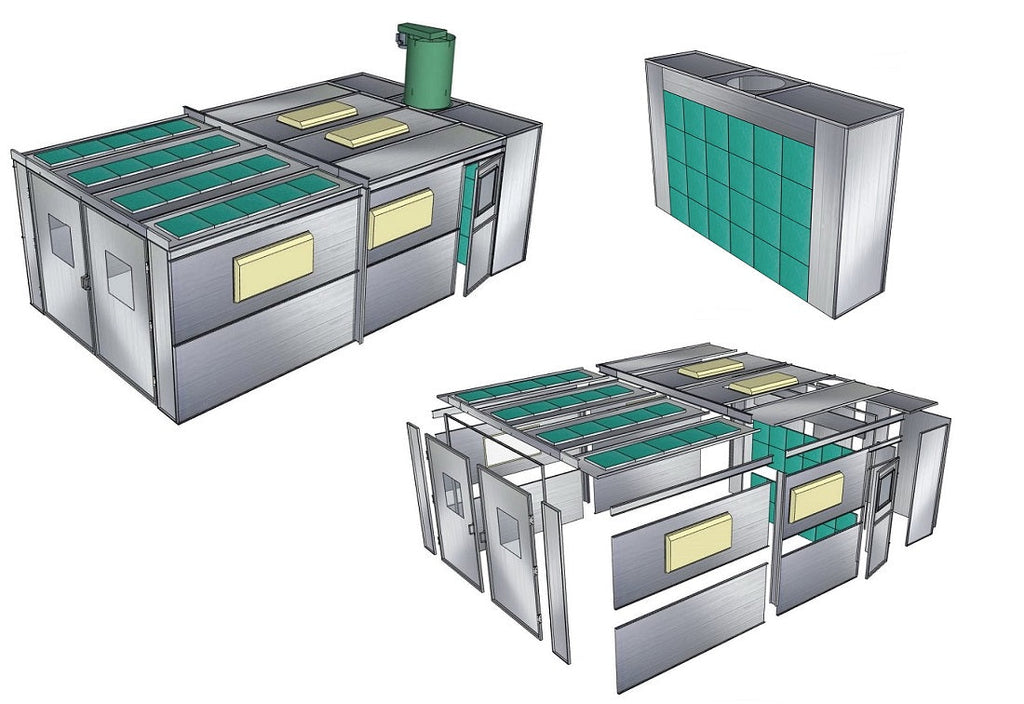

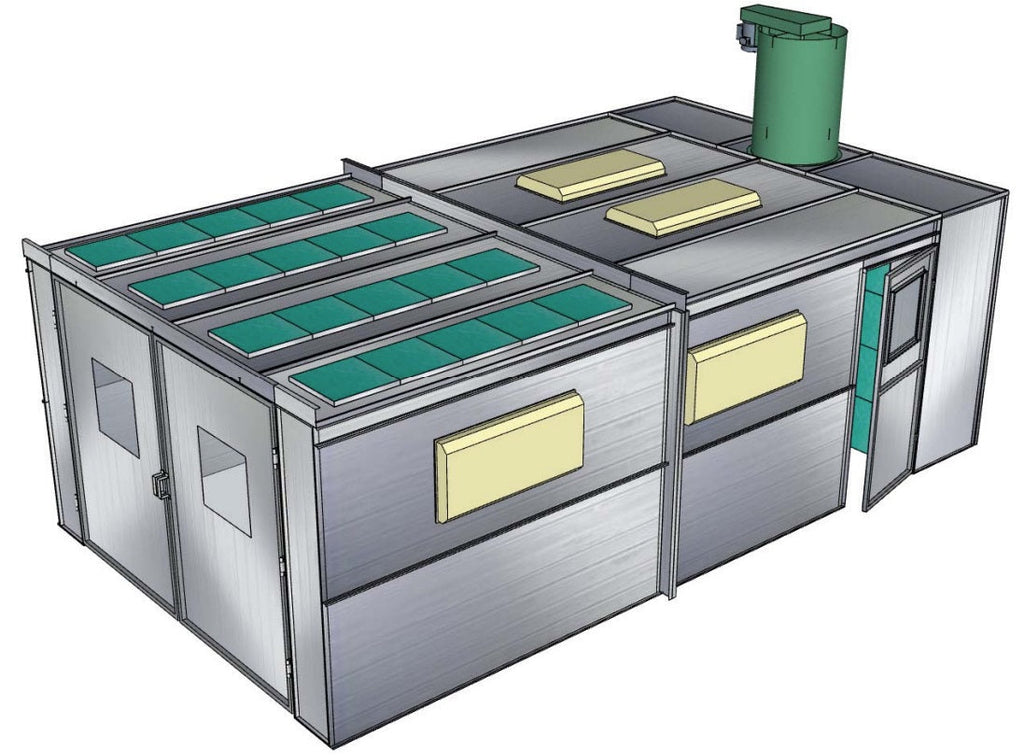

SEMI-DOWN PAINT BOOTH WITH BOX EXHAUST
| MODEL NUMBER: | PBSD13823FT |
| INSIDE DIMENSIONS | 13"WIDE X 8' TALL X 20'LONG |
| OUTSIDE DIMENSIONS | 14'WIDE X 8'3"TALL X 23'LONG |
| CONSTRUCTION | 18 GAUGE G-90 GALVANIZED STEEL |
| FRONT DOOR OPENING DIMENSIONS | 8'TALL X 10'WIDE |
| MAN DOOR ACCESS DIMENSIONS | 1 DOOR W/WINDOW @ 7'TALL X 3'WIDE |
| LIGHTING | 6- 2'x4' LED FIXTURES W/GLASS |
| EXHAUST SYSTEM | 24"TUBEAXIAL FAN; 3HP-3PHASE MOTOR; 8250 CFM @ 1/4"S.P. |
| FILTRATION | 20" X 20" INTAKE & EXHAUST FILTER PADS |
| MANOMETER/DRAFT GAUGE, HARDWARE & SEALANTS | INCLUDED |
Additional Options:
- Single Phase Motor
- 24″ Dia X 8′ Long Exhaust Ductwork Package
- Powder Coated Bright White – All Panels

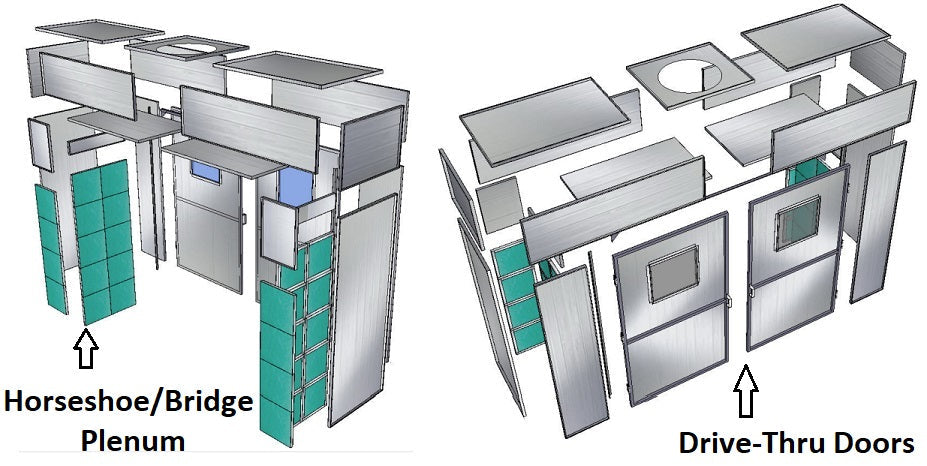

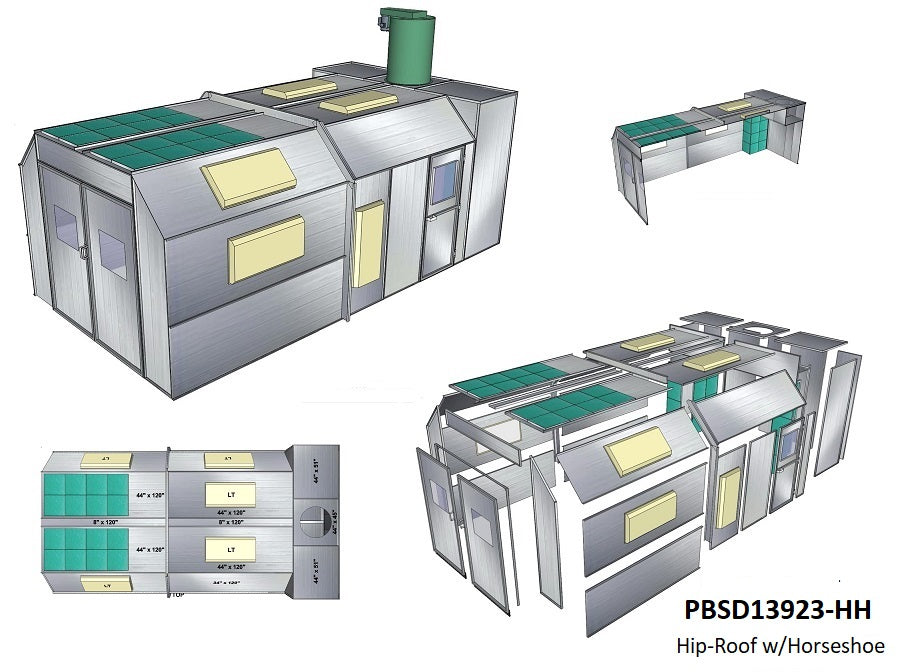

- Horseshoe/Bridge Exhaust
- Drive Through Doors
- High End Control Panel with UL listed components for lights and fan
- High End VFD Control Panel with UL listed components
Customer Responsibilities:
- Offloading of delivery truck; Forklift required for unloading crate
- A forklift with 60” fork length is recommended for off loading equipment
- Construction / Installation to include electrical.
- Installation Instructions provided. Our in house design team is available to answer any questions during installation.
- All electrial installation for Paint Booth and AMU should be performed by a licensed electrician familiar with national, local electrical codes and regulations in your area. Failure to do so, could possibly result in costly damages and/or personal injury.
- Local permitting and fire suppression (if required)
