Description

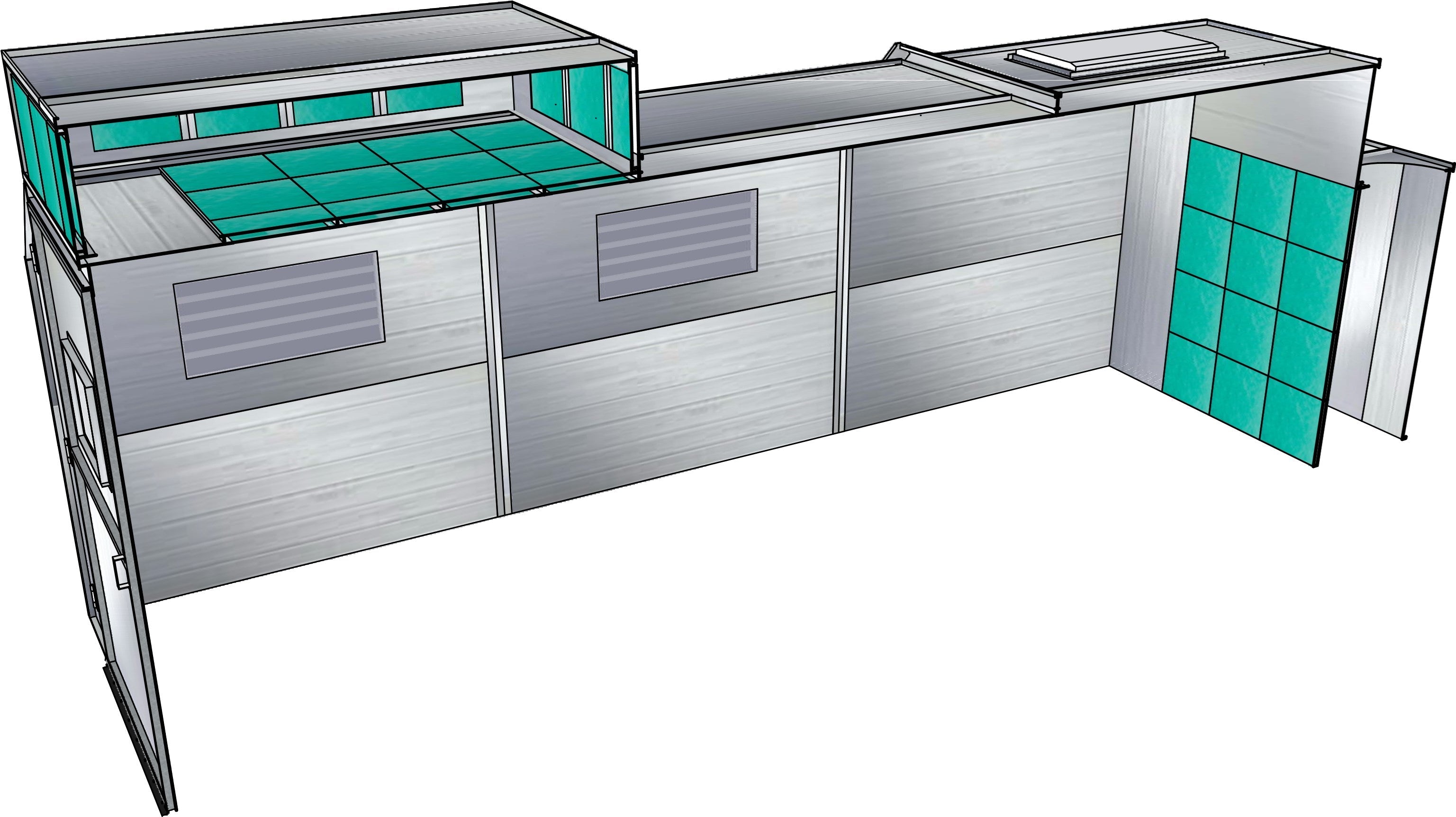

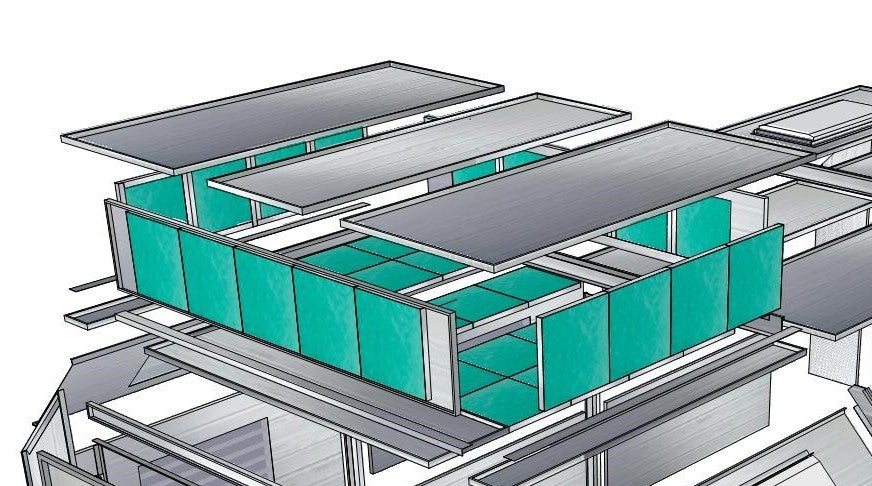

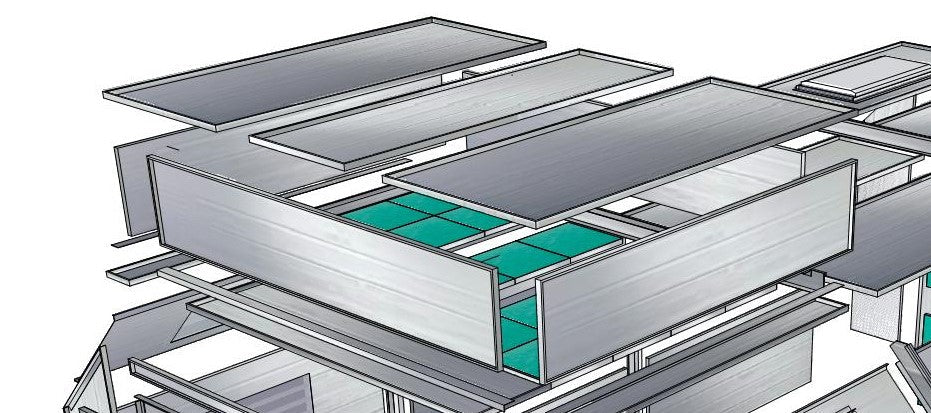

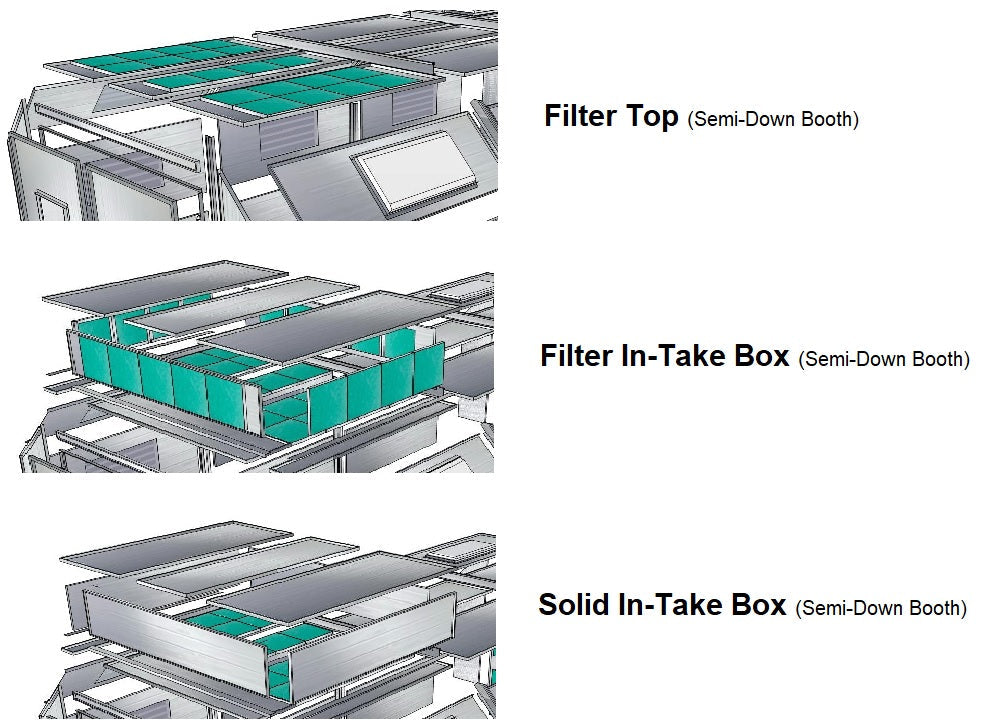

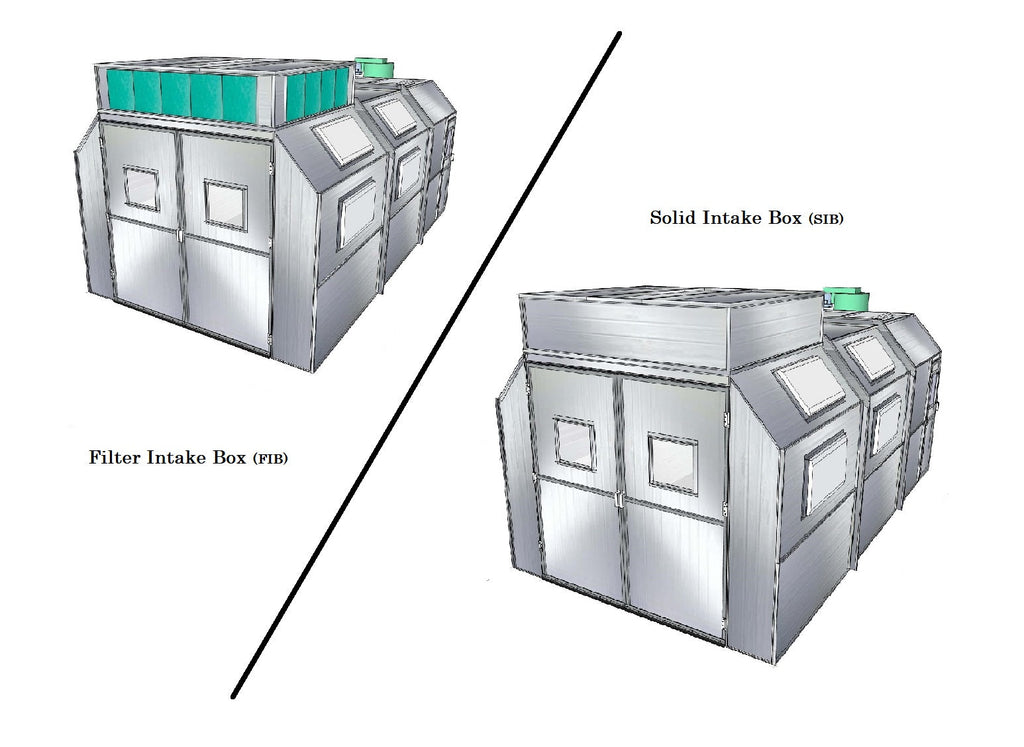

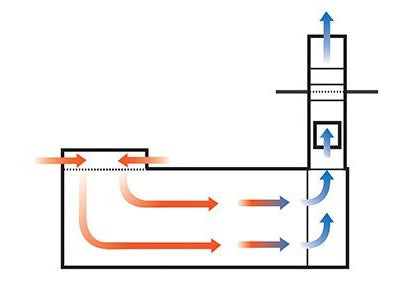

The Semi-Down (SD) booth provides a front – back horizontal air flow similar to the crossflow. However, the intake filter grids for a semi-down are located at the top or ceiling portion at the front of the booth as opposed to in the doors (like the CF). This booth (PBSD141129B) comes with the in-take box configured either as “filtered” or solid if you are purchasing or have an air make-up / heating unit to induce air.
M1M booths are custom-built in Reidsville, NC
- Engineered with 18 gauge galvanized steel
- Certified sub-components (Fan/Motor; Filters; LED Lights)
- OSHA and NFPA-33 compliant Optimal / Code-compliant coating environment
- Customization Available - Engineered to your needs – We can build any dimensions

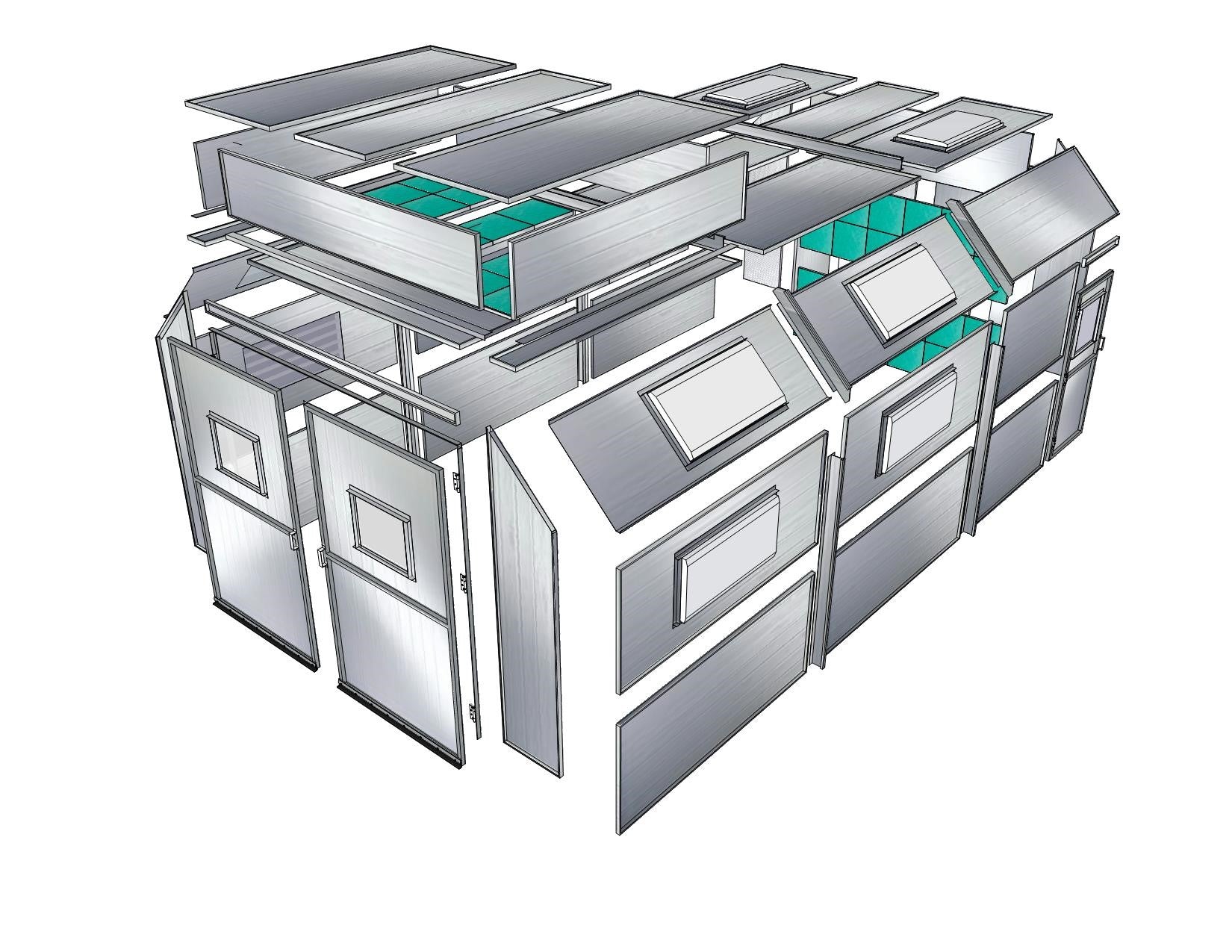

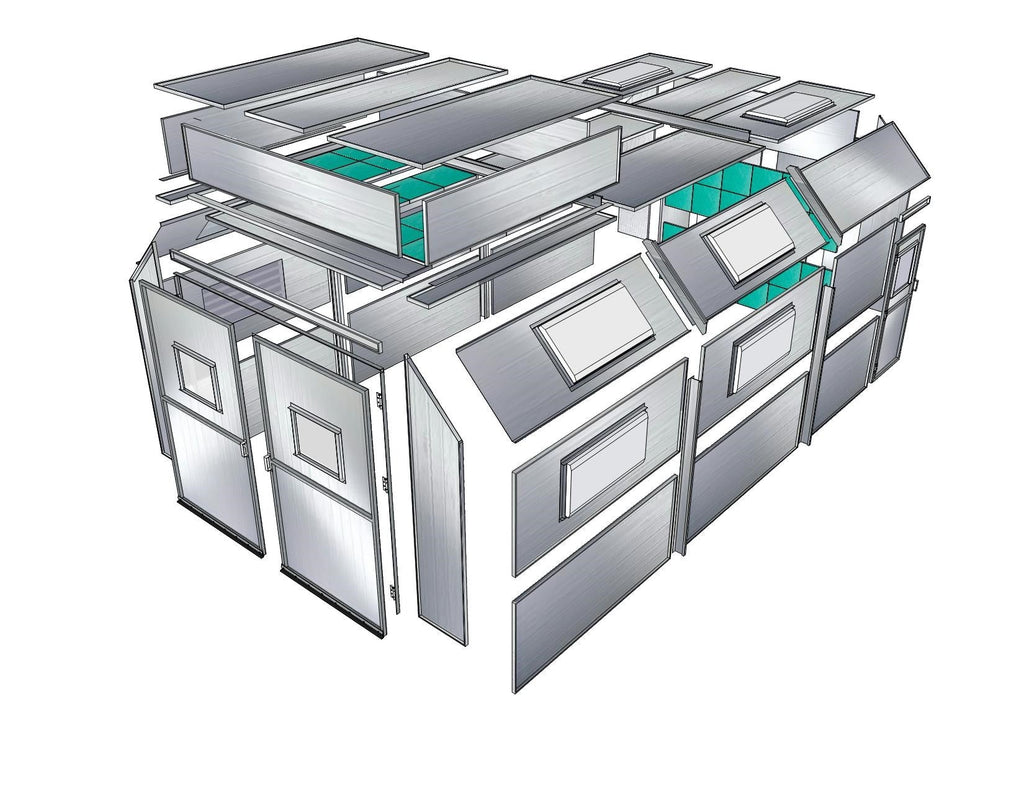

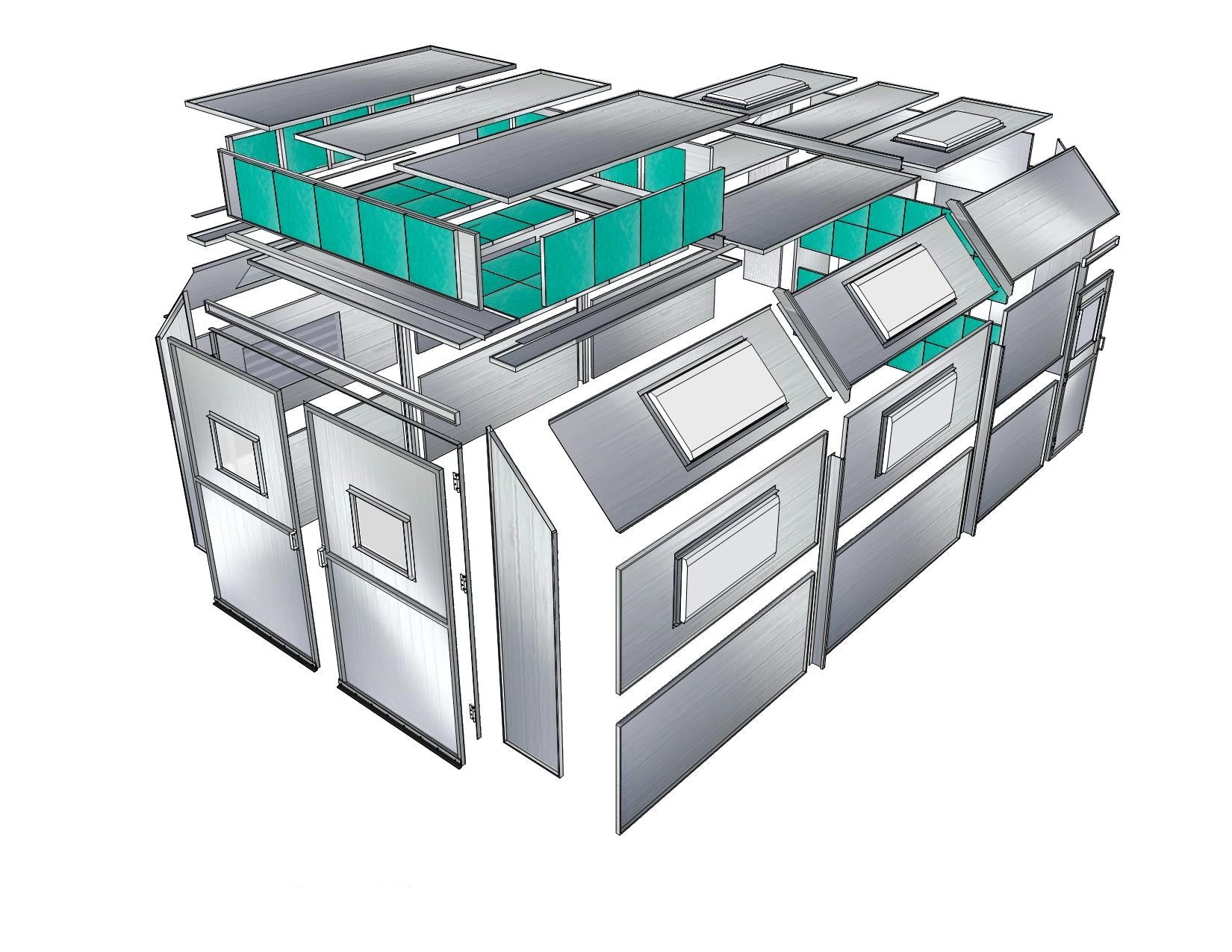

SEMI DOWN DRAFT PAINT BOOTH WITH AIR INTAKE BOX
| MODEL NUMBER: | PBSD141129B (Shown Above) |
| INSIDE DIMENSIONS | 14'WIDE X 9'4"TALL X 25'9"LONG |

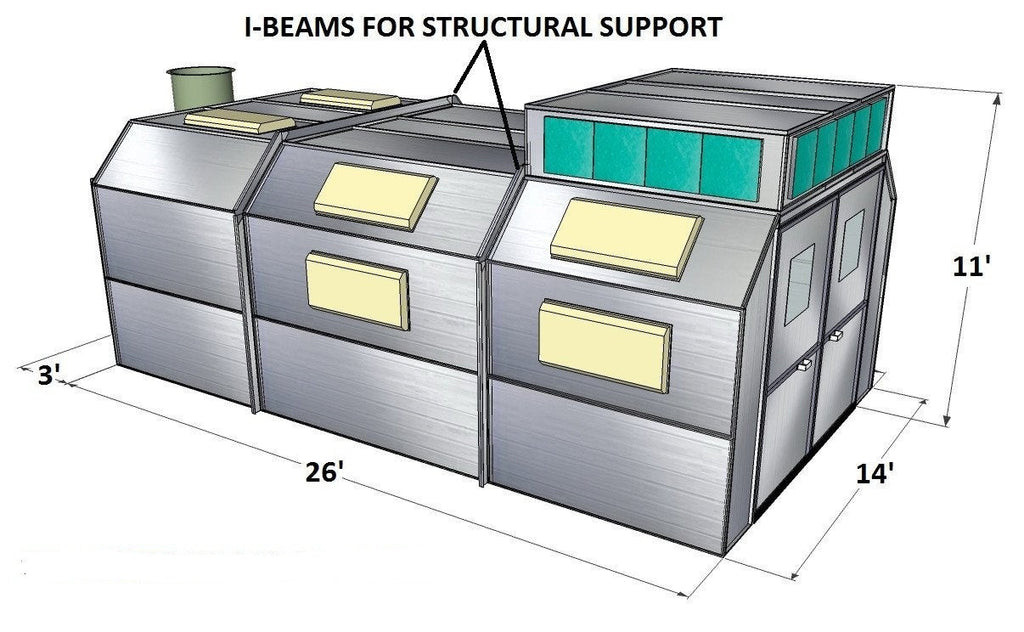

| OUTSIDE DIMENSIONS | 15'WIDE X 11'3"TALL X 29'LONG |
| CONSTRUCTION | 18 GAUGE G-90 GALVANIZED STEEL |
| FRONT DOOR OPENING DIMENSIONS | 9'TALL X 10'WIDE |
| MAN DOOR ACCESS DIMENSIONS | 1 DOOR WITH WINDOW @ 7'TALL X 3'WIDE |
| LIGHTING | 10- 2'x4' LED FIXTURES W/GLASS |
| EXHAUST SYSTEM | 30" DIA TUBEAXIAL FAN; 3HP-3PHASE MOTOR; 12220 CFM @ 1/4"S.P. |
| FILTRATION | 20" X 20" INTAKE & EXHAUST FILTER PADS |
| MANOMETER/DRAFT GAUGE, HARDWARE AND SEALANTS | INCLUDED |
Additional Options:
- Single Phase Motor
- 30″ Dia X 8′ Long Exhaust Ductwork Package
- Powder Coated Bright White – All Panels
- Drive Through Doors
- High End Control Panel with UL listed components for lights and fan
- High End VFD Control Panel with UL listed components
Customer Responsibilities:
- Offloading of delivery truck; Forklift required for unloading crate
- A forklift with 60” fork length is recommended for off loading equipment
- Construction / Installation to include electrical.
- Installation Instructions provided. Our in house design team is available to answer any questions during installation.
- All electrical installation for Paint Booth and AMU should be performed by a licensed electrician familiar with national, local electrical codes and regulations in your area. Failure to do so, could possibly result in costly damages and/or personal injury.
- Local permitting and fire suppression (if required)
