Description

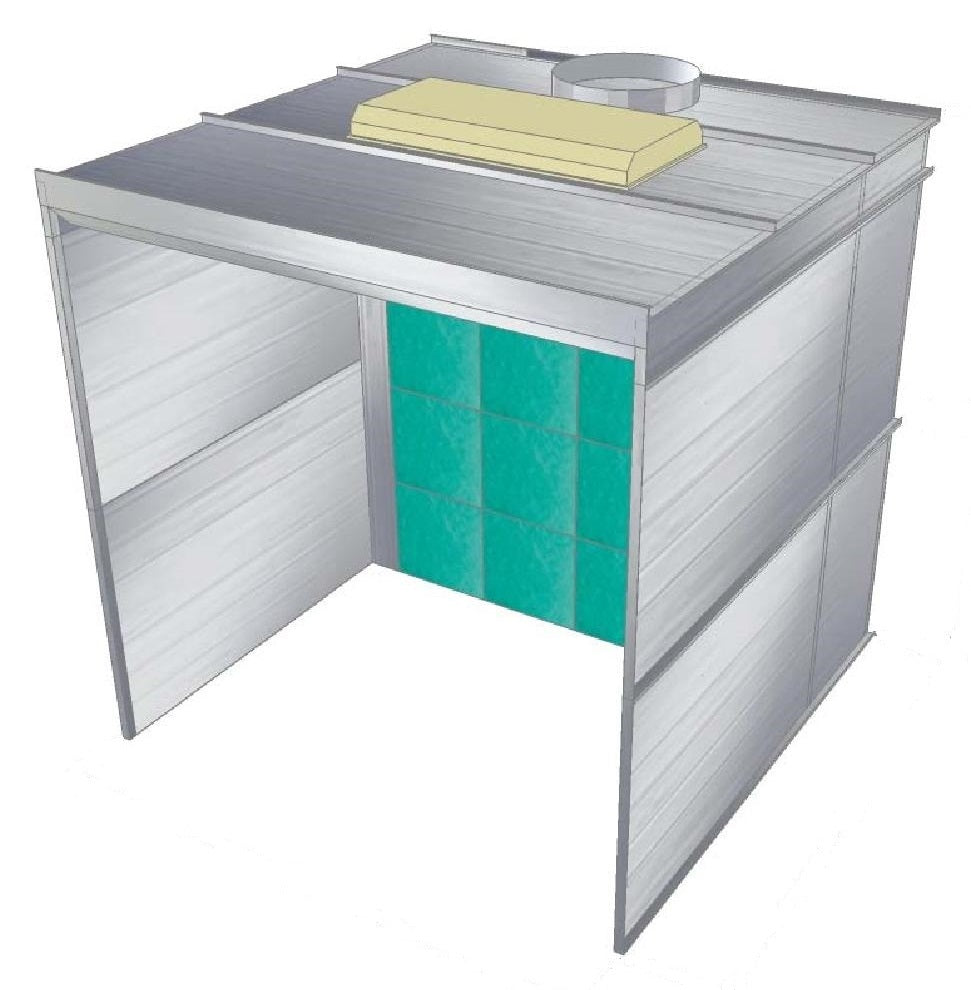

The Open face paint spray booth provides a simple and safe solution for isolating and exhausting your paint operations - limiting work site contamination and exposure for significantly less than a full cabin paint booth.
M1M booths are custom-built in Reidsville, NC
- US-manufactured paint booths - built in Reidsville, NC
- Designed for extended service and production requirements
- 18-gauge G-90 Galvanized steel
- Certified sub-components (Fan/Motor; Filters; LED Lights)
- OSHA and NFPA-33 compliant
- Optimal / Code-compliant coating environment
- Standard and Custom size booths
- Multiple air flow types (or variants)
Customer Responsibilities:
- Offloading of delivery truck
- Construction / Installation to include electrical
- Local permitting and fire suppression (if req’d)
| MODEL NUMBER | PBOF888 |
| INSIDE DIMENSIONS | 8'Wide x 8'Tall x 5'8"Deep |
| OUTSIDE DIMENSIONS | 8'Wide x 8'Tall x 8'Deep |
| CONSTRUCTION | 18 GAUGE G-90 GALVANIZED STEEL |
| FRONT OPENING DIMENSIONS | 8'Wide x 8'Tall |
| LIGHTING | One 2' X 4' LED FIXTURES W/GLASS |
| EXHAUST SYSTEM | 24" Fan; 1.5 HP-3PHASE MOTOR; 7250 CFM @ 1/2" S.P. |
| FILTRATION | 20" X 20" EXHAUST FILTER PADS |
| MANOMETER/DRAFT GAUGE, HARDWARE AND SEALANTS | INCLUDED |
| MODEL | |
| PBOF888 | |
| PBOF10810 | |
| PBOF12810 | |
| PBOF14812 | |
| PBOF16810 | |
| PBOF20813 |
