Description

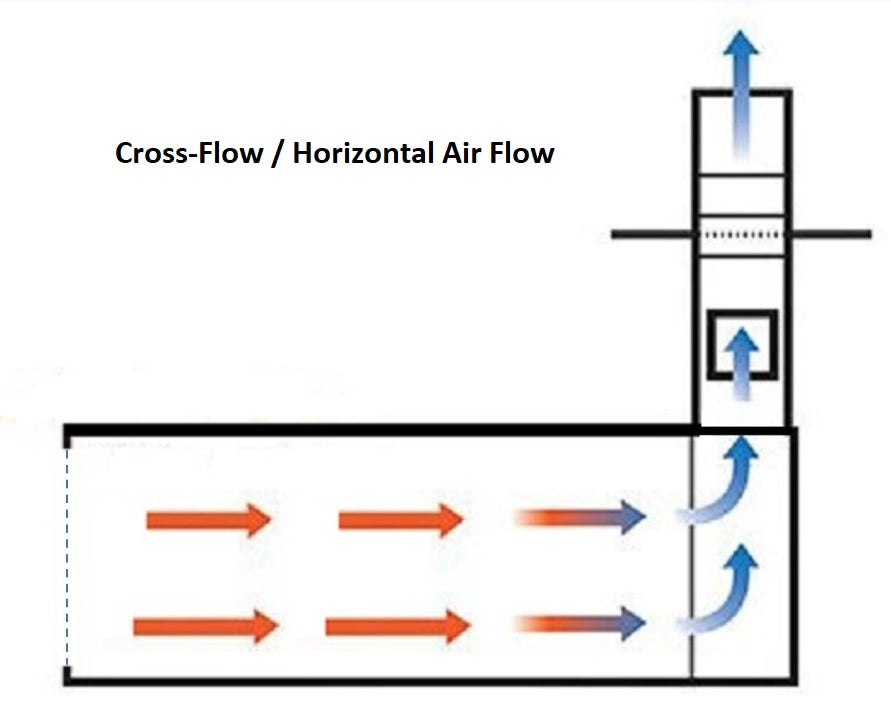

Engineered for efficiency and performance, the Cross Flow Flat Top Paint Booth is a cost-effective solution for automotive, industrial, and custom paint applications. Designed with a flat-top ceiling and a streamlined cross flow ventilation system, this booth delivers consistent airflow from front to rear, creating a clean and controlled environment for superior finishes. American Made and Built in Reidsville, NC
This cross flow booth is a perfect entry-level automotive paint booth that supports a wide range of the most common vehicles at a competitive/economical cost and ROI.
- Engineered with 18 gauge galvanized steel
- Certified sub-components (Fan/Motor; Filters; LED Lights)
- OSHA and NFPA-33 compliant Optimal / Code-compliant coating environment
- Customization Available - Engineered to your needs – We can build any dimensions.

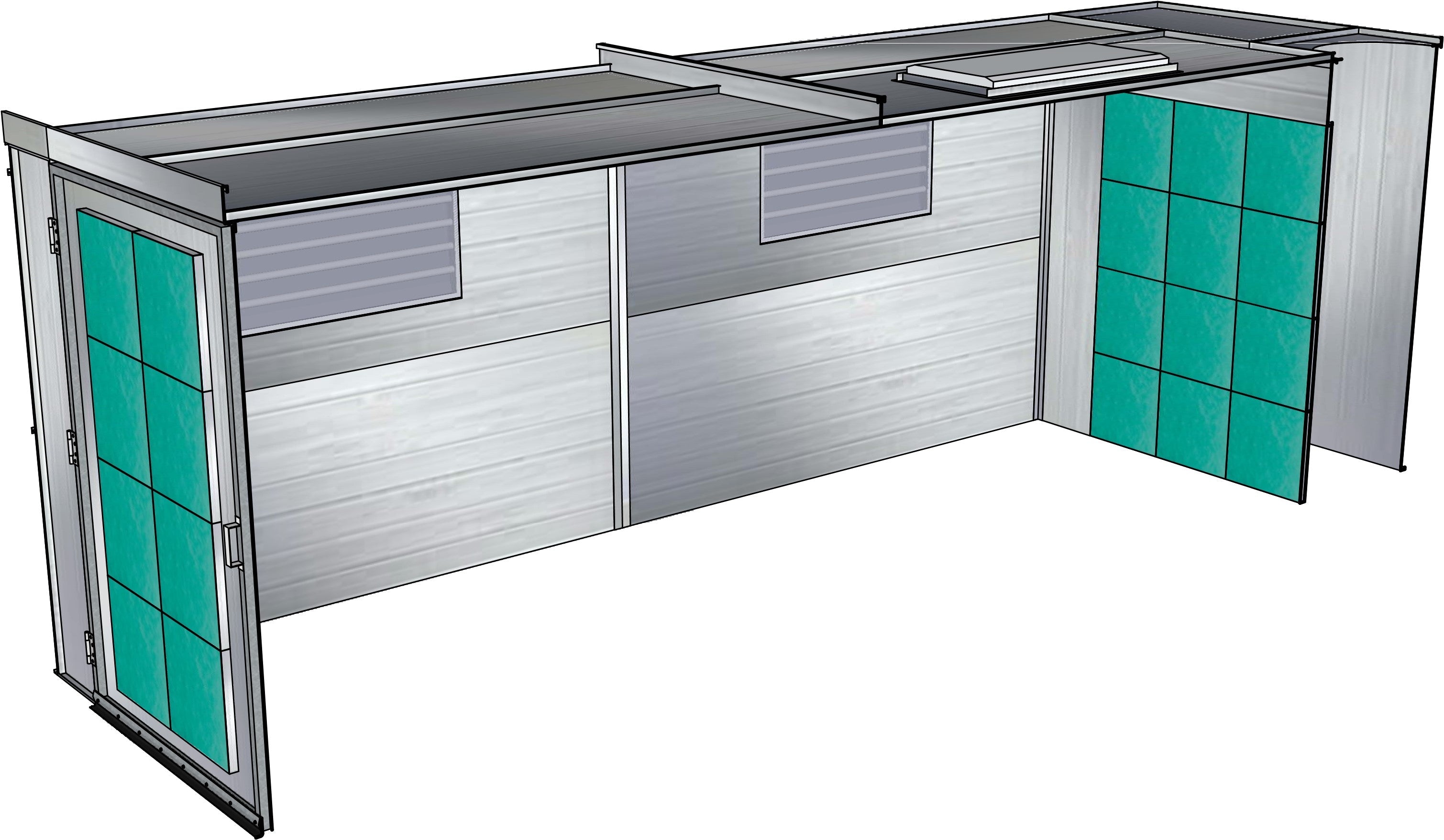

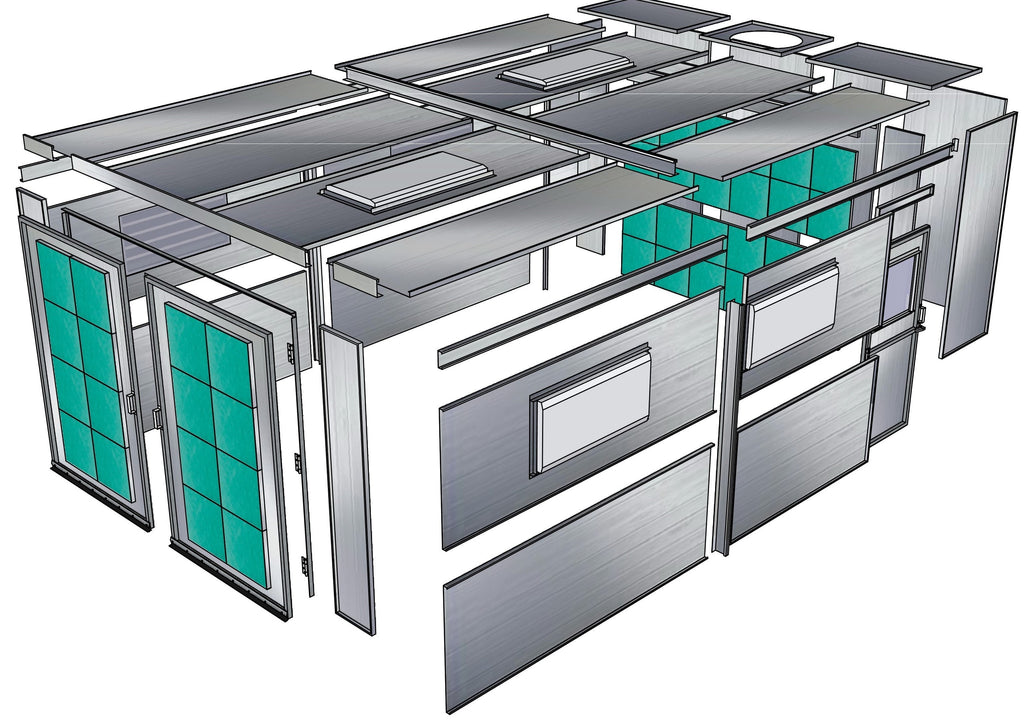

CROSS FLOW PAINT BOOTH FLAT TOP
| MODEL NUMBER: | PBFT13823FT |
| INSIDE DIMENSIONS | 13"WIDE X 8' TALL X 20'LONG |

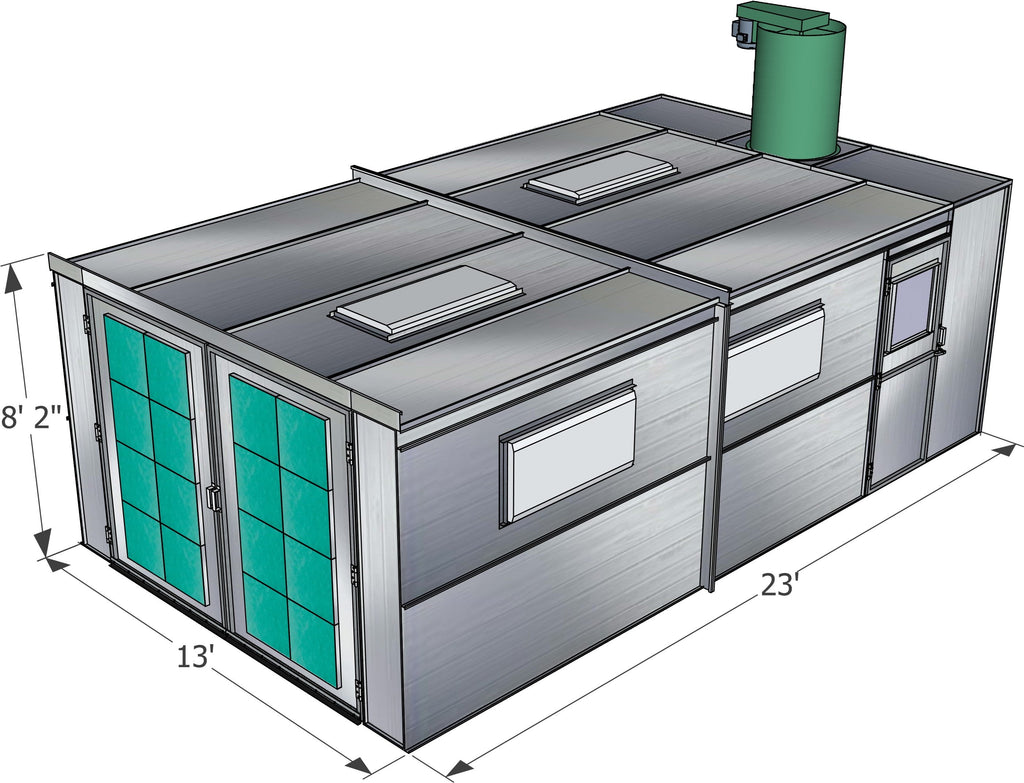

| OUTSIDE DIMENSIONS | 14'WIDE X 8'6"TALL X 23'LONG |
| CONSTRUCTION | 18 GAUGE G-90 GALVANIZED STEEL |
| FRONT DOOR OPENING DIMENSIONS | 8'TALL X 10'WIDE |
| MAN DOOR ACCESS DIMENSIONS | 1 DOOR W/WINDOW @ 7'TALL X 3'WIDE |
| LIGHTING | Six 2' X 4' LED FIXTURES W/GLASS |
|
EXHAUST SYSTEM |
24"TUBEAXIAL FAN;3HP-3PHASE MOTOR; 10,400 CFM @ .25"S.P. |
| FILTRATION | 20" X 20" INTAKE & EXHAUST FILTER PADS |
| MANOMETER/DRAFT GAUGE, HARDWARE & SEALANTS | INCLUDED |
Additional Options:
- Single Phase Motor
- 24″ Dia X 8′ Long Exhaust Ductwork Package
- Powder Coated Bright White – All Panels

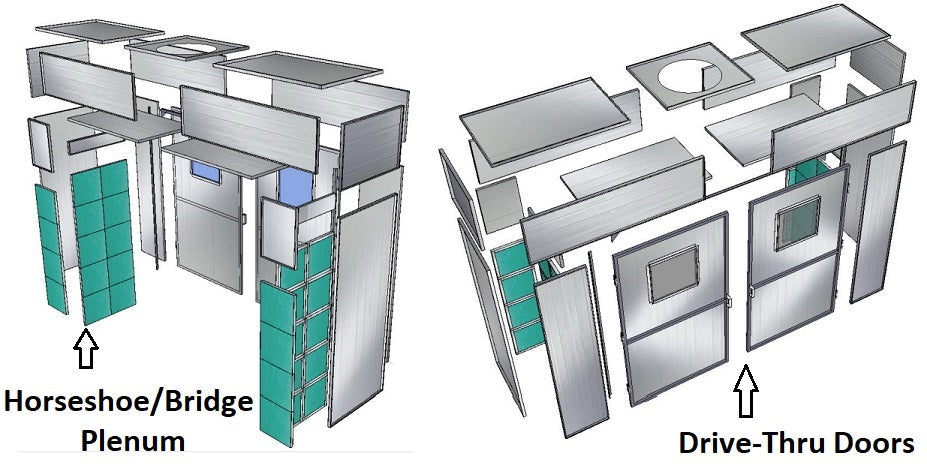

- Horseshoe/Bridge Exhaust
- Drive Through Doors
- High End Control Panel with UL listed components for lights and fan
- High End VFD Control Panel with UL listed components
Customer Responsibilities:
- Offloading of delivery truck; Forklift required for unloading crate
- A forklift with 60” fork length is recommended for off loading equipment
- Construction / Installation to include electrical.
- Installation Instructions provided. Our in house design team is available to answer any questions during installation.
- All electrial installation for Paint Booth and AMU should be performed by a licensed electrician familiar with national, local electrical codes and regulations in your area. Failure to do so, could possibly result in costly damages and/or personal injury.
- Local permitting and fire suppression (if required)
