Description
FILTER WALL / FREE-STANDING EXHAUST WALL
Stand-alone filter bank designed to exhaust/extraction of fumes and/or generation of negative pressure within a room or building. Filter walls are built to order / custom sizes.
- US-manufactured product - built in Reidsville, NC
-
Designed for simplicity, quick assembly, and extended service.
- 18-gauge G-90 Galvanized steel
- Certified sub-components (Fan/Motor; Filters)
-
Custom sized to your specifications
- Fan/Motor size and type varies depending upon equipment use
- Paint and Powder applications require explosion-proof motors
Customer Responsibilities:
- Offloading of delivery truck
- Construction / Installation to include electrical.
- Local permitting and fire suppression (if req’d)
FILTER WALL / EXHAUST BOX

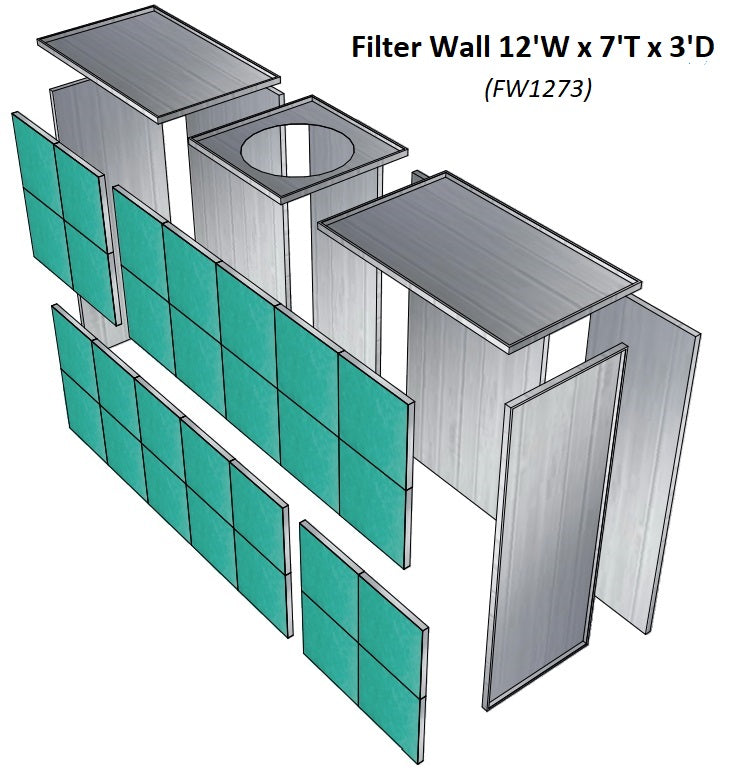

| MODEL NUMBER: | FW1273 (Shown Above) |
| INSIDE DIMENSIONS | 11'8" WIDE X 6'10" TALL X 2'9"DEEP |
| OUTSIDE DIMENSIONS | 12' WIDE X 7' TALL X 3' DEEP |
| CONSTRUCTION | 18 GAUGE G-90 GALVANIZED STEEL |
| EXHAUST SYSTEM | 24"TUBEAXIAL FAN;2HP-3PHASE MOTOR;8250 CFM @ 1/2"S.P. |
| FILTRATION | 20" X 20" INTAKE & EXHAUST FILTER PADS |
CUSTOMIZED TO FIT YOUR SHOP / WORKSPACE
| FILTER WALL MODEL | DIMENSIONS (+/- Inches) |
| FW443 | 4' Wide X 4' Tall x 3 'Deep |

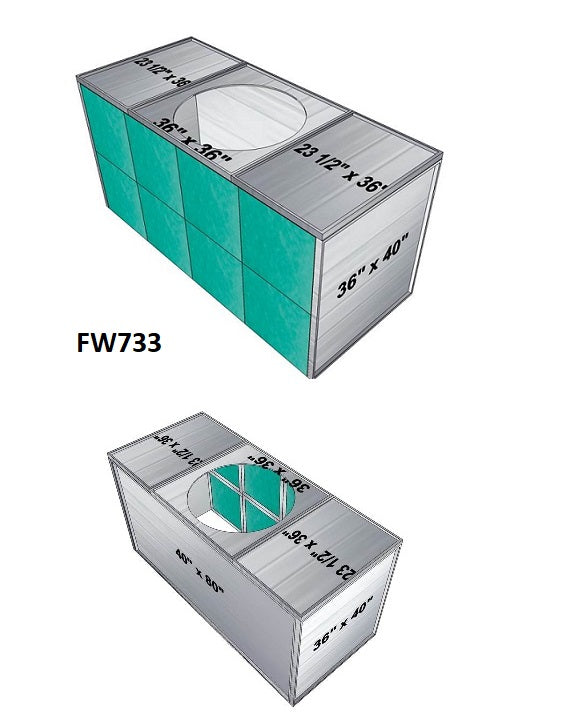

| FW733 | 6'8" Wide X 3' Tall x 3 'Deep |
| FW683 | 6' Wide X 8' Tall x 3 'Deep |

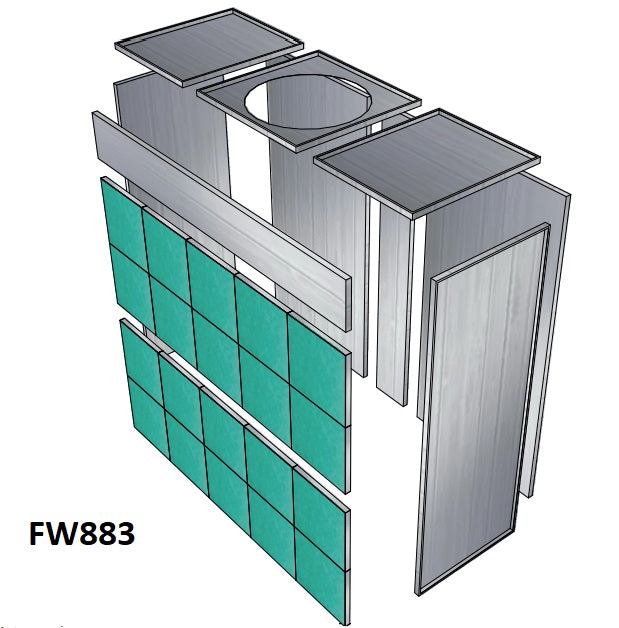

| FW883 | 8' Wide X 8' Tall x 3 'Deep |
| FW1093 | 10' Wide X 9' Tall x 3 'Deep |
| FW1273 | 12' Wide X 7' Tall x 3 'Deep |

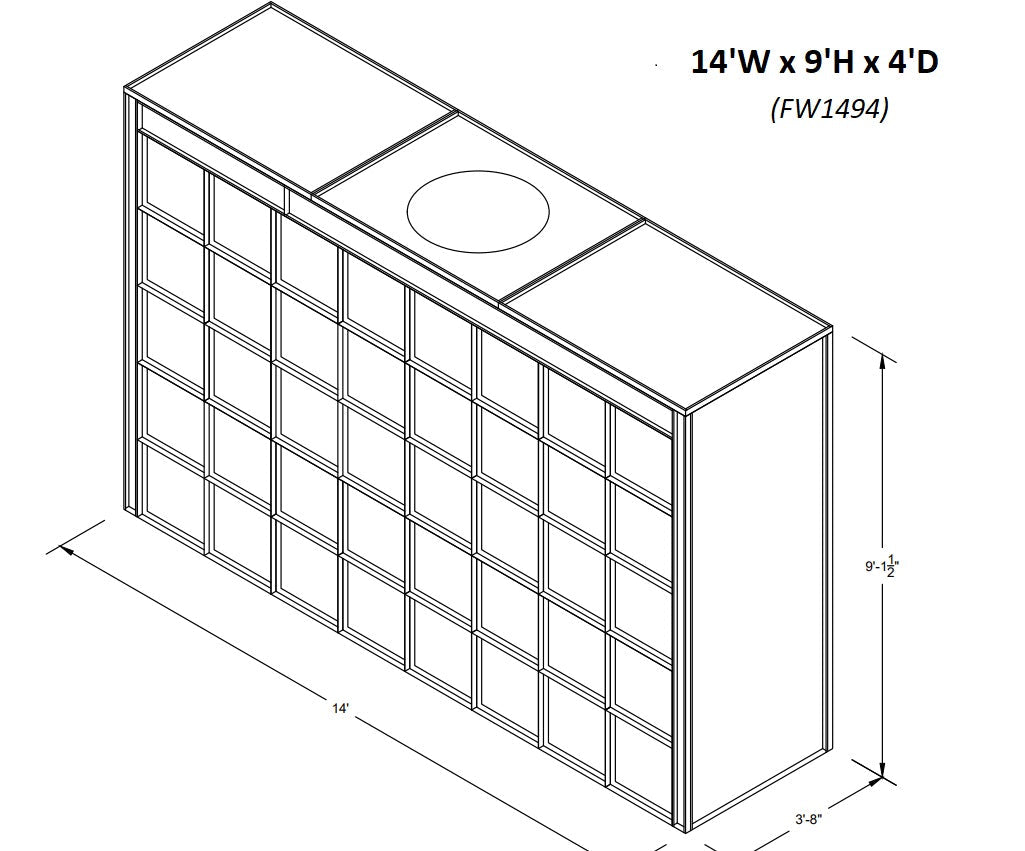

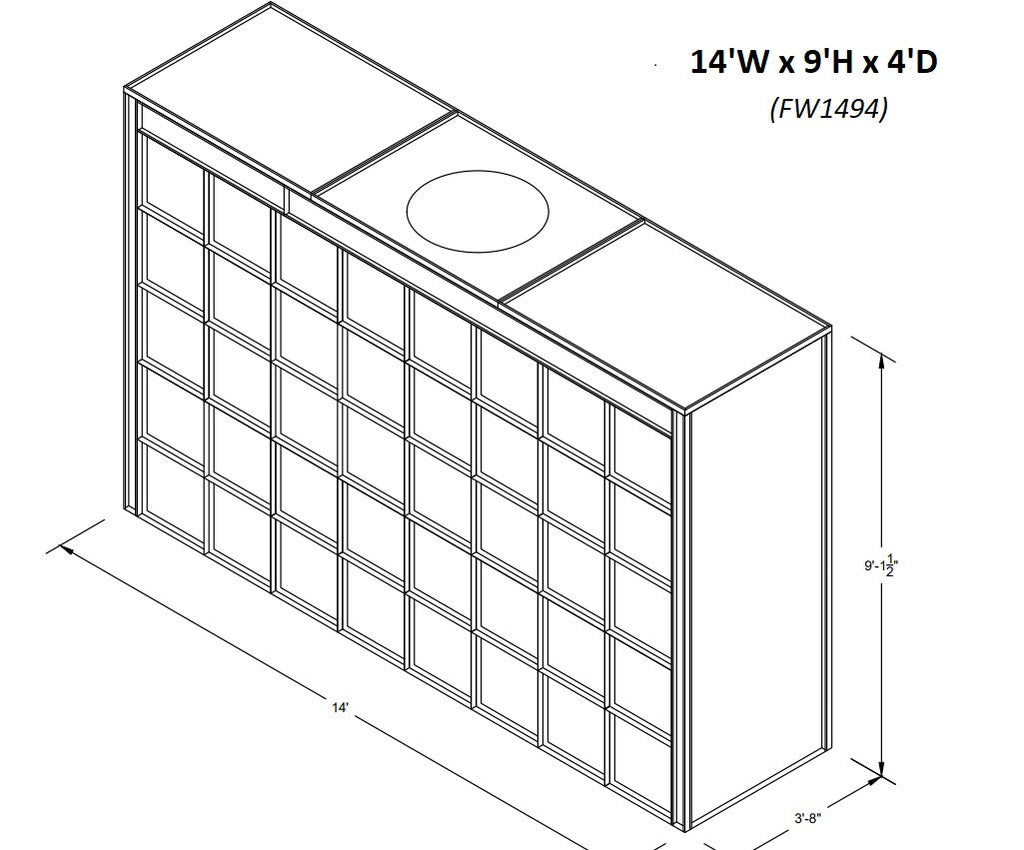

| FW1494 | 14' Wide X 9' Tall x 4 'Deep |
| FW1694 | 16' Wide X 9' Tall x 3 'Deep |
| FW2094 | 20' Wide X 9' Tall x 3 'Deep |
| Note: Booths are/can be custom-built to your requirements in Reidsville NC | |
Certificate of Compliance: M1M Certificate of Compliance
Duct Work Schematic: Ductwork Package
