Description

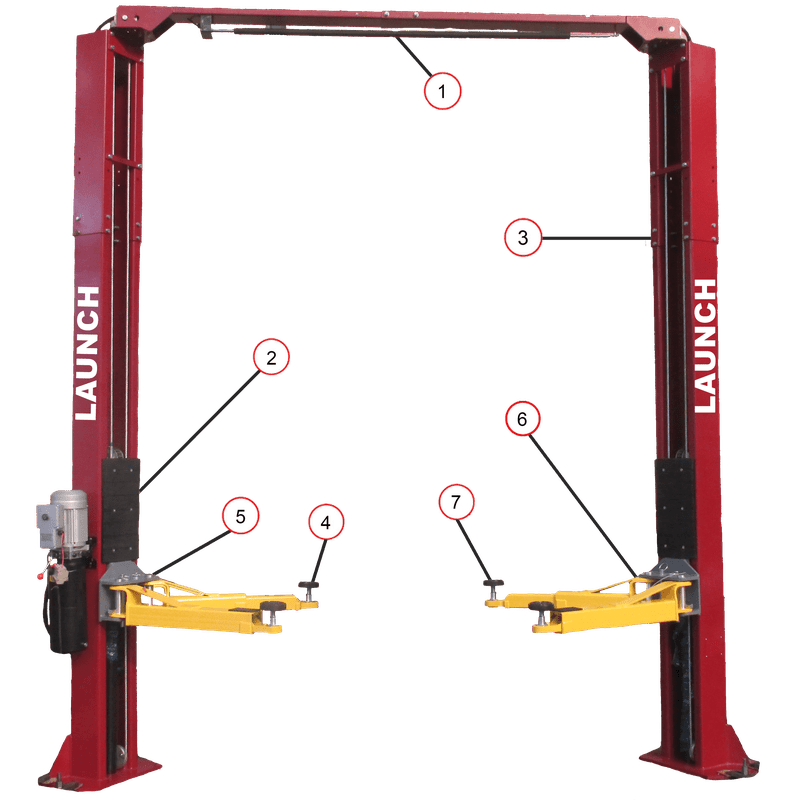

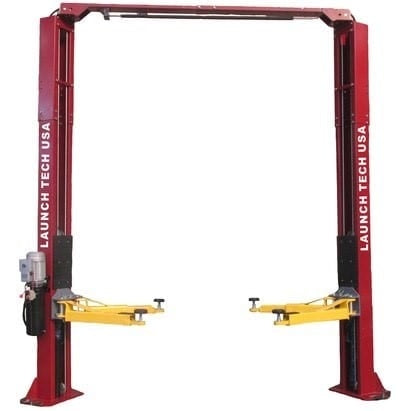

Launch TLT240SC Asymmetric Clear Floor Lift — Versatility Meets Professional Power

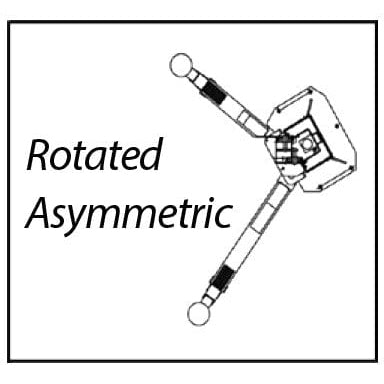

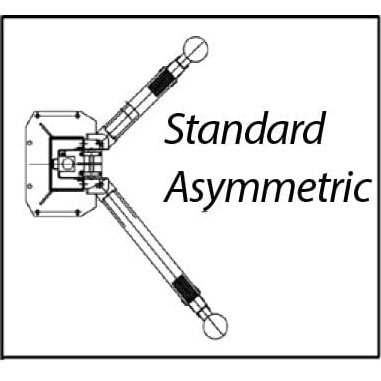

If your shop demands a professional-grade lift that adapts with ease, look no further than the Launch TLT240SC. This asymmetrical clear-floor lift features an adjustable width and flexible column setup—install it in the standard asymmetric position (straight-facing columns) or rotated asymmetric position (offset columns) to perfectly match your workspace and vehicle requirements.
From passenger cars to light-duty trucks, the TLT240SC delivers with three-stage short arms and two-stage long arms for maximum reach and control. Its low 4.3" pad height ensures even the lowest vehicles can be lifted with confidence.
Built with chain-driven cylinders and a dual-point lock release system, this lift offers the durability, strength, and smooth operation today’s busy shops rely on. And with Launch’s trusted support, you’ll have peace of mind from installation to every job that follows.
Features
- 9,000 lbs Capacity — Handles passenger cars and light trucks with ease.
- Adjustable Column Width — Up to 6" added width adjustment, exclusive to the TLT240SC.
- Chain Drive System — A time-tested, heavy-duty power system built for longevity.

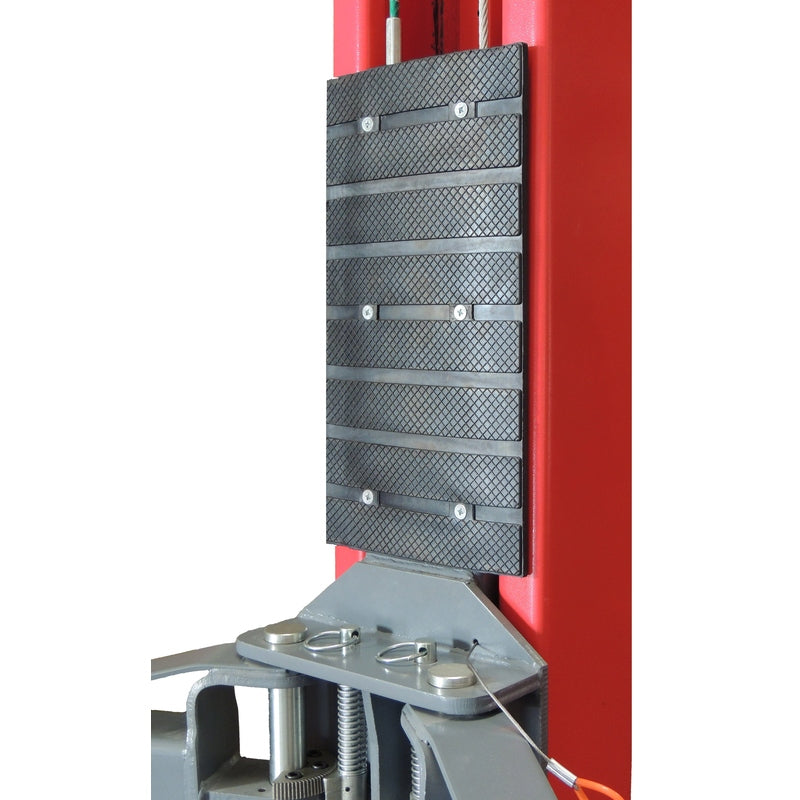

- Rubber Door Guards — Protect vehicle doors from accidental dings.

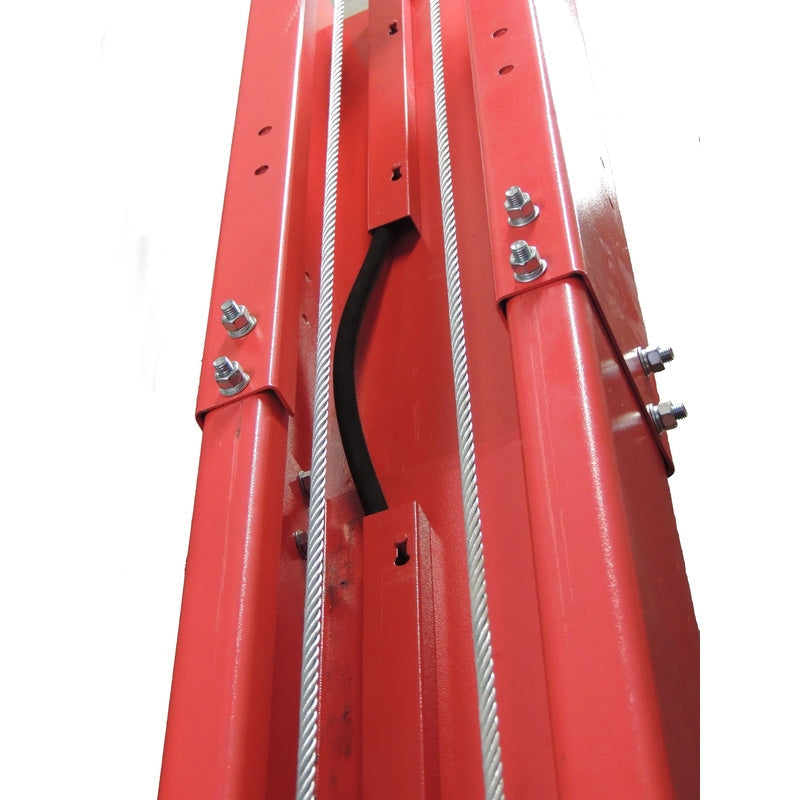

- Hose Guards — Extend the life of hydraulic hoses by shielding them from wear.
- Dual-Point Lock Release — Effortlessly disengage both column locks at once.

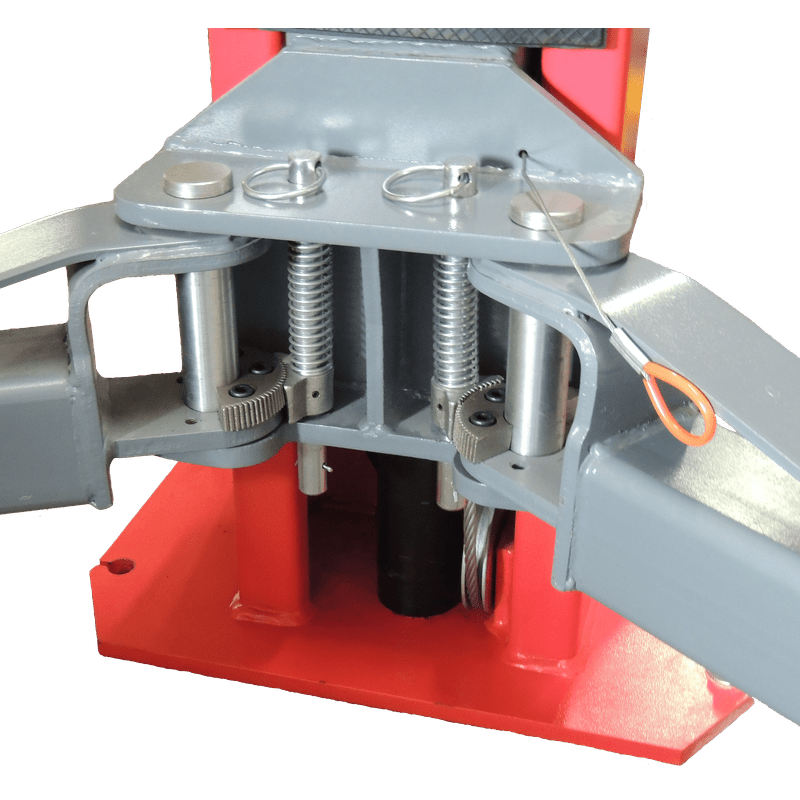

- Heavy-Duty Arm Restraints — Reinforced steel gears, pins, and springs ensure smooth, reliable performance.

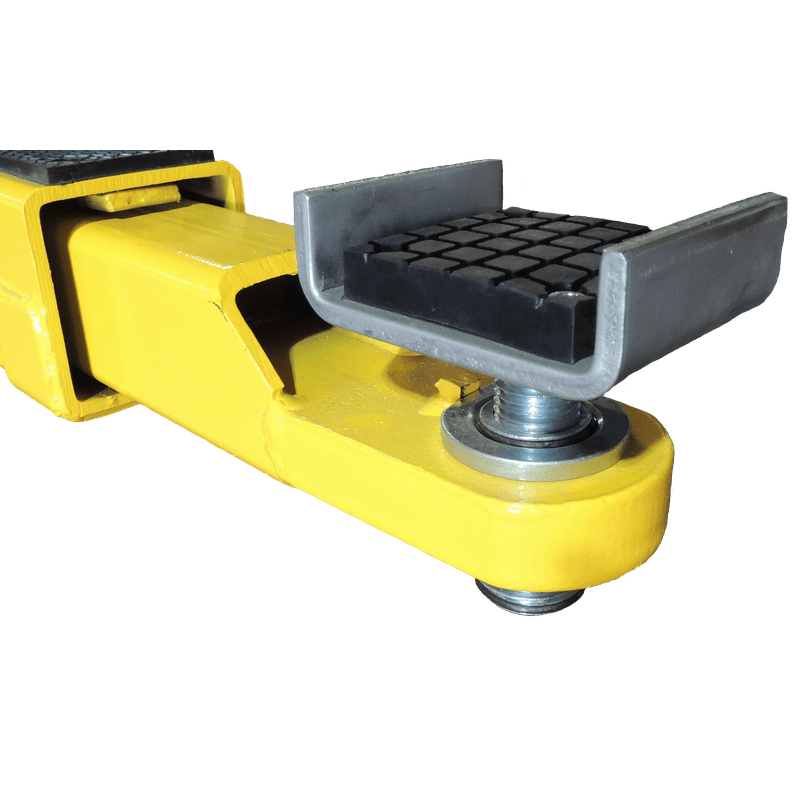

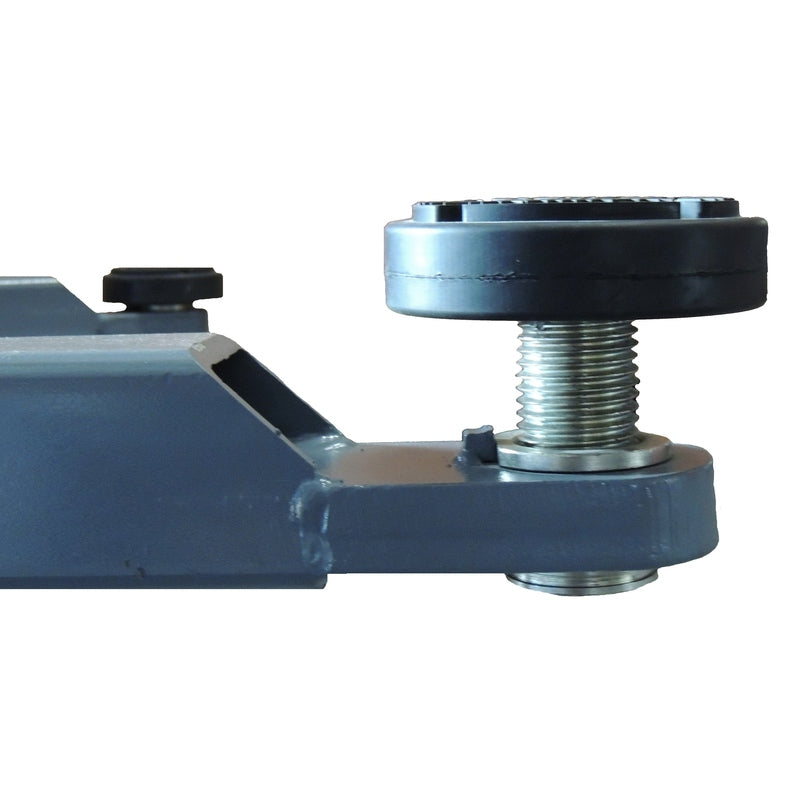

- Double Telescoping Screw Pads — 2.5" adjustable pads with rubber tops for accurate vehicle contact.
- Stackable Pad Extensions — Easily lift taller vehicles without hassle.
- Flexible Installation — Choose standard or rotated asymmetric layouts for your shop’s needs.

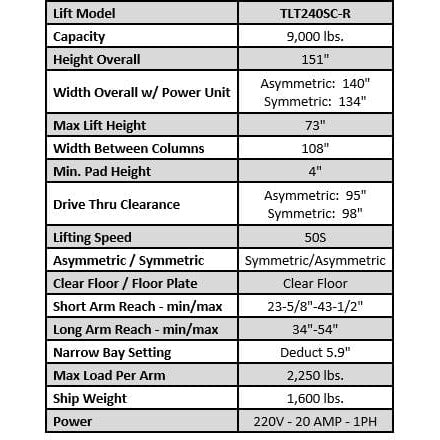

Specifications
| Specification | Details |
|---|---|
| Capacity | 9,000 lbs |
| Overall Height | 151" |
| Overall Width w/ Power Unit | 140" (Asymmetric) / 134" (Symmetric) |
| Max Lift Height | 73" |
| Width Between Columns | 108" |
| Minimum Pad Height | 4.3" |
| Drive-Thru Clearance | 95" (Asymmetric) / 98" (Symmetric) |
| Lifting Speed | 50 seconds |
| Asymmetric / Symmetric | Both |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach | 23-5/8" – 43-1/2" |
| Long Arm Reach | 34" – 54" |
| Narrow Bay Setting | Deduct 5.9" |
| Max Load Per Arm | 2,250 lbs |
| Power | 208-230V, 60Hz, 1PH |
| Shipping Weight | 1,600 lbs |
| Warranty | 5 Years Structure, 1 Year Parts, No Labor |
