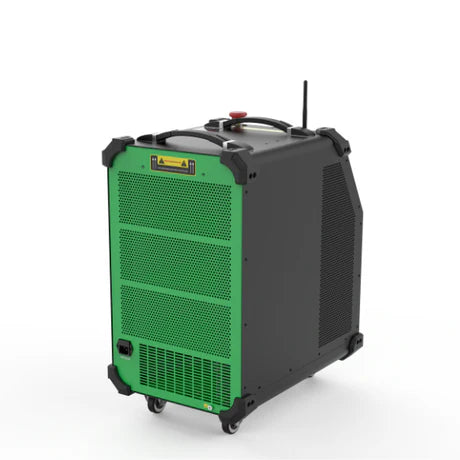

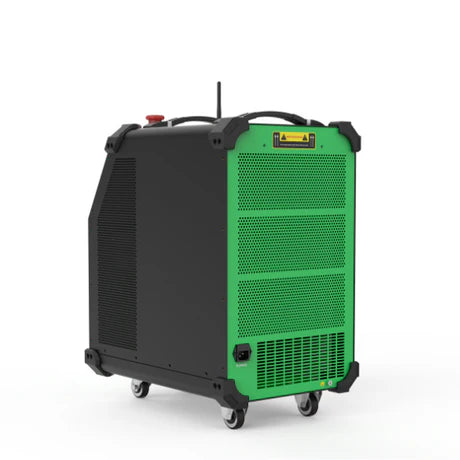

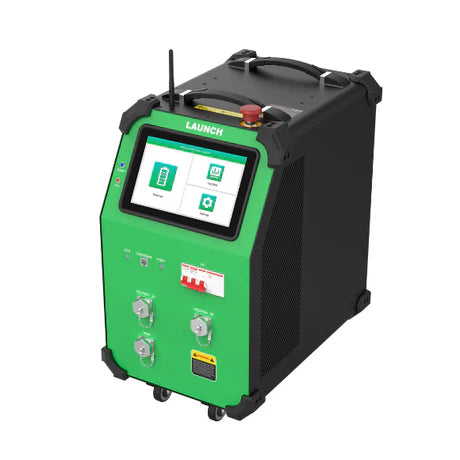

Launch Tech USA EVB648 Battery Module Wired Balancer w/ 48 Channels SKU 307070105
Launch Tech USA EVB648 Battery Module Wired Balancer w/ 48 Channels SKU 307070105
Launch Tech USA EVB648 Battery Module Wired Balancer w/ 48 Channels SKU 307070105
Roll over image to zoom in Click on image to zoom
Launch Tech USA EVB648 Battery Module Wired Balancer w/ 48 Channels SKU 307070105Launch Tech USA EVB648 Battery Module Wired Balancer w/ 48 Channels SKU 307070105Launch Tech USA EVB648 Battery Module Wired Balancer w/ 48 Channels SKU 307070105

Launch Tech USA EVB648 Battery Module Wired Balancer w/ 48 Channels SKU 307070105

Save 18%
Launch Tech USASKU: 307070105
No reviews
Authorized Dealer of Launch Tech USA
Price:
$9,021.15 $10,995.99

✓ Finance Options

✓ Best Price Online + Tax Free (Ex. WY)

✓ Talk To Or Text Our Pro's, 888-850-1243

✓ Comprehensive Manufacturer's Warranty
Authorized Dealer of Launch Tech USA

Description

Based on the charge and discharge characteristics of lithium batteries, the EVB648 enables technicians to effectively address voltage inconsistencies among battery modules and cells. The EVB648 helps reduce battery pack repair costs and shortens maintenance time, making it an essential tool for EV detection and diagnostics.

Features

  • 48 Balancing Channels & Single Cell Balancing Design
    Provides an independent single cell balancing solution, supporting precise single-cell balancing, up to 48 battery cells simultaneously.
  • Intelligent Cell Balancing
    Supports multiple battery types, including ternary lithium(NCM/NCA), lithium iron phosphate(LiFePO4), lithium manganese oxide(LMO), and lithium titanate(LTO).
    Allows for the setting of balancing maintenance parameters, pre-selects voltage ranges based on the battery type, and automatically switches charging and discharging modes.
  • High Precision & Balancing Gain
    Supports high-precision voltage measurement for single cells, effectively improving vehicle power output and ensuring consistent battery pack performance.
  • Safety Protection & Worry-Free Proces
    Provides comprehensive safety for both the device and battery.
    Overcurrent Protection
    Output Overcurrent Protection
    Overvoltage Protection
    Over-temperature Protection
  • Log Management & Data Visualization
    Supports comparison of "pre-balancing" and "post-balancing" differences, with the ability to export balancing data.
    Real-time monitoring of single cell voltages and balancing status, ensuring a clear and visualized process.

Specifications

  • Power Input: AC 90 ~ 264V
  • Discharge & Charge Voltage Range: 1.8 ~ 4.5V
  • Voltage Measurement Accuracy: ±(0.1% FS ± 2mV)
  • Discharge & Charge Current Range: 0.1 ~ 5A
  • Current Measurement Accuracy: ±(1% FS ± 0.05A)
  • Discharge & Charge Power: 1200W Max
  • Voltage Port: 26 Pin × 2
  • Temp Port: 24 Pin
  • Display: 10.1" TFT LCD, 1280 × 800
  • PC Data Communication: TCP/IP, USB-Device
  • Wireless Communication: Wi-Fi
  • Data Storage Mode: Internal storage of device or data transfer to USB flash drive
  • Charge Mode: Constant current charging + constant voltage charging
  • Discharge Mode: CC + CA
  • Working Temperature: -5°C ~ 45°C
  • Dimension: 616.5 × 349.0 × 518.3 mm
