Description
- X-939 PREMIUM CONFIGURATION (X939PP)
- X939 RADAR ADD-ON (X939RA)
- X-939 Intelligent Driving Calibration System

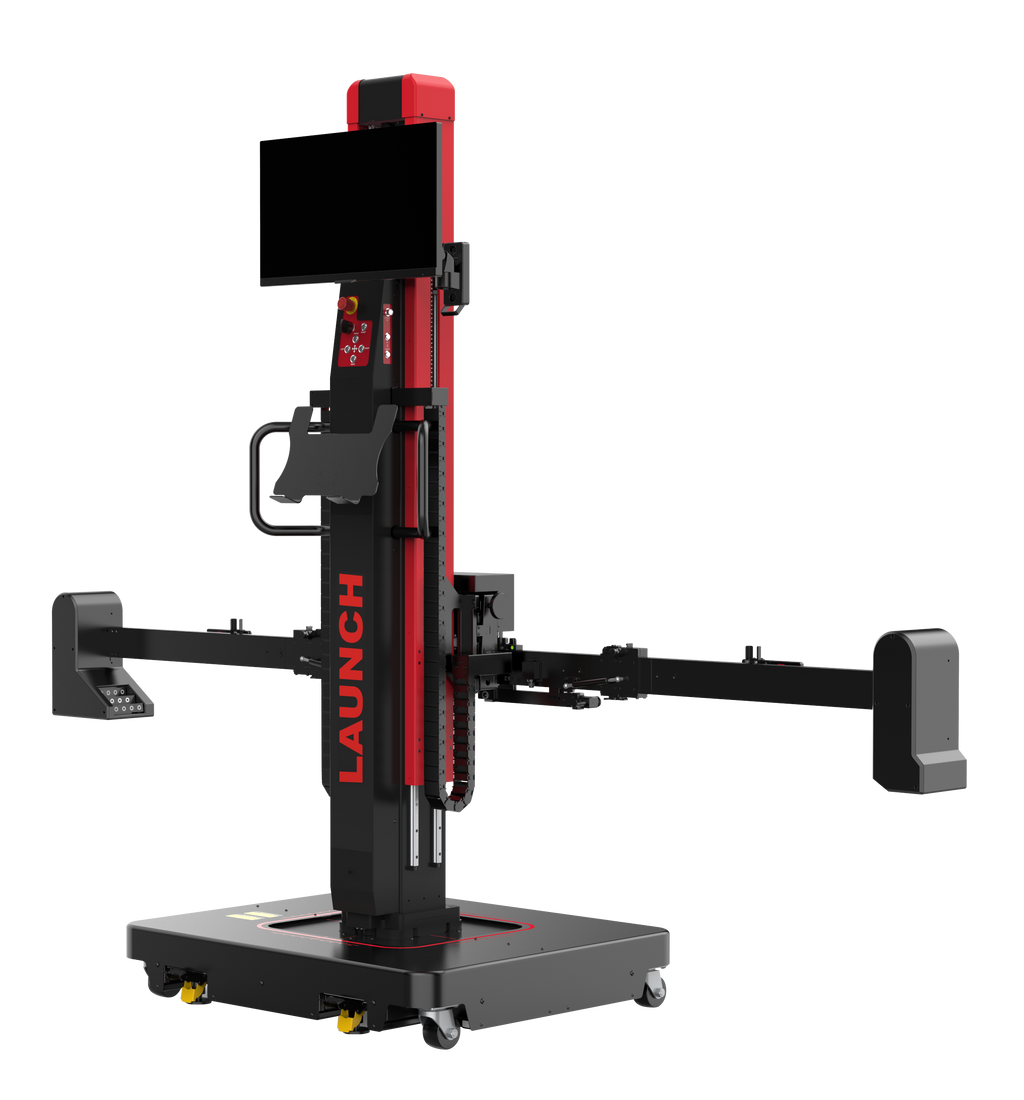

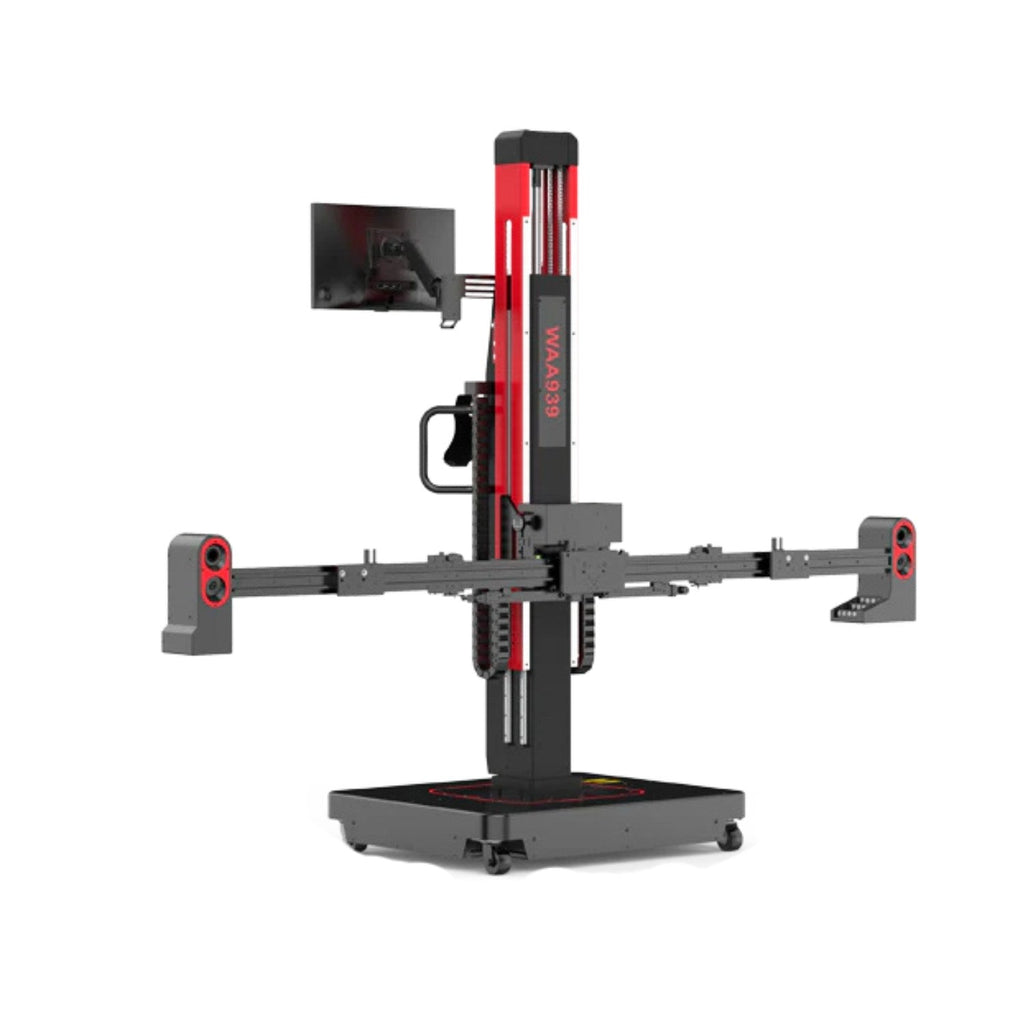

X-939 Intelligent Driving Calibration System
The X-939 Intelligent Driving Calibration System is designed to meet the growing demand for precise ADAS calibration and 4-wheel alignment in modern repair shops. As vehicles continue to evolve, accurate calibration and alignment are essential for both safety and performance.
Features
- Automatic ADAS calibration: 4 high-resolution cameras and 4 high-precision motors can be used to complete ADAS alignment and parallelization
- Target tracking and finding: Supports automatic tracking and finding of targets by the camera
- Real-time self-calibration: Real-time self-calibration between camera modules to adapt to automated movements
- Dual-screen streaming synchronization, two-way control: Supports 24-inch high-definition display and 13.3-inch diagnostic tablet streaming synchronization, and two-way control, making operation more convenient
- High-precision motion control: Equipped with 4 axial high-precision stepper motors to meet the automation of forward, backward, left, right, rotation and lifting movements
- Accurate measurement of beam angle: Equipped with two high-precision sensors to determine the pitch angle and roll angle of the beam, making calibration more accurate
- Ground level compensation: Calculate the vehicle's level performance through four camera modules, and adjust the pitch and roll knobs to meet ADAS calibration requirements
- Target distance measurement recognition: No need for manual measurement, just place the distance measurement target to quickly complete the distance measurement
- More friendly ADAS calibration guidance: Process-based calibration guidance, more friendly to novices, with guided interactive experience
Specifications
- Rated power: 260W
- Power supply: 100~264V，50/60Hz
- Recommended working distance(wheel alignment): 1.8~2.2m
- Main frame folded dimensions (length×width×height): 1500x900x1920mm
- Beam expanded/folded dimensions: 2780/1500mm
- Main frame height range: 335~2175mm
- Main frame front and rear motion range: 士120mm
- Main frame left and right motion range: ±90mm
- Main frame rotation range: 士3°
- Hub diameter (four-point hub clamp): 275~640mm
- Tire diameter(three-point tire clamp): 470~1100mm
- Operating temperature: -10~50°C
- Storage temperature: -20~60°C
