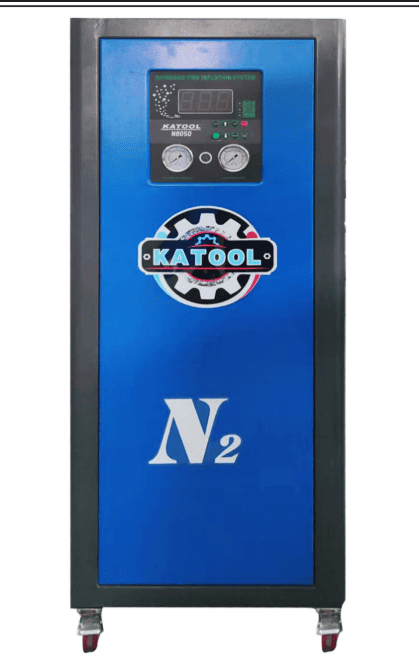

Description
This delivers nitrogen purity levels between 95% and 99.5%, utilizing cutting-edge PSA technology and Carbon Molecular Sieve (CMS) for superior performance. Perfect for use with cars, motorcycles, and light trucks, it helps safeguard tires from the harmful effects of oxygen and moisture, promoting extended tire life and enhanced safety.
Key Features & Specifications:
-
Vehicle Compatibility: Cars, Light Trucks, Motorcycles
-
Nitrogen Purity: 95–99.5%
-
Nitrogen Output: 2000–4500 L/H
-
Output Pressure: ≤6.0 Bar
-
Operating Temperature: -10°C to +50°C
-
Set Pressure Range: Car: 17–99 Psi | Motorcycle: 17–58 Psi
-
Breaking Pressure: >145 Psi (10 Bar)
-
Power Supply: AC110V / 60Hz, 60 W
-
Dimensions: 630 × 550 × 1400 mm
-
Weight: 142 kg (Net) / 163 kg (Gross)
-
Configurations: 70L Built-in Nitrogen Storage Tank, 8M High Pressure Air Charge Hose
-
Benefits: Low-cost, easy-to-operate, portable, and safe for home or professional use
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
