Description

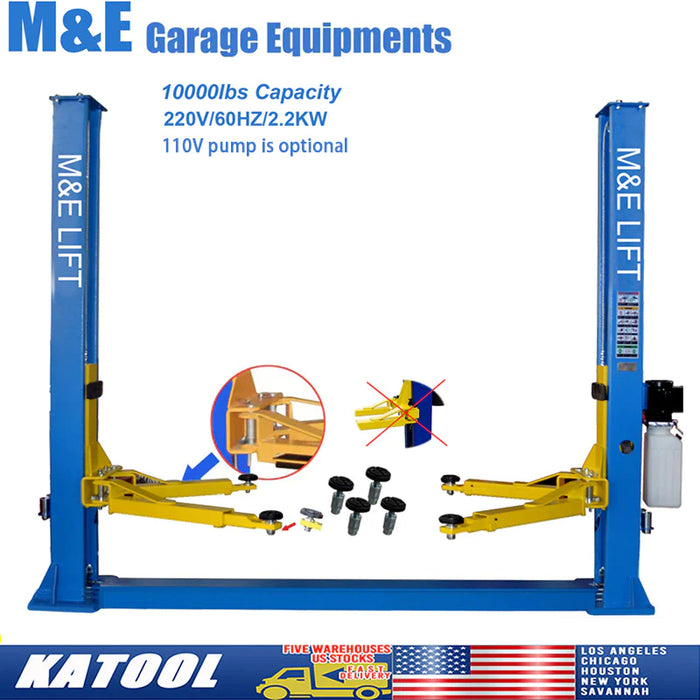

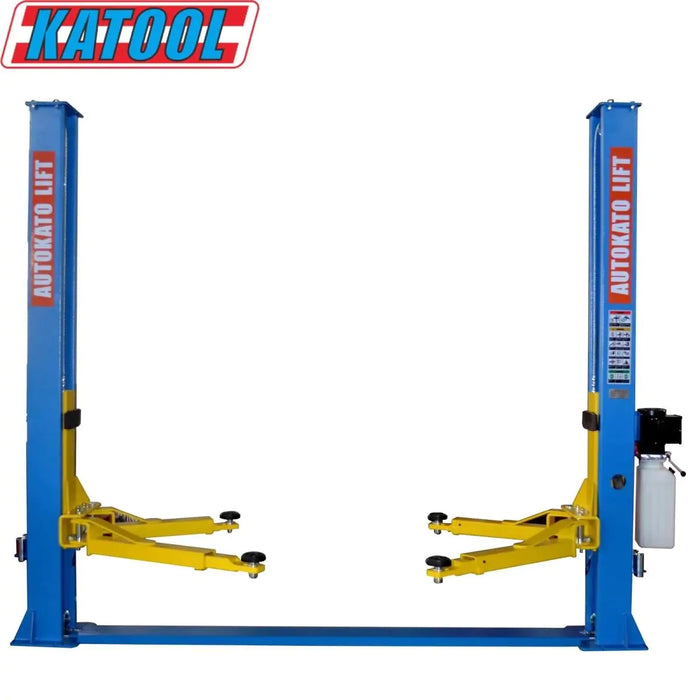

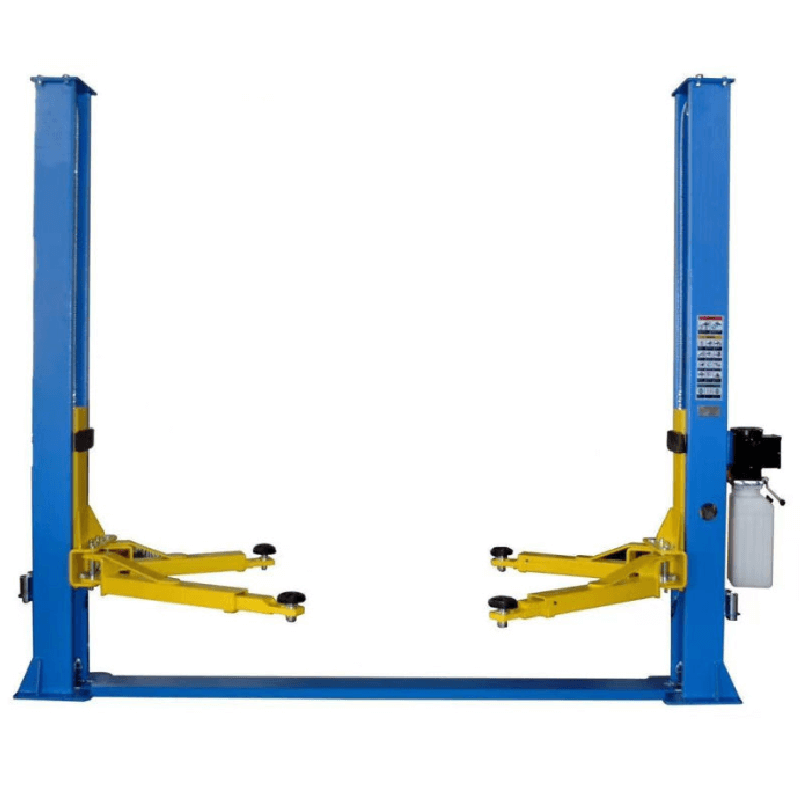

Got a beast of a vehicle to lift? The Katool KT-H105 2-Post Vehicle Lift is here to show off its muscles. With a jaw-dropping 10,000 lb lifting capacity, this hydraulic dynamo doesn’t just lift—it conquers. Trucks, luxury sedans, vans, and even that ancient machinery Uncle Joe refuses to retire? All handled like a breeze.
The KT-H105 comes with dual hydraulic chain-drive cylinders and a tough-as-nails 3/8-inch cable, delivering silky-smooth operation every time. Its symmetric arms provide rock-solid stability, and the base plate design screams, “I’ve got this!” (and it does). Rubber pad door protection? Oh, you bet. No more sad scratches or awkward "oops" moments on your customer's shiny paint job. SUVs, low-riders, or that Frankenstein contraption from the back lot? This lift says, “Bring it on.”

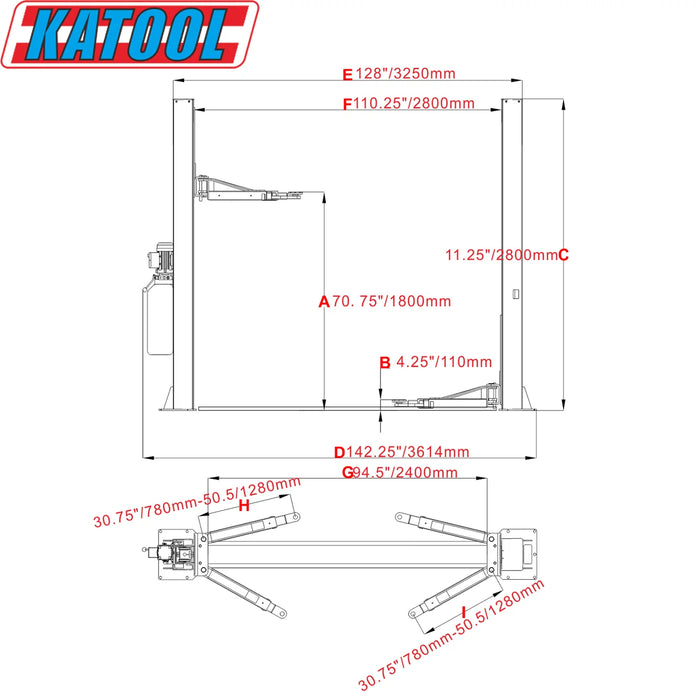

KT H105 Specification:
- Lifting Capacity: 10,000 lbs
- Max. Lifting Height: 70.8"
- Min. Height: 3.9"
- Height Overall: 110.9"
- Width Overall: 140.4"
- Outside Column: 124.8"
- Inside Column: 110.2"
- Drive-Thru Clearance: 98.4"
- Front Arm Reach (Min): 29.5"
- Front Arm Reach (Max): 46"
- Rear Arm Reach (Min): 35.4"
- Rear Arm Reach (Max): 58.2"
- Net Weight: 1234 lbs
- Oil: AW-46 or AW-32 (colder climates)
H105 by Katool Special Features:
- 10,000lb lifting capacity
- CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested.
- Manual safety release from two sides.
- Base plate design

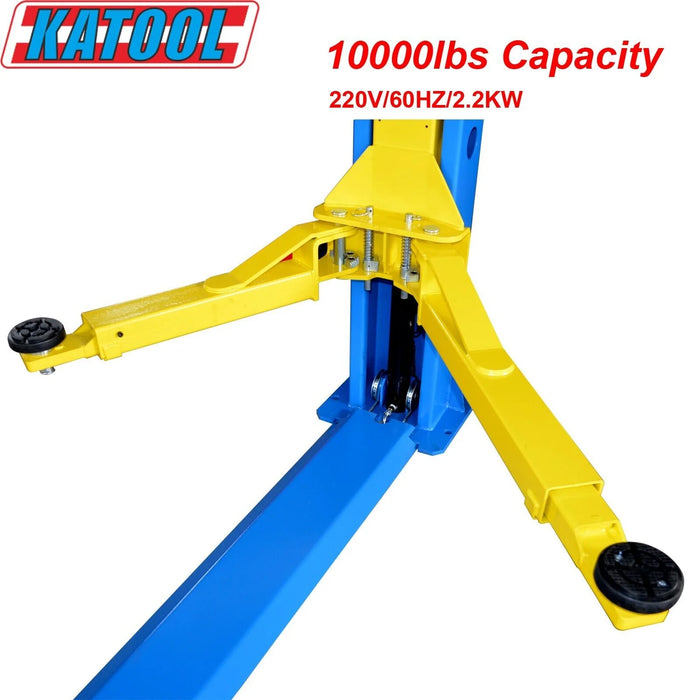

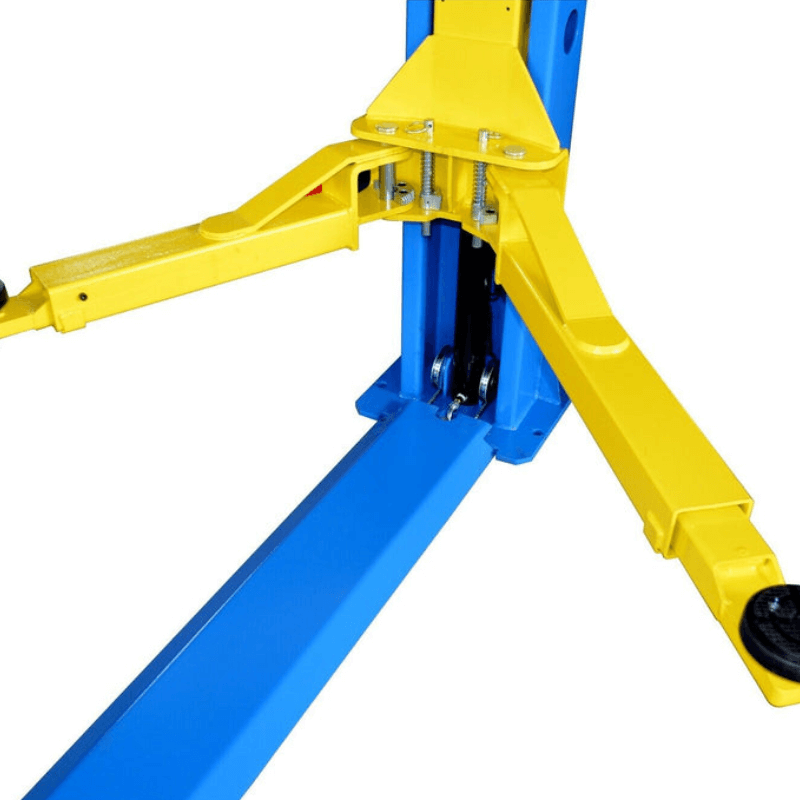

- Arm Style: Symmetric
- Cable Thickness: 3/8"
- Dual Hydraulic Chain-Drive Cylinders
- Robber pad door opening protection.

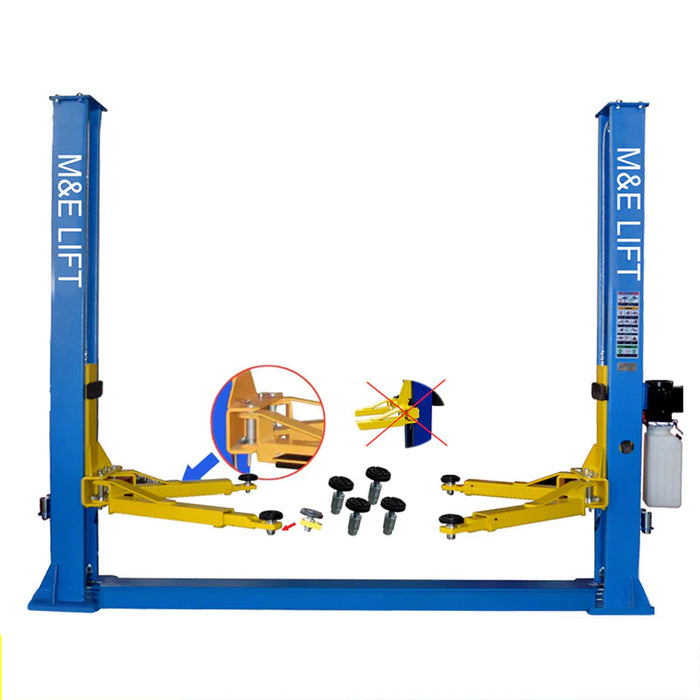

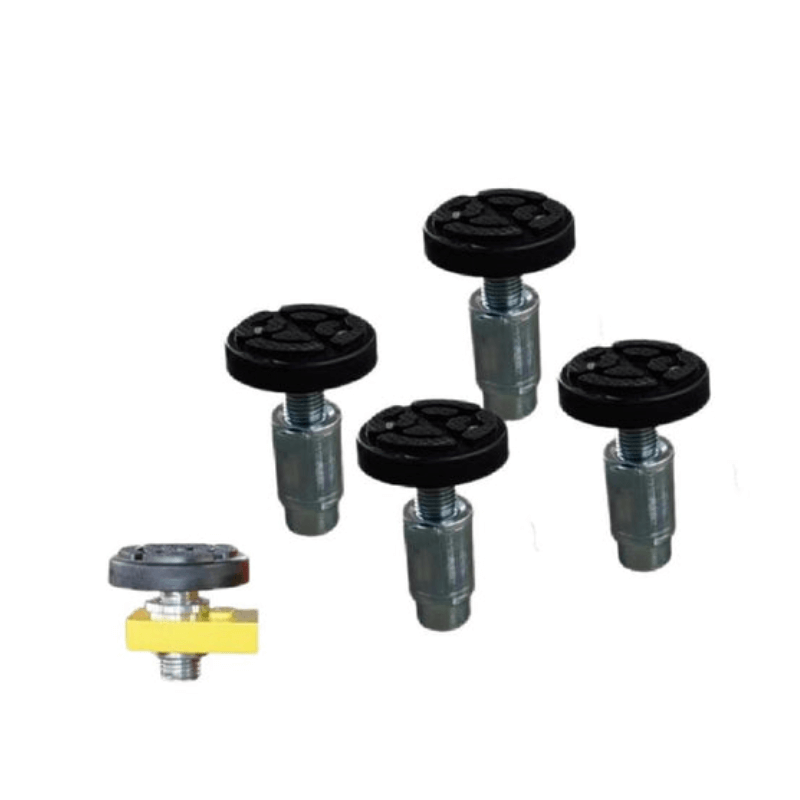

- Screw-on pad and extension support adaptor sets +100mm
- Pallet Dimensions: 112" x 18" x 36" (1200lbs)
- Power: 220V/60HZ/1PH
- Katool Warranty:
-
- One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
- Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
KT-H105 Manual
*Concrete thickness must be at least 5.9" with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
