Description

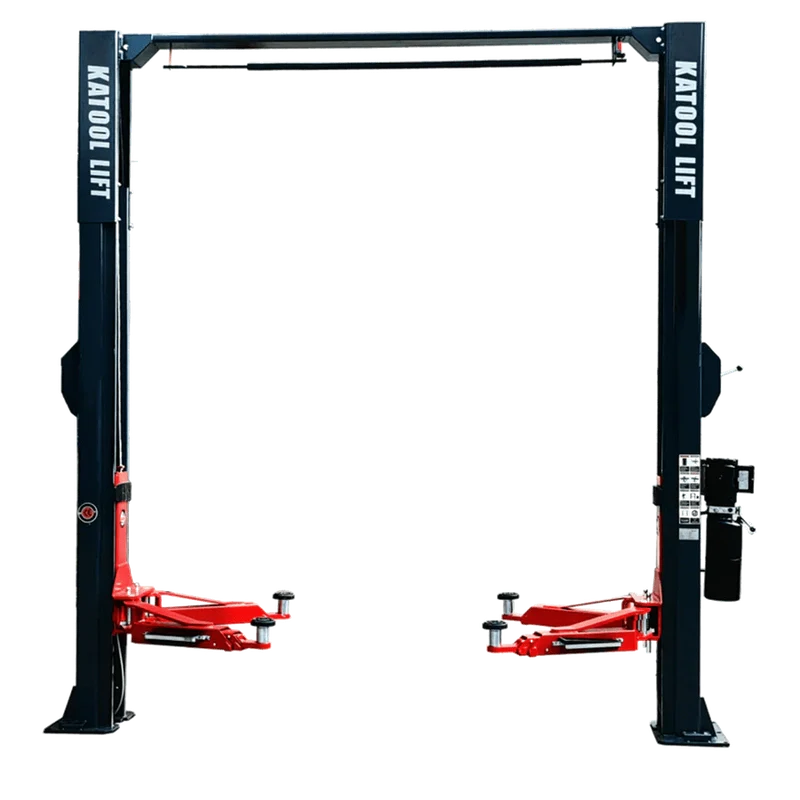

The Katool KT-AS110D Two Post Asymmetrical Vehicle Lift is a robust and versatile lifting solution with an impressive 11,000 lbs lifting capacity. CE approved and certified, it meets 115% dynamic loading capacity standards and passes rigorous 150% static loading capacity tests, making it a trusted choice for garages and workshops.
Featuring a Single Point Lock Release for secure and controlled lifting, the KT-AS110D offers versatility with its asymmetric arms and direct drive cylinders. Additional features, such as rubber pad door opening protection and adjustable extended support adaptor sets ranging from 3.94 inches to 6 inches, ensure adaptability for various vehicle types. For enhanced safety, the lift is equipped with an overhead safety shutoff bar and feet-protection safety guardrails with an integrated toolbox.
The high-quality hydraulic system, available in 220V/60HZ/1PH or optional 110V/60HZ/1PH, ensures reliable and efficient lifting operations.
*Concrete Requirements: Ensure a minimum concrete thickness of 5.9 inches (150 mm) with a 3,000 PSI rating. Failure to meet these requirements could result in serious injury or equipment failure. It is the customer's responsibility to verify concrete specifications before purchase and installation.

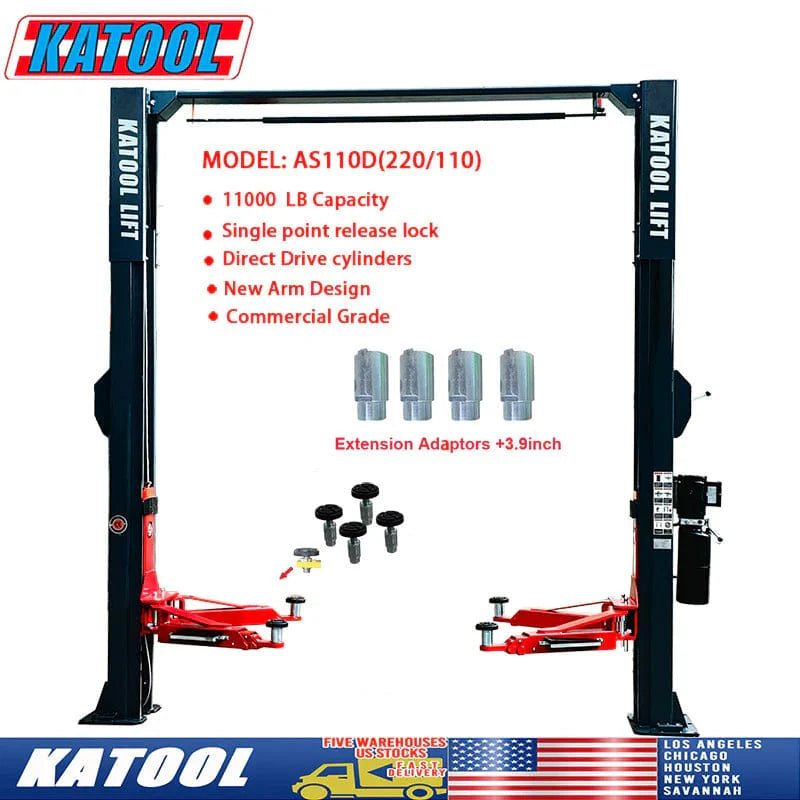

Key Features
- 11,000 lbs Lifting Capacity: Handles heavy-duty vehicles with ease.
- CE Approved and Certified: Meets 115% dynamic and 150% static loading capacity standards.
- Single Point Lock Release: Ensures secure and efficient lifting operations.

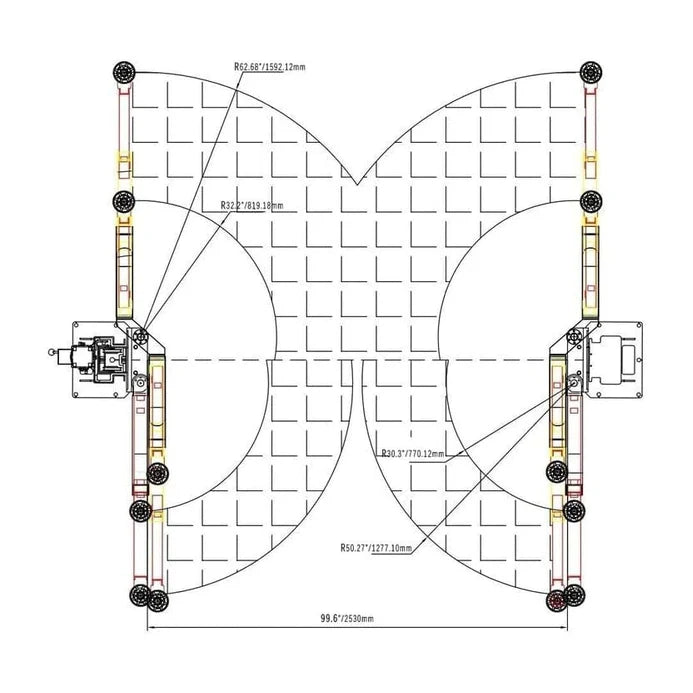

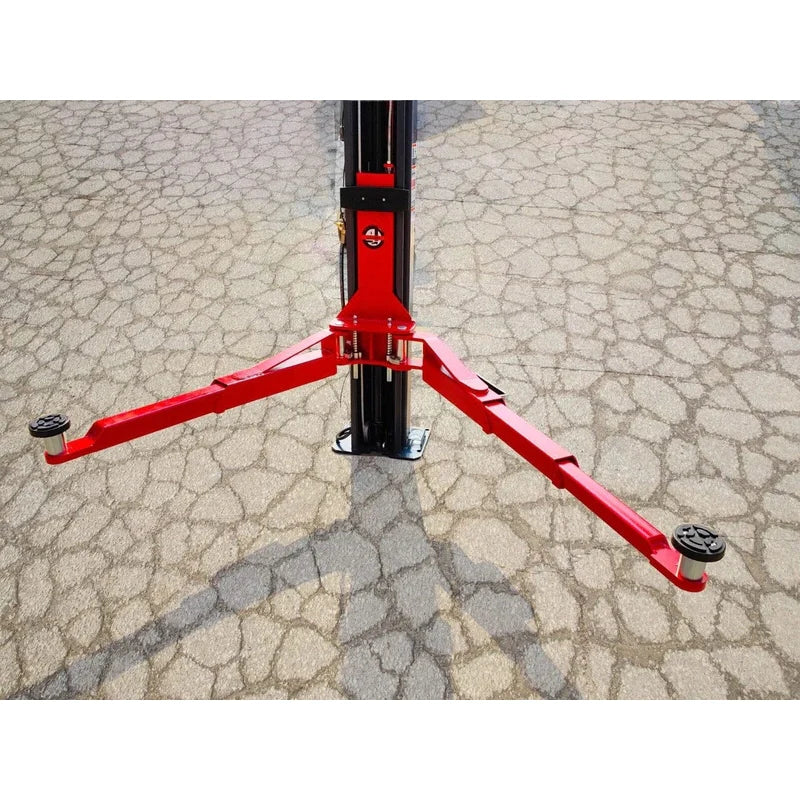

- Asymmetric Arms: Provides enhanced versatility for various vehicle sizes.
- Direct Drive Cylinders: Offers smooth and efficient lifting performance.
- Rubber Pad Door Opening Protection: Protects your vehicle during operations.
- Adjustable Extended Support Adaptor Sets: Ranges from 3.94 inches to 6 inches for compatibility with different vehicles.
- Overhead Safety Shutoff Bar: Ensures safety during lifting operations.
- Feet-Protection Safety Guardrails: Includes a toolbox for added convenience.
- High-Quality Hydraulic System: Available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations.

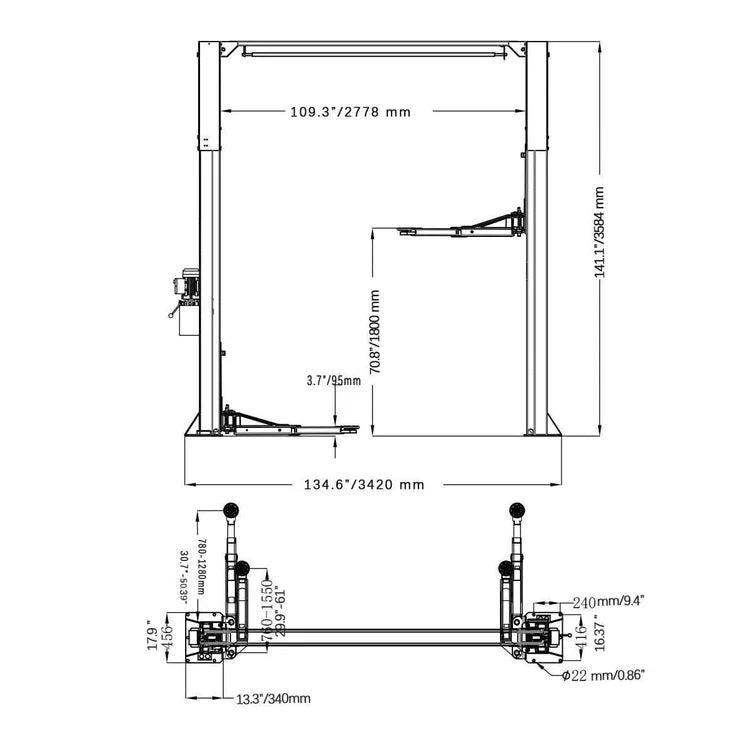

Specifications
| Lifting Capacity | 11,000 lbs (4,990 kg) |
| Max. Lifting Height | 70.75" (1,800 mm) |
| Min. Height | 3.74" (95 mm) |
| Height Overall | 141.25" (3,587 mm) |
| Width Overall | 134.65" (3,420 mm) |
| Outside Columns | 120.4" (3,058 mm) |
| Inside Columns | 109.37" (2,778 mm) |
| Drive Thru Clearance | 99.61" (2,530 mm) |
| Motor | 220VAC/60HZ/1PH |
| Net Weight | 1,323 lbs (600 kg) |
User Manual
For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-AS110D User Manual. Click the link below to download:
Installation Video
Warranty
Katool provides a 1-year limited warranty on all parts and product defects. Additionally, vehicle lifts include a 3-year warranty on structural components. Optional 2-year extended warranty plans are also available for purchase.
Warranty Includes:
- Cylinders, power units, motors, displays, and electronics.
- Structural components for vehicle lifts.
Warranty Conditions:
- Claims must be within the warranty period and are non-transferable.
- Replacement parts are provided free of charge, including shipping.
- Labor costs are not included in the warranty.
- Disassembly of equipment prior to warranty approval is not permitted.
All warranty claims are subject to review by the warranty/service department. Supporting documentation, such as photos or videos of defects, may be required for approval.
