Description

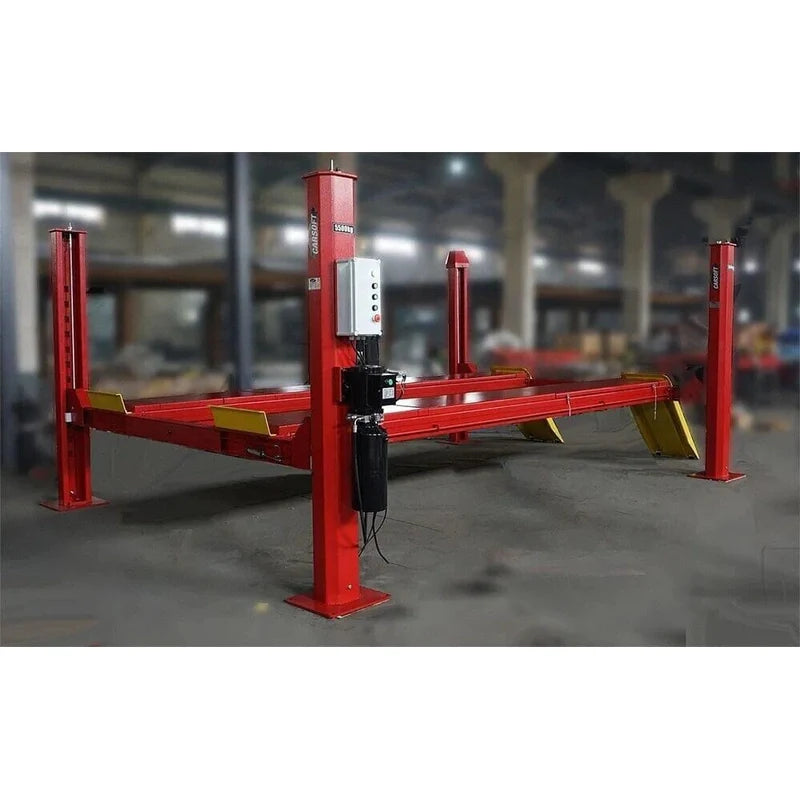

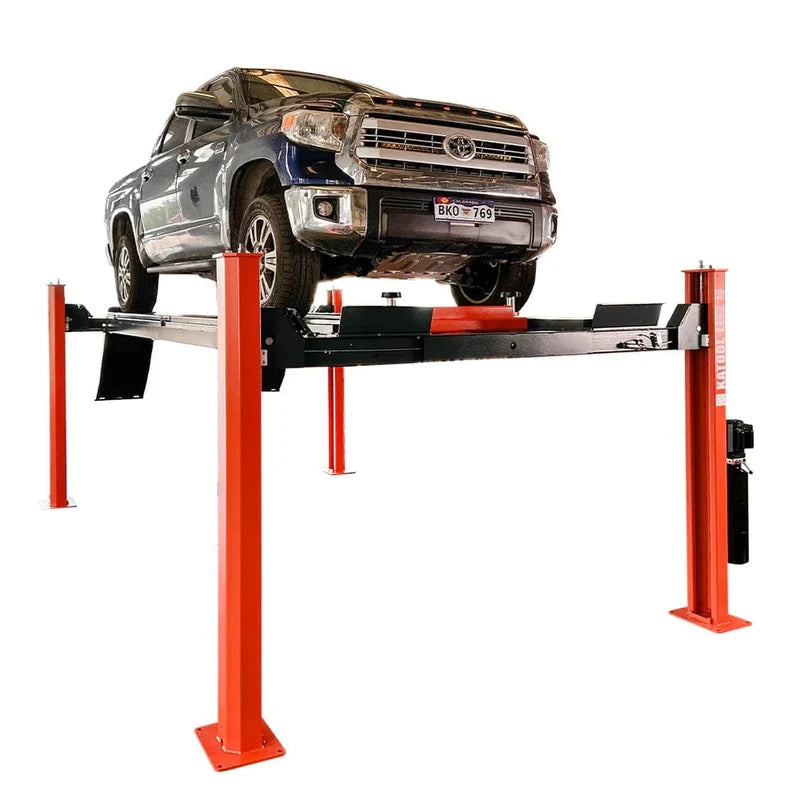

The Katool KT-4H150 Heavy Duty 4-Post Alignment Lift offers exceptional performance and reliability with a robust 15,000 lbs lifting capacity. CE approved and certified, it meets rigorous standards, including 115% dynamic loading capacity and 150% static loading capacity testing. This lift is designed for safety, efficiency, and versatility, making it the ideal choice for heavy-duty vehicle alignment and lifting operations.

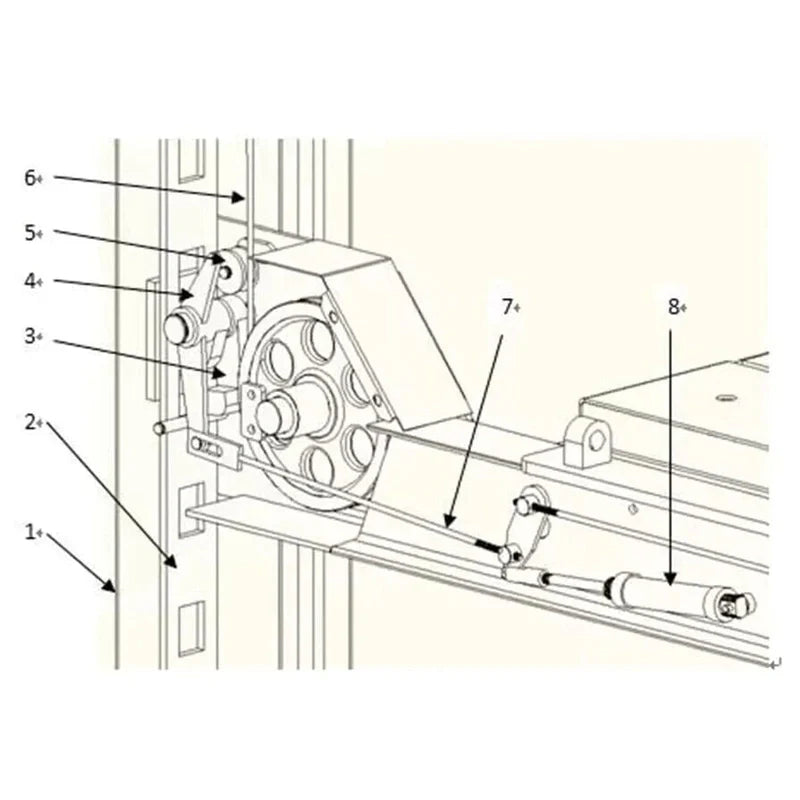

Equipped with a single-point manual safety lock release and four mechanical locking devices featuring primary and secondary safety locks, the KT-4H150 ensures secure and controlled operation. Its non-skid diamond platforms, adjustable safety lock ladders, and optional (contact us to add it to your order) turn tables for wheel alignment further enhance its functionality. Powered by a high-quality hydraulic system with a 3KW motor, this lift is available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations. Additionally, it includes one 6,000 lbs rolling jack for added convenience.
Key Features
- 15,000 lbs Lifting Capacity: Ideal for heavy-duty vehicles.
- CE Approved and Certified: Meets 115% dynamic and 150% static load capacity standards.
- Single-Point Manual Safety Lock Release: Ensures secure and efficient lifting operations.

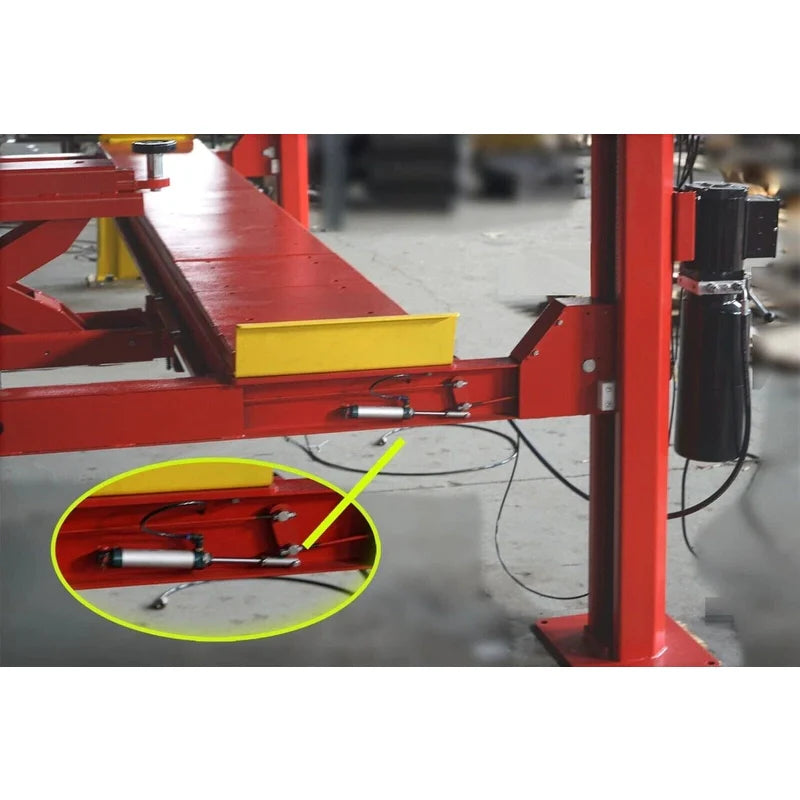

- Four Mechanical Locking Devices: Each equipped with primary and secondary safety locks for enhanced security.
- Powerside Column: Flexible installation options at either side, front, or rear.

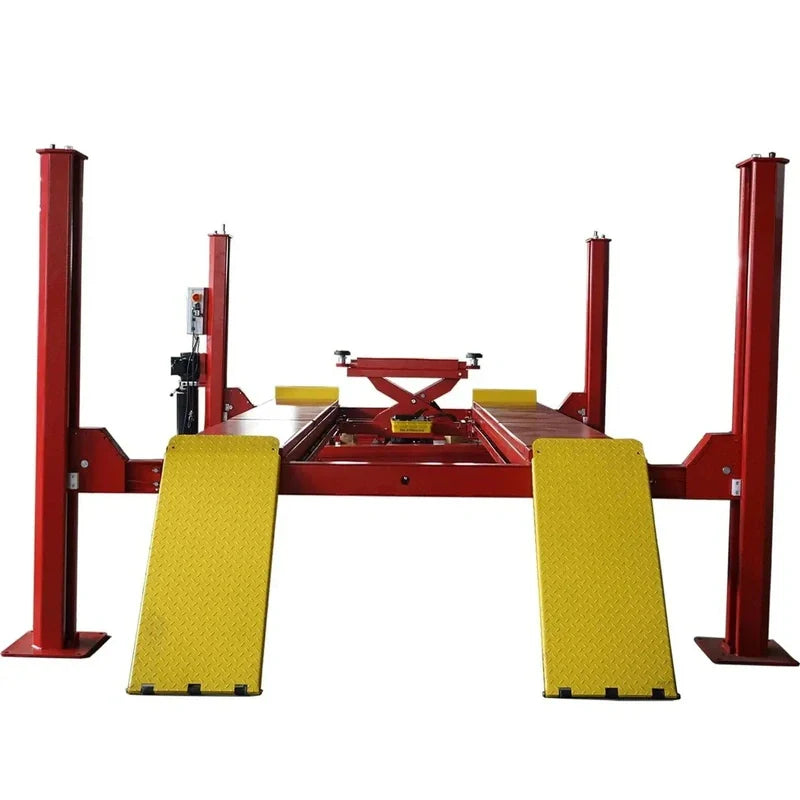

- Non-Skid Diamond Platforms: Provides stability and safety during operation.

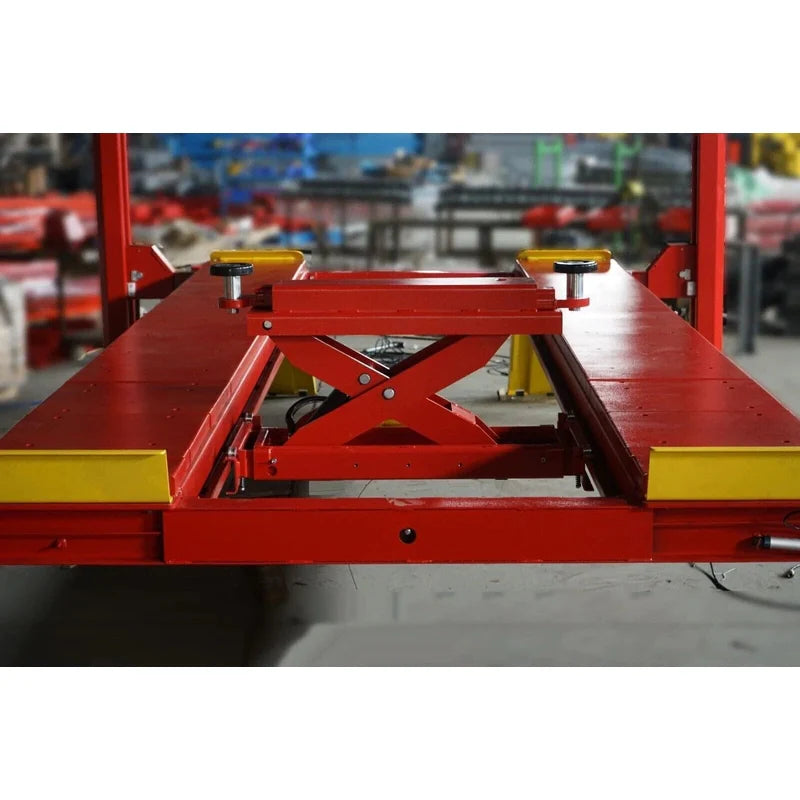

- Included Rolling Jack: One 6,000 lbs rolling jack for additional lifting capabilities.
- Optional Turn Tables for Wheel Alignment: Enhances the lift’s versatility for alignment tasks.

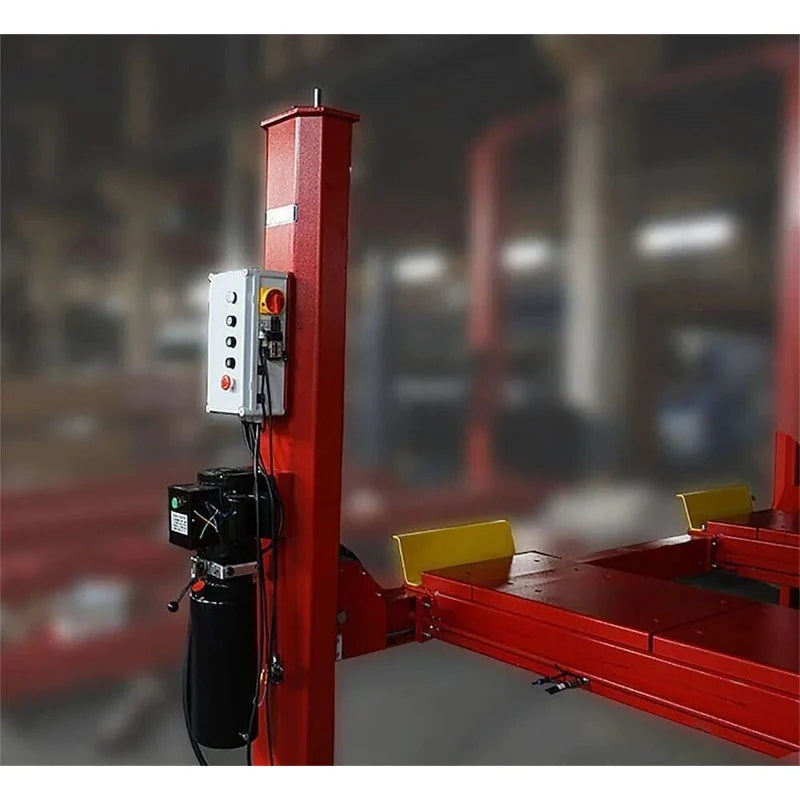

- High-Quality Hydraulic System: Powered by a 3KW motor, available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations.

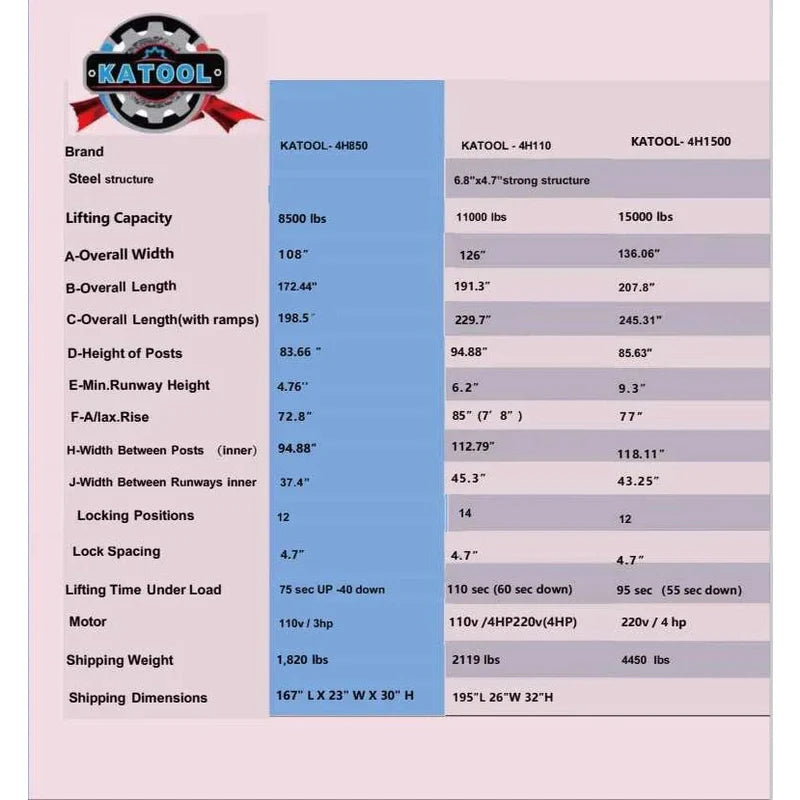

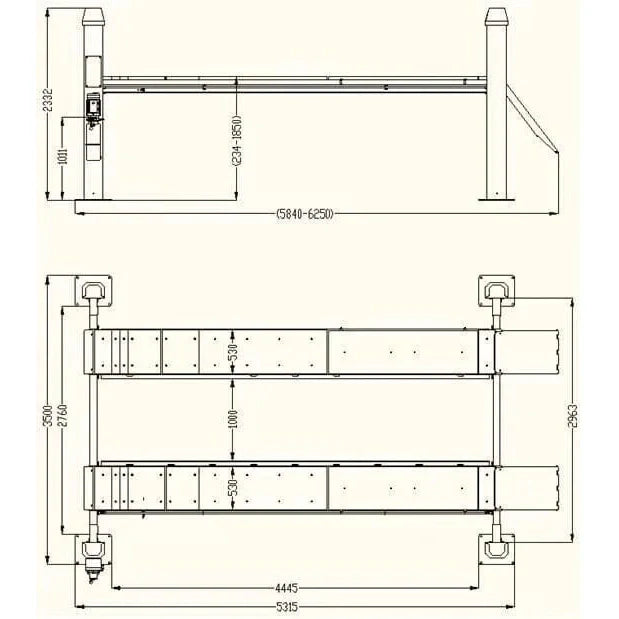

Specifications
| Lifting Capacity | 15,000 lbs (~6,803 kg) |
| Max. Lifting Height | 92.52" (2,350 mm) |
| Lifting Time | 95s Up / 55s Down |
| Height of Posts | 85.63" (2,175 mm) |
| Width Overall | 136.06" (3,456 mm) |
| Length Overall | 245.31" (6,231 mm, with ramps) |
| Inside Columns | 118.11" (3,000 mm) |
| Min. Runway Height | 9.3" (236 mm) |
| Motor | 220VAC/60HZ/1PH |
| Net Weight | 4,850 lbs (2,200 kg) |
User Manual
For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-4H150 User Manual. Click the link below to download:
Installation
*Concrete Requirements: Ensure a minimum concrete thickness of 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these requirements could result in serious injury or death.
Warranty
Katool provides a 1-year limited warranty on all parts and product defects. Additionally, vehicle lifts include a 3-year warranty on structural components. Optional 2-year extended warranty plans are also available.
Warranty Includes:
- Cylinders, power units, motors, displays, and electronics.
- Structural components for vehicle lifts.
Warranty Conditions:
- Claims must fall within the warranty period and are non-transferable.
- Replacement parts are provided free of charge, including shipping.
- Labor costs are not included in the warranty.
- Disassembly of equipment prior to warranty approval is not permitted.
All warranty claims are subject to review by the warranty/service department. Supporting documentation, such as photos or videos of defects, may be required for approval.
