Description

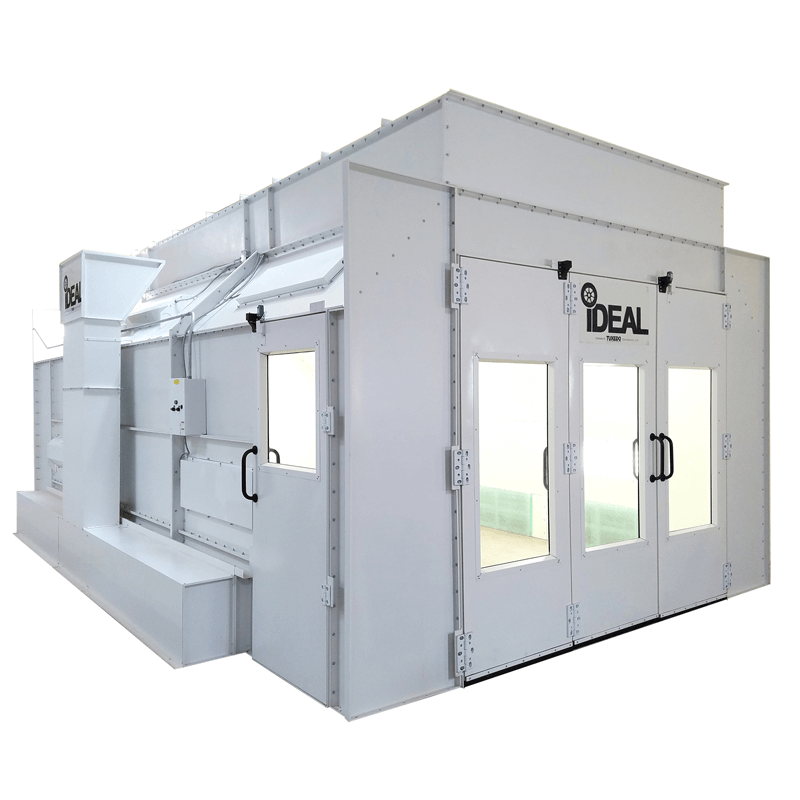

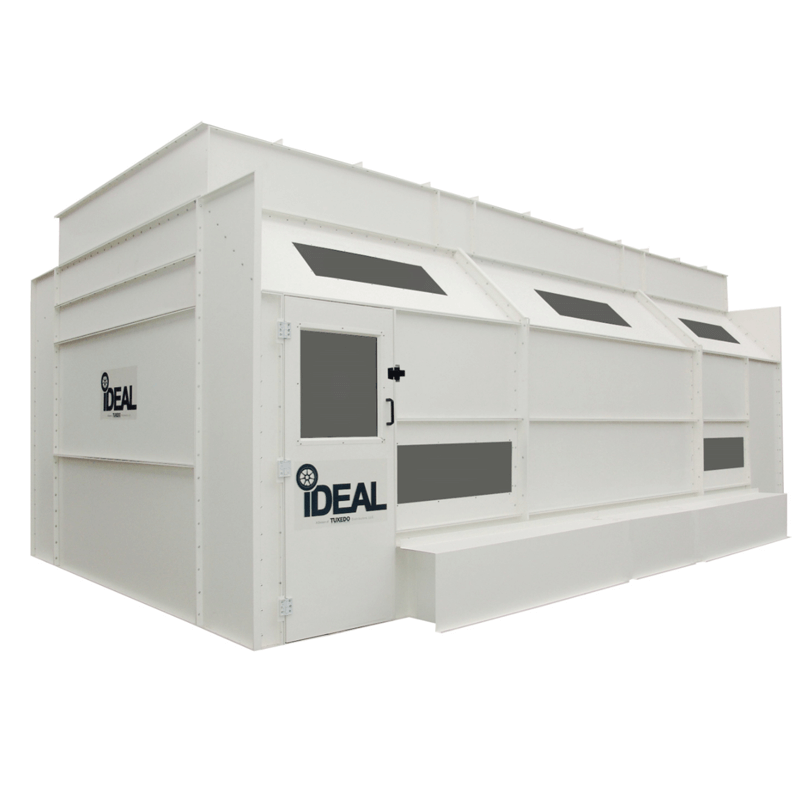

Meet the PSB-SDD26B-AK Paint Spray Booth, the robust solution that promises to make your painting operations as efficient as they are safe. With inside dimensions of 26 feet long, 14 feet wide, and a height of 9 feet 3 inches, this booth is practically a mini warehouse for your painting projects. And if you think that's impressive, the exterior dimensions are just a smidge larger, because why not take up more space in your paint shop?
Equipped with dual 24-inch tube axial fans powered by 2HP motors, this booth achieves airflow that would make a hurricane jealous—14,000 CFM at 0.5 static pressure, to be exact. Who needs that much airflow, you ask? Well, if you’re serious about painting without turning your workspace into a paint-splattered disaster zone, you’ll appreciate the premium AFC intake and exhaust filters. Plus, with ten T-8 industrial light fixtures illuminating your every brushstroke, you won’t miss a spot—even if you tried. So, if you’re ready to elevate your painting game, the PSB-SDD26B-AK is here to save the day.
Ideal Side Downdraft Paint Booth Specifications:
- Paint Booth Model: PSB-SDD26B-AK
- Inside Dimensions: 26’L X 14’W X 9′-3″H
- Outside Dimensions: 26′-4″L X 17′-8″W X 9-5″H
- Fan / Motor:
- (2ea) – 24″ Tube Axial Fans
- 2HP-3PH-230/460VAC-60HZ
- Non-Spark, NEMA Rated
- CFM: 14,000 @ .5 Static Pressure
- Lighting: 10 Each T-8 / 4 Bulb Light Fixtures
- Optional Items (Sold Separately):
- 8′ Exhaust Extension Kit (13″ Diameter)
- 8′ Exhaust Extension Kit (13″ Diameter)
- Side Personnel Door Kit
- 48″ Solid Extension Kit
- Drive Thru Door Kit
- Gas Fired Booth Heater 3 Phase (Plenum Req.)
- Gas Fired Booth Heater 1 Phase (Plenum Req.)
- Electric Booth Heater 3 Phase
- Electric Booth Heater 1 Phase
- Weight: 5100 Lbs
- Pallet Dimensions: 121"L 64"W 91"H

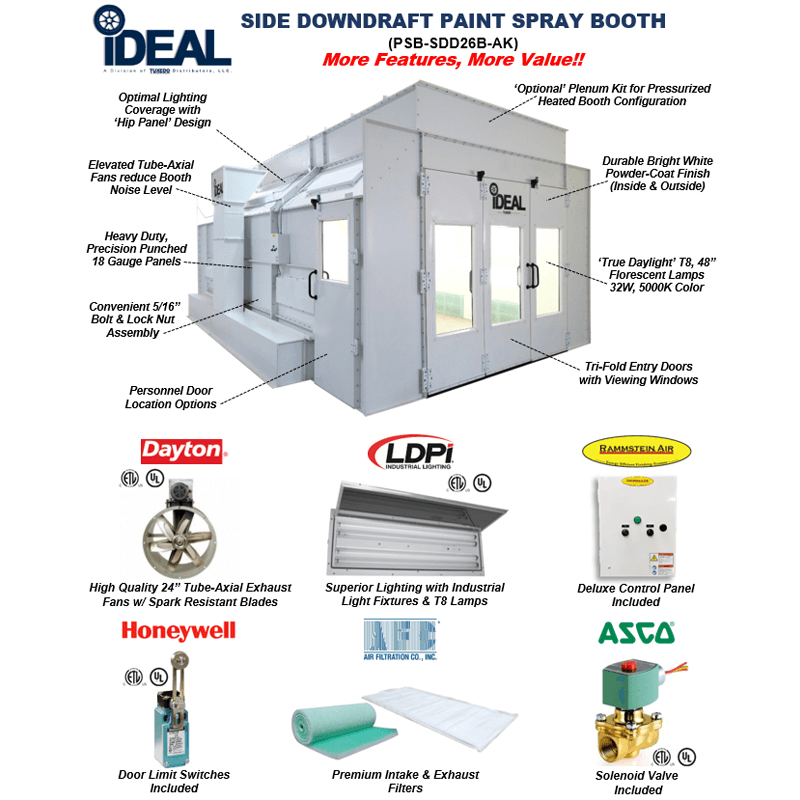

PSB SDD26B AK Special Features:
- Typically ships within 48 hours!
- Heavy duty precision punched 18 Gauge panel construction
- Optimal air flow w/ CFM 14,000 @ .5 static pressure
- Commercial grade ‘hip panel’ design for optimal lighting coverage
- Inside Dimensions: 26′ L X 14′ W X 9′ 3″ H
- Convenient 5/16” bolt & nut assembly

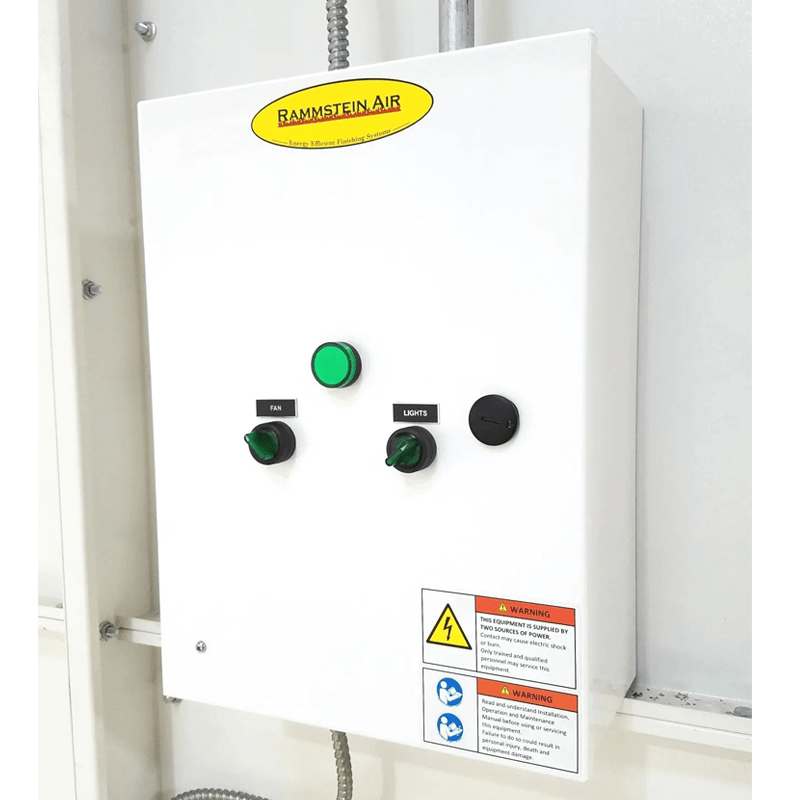

- Deluxe Control Panel included
- Bright White Powder Coat panel Finish – (inside & outside)
- Manometer, Solenoid Valve, Hardware & Sealant Included

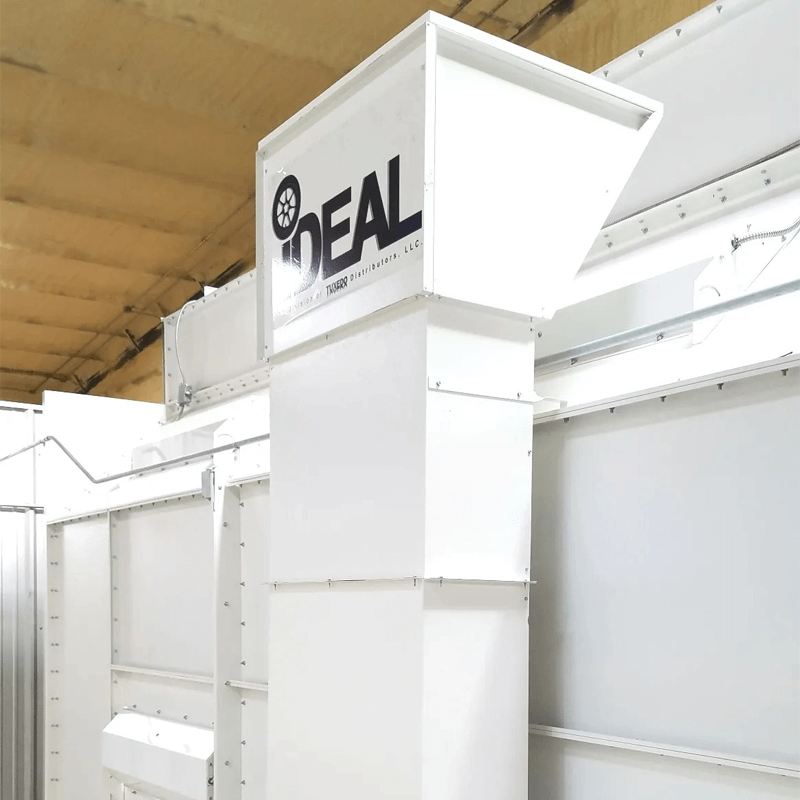

- (2ea) UL Listed Dayton 24” tube-axial exhaust fan w/ spark resistant fan blades
- NEMA rated 3HP-3 Phase – 230/460VAC-60Hz motors standard
- Premium AFC intake & exhaust filters

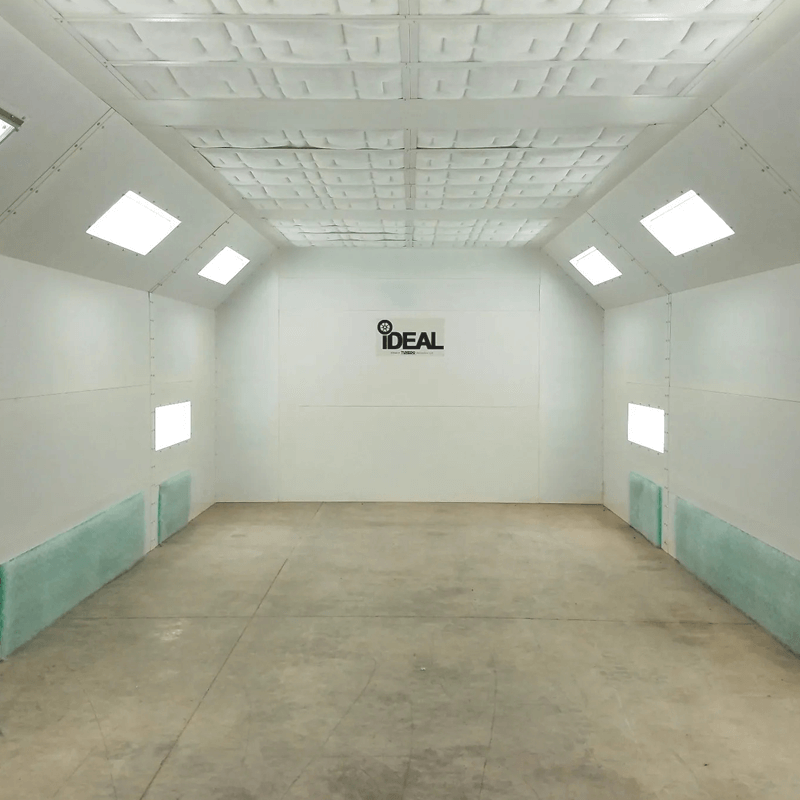

- (10ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp
- (40ea) GE T8 Florescent Lamps – 32W, 5000K 4′ length

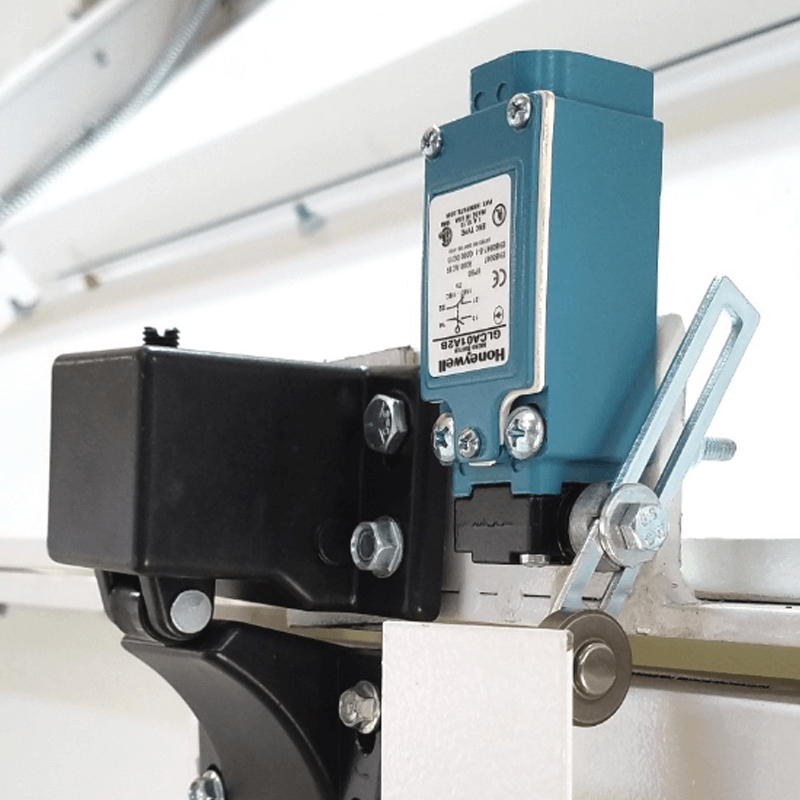

- Tri-fold entry Doors w/ viewing windows & shutoff switch
- Personnel Door w/ viewing window & shutoff switch
- Meets NFPA 33 standards
SDD26B Manual:

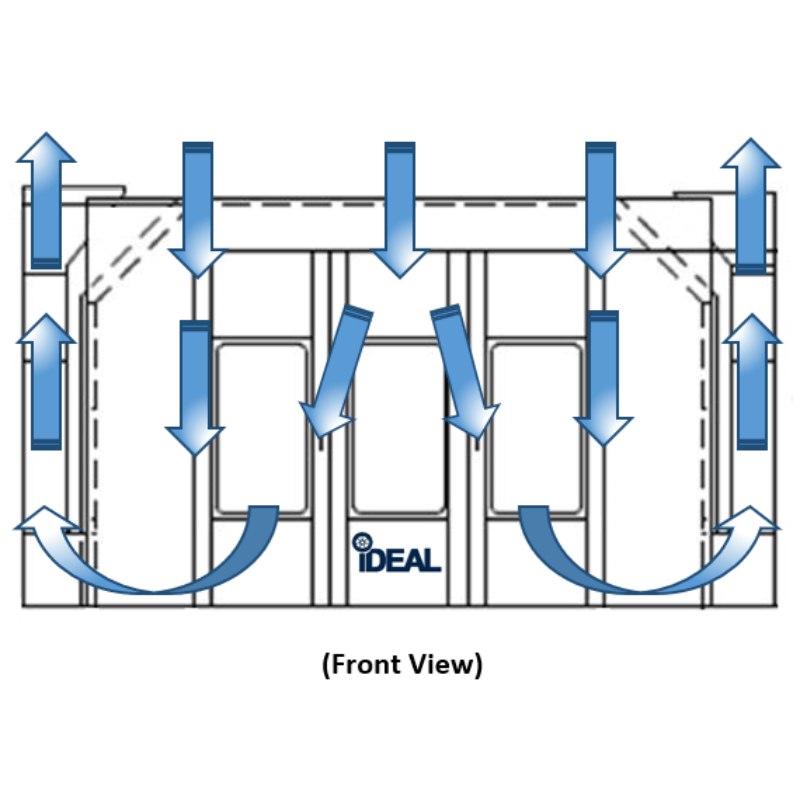

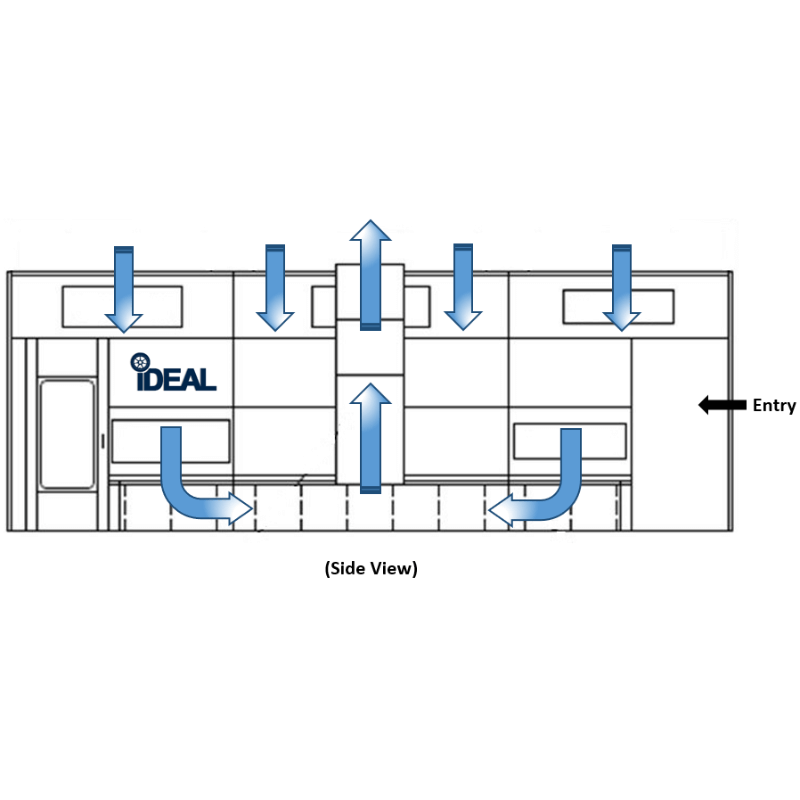

Ideal PSB-SDD26B-AK Detailed Diagram
