Description
With independent mechanical locking systems with that U-Shape wiring configuration. No more awkward maneuvering like you're trying to parallel park a blimp. The MSC-18K-X-236, with its fancy LED light and adjustable lifting forks, is ready to transform your garage into a heavy-duty garage haven. Itching for an upgrade? You better scratch that itch.
Mobile Column Lift MSC-18K-X-236 Specifications:
- Column Configurations: 2 Column
- Capacity: 18,000 lbs.
- Charging Voltage: 100-140VAC, 60HX, Single Phase
- Lifting Height: 67.1″
- Column Heights – Min/Max: Min. 88.6″ / Max 155.5″
- Column Width: 44.1″
- Fork Adjustable Range: 12.6″ – 22″
- Fork Length: 17.9″
- Fork to Column Clearance: 10″
- Rise Time: 100 Seconds
- Max Distance between Columns: 32.8′
- Min. Concrete Surface Strength: 3,000PSI
- Set-Up / Operation: Indoors
- Battery Type (Recommended): 12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105 – not included
- Batteries Not Included
- Weight: 3300 lbs
- Pallet Dimensions: 45"L 96"W 90"H
MSC-18K-X-236, 18,000lb Mobile Column Lift Special Features:
- ALI Certified
- 24VDC Battery Operation with Onboard Charging System

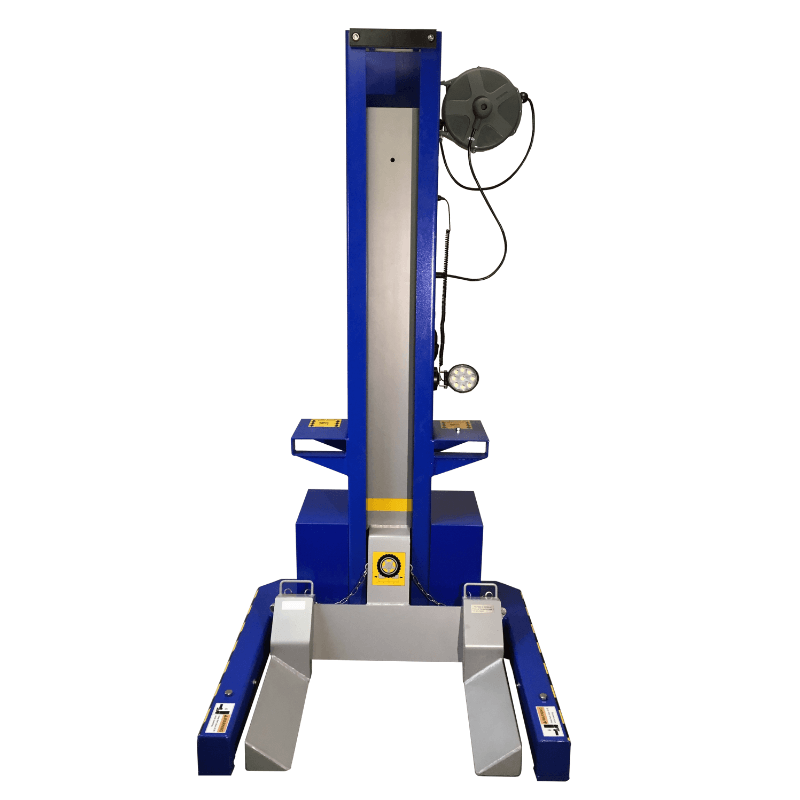

- Communication Cable with Retractable Cable Reels
- U-Shape Wiring Configuration for quick vehicle entry & exiting
- Convenient Operation from any Column
- Independent Mechanical Locking System
- PLC & Optical Encoder provides continuous synchronization for Columns

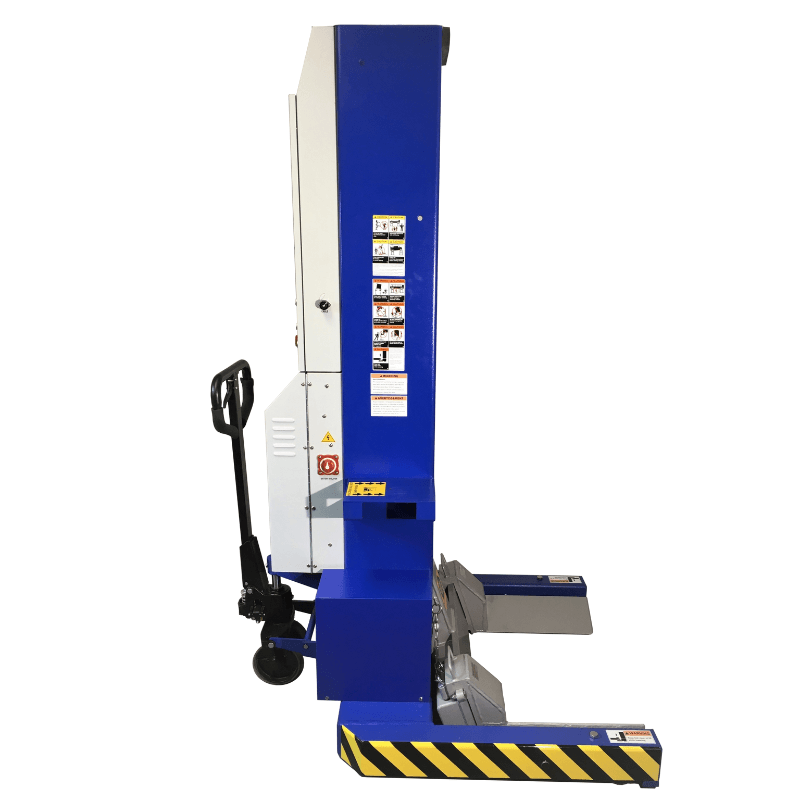

- Easily positioned with Pallet Jack type device with Poly Caster Wheels

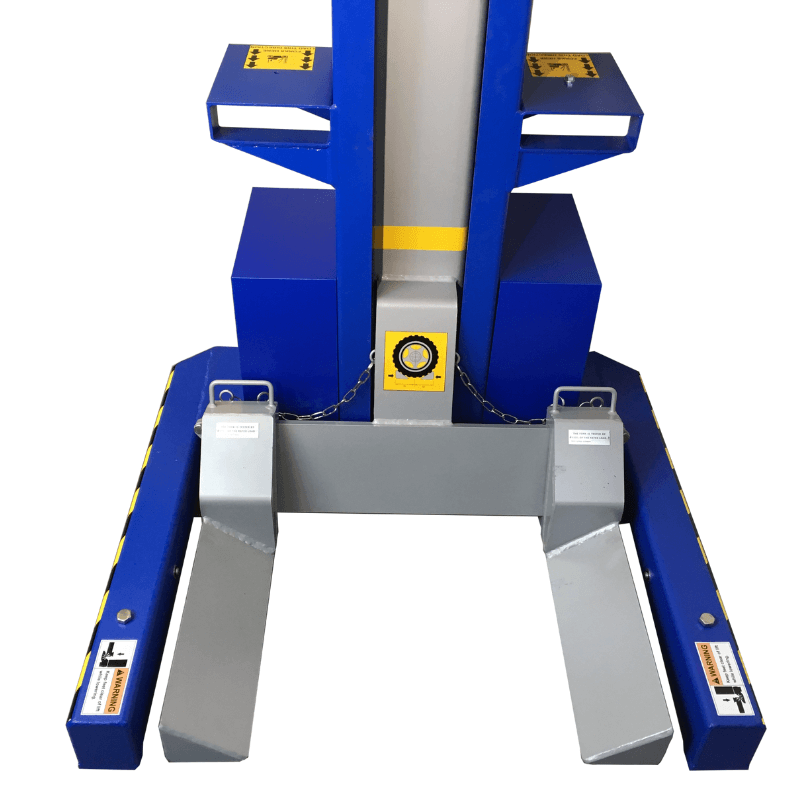

- Adjustable Lifting Forks for the widest range of Wheel Diameters
- Emergency Switch per each Column, provides the highest safety assurance

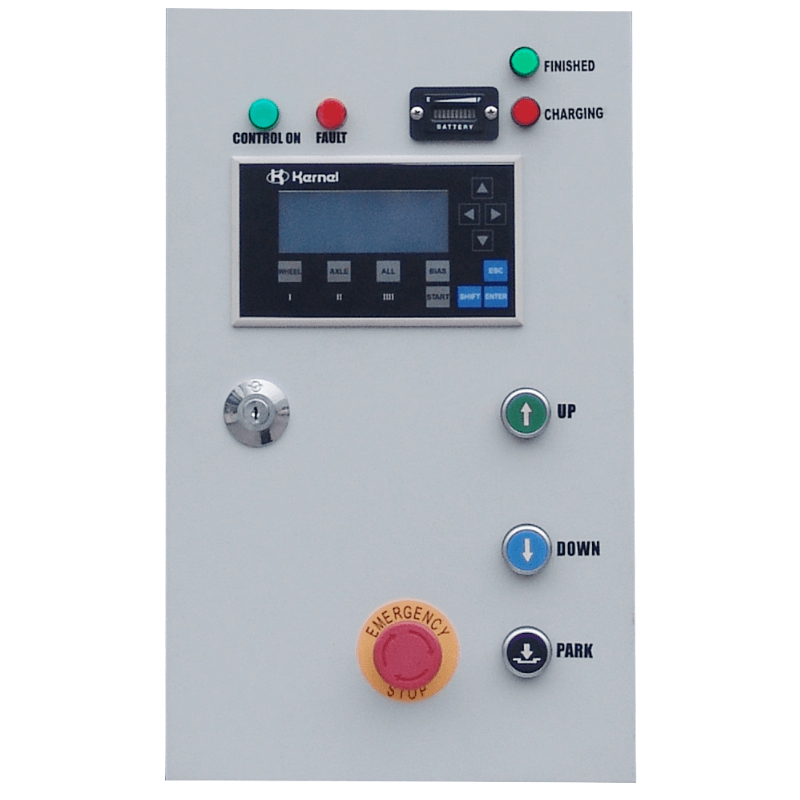

- Easy to use Master Control Panel for Individual or Paired Synchronized Operation
- LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
- Conveniently stored out of the way when not in use to maximize work space
- Available in Two, Four or Six Column Configurations

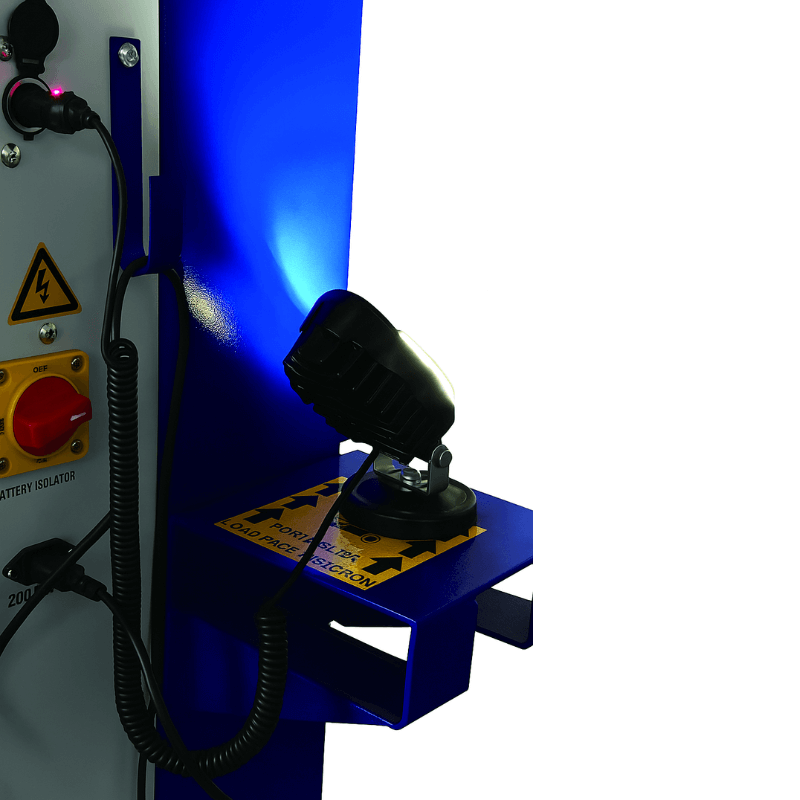

- New! LED Light with Magnetic Base!!
- New! Optional MSC ALI Certified Accessories available
- Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
- iDeal Warranty:
One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment - Optional Adapters (Sold Separately)
- Cross Beam (MSC18KX-CRSBM)
- 22,000-33,000 Max Support Capacity
- Requires (2) Column Units to Operate
- Adjustable Width and Height Pillar Supports
- Includes 3 pairs of different pad adapters
- ALI Certified
- Also works with the MSC-13K-B
- Light Vehicle Adapter Kit (MSC18KX-LTVAK)
- 20,000 max support capacity (10K per adapter)
- Adjustable Width and Height Pillar Supports
- ALI Certified
- Only works with MSC-18K-X
- Cross Beam (MSC18KX-CRSBM)
