Description
The MSC-13K-B-678 series offers a robust and versatile lifting solution for demanding applications. With lifting capacity of 78,000 lbs and flexible column configurations, you can find the perfect fit for your needs. A lifting height of 67.1 inches ensures wide-ranging utility, while adjustable forks accommodate various load sizes. Powered by a reliable AC input and with a dependable DC output per column, these lifts deliver consistent performance.
Advanced Siemens PLC and Electro-Optical encoder technology ensures smooth, synchronized lifting, while independent locking mechanisms and emergency switches provide added protection. The user-friendly master controller simplifies operation. With the MSC-13K-B-678, you’re investing in a reliable and efficient lifting solution.

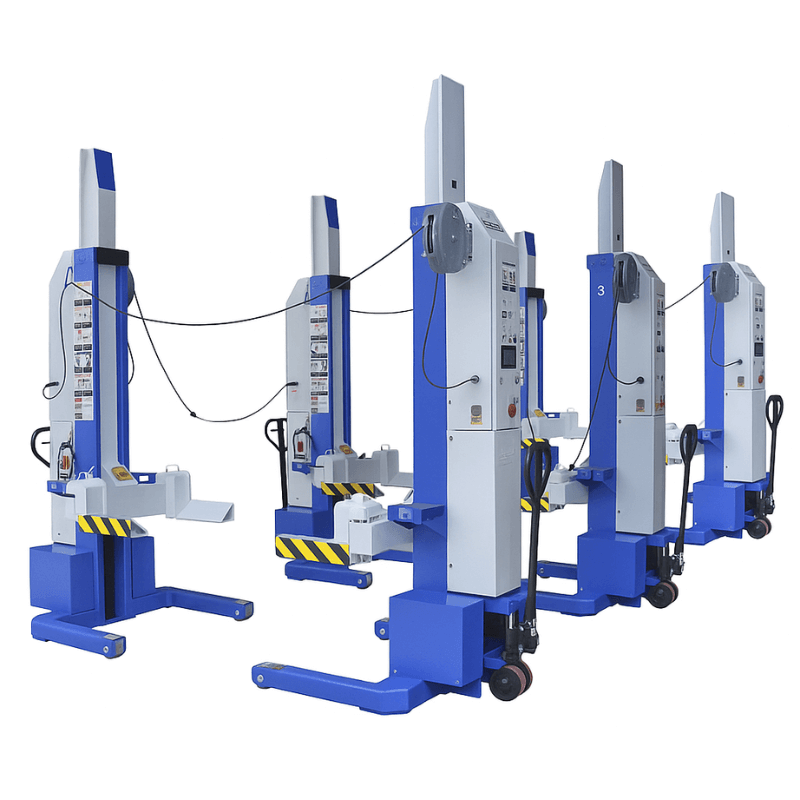

Mobile Column Lift MSC-13K-B-678 Specifications:
- Lift Models: MSC-13K-B-678
- Column Configurations: 6 Column
- Capacity: 78,000 lb
- AC Power (Input, Per Column): 100-140VAC, 60Hz, 1 PH
- DC Power (Output, Per Column): 24VDC
- Lifting Height: 67.1″
- Column Heights – Min/Max: Min. 88.6″ / Max 155.5″
- Overall Width: 44.1″
- Fork Adjustable Range: 6.3″ – 22″
- Fork Length: 14″
- Fork to Column Clearance: 9.3″
- Rise Time: 75S
- Descent Time: 60S
- Maximum Distance between Columns: 32.8′
- Minimum Concrete Surface Strength: 3000 PSI
- Noise Level: 70 dB(A)
- Set-Up / Operation: Indoors
- Battery Type (Not included): 12VDC Sealed Deep Cycle Battery (BCI Group31, AH-105)
- Ship Weight: 1,210 lbs per Column
Mobile Column Lift 78,000 lbs. MSC-13K-B-678 Special Features:
- ALI Certified

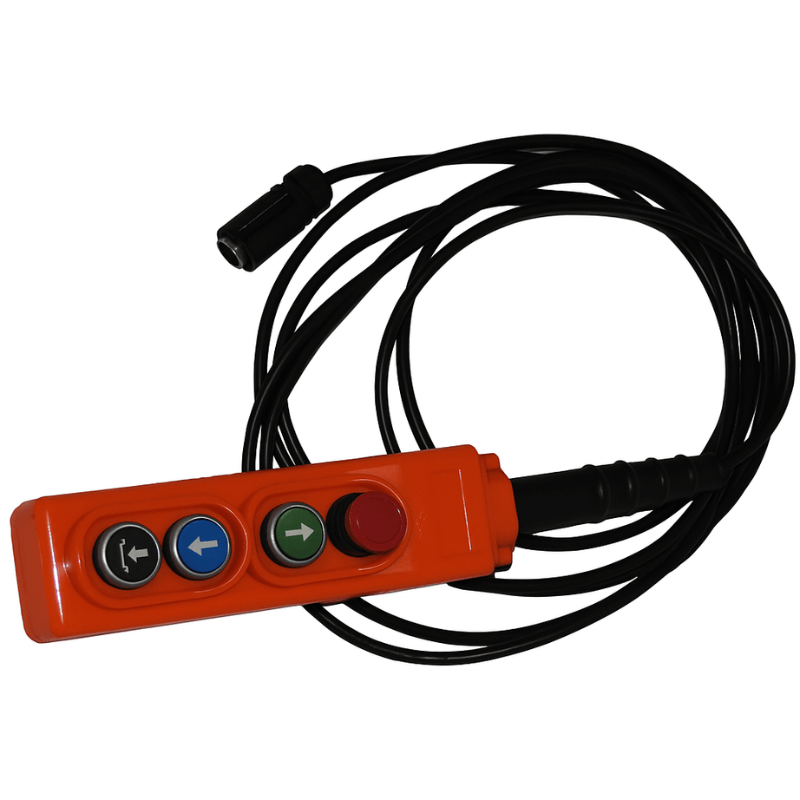

- Easy to use master controller for individual or paired synchronized operation
- Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns

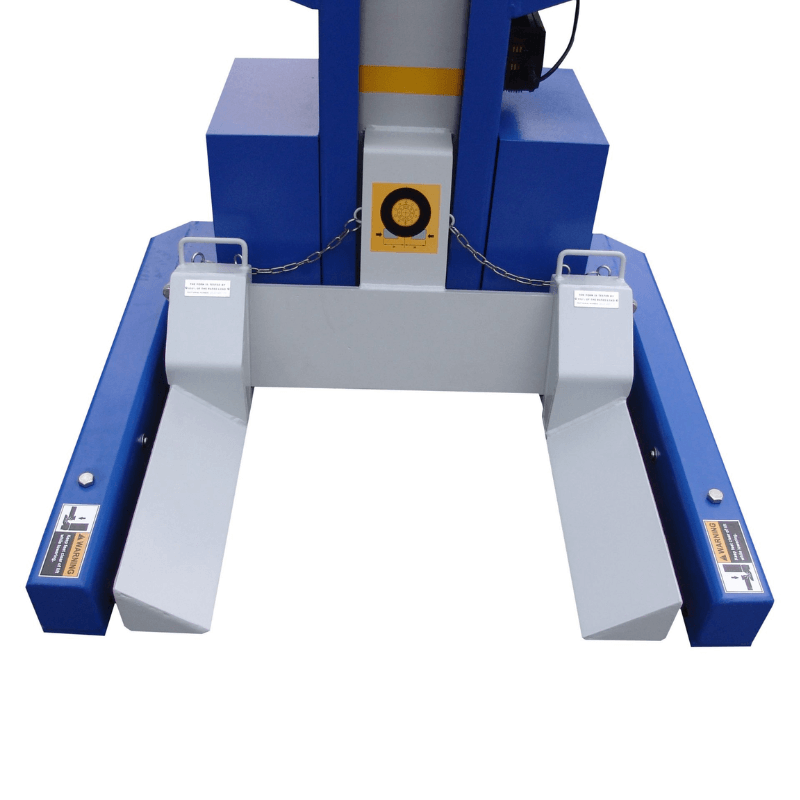

- Adjustable lifting forks accommodate the widest range of wheels
- Easily positioned with pallet jack style wheel
- Heavy-duty hydraulic system
- Large carriage bearings provide durable, fast and easy lifting

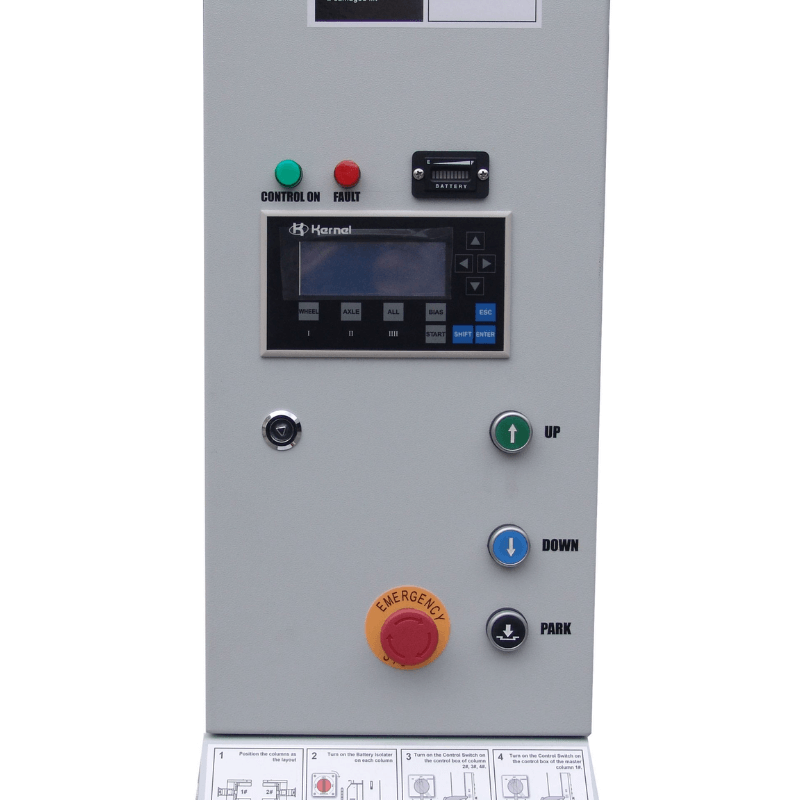

- LCD screen with keyboard offers easy to read visuals of settings and lifting height
- Independent mechanical locking system
- Emergency switch on each column provide highest safety assurance
- Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
- iDeal Warranty:
One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment - Optional Adapters (Sold Separately)
- Cross Beam (MSC18KX-CRSBM)
- 22,000-33,000 Max Support Capacity
- Requires (2) Column Units to Operate
- Adjustable Width and Height Pillar Supports
- Includes 3 pairs of different pad adapters
- ALI Certified
- Also works with the MSC-18K-X
- Light Vehicle Adapter Kit (MSC13KB-LTVAK)
- 20,000 max support capacity (10K per adapter)
- Adjustable Width and Height Pillar Supports
- Standard with HD Swive, Rubber Contact Pads
- ALI Certified
- Only works with MSC-13K-B
- Cross Beam (MSC18KX-CRSBM)
Ideal MSC-13K-B-678 Documentation:
-
All refurbished items are stocked and shipped from Texas Warehouse Only
-
Pictures of units can be shared upon request
-
20% off is based off regular price.
-
Contact Us today if your item is available
Warehouse Pickup locations (No shipping charge):
- Alvarado, TX 76009
