Description

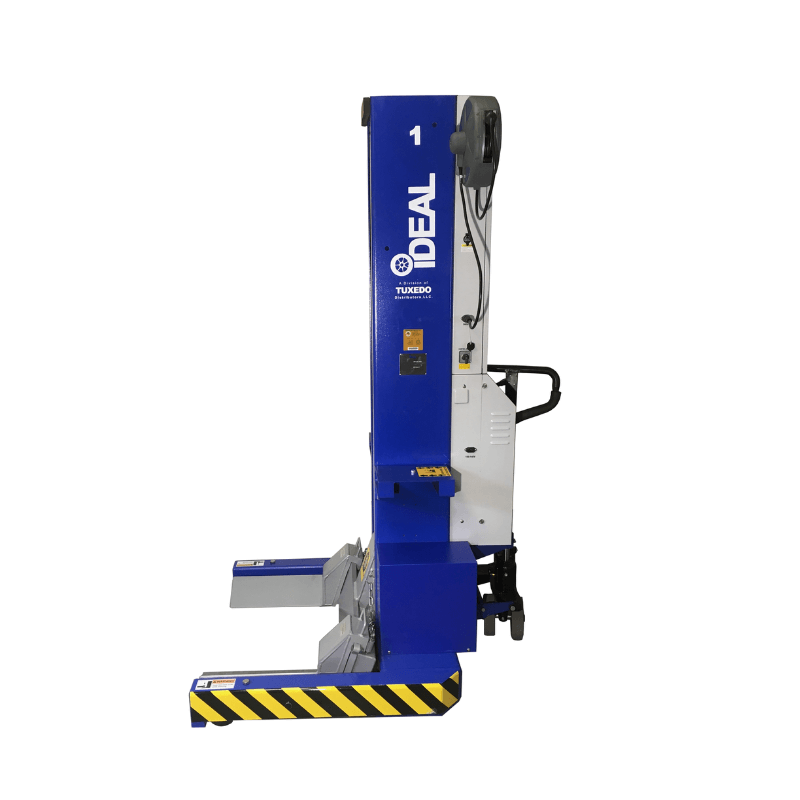

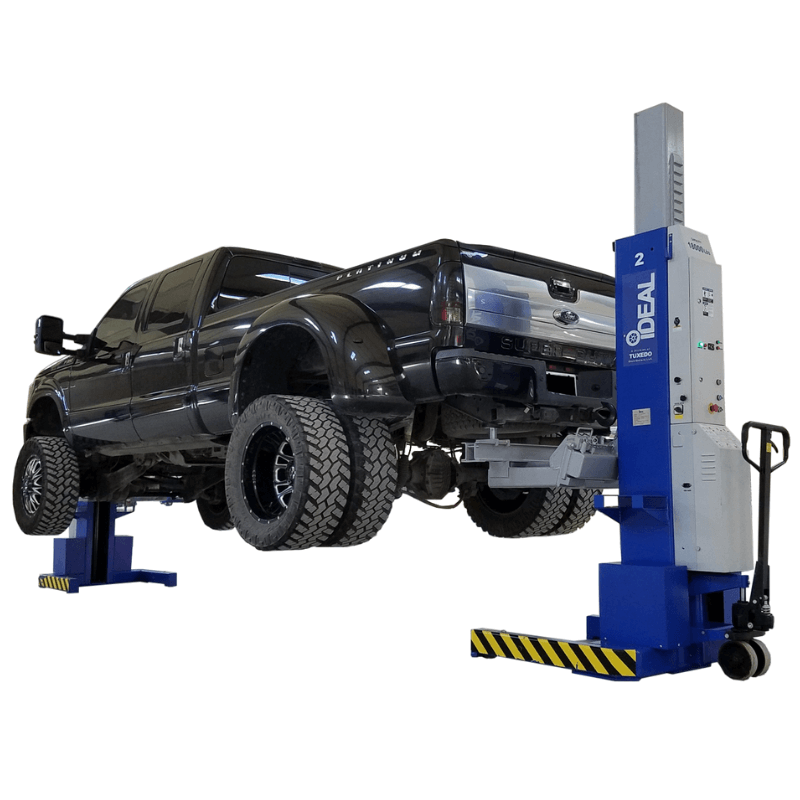

Are your current lifts struggling to meet the demands of modern heavy-duty vehicles? The iDeal MSC-18K-X series offers a solution to these challenges. This mobile column lift system addresses the need for versatile, high-capacity lifting equipment. With configurations lifting up to 108,000 lbs, it's designed to handle even the largest commercial vehicles. The adjustable lifting forks, ranging from 12.6" to 22", ensure compatibility with a wide range of wheel diameters.
The PLC & Optical Encoder provides continuous synchronization between columns, while the independent mechanical locking system and emergency switches on each column prioritize safety. The LCD screen with keypad offers clear visuals for setting lifting height, eliminating guesswork. The MSC-18K-X series, with its 24VDC battery operation, onboard charging system, and convenient U-Shape wiring configuration, is ready to transform your heavy vehicle maintenance process. PLUS, with a 5-year structure warranty and 1-year parts warranty, it's an investment in your business's future.
Ideal Mobile Column Lift Specifications:
- Column Configurations: 6 Column
- Capacity: 18,000 lbs
- Charging Voltage: 100-140VAC, 60HX, Single Phase
- Lifting Height: 67.1″
- Column Heights – Min/Max: Min. 88.6″ / Max 155.5″
- Column Width: 44.1″
- Fork Adjustable Range: 12.6″ – 22″
- Fork Length: 17.9″
- Fork to Column Clearance: 10″
- Rise Time: 100 Seconds
- Max Distance between Columns: 32.8′
- Min. Concrete Surface Strength: 3,000PSI
- Set-Up / Operation: Indoors
- Battery Type (Recommended): 12VDC Sealed Deep Cycle Battery, BCI Group 31, AH 105 – not included
- Batteries Not Included
- Optional Adapters (Sold Separately)
- Cross Beam (MSC18KX-CRSBM)
- 22,000-33,000 Max Support Capacity
- Requires (2) Column Units to Operate
- Adjustable Width and Height Pillar Supports
- Includes 3 pairs of different pad adapters
- ALI Certified
- Also works with the MSC-13K-B
- Light Vehicle Adapter Kit (MSC18KX-LTVAK)
- 20,000 max support capacity (10K per adapter)
- Adjustable Width and Height Pillar Supports
- ALI Certified
- Only works with MSC-18K-X
- Cross Beam (MSC18KX-CRSBM)

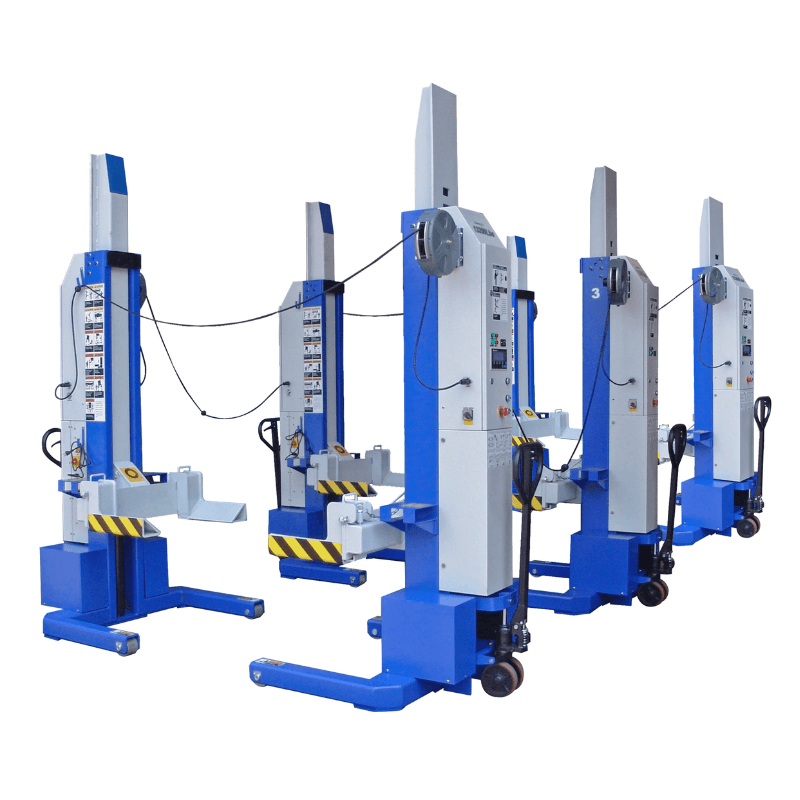

MSC 18KX 6108 Mobile Column Lift Special Features:
- ALI Certified
- 24VDC Battery Operation with Onboard Charging System

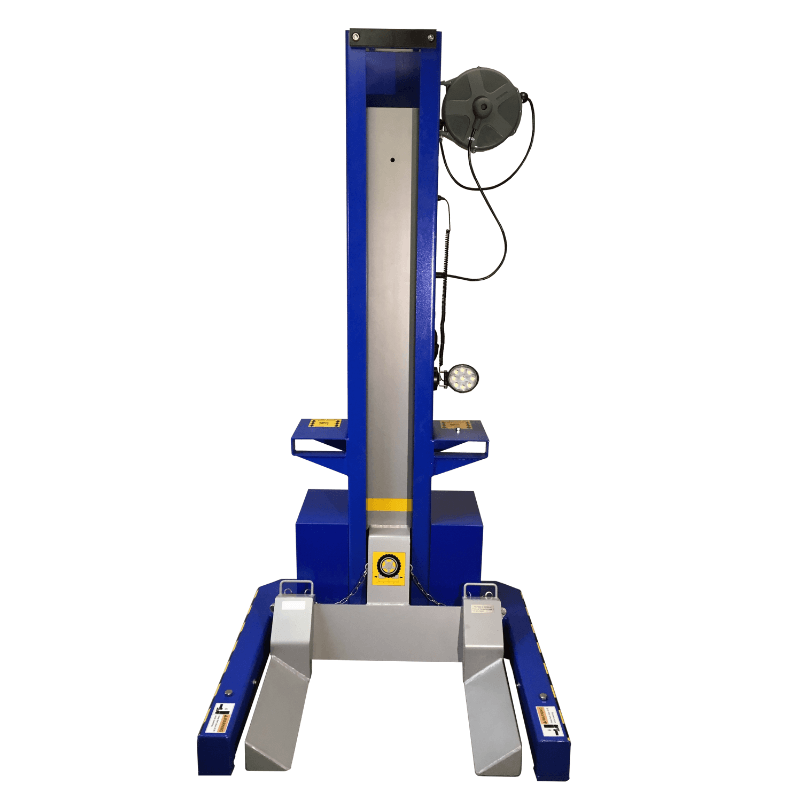

- Communication Cable with Retractable Cable Reels
- U-Shape Wiring Configuration for quick vehicle entry & exiting
- Convenient Operation from any Column
- Independent Mechanical Locking System
- PLC & Optical Encoder provides continuous synchronization for Columns

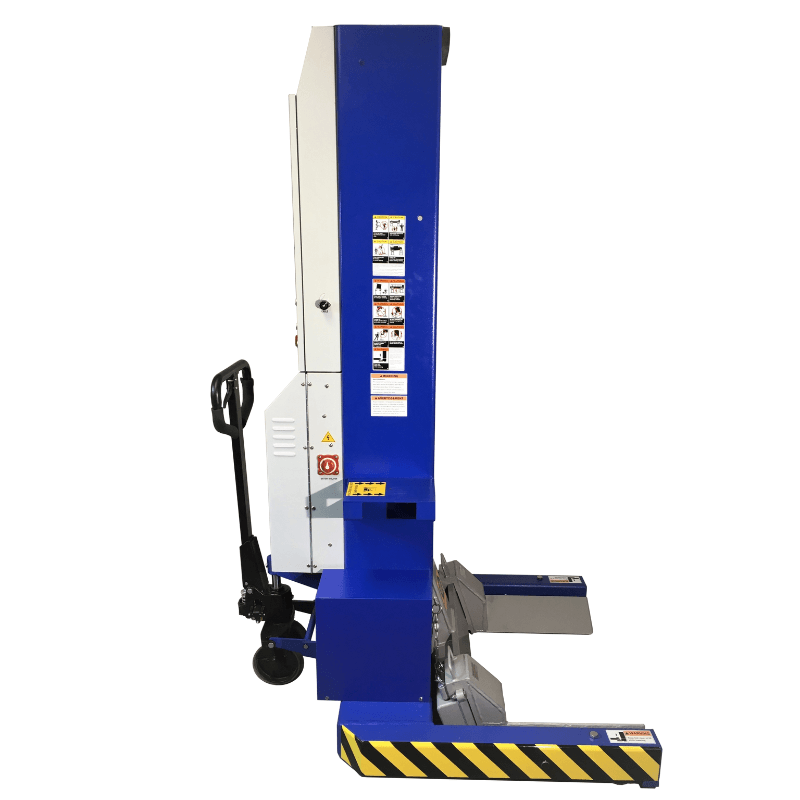

- Easily positioned with Pallet Jack type device with Poly Caster Wheels

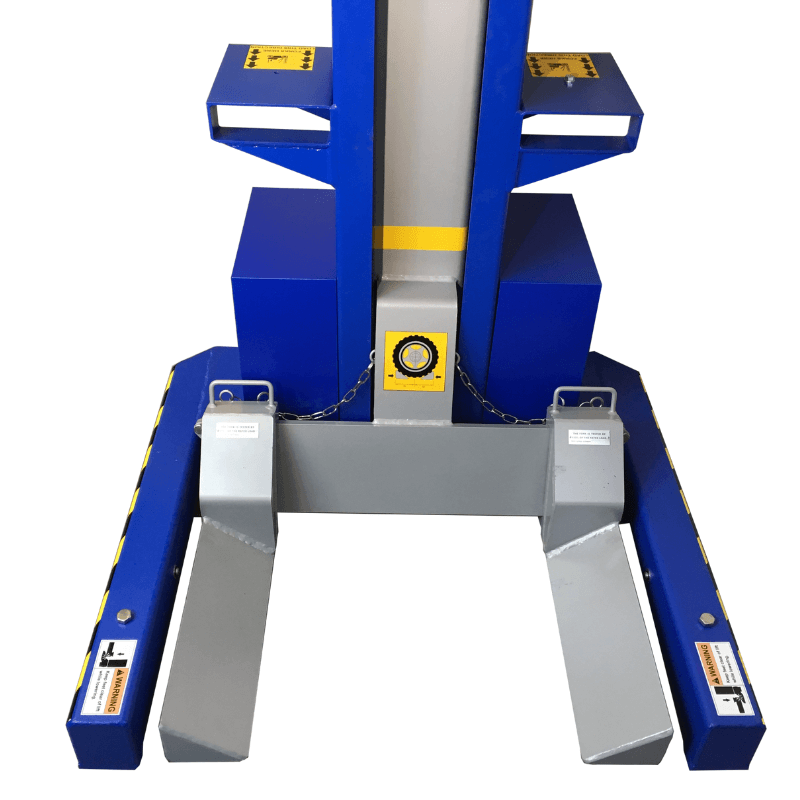

- Adjustable Lifting Forks for the widest range of Wheel Diameters
- Emergency Switch per each Column, provides the highest safety assurance
- Easy to use Master Control Panel for Individual or Paired Synchronized Operation
- LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
- Conveniently stored out of the way when not in use to maximize work space

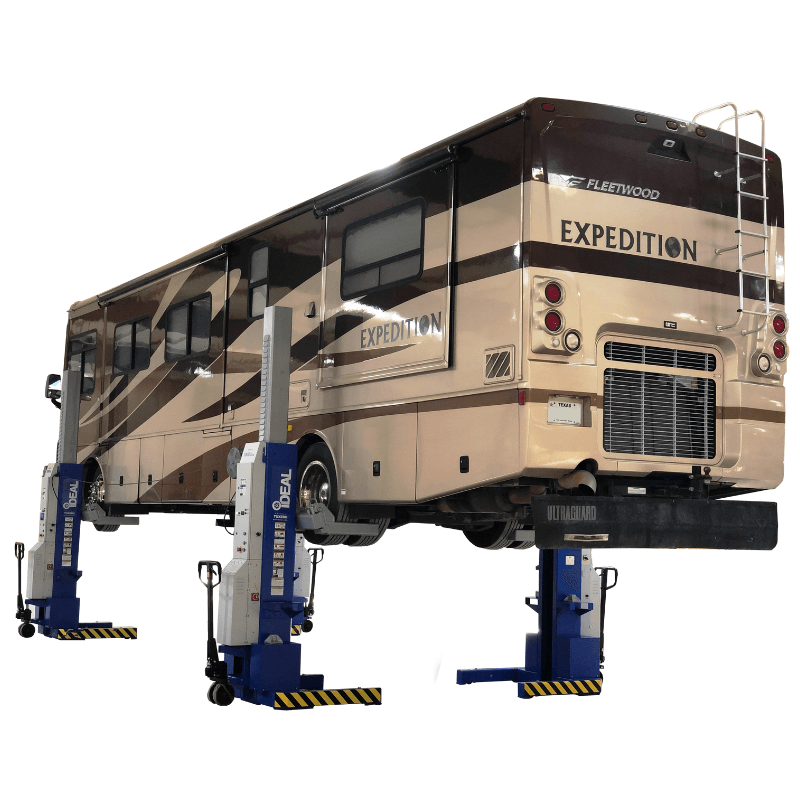

- Available in Two, Four or Six Column Configurations

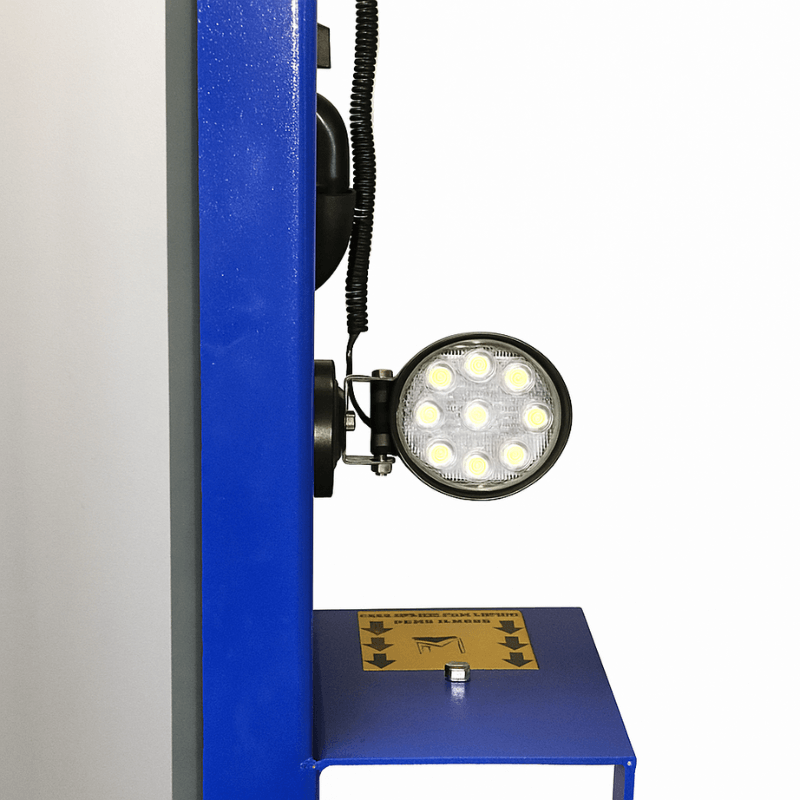

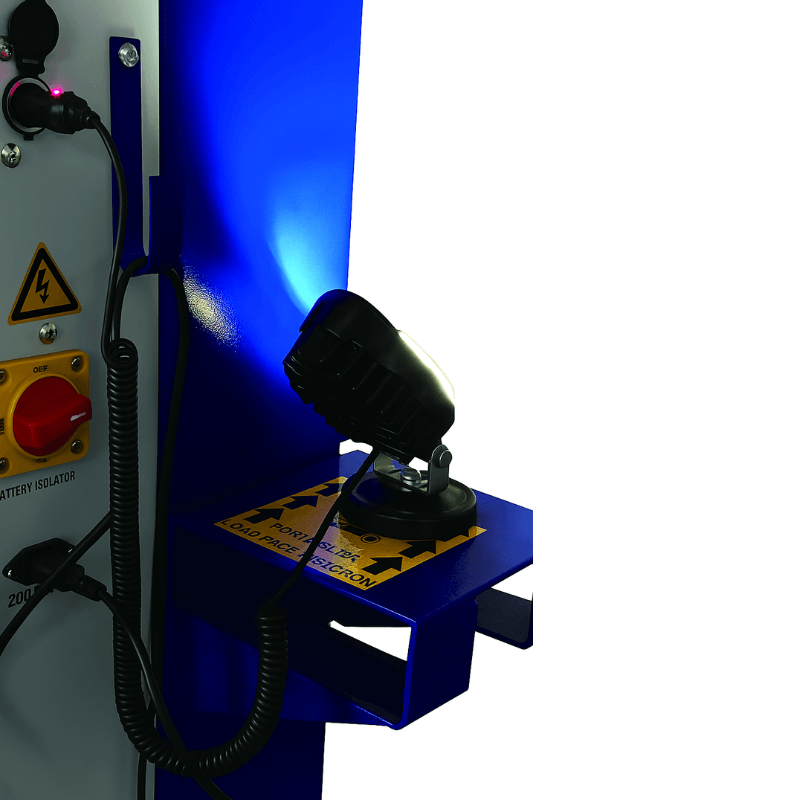

- New! LED Light with Magnetic Base!
- Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
- iDeal Warranty:
One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment
MSC-18K-X-6108 Manual:
-
All refurbished items are stocked and shipped from Texas Warehouse Only
-
Pictures of units can be shared upon request
-
20% off is based off regular price.
-
Contact Us today if your item is available
