Description
The MSC-13K-B-452 is the ultimate lifting solution for heavy-duty applications. With a 52,000 lbs, capacity, this configuration with 4 columns is a match for your specific needs. Our lifts are built tough with a heavy-duty hydraulic system, advanced Siemens PLC technology, and precise Electro-Optical encoders to ensure smooth, synchronized lifting.
Safety and efficiency are at the core of our design. Each column boasts an independent locking system and emergency stop, while the adjustable lifting forks and large carriage bearings make handling different loads a breeze. The user-friendly LCD screen provides clear information at a glance. With quiet operation at 70 dB(A), these lifts are perfect for indoor environments. Experience the MSC-13K-B-452 difference and elevate your lifting game.
Mobile Column Lift MSC-13K-B-452 Specifications:
- Column Configurations: 4 Column
- Capacity: 13,000lb
- AC Power (Input, Per Column): 100-140VAC, 60Hz, 1 PH
- DC Power (Output, Per Column): 24VDC
- Lifting Height: 67.1″
- Column Heights – Min/Max: Min. 88.6″ / Max 155.5″
- Overall Width: 44.1″
- Fork Adjustable Range: 6.3″ – 22″
- Fork Length: 14″
- Fork to Column Clearance: 9.3″
- Rise Time: 75S
- Descent Time: 60S
- Maximum Distance between Columns: 32.8′
- Minimum Concrete Surface Strength: 3000 PSI
- Noise Level: 70 dB(A)
- Set-Up / Operation: Indoors
- Battery Type (Not included): 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105)
- Ship Weight: 1,210 lbs per Column
- Weight: 5160 lbs
- Pallet Dimensions: 96"L 96"W 90"H
- Optional Adapters (Sold Separately)
- Cross Beam (MSC18KX-CRSBM)
- 22,000-33,000 Max Support Capacity
- Requires (2) Column Units to Operate
- Adjustable Width and Height Pillar Supports
- Includes 3 pairs of different pad adapters
- ALI Certified
- Also works with the MSC-18K-X
- Light Vehicle Adapter Kit (MSC13KB-LTVAK)
- 20,000 max support capacity (10K per adapter)
- Adjustable Width and Height Pillar Supports
- Standard with HD Swive, Rubber Contact Pads
- ALI Certified
- Only works with MSC-13K-B
- Cross Beam (MSC18KX-CRSBM)
MSC-13K-B-452 52,000 lbs. Mobile Column Lift Special Features:

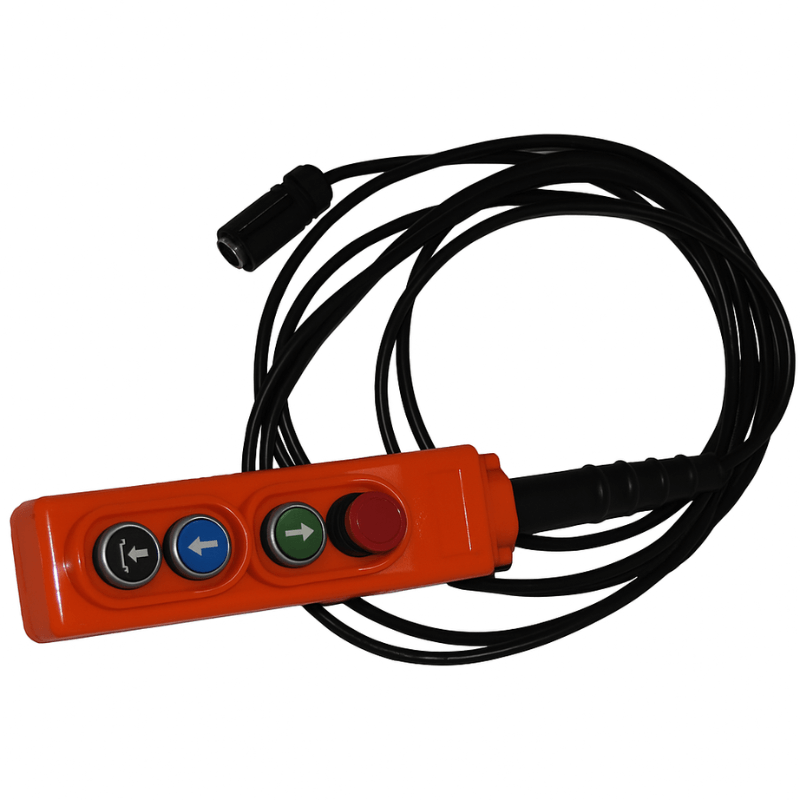

- Easy to use master controller for individual or paired synchronized operation
- Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns

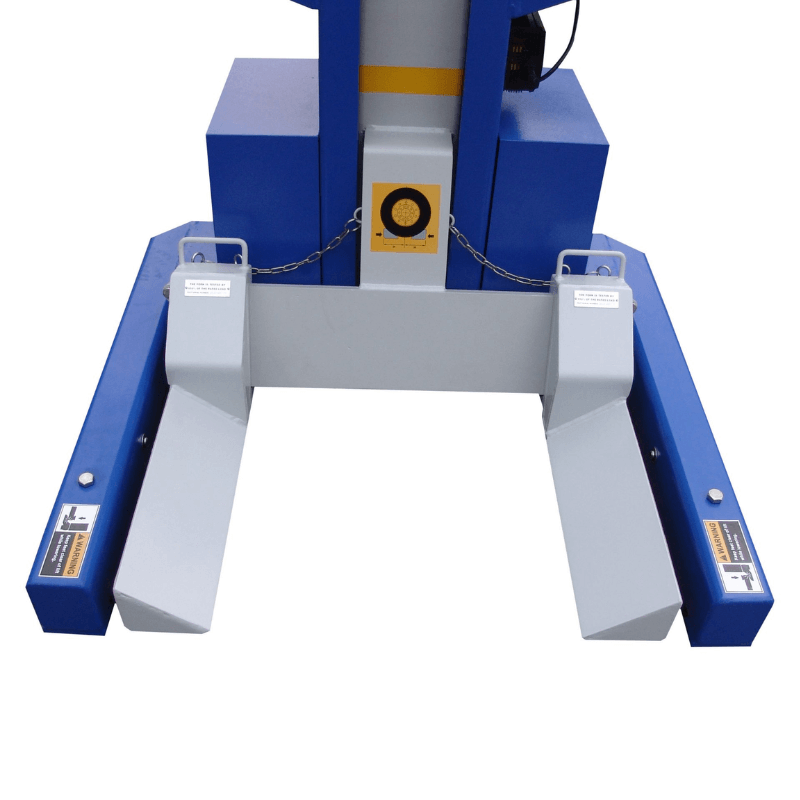

- Adjustable lifting forks accommodate the widest range of wheels
- Easily positioned with pallet jack style wheel
- Heavy-duty hydraulic system
- Large carriage bearings provide durable, fast and easy lifting

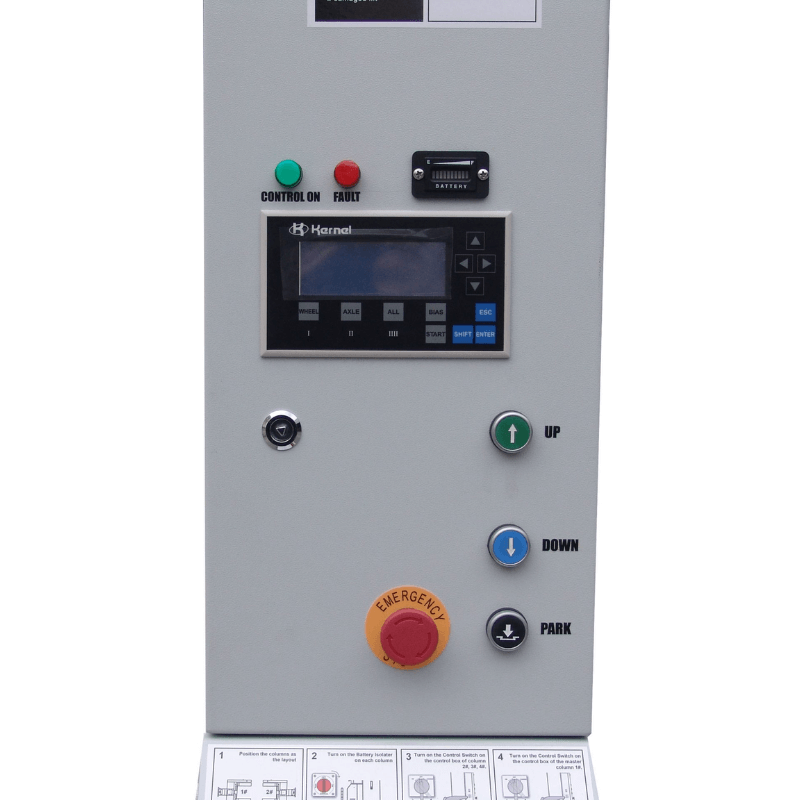

- LCD screen with keyboard offers easy to read visuals of settings and lifting height
- Independent mechanical locking system
- Emergency switch on each column provide highest safety assurance
- Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
- iDeal Warranty:
One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment
MSC-13K-B-452 Manual:
-
All refurbished items are stocked and shipped from Texas Warehouse Only
-
Pictures of units can be shared upon request
-
20% off is based off regular price.
-
Contact Us today if your item is available
Warehouse Pickup locations (No shipping charge):
- Alvarado, TX 76009
