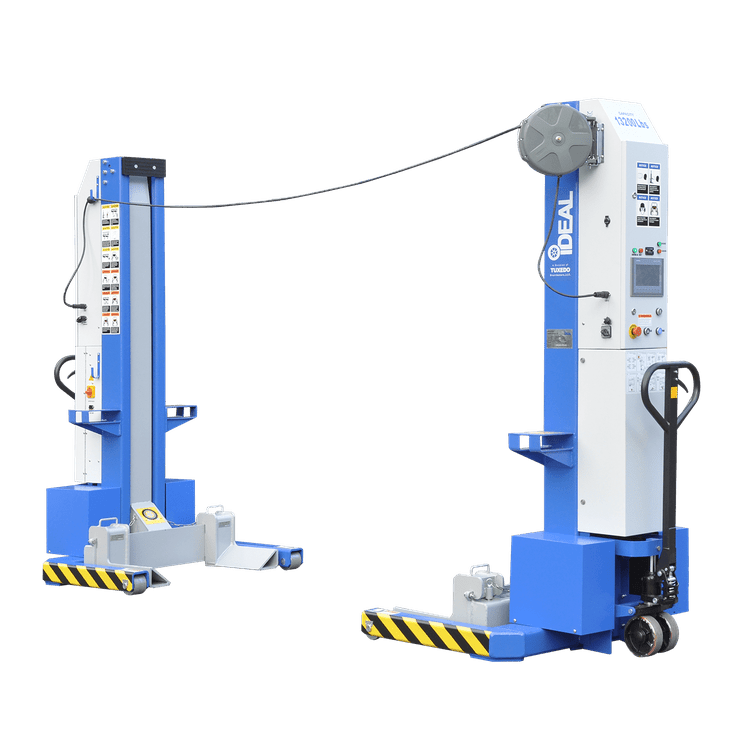

Description
The MSC-13K-B-226 lifts are here to bring order to the chaos. With 2 columns, we’ve got a setup for every level of organizational chaos. We know warehouses can get a little... electrifying, so we made sure our lifts can handle it with a 100-140VAC power input and a 24VDC DC Power output per column. Need to reach for the stars? The 67.1-inch lifting height has you covered. And don’t worry about overloading these bad boys – they’re built like tanks with heavy-duty hydraulics and large carriage bearings. Safety? We’ve got you covered with independent mechanical locking systems and emergency switches. Because let's face it, accidents happen when things get hectic.
Ready to transform your warehouse from a disaster zone to a productivity powerhouse? Our lifts are more than just equipment; they’re your new warehouse heroes. With user-friendly controls, adjustable forks, and a crystal-clear LCD screen, operating these lifts is easier than ordering pizza. Don't be a square. Upgrade your warehouse with the MSC-13K-B-226 today.
Mobile Column Lift MSC-13K-B-226 Specifications:
- Column Configurations: 2 Column
- Capacity: 13,000lb per Unit
- AC Power (Input, Per Column): 100-140VAC, 60Hz, 1 PH
- DC Power (Output, Per Column): 24VDC
- Lifting Height: 67.1″
- Column Heights – Min/Max: Min. 88.6″ / Max 155.5″
- Overall Width: 44.1″
- Fork Adjustable Range: 6.3″ – 22″
- Fork Length: 14″
- Fork to Column Clearance: 9.3″
- Rise Time: 75S
- Descent Time: 60S
- Maximum Distance between Columns: 32.8′
- Minimum Concrete Surface Strength: 3000 PSI
- Noise Level: 70 dB(A)
- Set-Up / Operation: Indoors
- Battery Type (Not included): 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105)
- Ship Weight: 1,210 lbs per Column
- Weight: 2580 lbs
- Pallet Dimensions: 48 "L 96"W 90"H
- Optional Adapters (Sold Separately)
- Cross Beam (MSC18KX-CRSBM)
- 22,000-33,000 Max Support Capacity
- Requires (2) Column Units to Operate
- Adjustable Width and Height Pillar Supports
- Includes 3 pairs of different pad adapters
- ALI Certified
- Also works with the MSC-18K-X
- Light Vehicle Adapter Kit (MSC13KB-LTVAK)
- 20,000 max support capacity (10K per adapter)
- Adjustable Width and Height Pillar Supports
- Standard with HD Swive, Rubber Contact Pads
- ALI Certified
- Only works with MSC-13K-B
- Cross Beam (MSC18KX-CRSBM)
MSC-13K-B-226 26,000 lbs. Mobile Column Lift Special Features:
- ALI Certified
- Easy to use master controller for individual or paired synchronized operation
- Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns

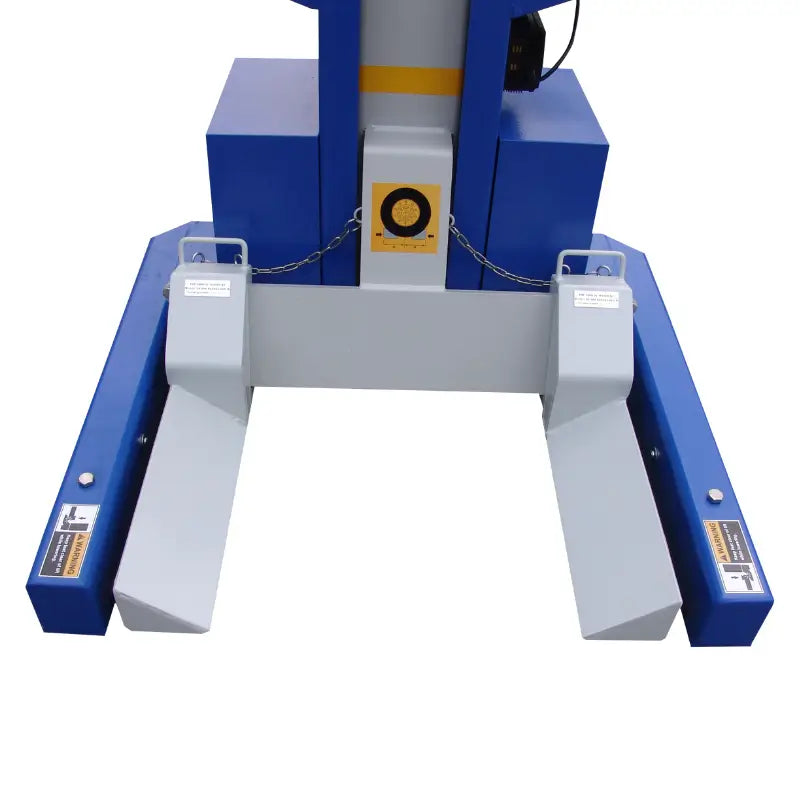

- Adjustable lifting forks accommodate the widest range of wheels
- Easily positioned with pallet jack style wheel
- Heavy-duty hydraulic system
- Large carriage bearings provide durable, fast and easy lifting

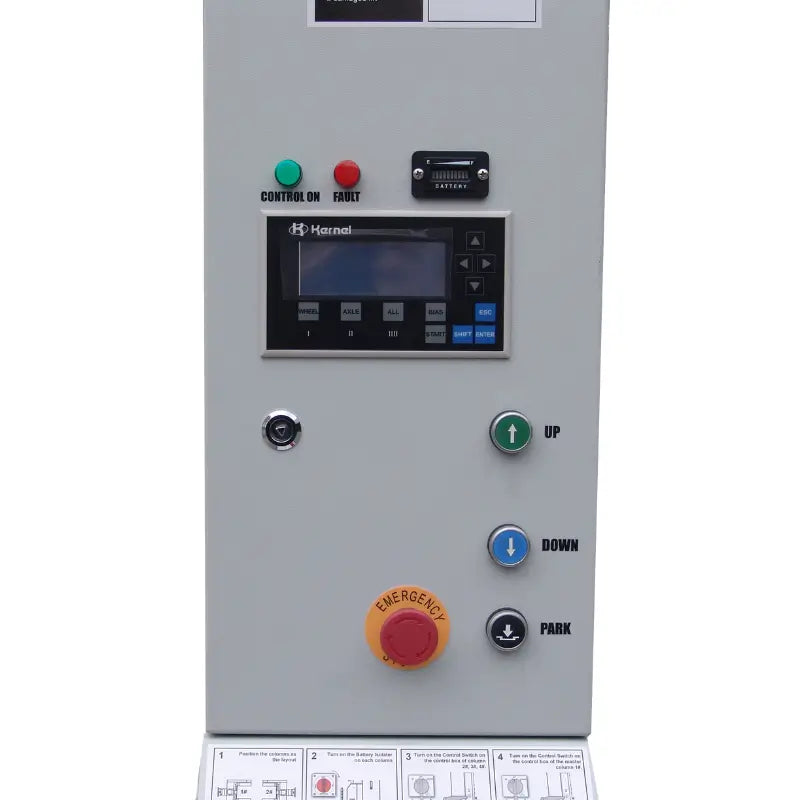

- LCD screen with keyboard offers easy to read visuals of settings and lifting height
- Independent mechanical locking system
- Emergency switch on each column provide highest safety assurance
- Warranty: 5 Years Structure, 1 Year Parts - Under Normal Use
- iDeal Warranty:
One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment
MSC-13K-B-226 Manual:
-
All refurbished items are stocked and shipped from Texas Warehouse Only
-
Pictures of units can be shared upon request
-
20% off is based off regular price.
-
Contact Us today if your item is available
Warehouse Pickup locations:
- Alvarado, TX 76009
