Description
Precision. Accuracy. Speed. The IWA-60-8500-HD-K sets the standard for heavy-duty vehicle alignment. This cutting-edge 3D HD image aligner runs on a Windows platform with Techno Vector 7 software, delivering CE-certified accuracy down to 0.01 degrees. Its four high-resolution, extended-range 3D tower cameras work seamlessly to measure up to four axles at once, accommodating vehicles up to 50 feet long and 13 feet wide. Best of all, it operates directly on the floor—no lift required—making it the ultimate choice for efficiency and ease.
To streamline your workflow, the IWA-60-8500-HD-K boasts an integrated quick reference vehicle database and dynamic LED tower guides. The HD turntable, drive-on floor ramp sets, and mobile cabinet configuration make setup a breeze, adapting to any workshop layout. With wireless remote control operation, live reading screens for front and rear axle readings, and comprehensive data management features like customer database integration and customized report generation, investing in this baby is a no-brainer.
Wheel Aligner IWA-60-8500-HD-K Specifications:
- 3D HD Image Aligner Model: IWA-60-8500-HD-K
- Aligner Type: Heavy Duty 3D Multi-Axle Imaging
- Operating System: Windows
- Software: Techno Vector 7
- Accuracy: 0.01 Degrees
- Certification: CE
- Target Size (8): Standard
- Cameras (Total): 4
- Lift Compatible: No
- Standard Wheel Clamps (8): 15"-17"
- Toe Adjustment: Yes
- Lifted Runout: Yes
- Live Caster: Yes
- Runout Compensation: Yes
- Wheel Alignment Modes: Variable 2-8 Wheels
- Database Update: Yes
- Customer Manager: Yes
- Max Width: Up to 13 feet.
- Max Wheelbase: Up to 50 feet.
- Power: 120V-15 Amp/1PH/60HZ
- Ship Weight: 1,285 lbs. (3pcs)
IWA-60-8500-HD-K Wheel Aligner Special Features:
- multi-axle floor alignment system – no vehicle lift required!
- Designed to measure long vehicles & vehicles with trailers
- High resolution / extended range 3d tower cameras measures up to four axles at once
- Integrated quick reference vehicle database for commercial vehicles

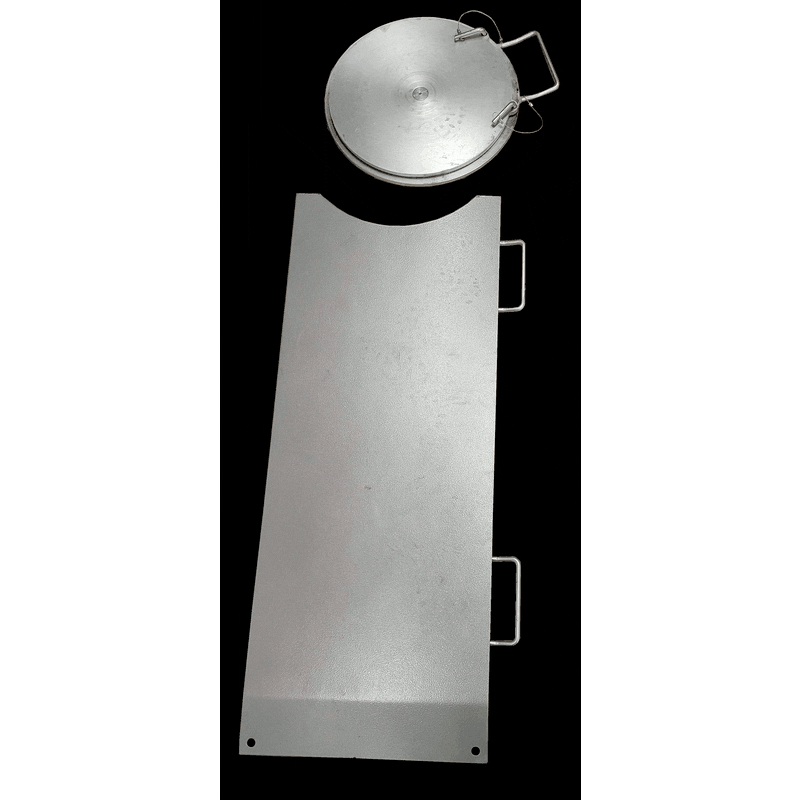

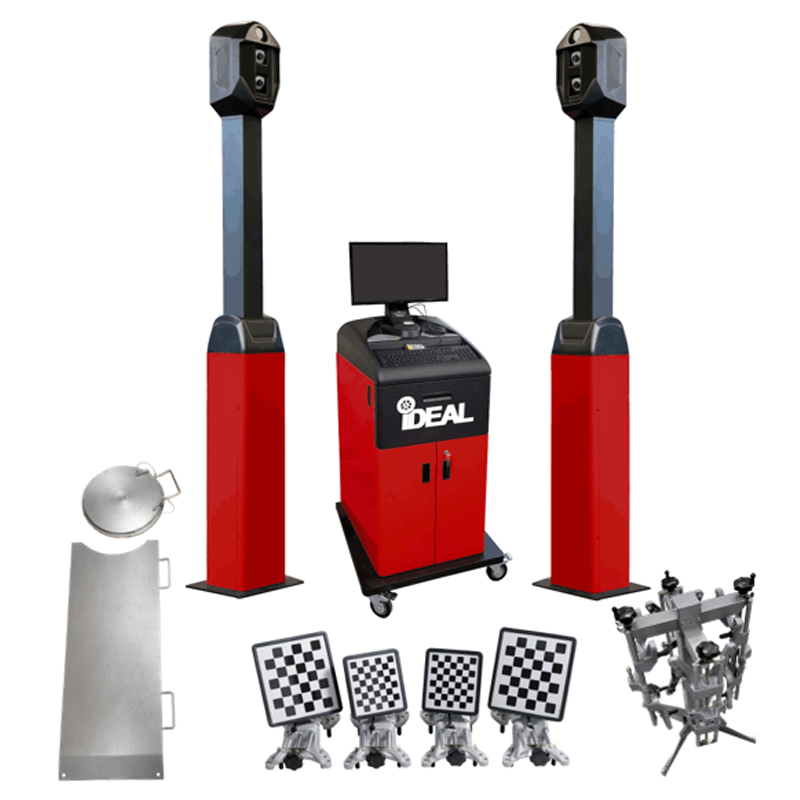

- Includes hd turntable & drive-on floor ramp sets for quick & easy front end alignments
- Dynamic led tower guide changes shape to guide technician
- Mobile cabinet allows for side or front centered placement for ‘drive-thru’ or ‘dead-end’ set-up configurations
- Drive-over cable plates included for ‘drive-thru’ configuration

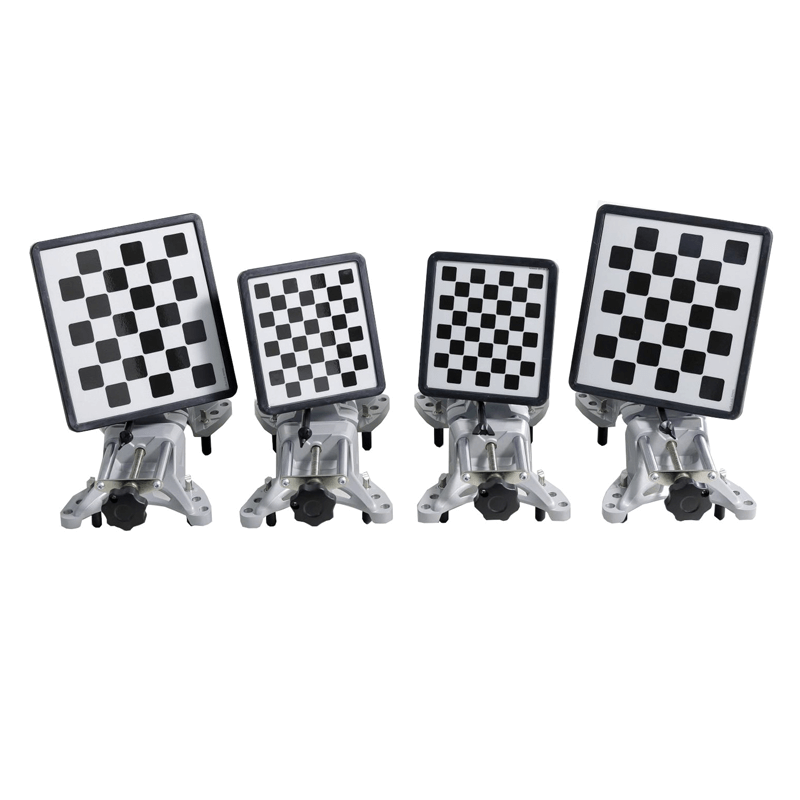

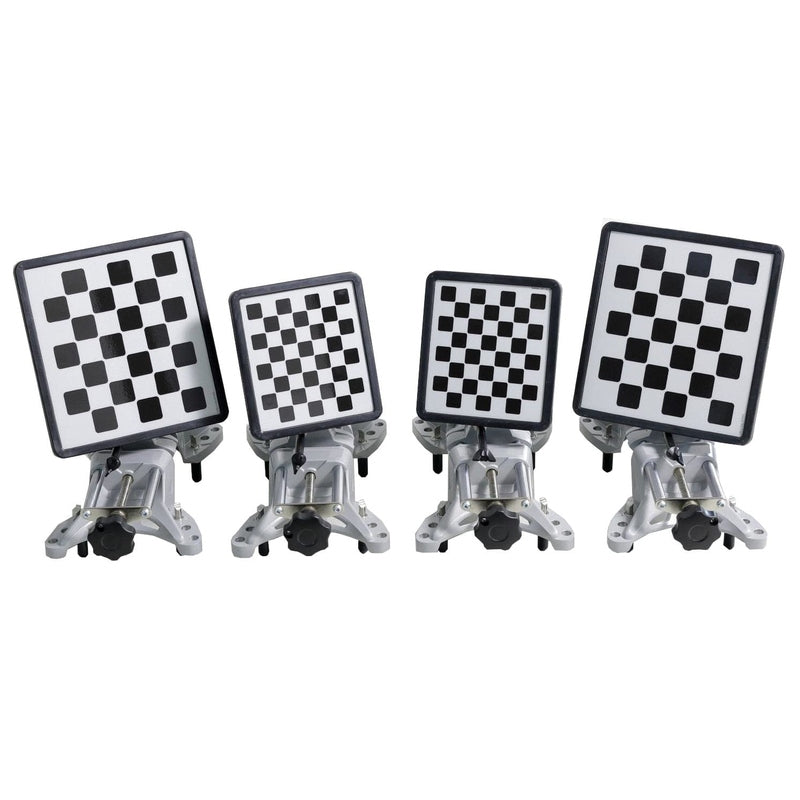

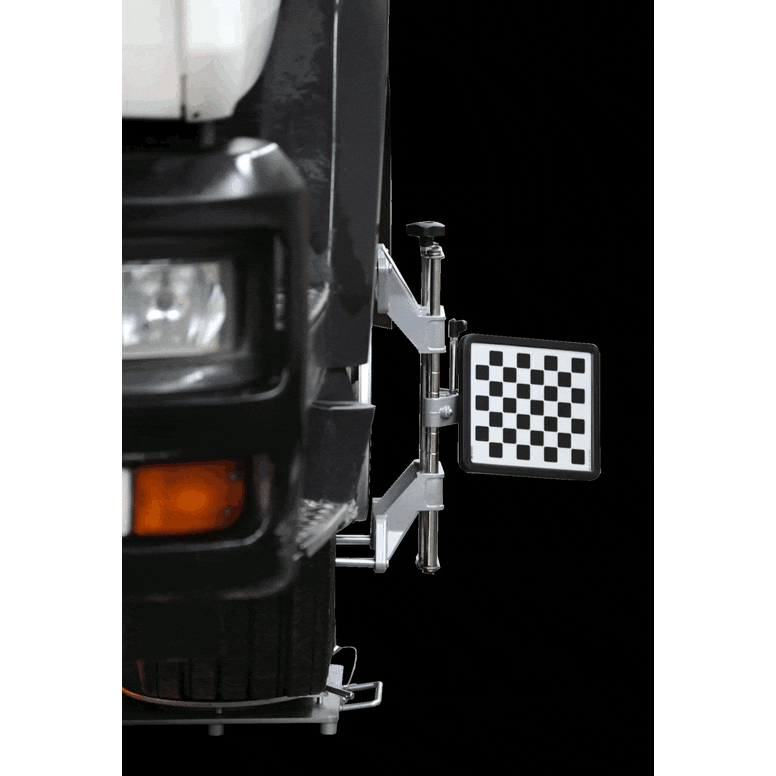

- 8ea compact lightweight targets

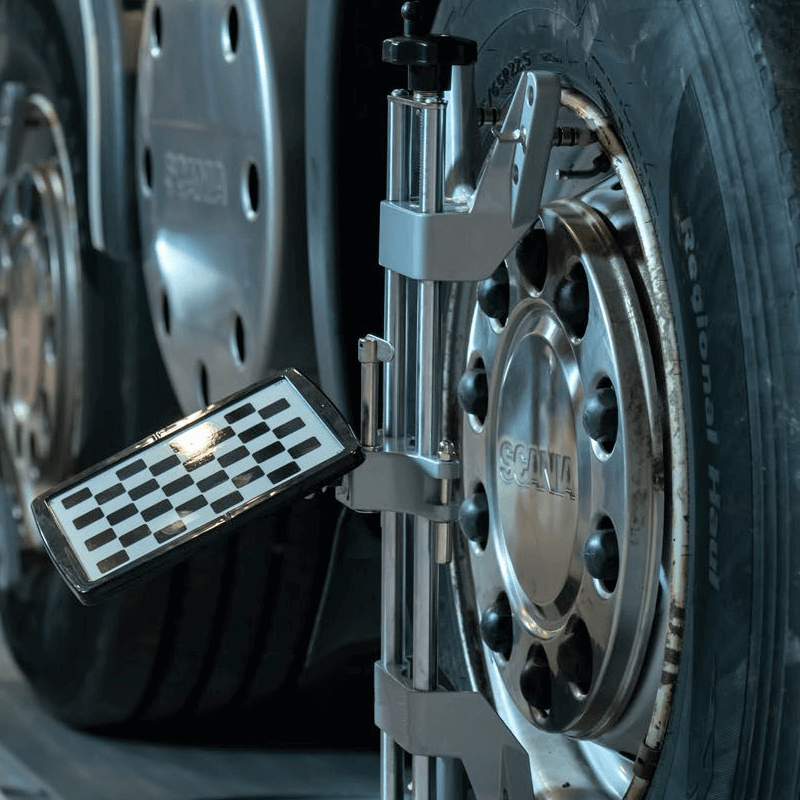

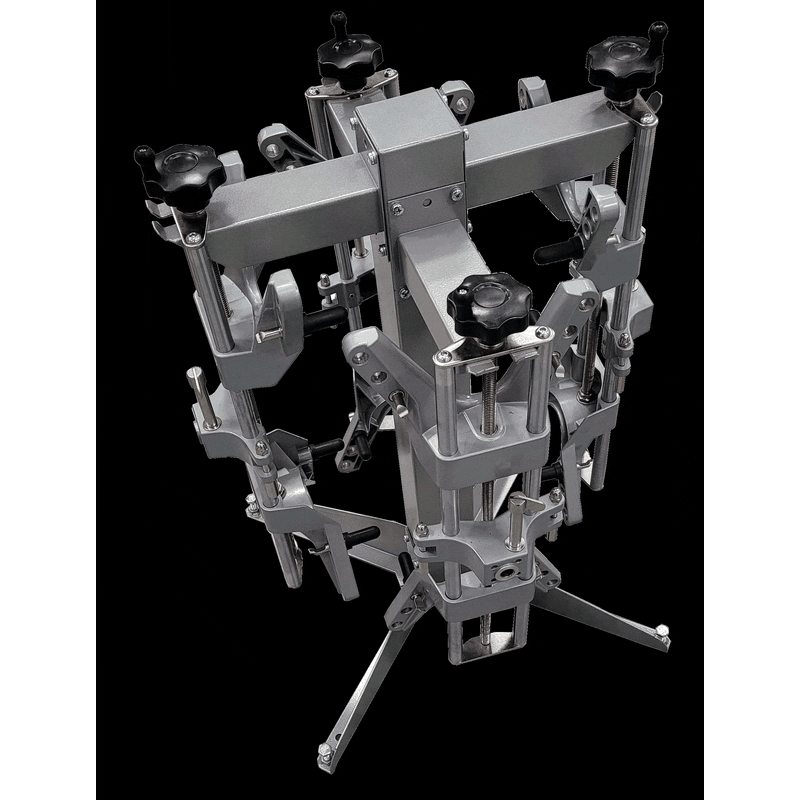

- 8ea adjustable wheel clamps 15”- 27” fits most standard rim sizes
- Convenient storage stands for wheel clamps

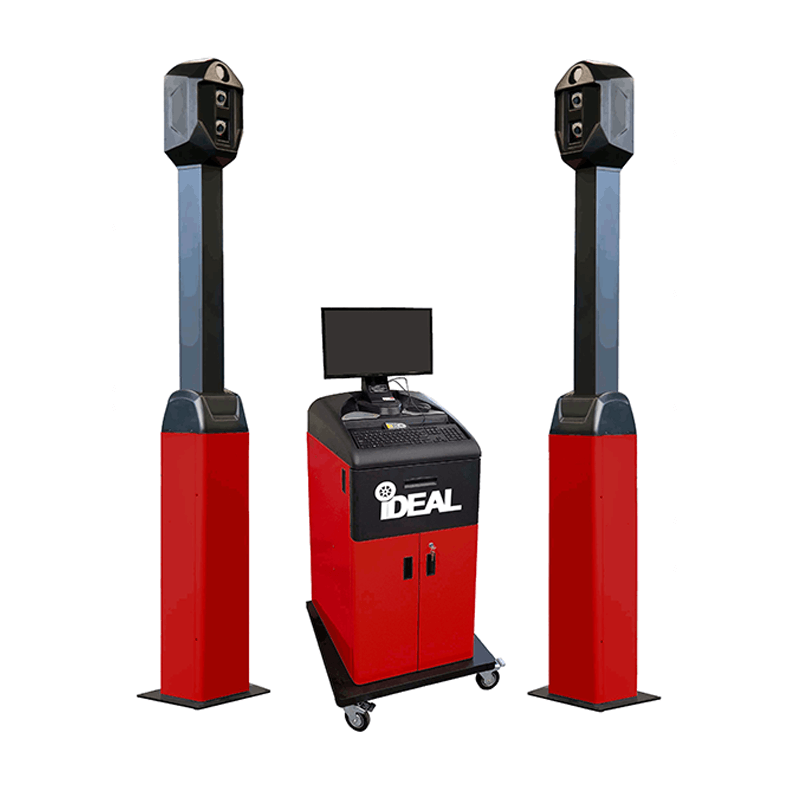

- Dual towers provide max view range up to 50 ft.
- Wireless remote-control operation when unable to reach cabinet & keyboard
- Illustration diagrams & integrated help system

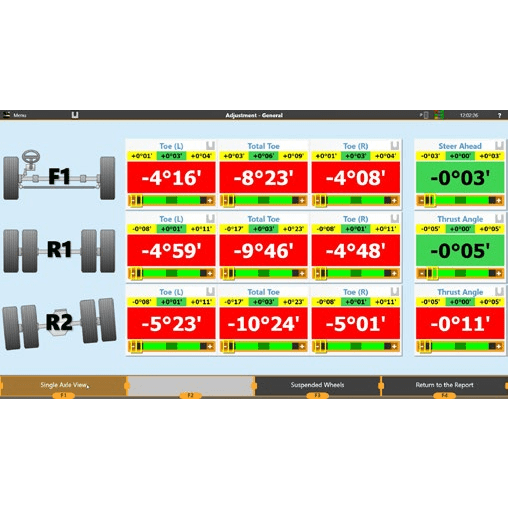

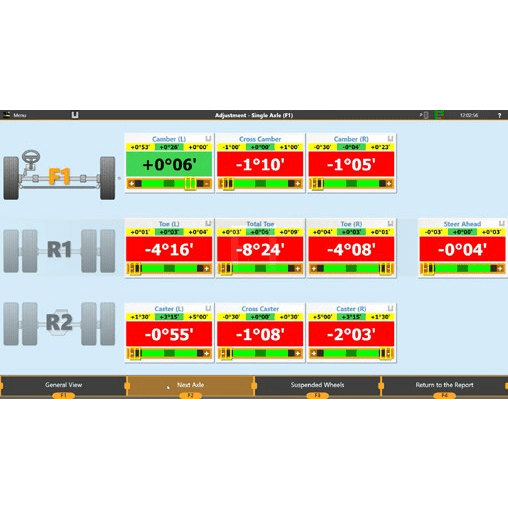

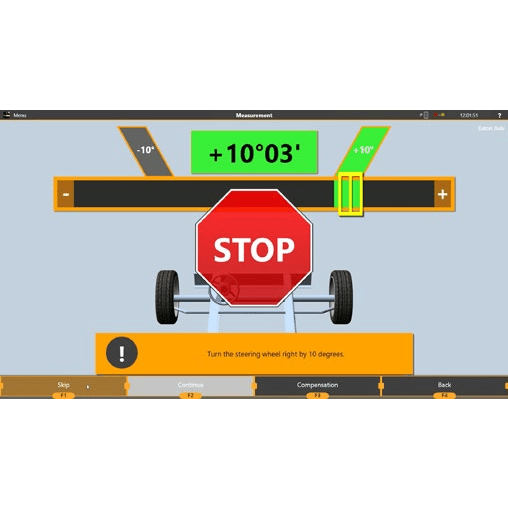

- Live reading screens for front & rear axle readings
- Recalls / prints current & past info for customized reports
- Optional yearly vehicle spec updates
- Convenient customer database feature
- Steering wheel holder, brake depressor & wheel chocks included
computer, monitor, keyboard, mouse & color printer also included
- Product ships from Montana & Includes training
