Description
T840 w/24 Degrees Lens, 464x348, -20 Degrees C to 1500 Degrees C, w/ Thermal Studio Pro - 3 Month Subscription + Route Creator Plugin for Thermal Studio Pro - 3 Month Subscription

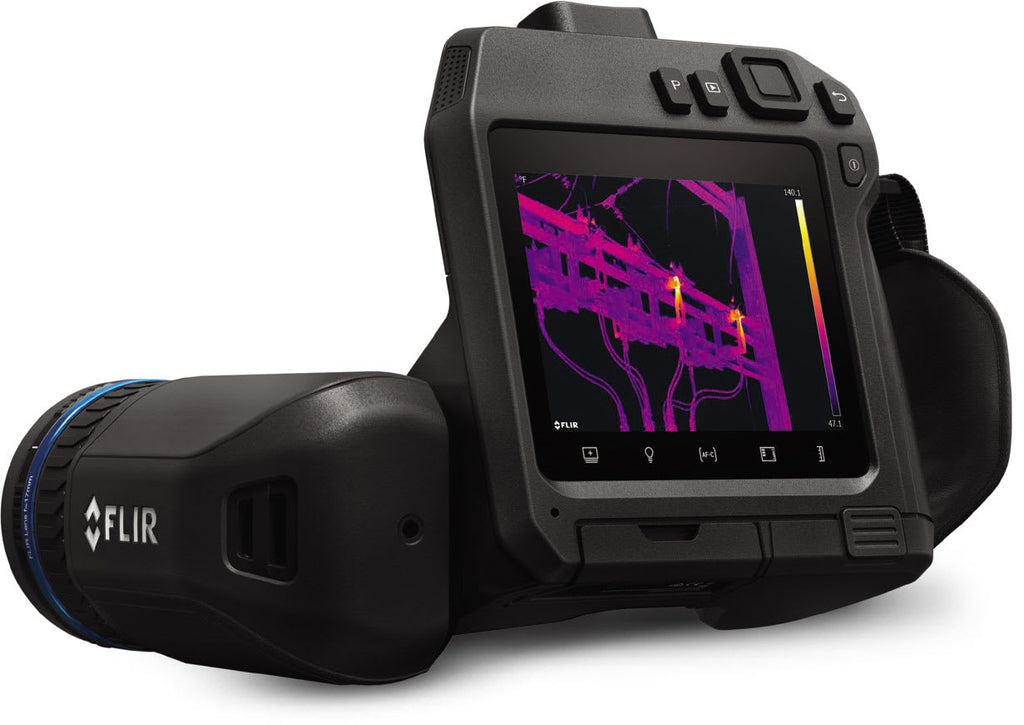

The FLIR T840 infrared camera is designed to help electric utility and other thermography professionals comfortably survey equipment both indoors or outdoors and seek out signs of failure all day long. Thanks to an integrated eyepiece viewfinder and a bright 4-inch color LCD display, the T840 makes it easy to conduct inspections outside in bright, challenging light conditions. The 180° rotating lens platform and thoughtful ergonomic design helps users quickly diagnose failing components in hard-to-reach areas. Pair the T840 with a FLIR FlexView dual field of view lens for the convenience to instantly switch from wide-area to telephoto scanning. A 6° telephoto lens option is also available to ensure accurate temperature measurement of small targets from farther distances.
Features
- Fast, flexible, accurate - in any work environment
- 464 x 348 (161,472 pixels) IR Resolution
- Viewfinder for bright/outdoors use
- Laser Pointer
- Two Programmable Buttons
- 7.5 - 14.0 µm Spectral Range
- Predefined list or touchscreen keyboard
Specifications
IR Resolution: 464 x 348 (161,472 pixels)
Thermal Sensitivity/NETD: <30 mK at 30°C (42° lens)
Accuracy: ±2°C (±3.6°F) or ±2% of reading
Digital Camera: 5 MP, with built-in LED photo/video lamp
Display: 4", 640 x 480 pixel touchscreen LCD with auto-rotation
Storage Media: Removable SD card
IMAGING & OPTICAL
Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Detector Type and Pitch: Uncooled microbolometer, 17 µm
Digital Camera: 5 MP, with built-in LED photo/video lamp
Digital Zoom: 1-6x continuous
f-number: f/1.3
Focus: Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual
Image Frequency: 30 Hz
IR Resolution: 464 x 348 (161,472 pixels)
Lens Identification: Automatic
Macro Mode: 71 µm effective spotsize
Minimum Focus Distance: lens - 0.15 m, optional macro mode;
Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture: Resizable and movable
Radiometric IR video recording: Real-time radiometric recording (.csq)
Radiometric IR video streaming: Yes, over UVC or Wi-Fi
Spectral Range: 7.5 - 14.0 µm
Thermal Sensitivity/NETD: <30 mK at 30°C (42° lens)
UltraMax: Quadruples pixel count; activated in menu and processed in FLIR Tools
Viewfinder Yes
MEASUREMENT & ANALYSIS
Accuracy: ±2°C (±3.6°F) or ±2% of reading
Measurement Presets: No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
Spot Meter: 3 ea. in live mode
USER INTERFACE
Display: 4", 640 x 480 pixel touchscreen LCD with auto-rotation
Text: Predefined list or touchscreen keyboard
Voice: 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
POWER
Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery Type: Li-ion battery, charged in camera or on separate charger
ENVIRONMENTAL & CERTIFICATIONS
Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
GENERAL
Compatible with FLIR software: FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
Laser Pointer: Yes
Packaging: Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
Brochure
