Description

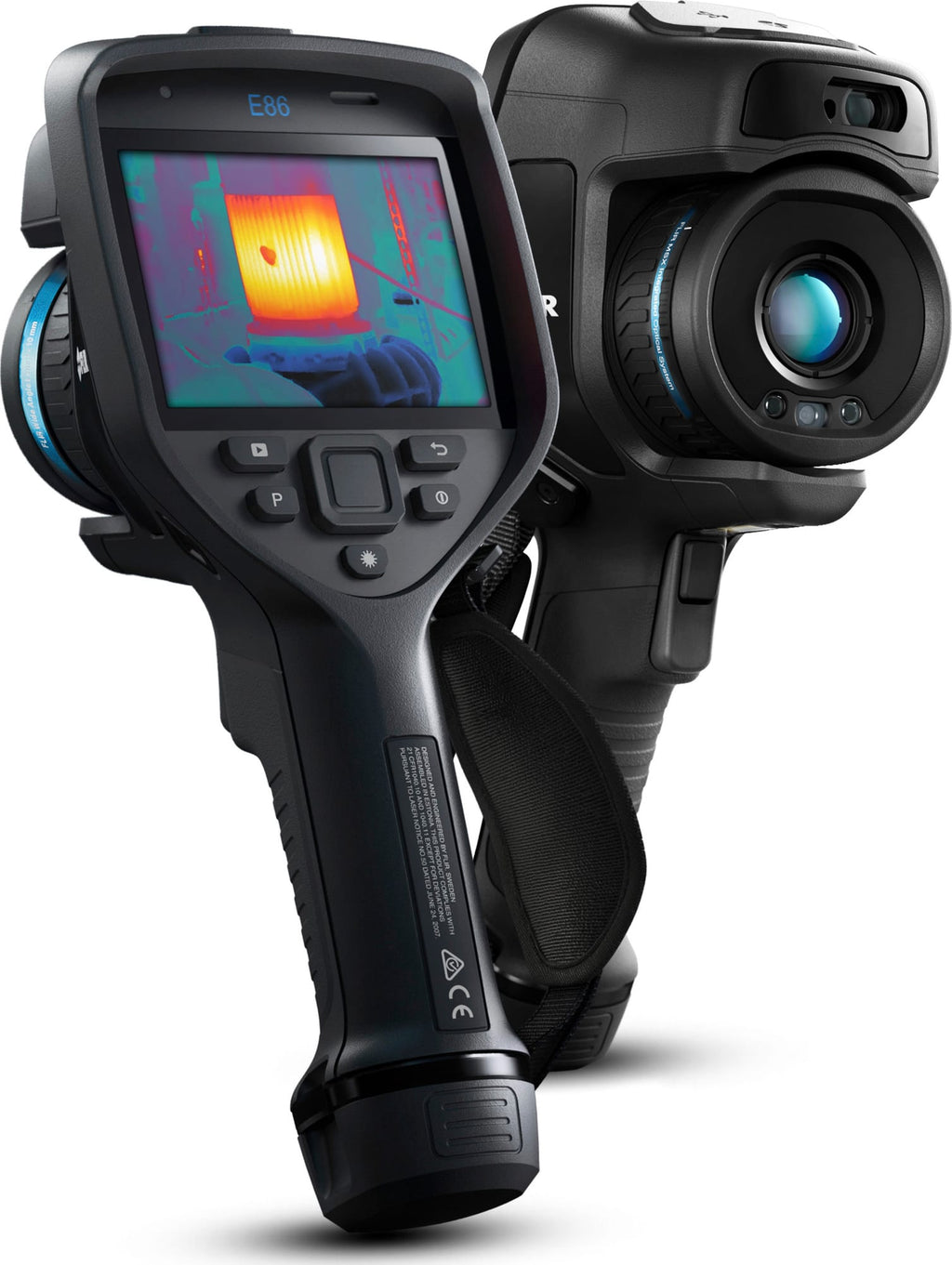

The FLIR E86 is packed with high-performance features needed for fast, accurate detection, and when paired with a FLIR FlexView dual field-of-view lens you can instantly switch from wide-area to telephoto scanning. This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets. Interchangeable AutoCal lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax and MSX ensure crisp, vibrant thermal images. The onboard FLIR Inspection Route runs pre-planned routes to help you stay organized when surveying large or multiple locations. FLIR Ignite provides automatic uploading of E86 images directly from the camera to the cloud for easy, secure storage and sharing.
Features
LASER DISTANCE MEASUREMENT
The laser distance meter aids in quick, precise autofocusing and provides data for on-screen area measurement (m² or ft²).
ONE LENS, TWO FIELDS OF VIEW
Pair your Exx-Series camera with a FLIR FlexView dual field-of-view lens to conveniently switch from wide-area to telephoto scanning with one push of a button.
STREAMLINED REPORTING
Onboard integration with FLIR routing software*, automatic image upload directly to the FLIR Ignite cloud library, a built-in mic for voice annotation, and report generation features all help the E86 streamline your workday. (*Optional accessory software)
Specifications
IR Resolution: 464 × 348 pixels
Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
Accuracy: ±2°C (±3.6°F) or ±2% of the reading
Digital Camera 5 MP, with built-in LED photo/video lamp
Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media: Removable SD card
IMAGING & OPTICAL
Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch: Uncooled microbolometer, 17 µm
Digital Camera: 5 MP, with built-in LED photo/video lamp
Digital Zoom: 1-4× continuous
f-number: 1.3
Focus: LDM, One-shot LDM, One-shot contrast, Manual
Image Frequency: 30 Hz
IR Resolution: 464 × 348 pixels
Lens Identification: Automatic
Minimum Focus Distance: 0.15 m
Non-radiometric IR video streaming: H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
Picture-in-Picture: Resizable and movable
Radiometric IR video recording: Real-time radiometric recording (.csq)
Radiometric IR video streaming: Yes, over UVC
Spectral Range: 7.5-14 µm
Thermal Sensitivity/NETD: <40 mK at 30°C (86°F)
UltraMax: Yes
Viewfinder: No
MEASUREMENT & ANALYSIS
Accuracy: ±2°C (±3.6°F) or ±2% of the reading
Measurement Presets: No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Object Temperature Range: -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
Spot Meter: 3 ea. in live mode
USER INTERFACE
Display: 4", 640 × 480 pixel touchscreen LCD with auto-rotation
Text Predefined list or touchscreen keyboard
Voice 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
POWER
Battery operating time: >2.5 hours at 25°C (68°F) and typical use
Battery Type: Rechargeable Li-ion battery
ENVIRONMENTAL & CERTIFICATIONS
Operating Temperature Range: -15 to 50°C (5 to 122°F)
Safety: EN/UL/CSA/PSE 60950-1
Storage Temperature Range: -40 to 70°C (-40 to 158°F)
GENERAL
FLIR Inspection Route: Enabled in camera
Laser Pointer: Yes
Packaging: Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter
