Description

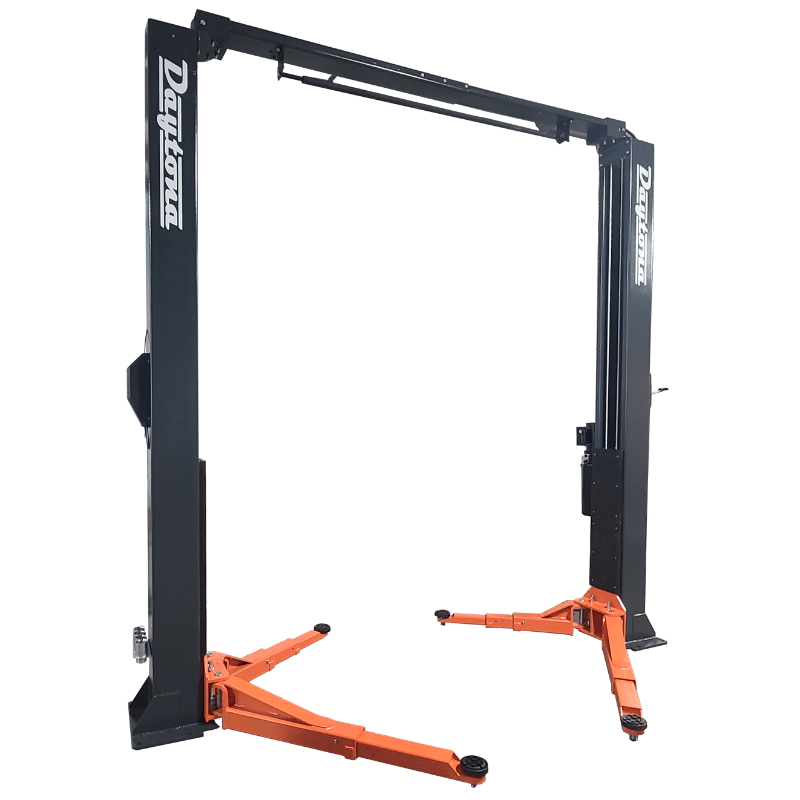

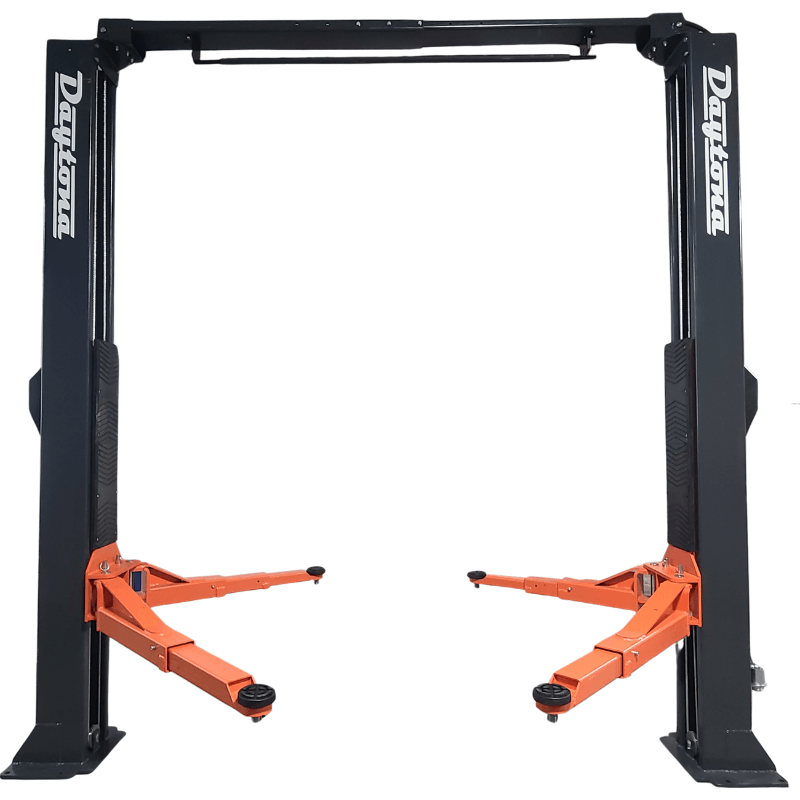

With its impressive 10,000-pound lifting capacity and rugged construction, this 2-post lift provides the strength and stability needed to safely elevate a wide range of vehicles, from compact cars to full-size trucks. The lift features three adjustable width settings, giving you the flexibility to accommodate different vehicle sizes and shop layouts. Its dual direct drive 6-foot cylinders and cable equalization ensure smooth and synchronized lifting for optimal control and reliability during every use.
Engineered with safety and durability in mind, the Daytona LTPA10 includes a range of features that make it stand out from other lifts in its class. Automatic safety locks with a single-point release provide secure vehicle positioning during maintenance, while high polymer polyethylene slide blocks reduce wear and extend the life of the lift. Three-stage front arms and 3-stage screw-up pads make it easy to access a wide range of lifting points, and the included truck adapters allow for hassle-free servicing of taller vehicles. A durable powder coat finish resists corrosion and shop wear, and added conveniences like a height limit switch and rubber door guards make the LTPA10 a smart, professional-grade investment for any garage.
2-Post Lift LTPA10 Specification
-
Lifting Capacity: 10,000 lbs
-
Power Supply: 220V, 1 Phase, 60Hz
-
Outer Width (Post Base Outsides): 139”
-
Inner Width (Base Insides): 108”
-
Clearance Under Arm at Full Height: 68”
-
Inner Width Between Posts: 113”
-
Outer Width from Post Outsides: 131”
-
Minimum Arm Clearance (Down Position): 4.25”
-
Vehicle Clearance Between Arms: 101.5”
-
Safety Cover Clearance Requirement: 12”
-
Post Base Dimensions: 19” x 16”
-
Post Dimensions: 9” x 11”
-
Height to Overhead Bar (Standard): 142”
-
Optional Height Extension Kit: Adds 2 feet
-
LTPA10-EXT - Contact us for Pricing
-
-
Adjustable Drive-Through Widths:
-
Narrow: 88.6″
-
Medium: 94.5″
-
Wide: 100.4″
-
-
Shipping Dimensions:
- Pallet 1: 143" L x 28" W x 24" H - 1,780 lbs
-
- Pallet 2: 32" L 12" W x 12: H - 70 lbs

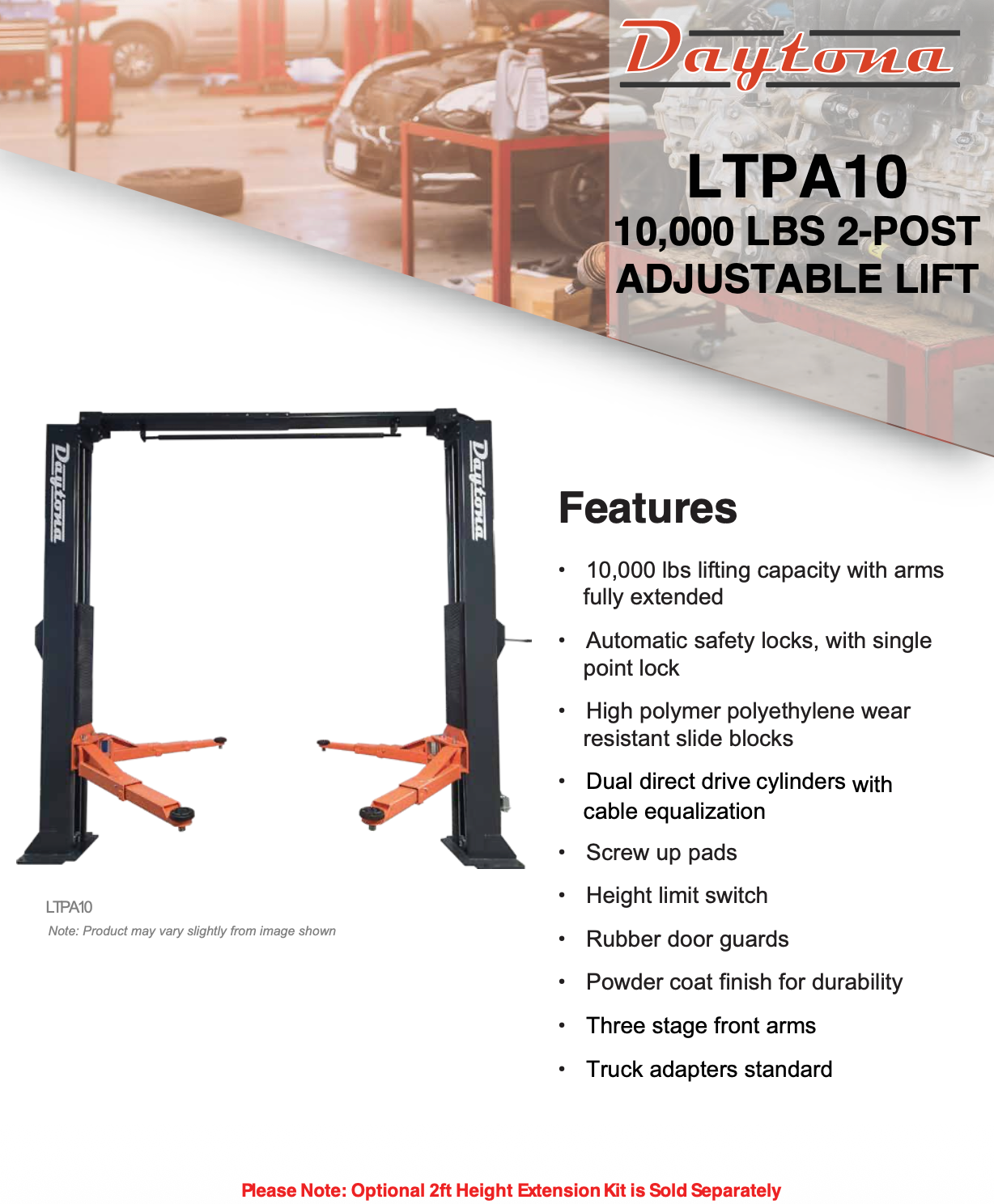

LTPA10 10,000lb 2-Post Lift Special Features
-
10,000 lb lifting capacity for a wide range of vehicles
-
Adjustable width with three drive-through settings
-
Arm Style: Symmetric
-
Dual direct drive 6’ hydraulic cylinders with cable equalization
-
Automatic safety locks with single-point lock release system
-
Three-stage front arms and 3-stage screw-up pads for flexible lifting positions
-
High polymer polyethylene slide blocks for reduced wear and longer life
-
Integrated height limit switch to prevent accidental overhead contact
-
Rubber door guards to protect vehicle surfaces
-
Durable powder coat finish for resistance against corrosion and wear
-
Includes truck adapters for servicing larger or lifted vehicles
-
Daytona 5-2-1 Warranty
- 5 Year Structural
- 2 Year Electric, Cylinders, Seal Kits
- 1 Year Defective Parts
Daytona LTPA10 Manual
