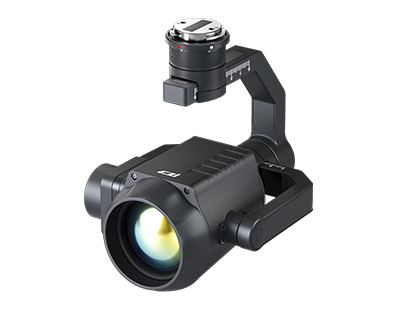

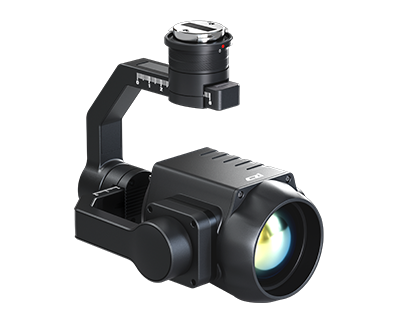

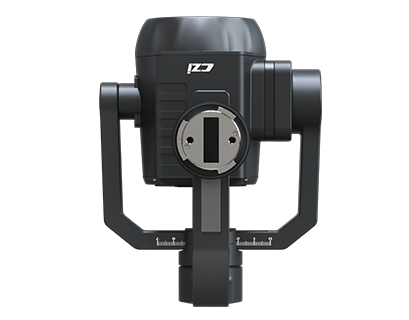

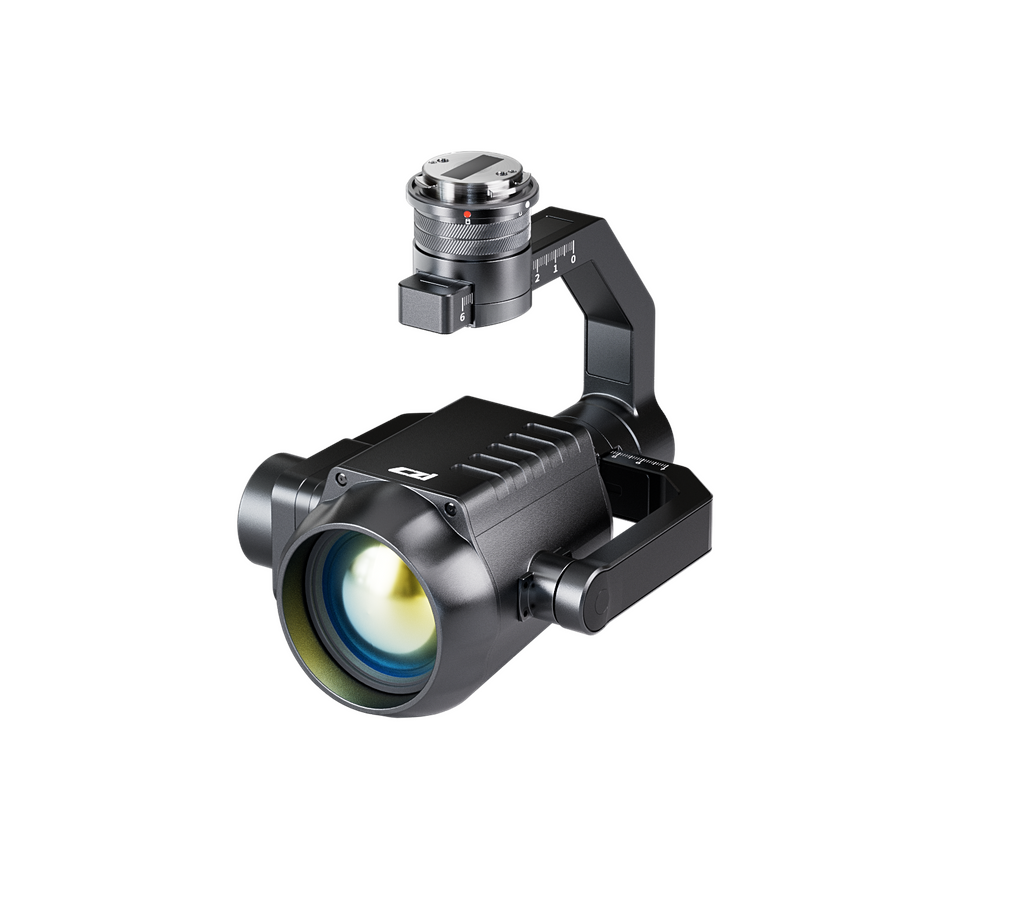

CZI DT1K Thermal Night Vision Gimbal Camera - See Beyond Limits
Unleash an unseen world with the CZI DT1K Thermal Night Vision Gimbal Camera! Specifically engineered for your DJI Matrice 300/350 RTK, this state-of-the-art infrared camera is indispensable for fire monitoring and suppression, search and rescue operations, critical infrastructure inspection, law enforcement surveillance, border patrol, and environmental monitoring. Gain the ultimate advantage by detecting targets and mapping vast areas with unprecedented clarity, even in absolute darkness or obscured conditions. Illuminate the invisible and elevate your mission capabilities.
Command the Unseen, Master Your Environment
Imagine the power to instantly pinpoint a heat signature from extreme distances, identify personnel amidst smoke, or meticulously map expansive landscapes through challenging conditions. The CZI DT1K transforms your drone into an unparalleled thermal eye. Designed for ultra-long-distance target detection and expansive area modeling, this camera provides crystal-clear thermal imagery, empowering you to make swift, informed decisions. Whether it's a desperate search for survivors, a critical fire assessment, or a detailed inspection of complex systems, the DT1K reveals what optical cameras cannot, ensuring no detail is missed and no threat goes unnoticed.
Benefits That Define Superior Vision:
- Uncover Hidden Realities: With its high-definition thermal infrared, you'll penetrate smoke, fog, and complete darkness to reveal heat signatures, enabling rapid detection of targets and enhanced situational awareness.
- Locate and Save Lives: Quickly identify on-the-ground personnel, even in vast or obscured areas, significantly accelerating search and rescue efforts and improving emergency response outcomes.
- Precision at Extreme Distances: The powerful 55mm infrared telephoto lens with 1X to 8X zoom allows for detailed target recognition from ultra-long ranges, keeping your drone safe while gathering crucial intelligence.
- Seamless Operational Flow: Effortlessly switch between thermal and conventional imaging when integrated with your Zenmuse H20 camera, maximizing versatility and effectiveness for diverse missions.
Advantages That Optimize Your Workflow:
- Universal Compatibility: Designed for DJI M300/350 RTK drones, and adaptable to any PSDK interface with a detachable gimbal, ensuring flexible integration with your existing fleet.
- Rapid Area Analysis: Achieve fast and large-area mapping and modeling, significantly reducing mission times for comprehensive surveys and post-incident assessments.
- Intelligent Processing Power: Equipped with 6 TOPS computing power and a suite of AI image algorithms, the DT1K processes data onboard for smarter, faster insights.
- Enhanced Stability & Control: A high-precision three-axis gimbal ensures stable, smooth imagery even during dynamic flight, while compatibility with CZI Pilot and DJI Pilot 2 apps offers intuitive control.
Cutting-Edge Features for Unparalleled Performance:
- High-Definition Thermal Sensor: Boasts an impressive 1280 x 1024 pixel resolution for exceptional image clarity.
- Powerful 55mm Telephoto Lens: Features 1X to 8X zoom capability for detailed thermal imaging from a distance.
- Advanced AI Algorithms: Integrates 6 TOPS computing power and various AI image algorithms for enhanced detection and analysis.
- High-Precision 3-Axis Gimbal: Ensures stable and precise thermal data capture.
- Seamless DJI Integration: Compatible with DJI M300/350 RTK via the PSDK interface and can integrate with Zenmuse H20 cameras.
- App Compatibility: Works with both CZI Pilot and DJI Pilot 2 applications for intuitive control.
- Manufacturer Warranty: Your investment is fully protected by a comprehensive manufacturer warranty.
At The Advantage Empire's we believe in creating spaces that grow a sense of community. Equip your drone with the CZI DT1K Thermal Night Vision Gimbal Camera and gain the critical vision needed to dominate any challenge. Secure yours today and transform the way you see the world!
CZI DT1K Overall Parameters
| Parameter | Specification |
|---|---|
| Overall parameters | |
| Model | DT1K |
| Weight | 742g±10g |
| Dimensions | 164.62×128.62×164.24mm |
| Adapt to | Matrice 300/350 RTK |
| Computing power | 6Tops |
| Gimbal Settings | |
| Gimbal shake amount | ±0.01° |
| Installation method | detachable |
| Controllable rotation range | Heading axis: ±320° Pitch axis: -125°~40° |
| Long Focus Thermal Camera | |
| Thermal Imaging sensor | Uncooled vanadium oxide (VOx) infrared focal plane array (FPA) detector |
| Sensor dimension | 15.36mm (width) x 12.28mm (height) |
| Camera lens | DFOV:20.1° Focal length: 55mm (equivalent to approximately 121mm) Aperture: f/1.1 Focusing distance: 100m to infinity |
| Digital zoom | 1x - 8x |
| Video resolution | 1280×1024 @ 30fps |
| Video format | MP4 |
| Photo resolution | 1280×1024 |
| Image format | JPEG |
| Pixel pitch | 12 μm |
| Wavelength range | 8-14 μm |
| Sensitivity (NETD) | ≤50 mk @ f/1.0 |
| Temperature measurement methods | Zone temperature measurement |
| Temperature range | -20 to +150°C (variation exists across different distances) |
| Palette | White-hot/Lava/Red iron oxide/Hot iron/Medical/North Pole/Rainbow 1/Rainbow 2/Tracing/Black-hot |
| Storage | |
| Memory card type | microSD card with maximum support of 128GB capacity and a transfer speed of UHS-I Speed Grade 3 |
| Storage file system | exFAT |
