Description

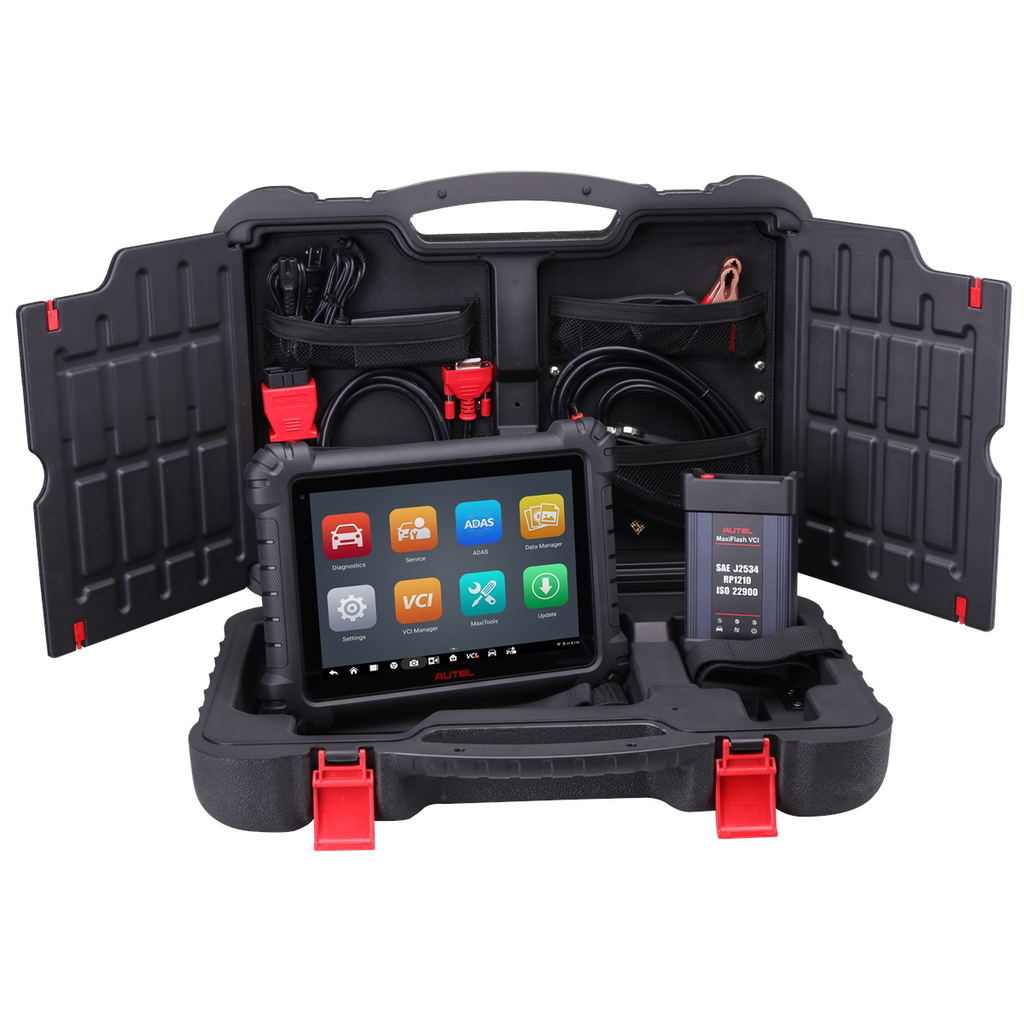

Autel MaxiSYS MS909 Diagnostic Tablet with MaxiFLASH VCI MS909
Product Description
The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features dynamic module topology interface for supported vehicles, and has Active Tests and Speciali functions, Coding and Adaptations capabilities The MS909 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.
Topology Module Mapping - You can see the structure of communication of each ECU module globally, color-coded topology shows full systems, locate faults more easier, and solve problems quickly.
36+ Maintenance & Service Functions - Autel MS909 scan tool with 36+ maintenance and service functions to provides one-stop solution. Including EPB, Oil Reset, DPF, SAS, TPMS, IMMO-Keys, BMS, Injector, Throttle, Suspension, Brake bleed, etc.
Bi-Directional Control - With bi-directional control ability, to control various vehicle parts and components like fuel pumps, radiator fan, throttle, mirrors, interior & exterior lights, sound horn, wipers, headlamps, windows, and etc to test its functionality.
Advanced ECU Coding & Programming - Autel MaxiSys scanner MS909 is upgraded of MK908P/Elite/Elite 2. Advanced online ECU programming can replace the existing software/ firmware in the ECU, program new ECUs for specif BMW & Benz to fix software-controlled driving performance.
More Protocols & Newer Vehicle Coverage - Autel MaxiSys MS909 with the updated J2534 programmer which supports D-PDU, RP1210, CAN FD, J2534 and DoIP protocols. Wider protocol compatibility allows MS909 to work on 99% of vehicles up to 2024 on the market.
Features
- 9.7 Inch Touchscreen (1536px x 2048px) / Android 7.0
- 2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
- 15000mAh - 8hrs Continuous Operation / 16MP Rear Camera & 5MP Front Camera
- Dynamic Module Topology Interface: Color Coded All System Status Screen (for supported vehicles)
- Cloud-based Report Management: Easily share reports
- Remote Expert-ready: contract with expert programmers and diagnosticians with OE tools and subscriptions for module programming, ADAS calibration, and gateway access.
- ADAS Calibration Software Capable (purchase required)
- Includes MaxiFlash VCI with J2534, RP1210, ISO 22900, D-PDU, DoIP/CAN FD & Mega CAN Protocols
- Includes Connector Kit, Carry Case & 1YR Warranty/Software Subscription
Includes
- (1) MS909 Main Unit
- (1) MaxiFlash VCI
- (1) Main Cable V2.0
- (1) USB 2.0 Cable V2
- (1) AC/DC Adapter(12V)
- (1) Cigarette Lighter
- (2) Light Fuse 6x30mm
- (1) Clipper Cable
- (1) Quick Reference Guide
- (1) Packing List
- (1) Soft Cloth
- (1)Carrying Case 504 x 133 x 360 mm
Product Documents
MaxiSYS MS909 User Manual
How To: Upgrade Tablet To Download EV Software
MaxiSYS MS909 Sales Flyer
Total Care Program Flyer
