Description

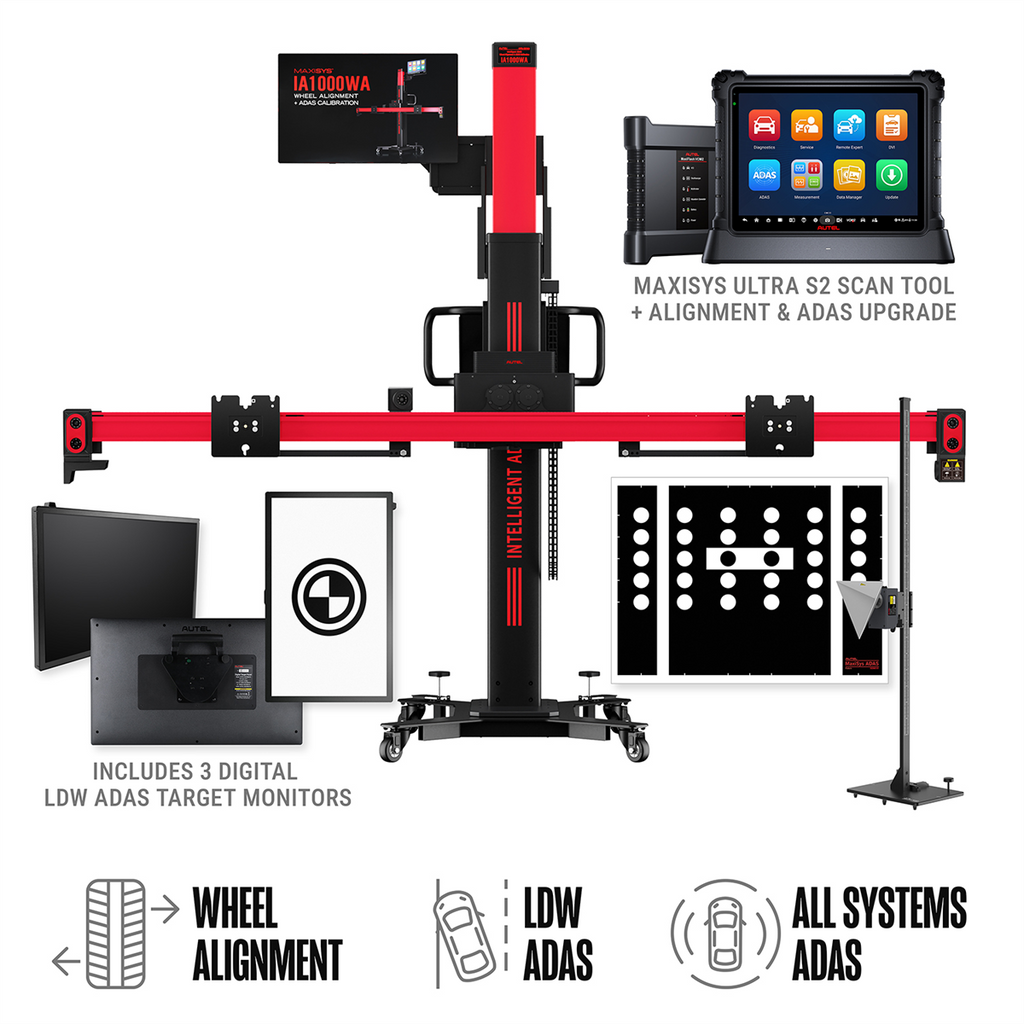

Autel MaxiSys IA1000 All-Systems Calibration System with MS Ultra S2 and Digital Targets IA1000ASTDT
Product Description
The Autel MaxiSYS ADAS IA1000ASTDT package features the IA1000 automated alignment and ADAS calibration system. Featuring six high-definition cameras and laser-enabled positioning guides, the IA1000 boasts robotic forward-facing camera target positioning, and laser-guided ACC, blind spot calibrator, and AVM mat placement, plus unlevel floor compensation. Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments improve accuracy and reduce human error. The IA1000, which includes a 24” touchscreen display that attaches to the frame unit, can perform four-wheel alignment and ADAS calibration for U.S., Asian, and European vehicles. Powered by the included MaxiSYS Ultra S2 advanced diagnostics tablet, the IA1000 offers extensive U.S., Asian, and European vehicle 4-wheel alignment coverage, and industry-leading ADAS calibration coverage. The Ultra S2 tablet ships with the MaxiFlash VCMI2 6-in-1 communication and measurement device and IA1000 alignment, and static and dynamic ADAS calibration software coverage. The IA1000 unit provides one-step robotic and vertical LDW target placement via physical targets or with included 27-inch attachable monitors, significantly reducing manual operation and setup time. This All Systems package includes Autel LDW digital and physical target kits, AVM mats and calibration components or systems using radar, LIDAR, and Night Vision. Additional package accessories include ride height and wide-angle targets, a hand-held inclinometer, OE-sized corner reflectors, a camera calibration bar, a wheel-off adaptor kit, an ADAS metal storage cabinet with tire clamp brackets, and the large pattern storage bracket. The IA1000ASTDT includes one year of free Ultra S2 software updates and is covered by a one-year limited warranty.
Features
- Automated Alignment and ADAS Calibration System with robotic forward-facing camera target positioning, laser-guided ACC, blind spot calibrator and AVM mat placement capable of performing four-wheel alignment and ADAS calibrations.
- Includes Autel physical pattern, target kit and calibration components for cameras, radar, LIDAR, Night Vision systems.
- Includes three 27-inch attachable monitors and the Autel digital LDW target kit.
- Includes MaxiSYS Ultra S2 advanced diagnostics tablet with MaxiFlash VCMI2 and IA1000 Alignment and ADAS software upgrade.
- Includes 24” touchscreen display that attaches to frame unit, four tire clamps, steering wheel and brake lock, distance target, two wheel chocks, and two AVM-placement lasers.
- Unit provides one-step robotic and vertical LDW target placement via physical targets or with the included 27-inch attachable monitors, significantly reducing manual operation and setup time.
- Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments improve accuracy and reduce human error.
- Offers comprehensive four-wheel alignment coverage of U.S., Asian, and European vehicles.
- Illustrated alignment instructions, live readings, required tools and adjustment locations display on a single screen.
- Includes one-year limited warranty
