Description

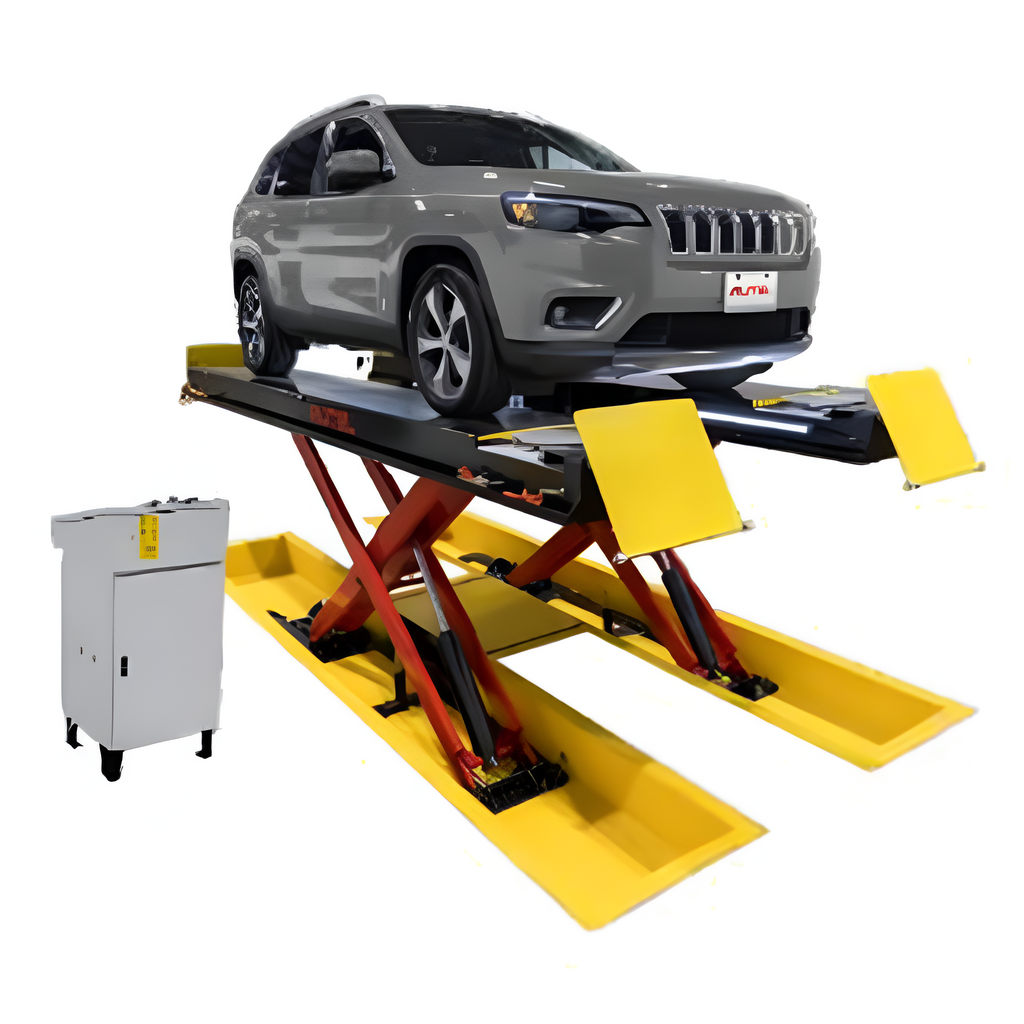

Autel ADAS Bay Max 14K Lift : Flush-mounted, 14K Lbs. Capacity, Scissor Lift designed for ADAS Calibrations AULS14ALOR1T
Product Description
The Autel ADAS 14K Scissor Lift is a 14,000-pound capacity, flush/surface-mounted specially designed alignment lift with Floor Lift Table that enables ADAS calibrations to be performed within bay space. This premium hydraulic lift, which is compatible with passenger and light trucks, includes two 7K capacity Jacking Beams with front and rear opening runways with flip-down wheel stops, stainless steel air lock release for longer life, less maintenance. Double-wide runways with built-in "Z" rails for structurally stronger with no sagging or flexing for far more accurate alignments. Runways measure 203"-long, 26"-wide. Low angle approach ramps for easy access. Stainless Steel Front Radius Plates and Rear Slip Plates with Turn Plate Pocket Protectors for paint protection. Made in North America and ALI Certified. Built-in Runway Air Tire inflation Kit at each wheel. Shatterproof 24-inch LED Lighting Kit with Automatic Shut off. Enclosed Console Control Power Unit. Krown Industrial-grade Rust Proofing. Premium Double Baked Power Coat Finish. Black Finish Scissor Lift and Base. Autel logo labeled. One-year Limited Warranty on Lift parts, Five year Warranty on Hydraulic Jack parts., One year warranty on Lift Table parts and hydraulic components, 90 days on front turn plates, rear slip plate and bearings, air kit and LED light kits.
Features
- Flush-mounted Hydraulic Alignment Scissor 14K Lift with Floor Lift Table
- Specially designed Alignment lift that enables ADAS calibrations to be performed within bay space

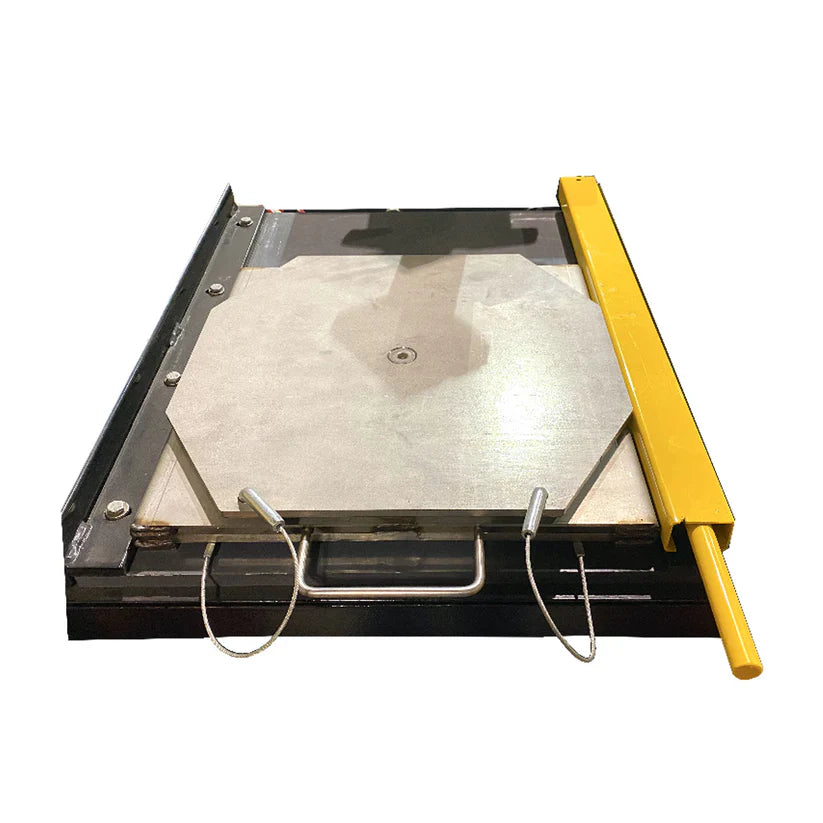

- Stainless Steel Front Radius Plates and Rear Slip Plates
- Includes two 7K capacity Jacking Beams

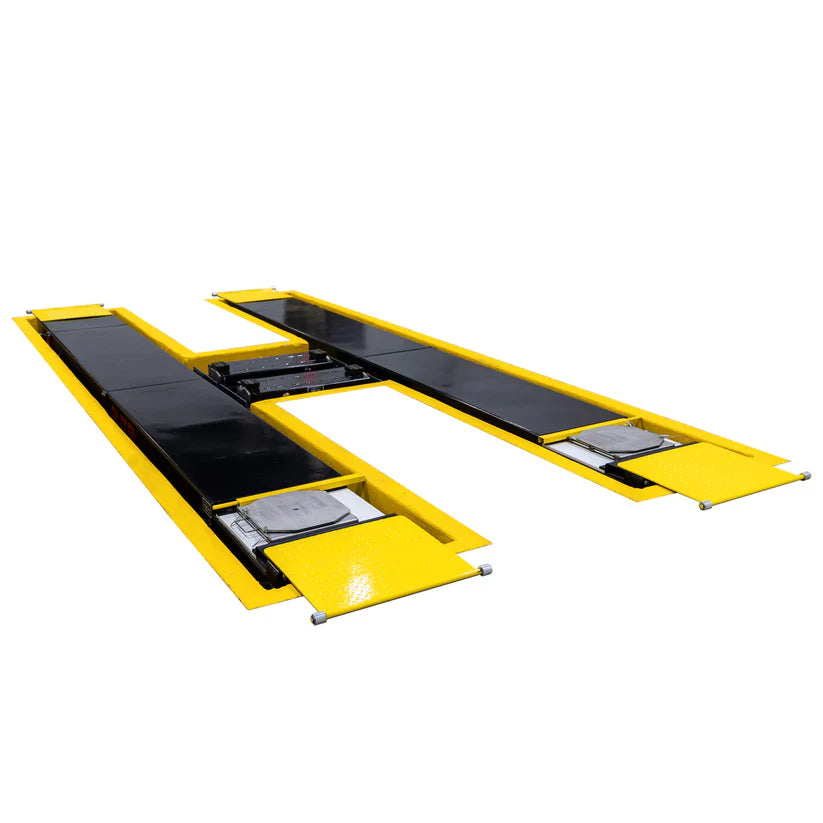

- Front and Rear-opening Runways with Flip Down Wheel Stops
- 203"-long, 26"-wide Space Saving Runways
- Made in North America and ALI Certified

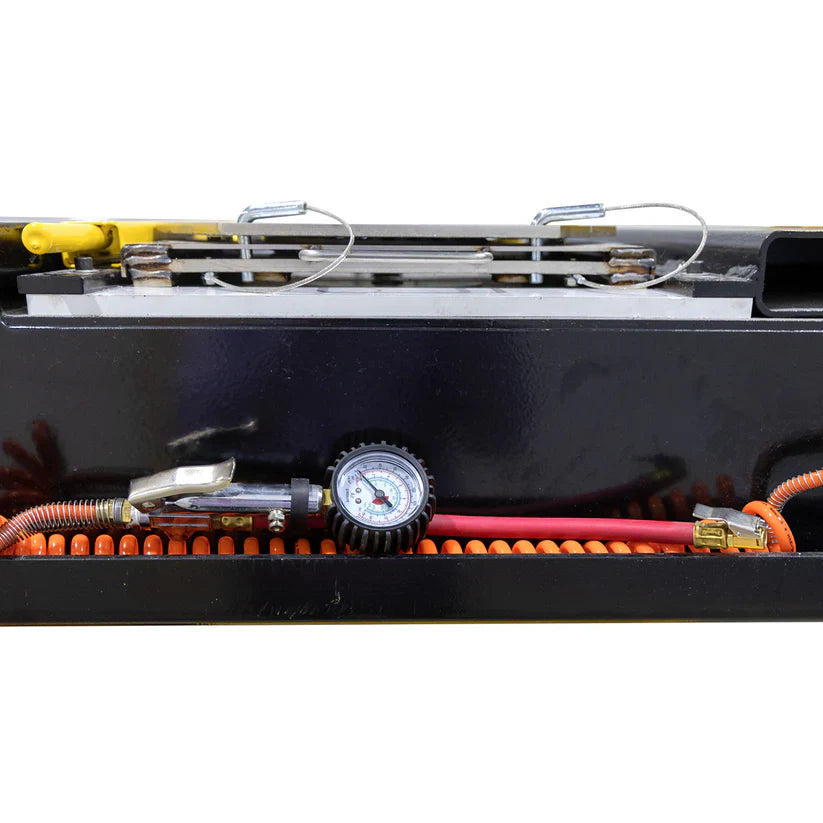

- Built-in Runway Air Tire inflation Kit at each wheel and Shatterproof LED Light Kits

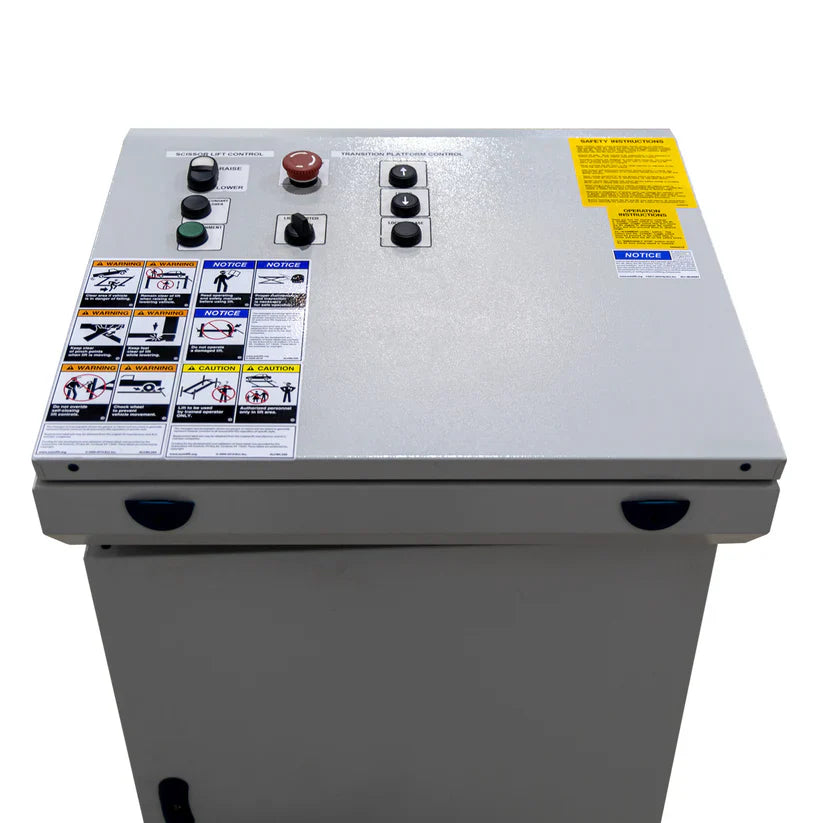

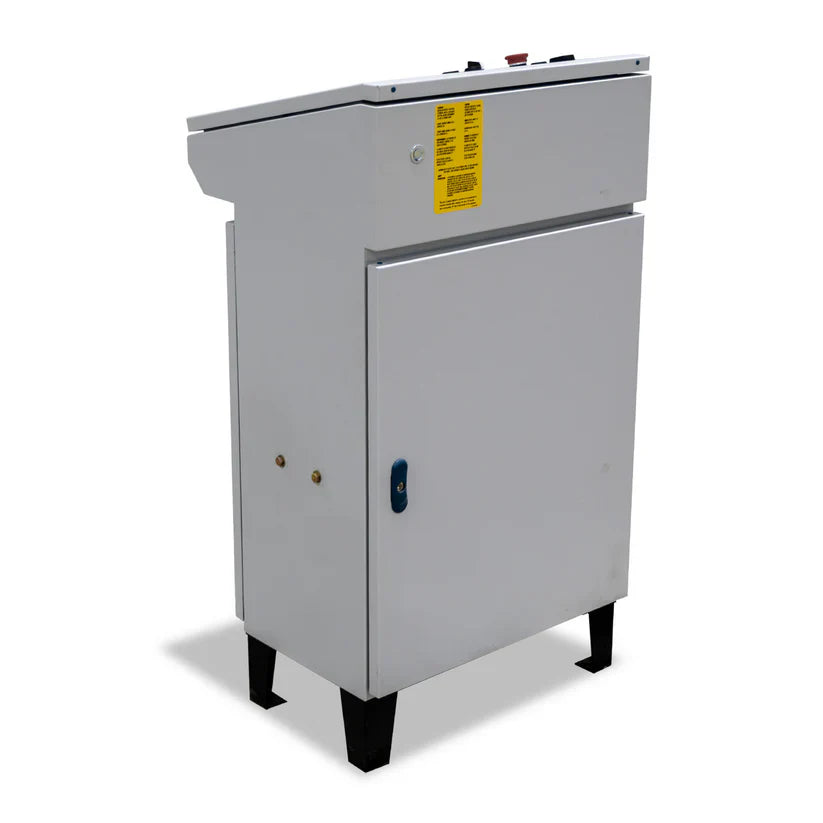

- Enclosed Console Control Power Unit
- Premium Double Baked Powder Coating Finish and Industrial-grade Rust Proofing
Specifications
| Capacity | 14,000 lbs / 6.4T |
| Overall Length | 260-3/4″ / 6623mm |
| Deck Length | 203″ / 5156mm |
| Overall Width | 91-1/2″ / 2324mm |
| Width Between Runways | 41″ / 1041mm |
| Deck Width | 23″ 584mm |
| Lowered Height | 10-3/4″ / 273mm |
| Raised Height | 74″ / 1880mm |
| Minimum 4 Wheel Alignment Wheelbase | 84″ / 2235mm |
| Maximum 4 Wheel Alignment Wheelbase | 164-1/2″ / 4178mm |
| Maximum 2 Wheel Alignment Wheelbase | 178″ / 4521mm |
| Maximum Service Wheelbase | 185″ / 4699mm |
| Lift Time | 58 Seconds |
| Power Requirements | 230 Volts AC – 60Hz – 1PH – 25amp |
| Shipping Weight | 6,230lbs / 2.8T |
| Part Number | AULS14ALOR1T |
