Description

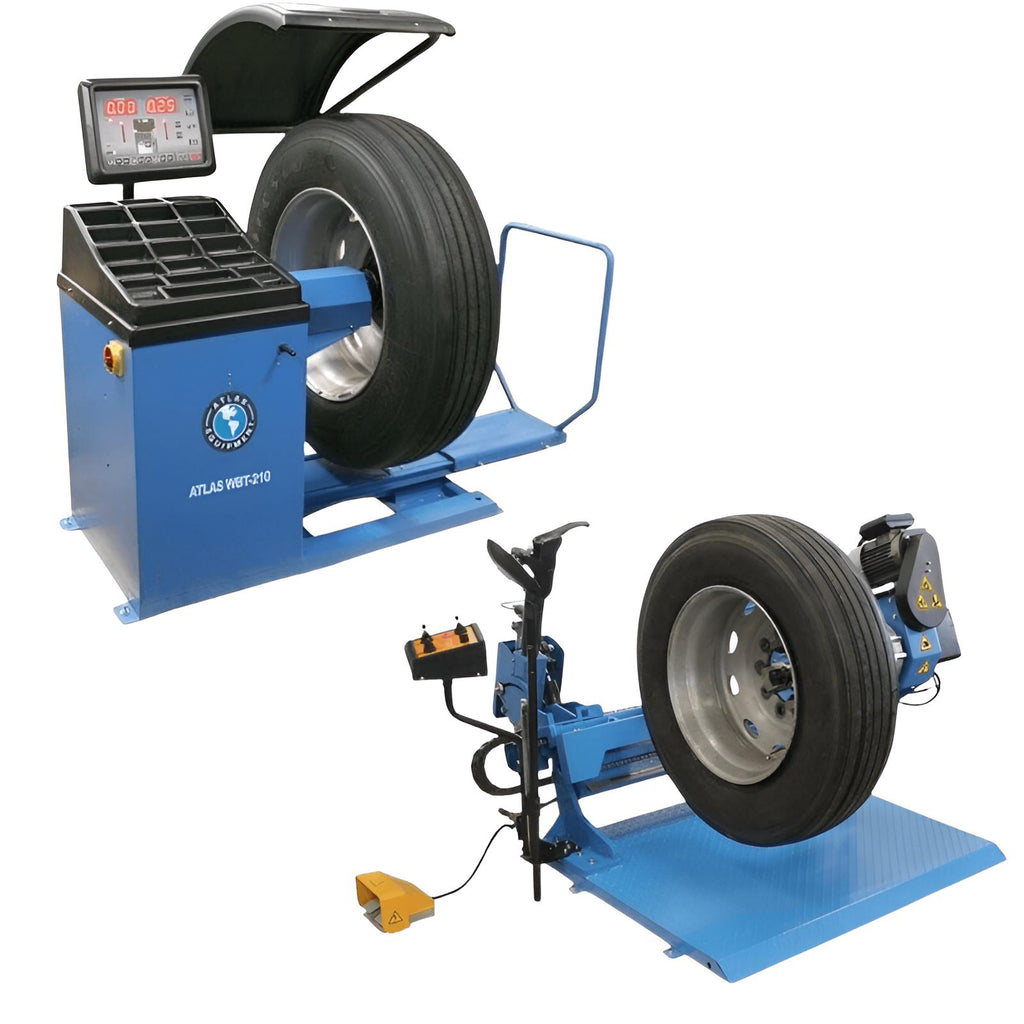

Atlas TTC305A Tire Changer, WBT-210 Wheel Balancer Combo2 SKU ATETTCWB-COMBO2
The TC305A, brings automatic precision to your tire changes. Meanwhile, the WBT-210's versatility shines with its ability to balance wheels up to 32 inches and those mud-loving "gumbo-mudders." From passenger cars to semi-trucks, this 1-2 punch has you covered.
Tire Changer TTC305A + Wheel Balancer WBT-210 Specification

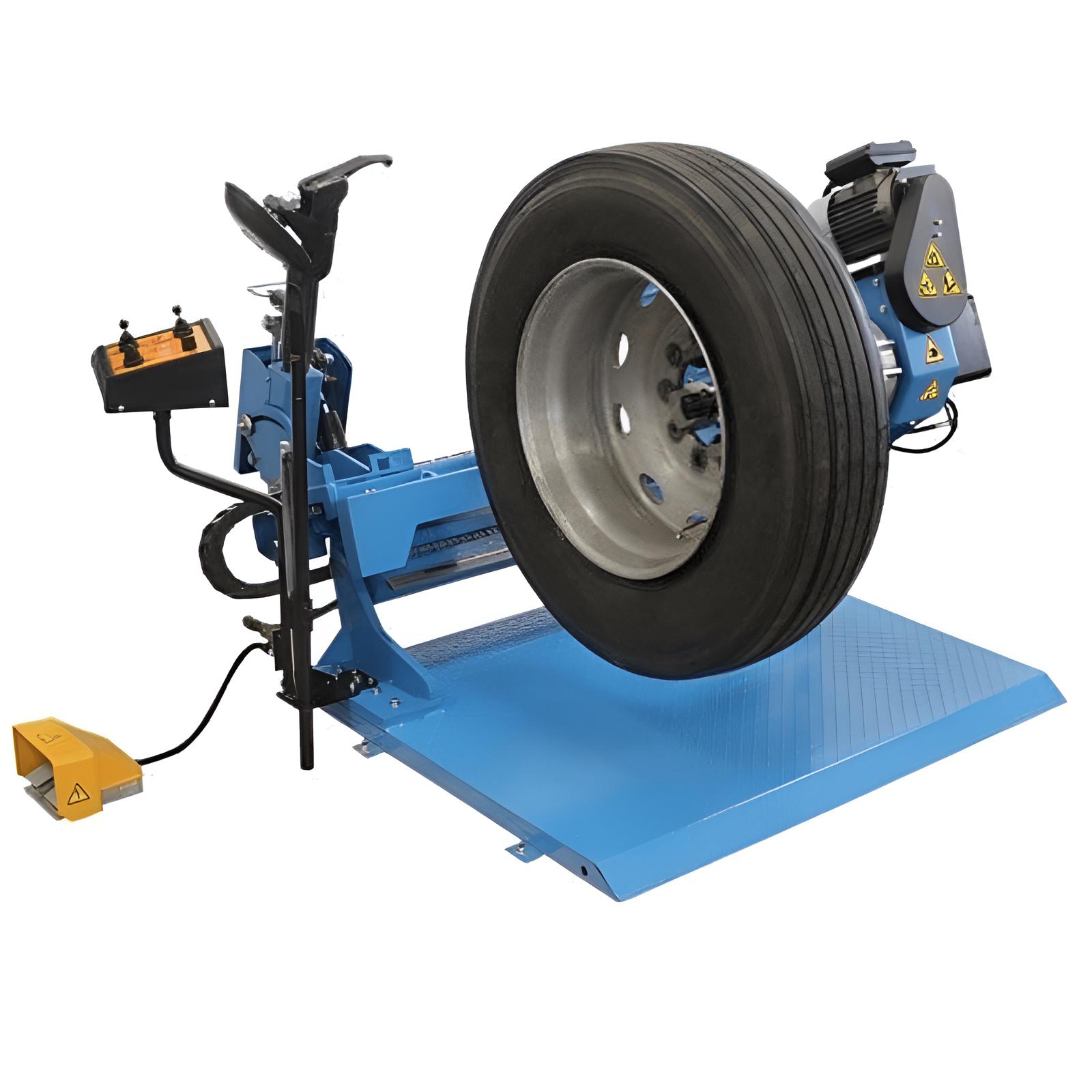

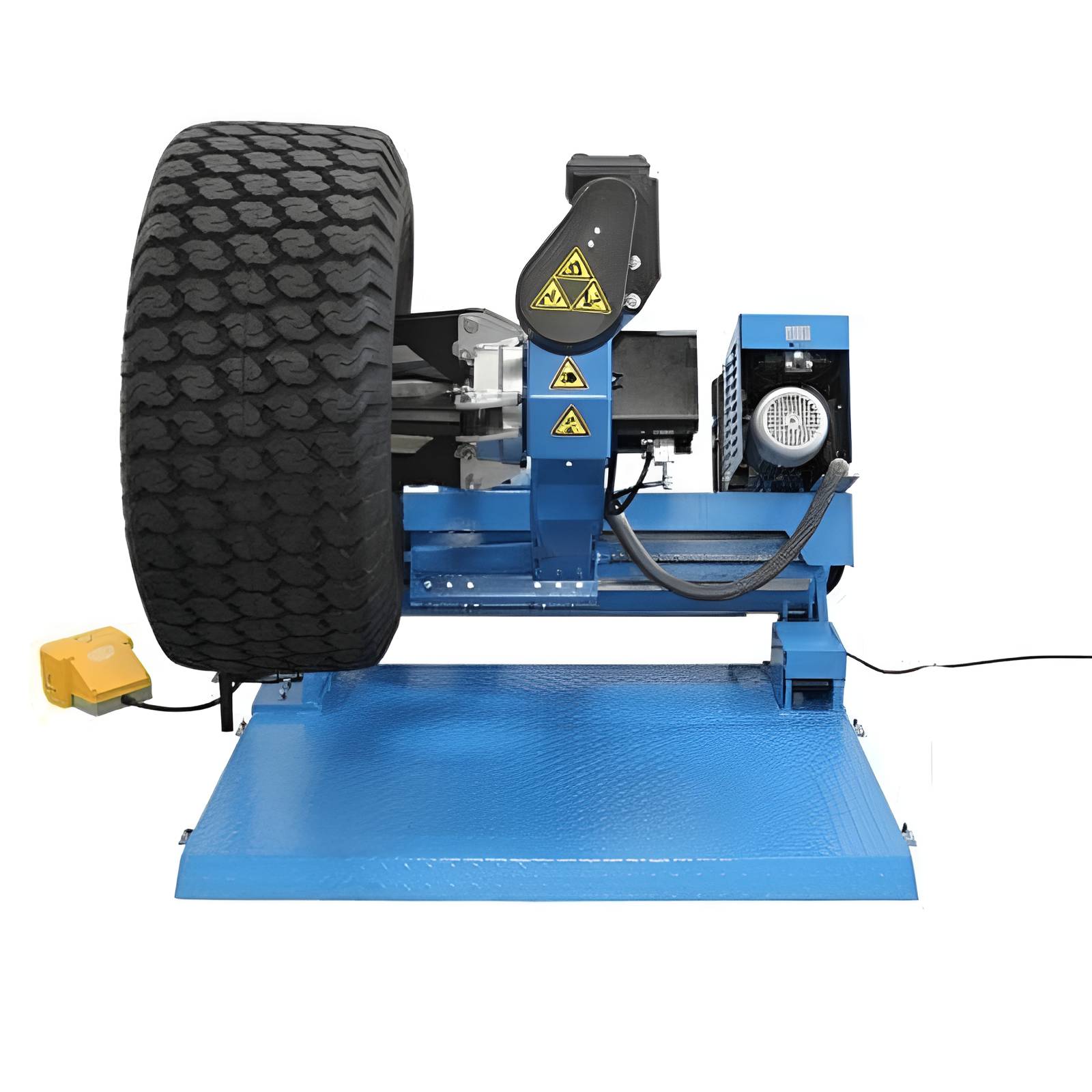

Atlas TC305A Specifications
- Rim Clamping Range: 13" - 26"
- Minimum Clamping Size with Alloy Adapters: 8"
- Max Wheel Weight: 838 lbs.
- Max Tire Diameter: 55"
- Max Tire Width: 30 1/2" (2' 6 1/2")
- Clamping Power: 6,600 lbs.
- Operating Pressure: 0-1885 PSI
- Acoustic Pressure: <70dBA
- Bead Breaker Force: 3990 lbs.
- Tool Arm Positioning: Automatic
- Tool Head Positioning: Automatic
- Construction: Single Piece Frame with Solid Floor Plate
- Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts), 1-phase, 30 amp breaker required
- Chuck Motor Power: 3 HP, 220v (+/- 5% 209-231 volts), 1-phase, 30 amp breaker required
- Shipping Weight: 1,490 lbs.

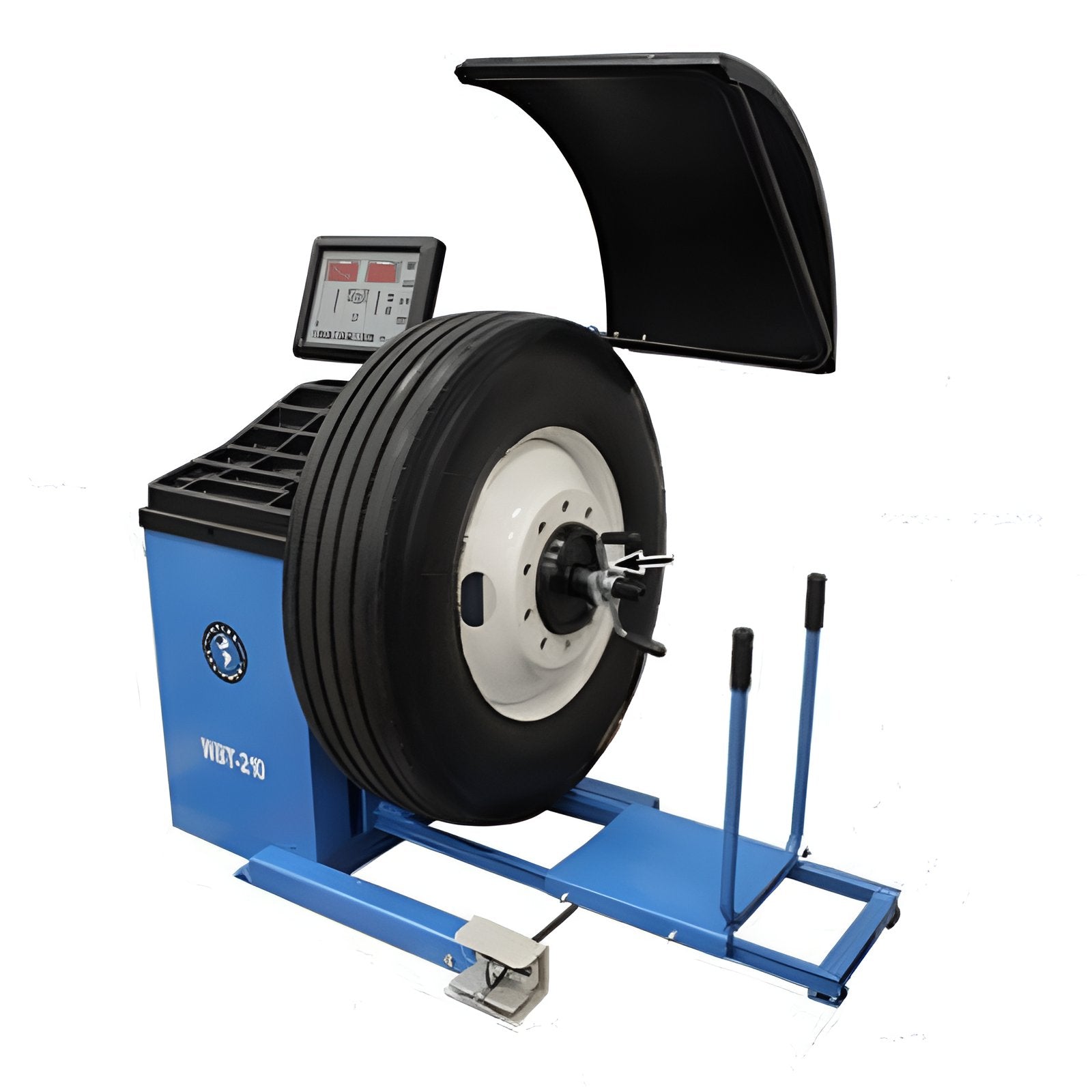

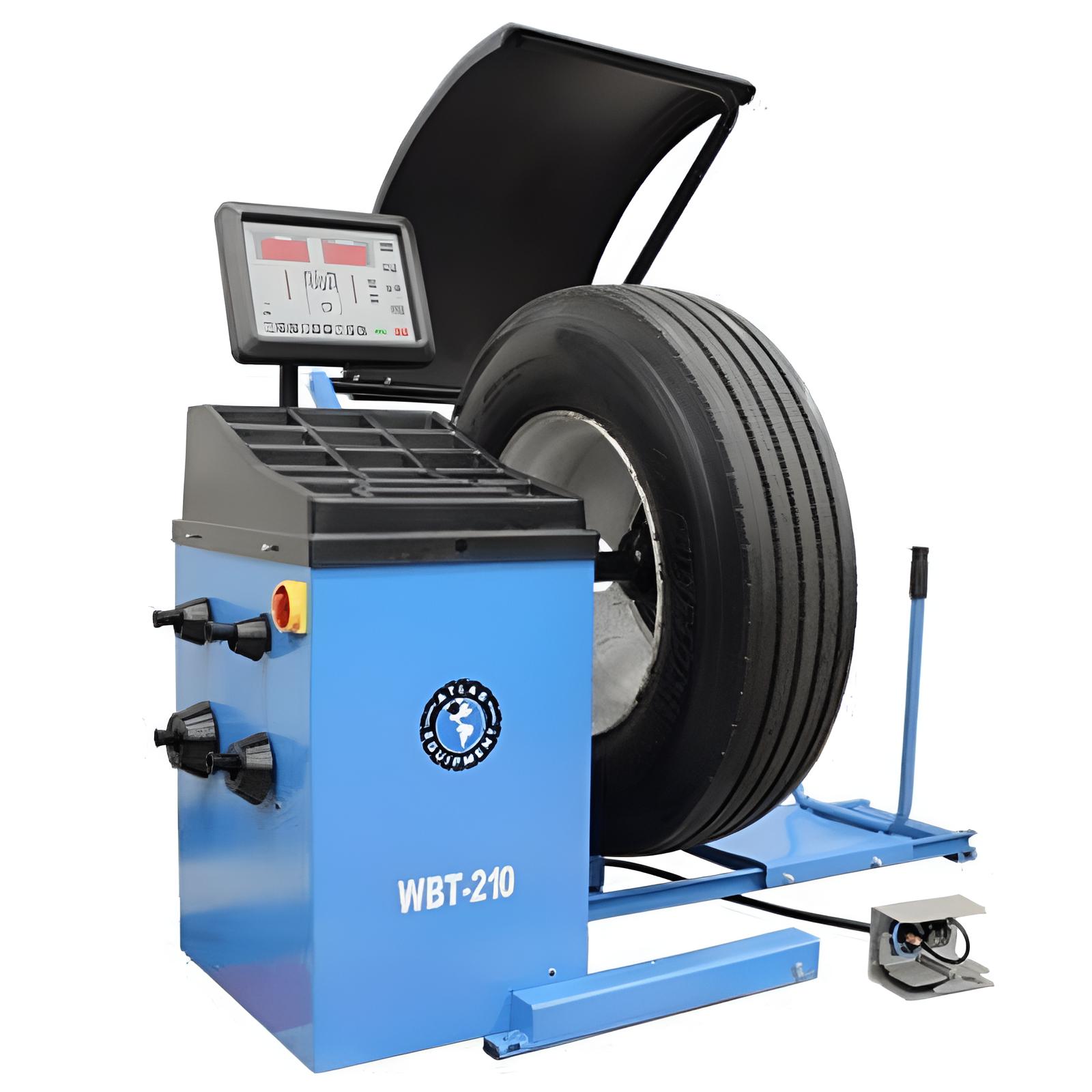

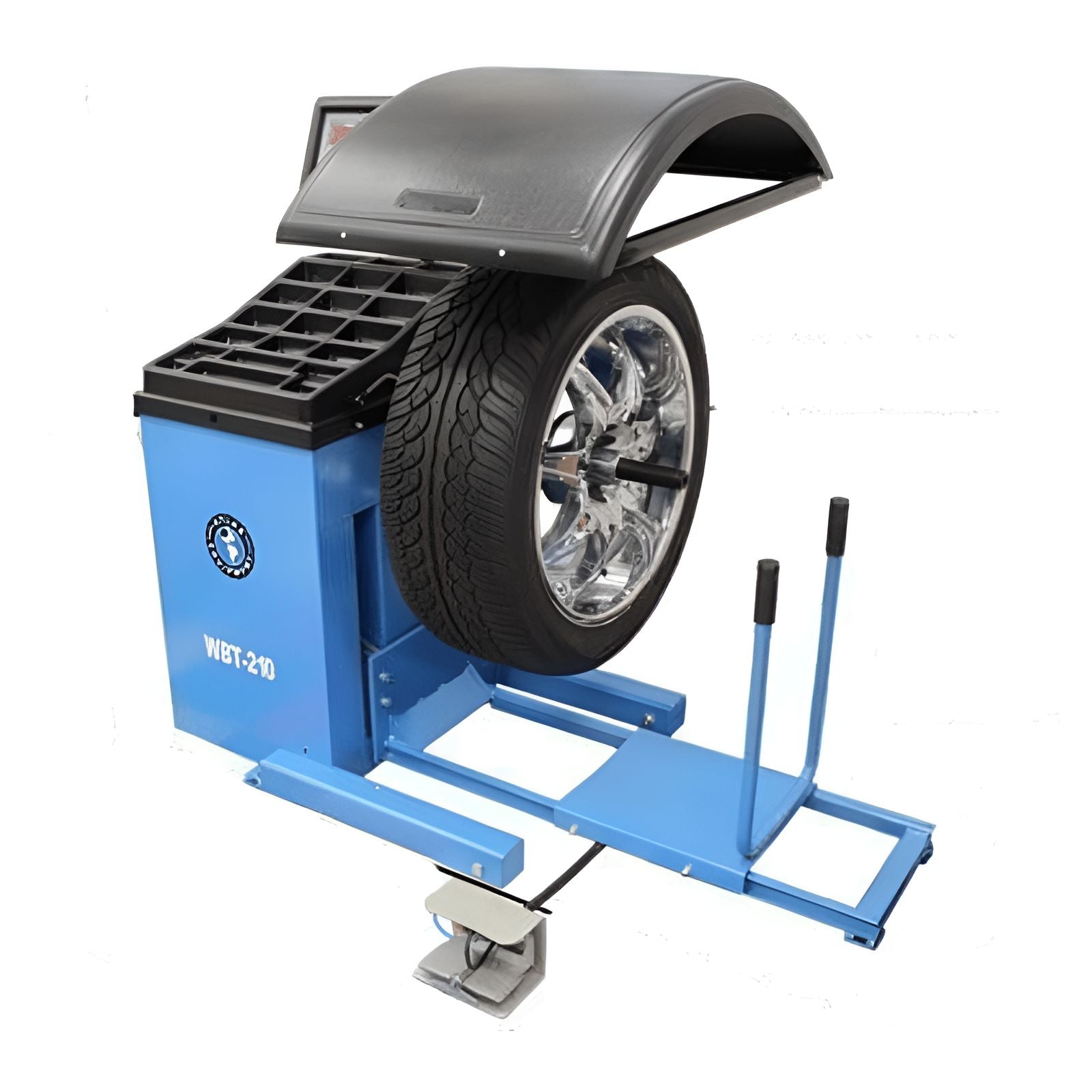

Atlas WBT-210 Specifications
- Max Tire Diameter: 47"
- Rim Sizes (Cars and Light Trucks): 10"-32"
- Rim Width: 1 1/2"-20"
- Shaft Size: 40mm
- Max Wheel Weight: 440 lbs.
- Balancing Speed: 150 rpm Car-Light Truck Mode / 90 rpm Truck Mode
- Data Entry: All Dimensions Manual Entry
- Measurements: Standard or Metric
- Accuracy: 1 gram Car-Light Truck Mode / 10 gram Truck Mode
- Weight Position Resolution: 1.4 Degrees
- Self Calibration: Yes
- Motor: 1/3 HP
- Air Requirement: 115-140 PSI (MUST NOT EXCEED 140 PSI)
- Power Supply: 220v +/- 5% (209-231 volts), 1-phase, 30 amp breaker required
- Shipping Weight: 725 lbs.
TTC305A Tire Changer + WBT-210 Wheel Balancer Special Features
TTC305A
- Fully Automatic Truck Tire Changer
- Handles rims from 8″ to 26″ and tire diameters in excess of 55″
- Accommodates tires with a max width of up to 30 1/2″
- Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm
- Bead Breaker
- Interchangeable Mount/Demount and Roller Heads
- Electric/Hydraulic Self-Centering Four Jaw Chuck
- 5 different rim locking positions

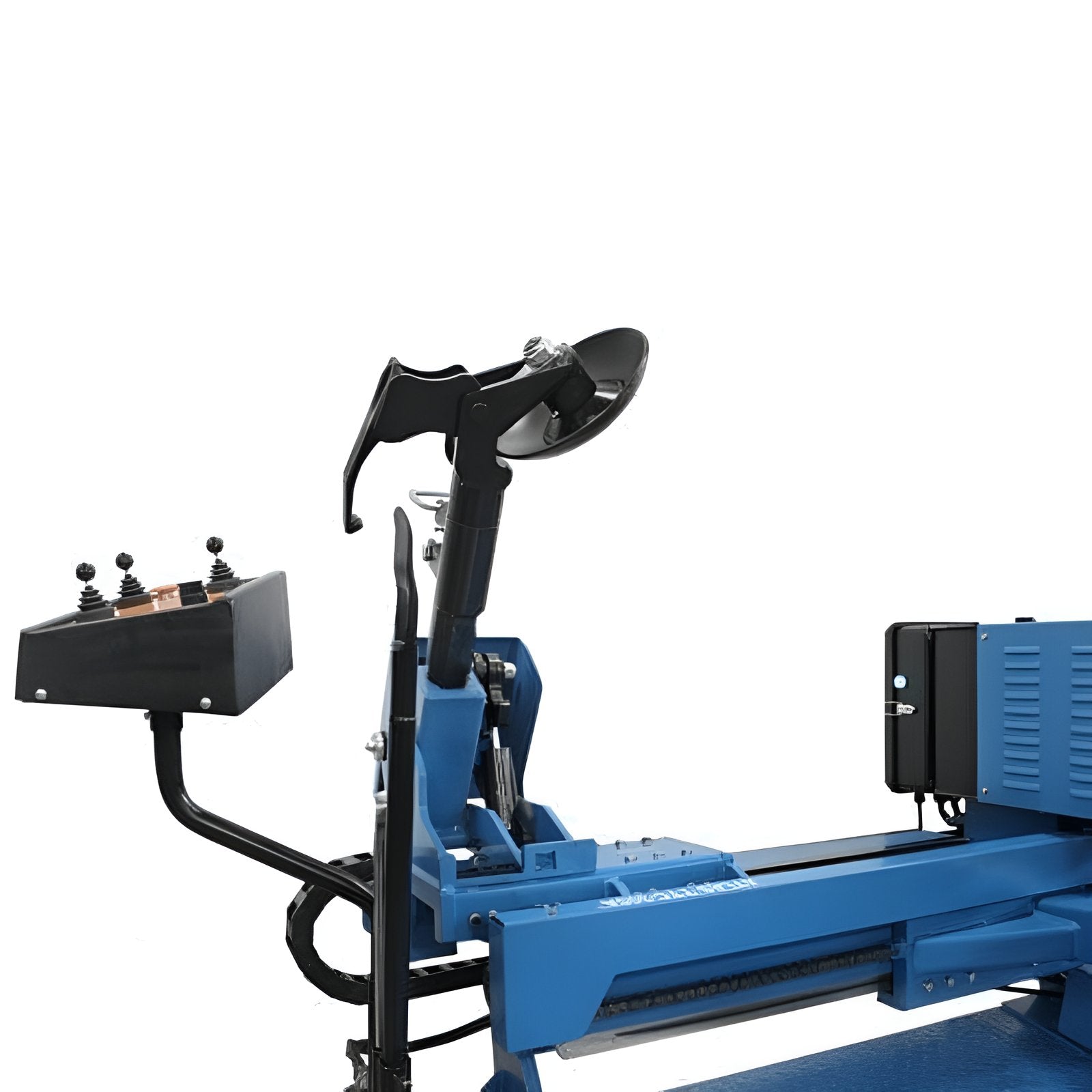

- Mounted Control Unit w/ additional Foot Pedal Controls
- Heavy Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set w/ Plastic Inserts Included
- 1 Year Parts Only Warranty
WBT-210
- Computer Controlled Heavy Duty Spin Balancer
- Cone sets for car and light truck tires
- Cone and spacer set for truck, bus, or implement tires
- Plastic Quick Release Nut included
- Heavy duty steel wing nut included
- Pneumatic wheel lift (external air supply required)
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-diagnosis
- Self-calibration
- Exceptional stability in reading the unbalance between planes
- Display in grams or ounces, and in mm or inches
- Wheel Weight Pliers Included
- Wheel Width Calipers Included
- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty
- Large Universal Adapter for WBT-210
TTC305A + WBT-210 Manual
Atlas TTC305A Tire Changer Optional Items (sold separately):
- Atlas WBT-210 Heavy Duty Truck Wheel Balancer
- Atlas TTC305A Automated Truck Tire Changer
