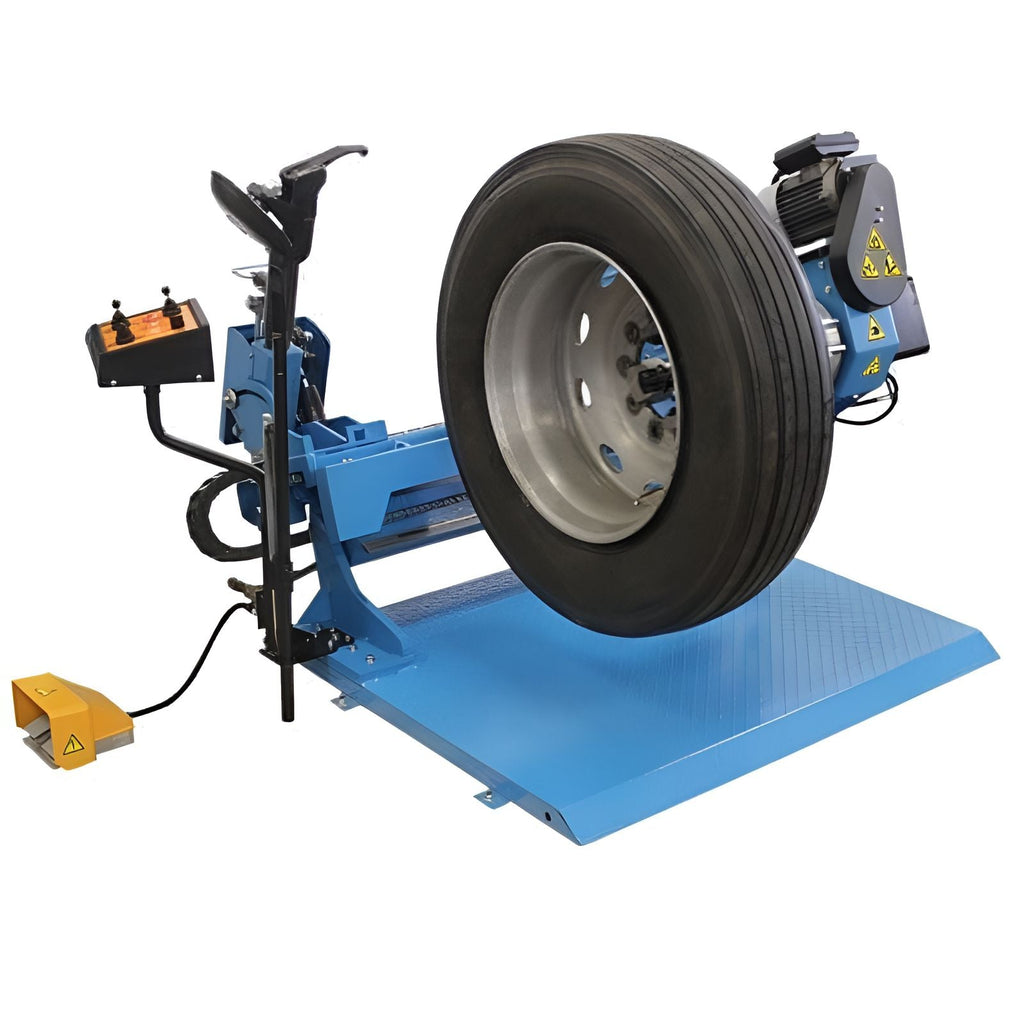

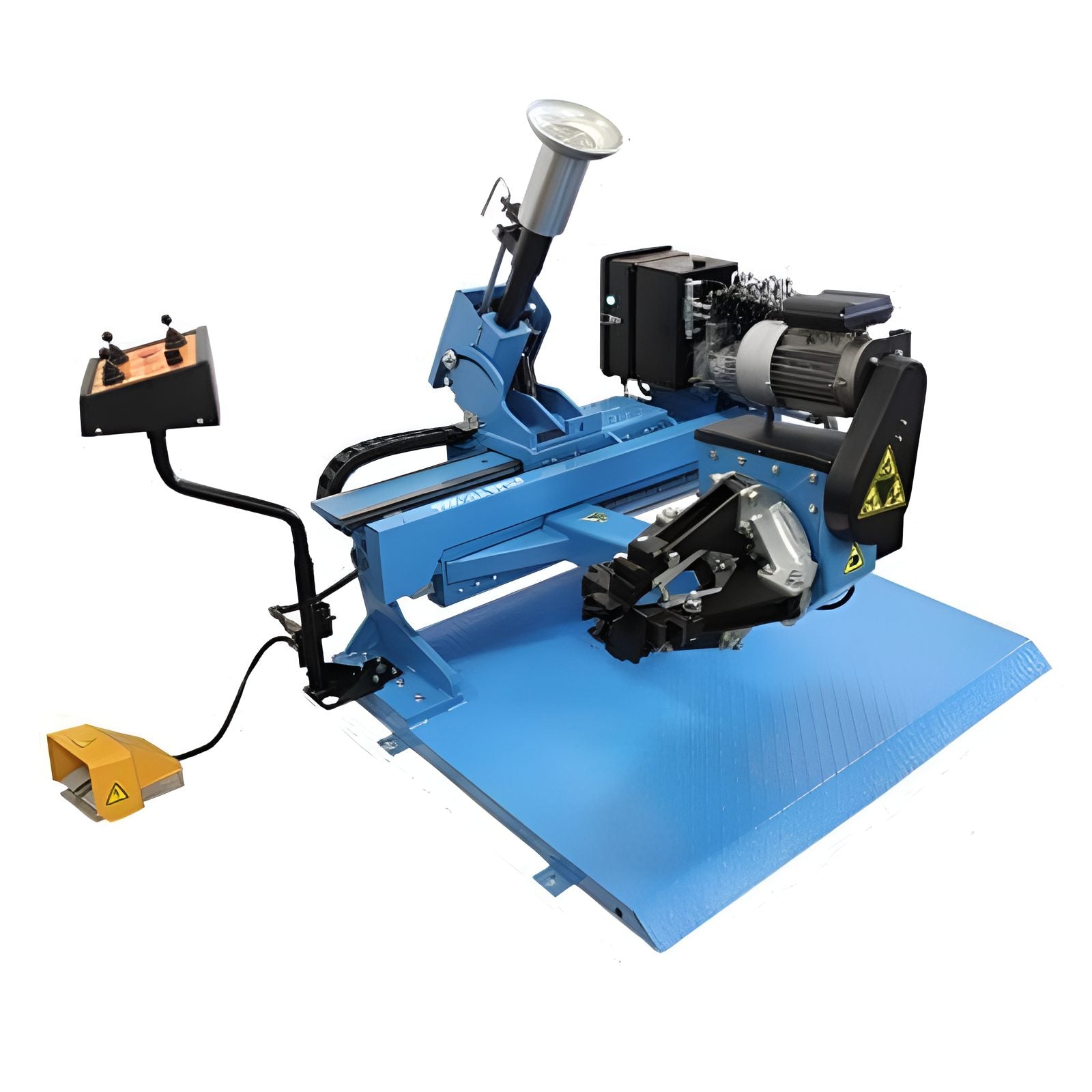

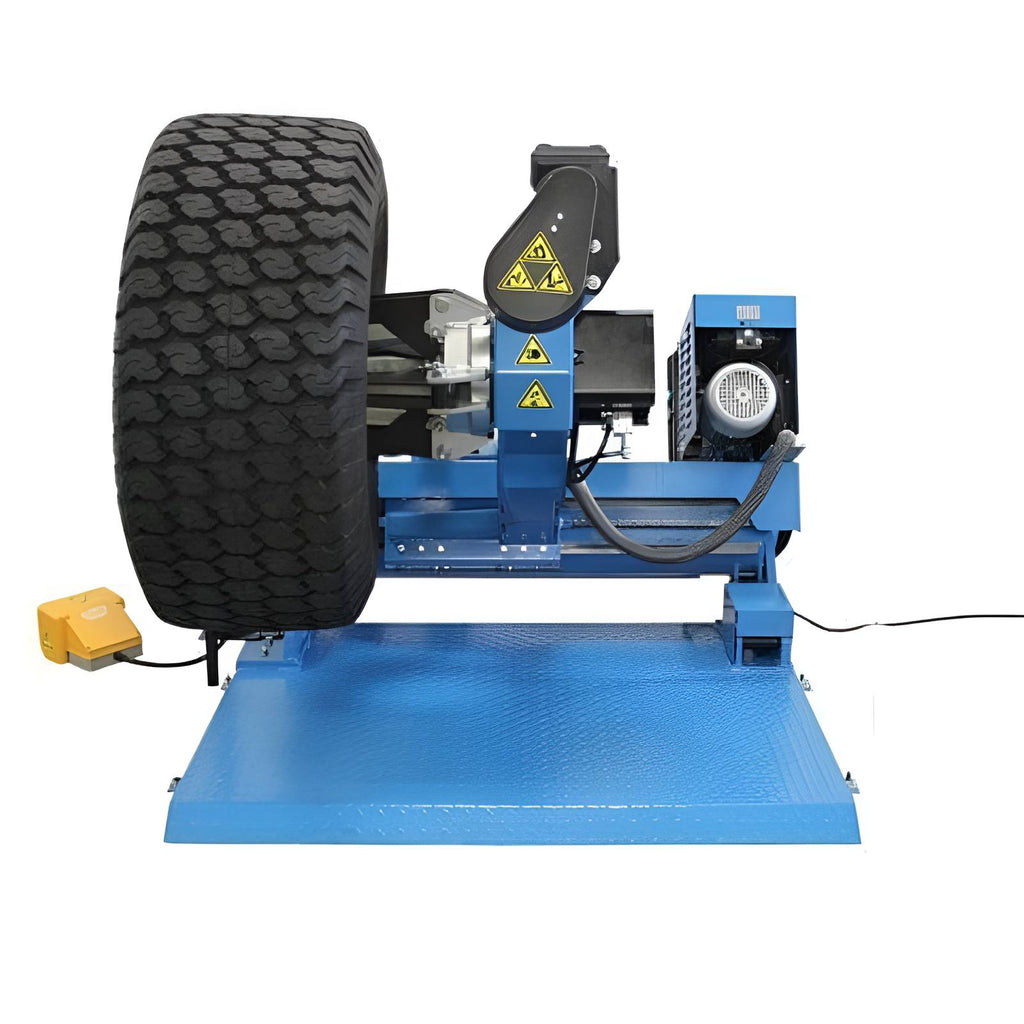

Atlas Automated Truck Tire Changer SKU ATEATTC305A
The Heavy Duty Atlas TTC305A automatic truck tire changer is here to lighten the load. This automated ace handles tires up to 55 inches in diameter and 30 1/2 inches wide, turning those back-breaking jobs into a breeze. It's the answer to the prayers of high-production shops dealing with a constant parade of semi, 19.5, and forklift tires.
The TTC305A features an ergonomic toggle panel and foot pedals that put total control at your fingertips (and toes). Its single-speed hydraulic chuck with five locking positions grips rims like a pro, while the rapid roller head swaps tires faster than you can blink. Don't let manual labor slow down your operation any longer. With the Atlas TTC305A, you'll be changing tires with the ease of flipping pancakes, all while your competition is still wrestling with tire irons!
TTC 305A Specification:
- Rim Clamping Range: 13" - 26"
- Minimum Clamping Size W/ Alloy Adapters: 8"
- Max Wheel Weight: 838 lbs.
- Max Tire DiameterP: 55"
- Max Tire Width: 30 1/2" (2' 6 1/2")
- Clamping Power: 6,600 lbs.
- Operating Pressure: 0-1885 PSI
- Acoustic Pressure: <70dBA
- Bead Breaker Force: 3990 lbs.
- Tool Arm Positioning: Automatic
- Tool Head Positioning: Automatic
- Construction: Single Piece Frame w/ Solid Floor Plate
- Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
- Chuck Motor Power: 3 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
- Shipping Weight: 1,490 lb.
TTC305A Tire Changer Special Features:
- Fully Automatic Truck Tire Changer
- Handles rims from 8″ to 26″ and tire diameters in excess of 55″
- Accommodates tires with a max width of up to 30 1/2″
- Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm
- Bead Breaker
- Interchangeable Mount/Demount and Roller Heads
- Electric/Hydraulic Self-Centering Four Jaw Chuck
- 5 different rim locking positions

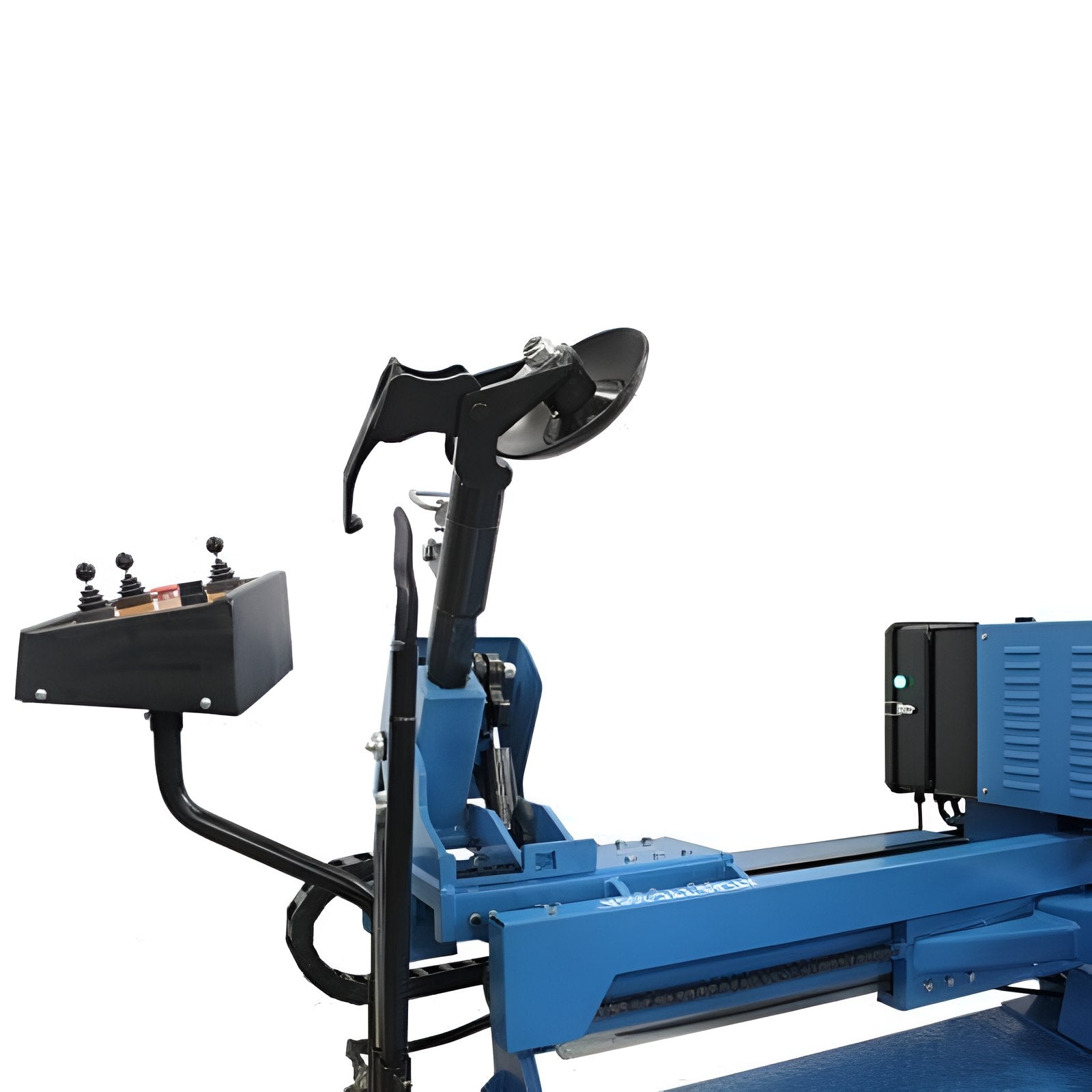

- Mounted Control Unit w/ additional Foot Pedal Controls
- Heavy Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set w/ Plastic Inserts Included
- 1 Year Parts Only Warranty
- Buy as a Combo Atlas TTC305A + WBT-210
TTC305A Manual
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Fresno, CA
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
