Description

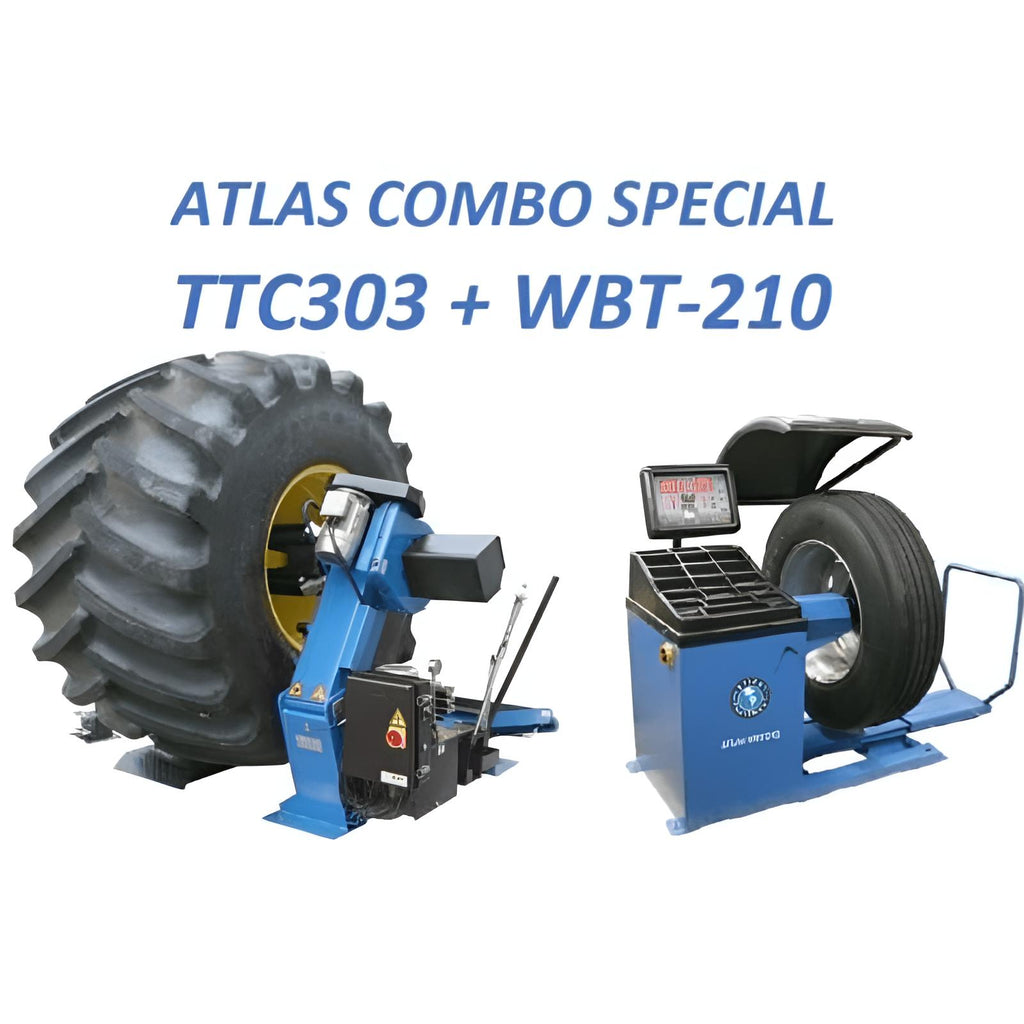

Atlas TTC303 Tire Changer, WBT-210 Wheel Balancer Combo 3 SKU ATETTCWB-COMBO3
The TC303 is a super-duty tire changer designed for serious work, accommodating rim sizes from 14 inches to a jaw-dropping 56 inches and tire diameters exceeding 90 inches. With a maximum tire width of 42 inches and a clamping power of 13,173 lbs, it can handle even the toughest jobs with ease. Meanwhile, the WBT-210 is your go-to for balancing everything from passenger cars to hefty 300-pound semi-truck tires. It efficiently manages rim sizes from 10 inches to 32 inches and can balance wheels with a maximum weight of 440 lbs. The TC303 features a robust bead breaker with a force of 5,930 lbs and comes equipped with rim clamps for both steel and alloy wheels, plus an alloy rim adapter set with plastic inserts. Both machines come with a one-year parts-only warranty, ensuring you can invest in your workshop with confidence. Why settle for mediocre when you can elevate your tire service with the Atlas TC303 and WBT-210 combo?
Tire Changer TTC303 + Wheel Balancer WBT-210 Specification:

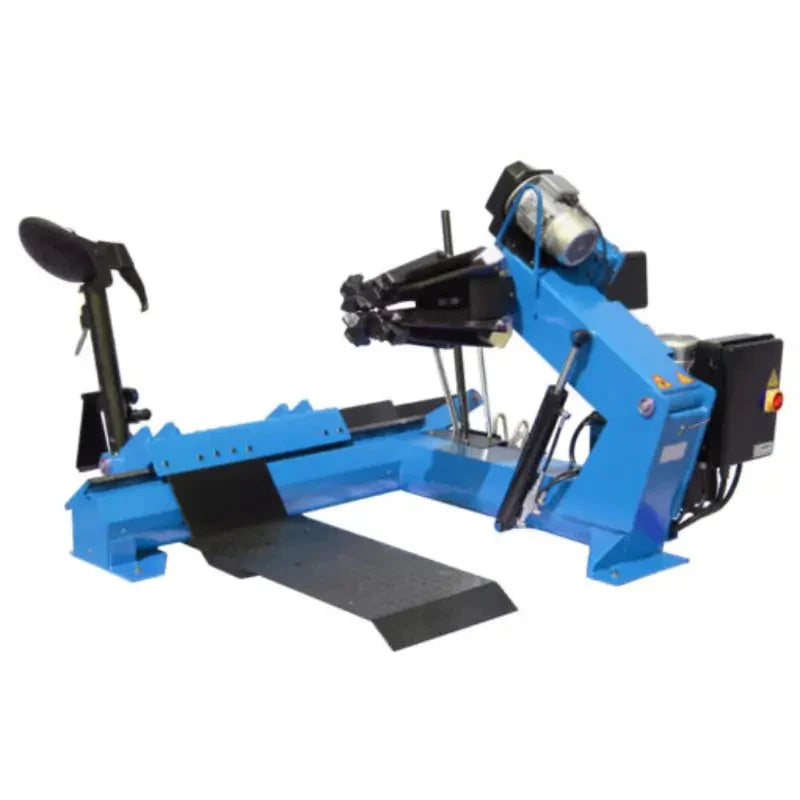

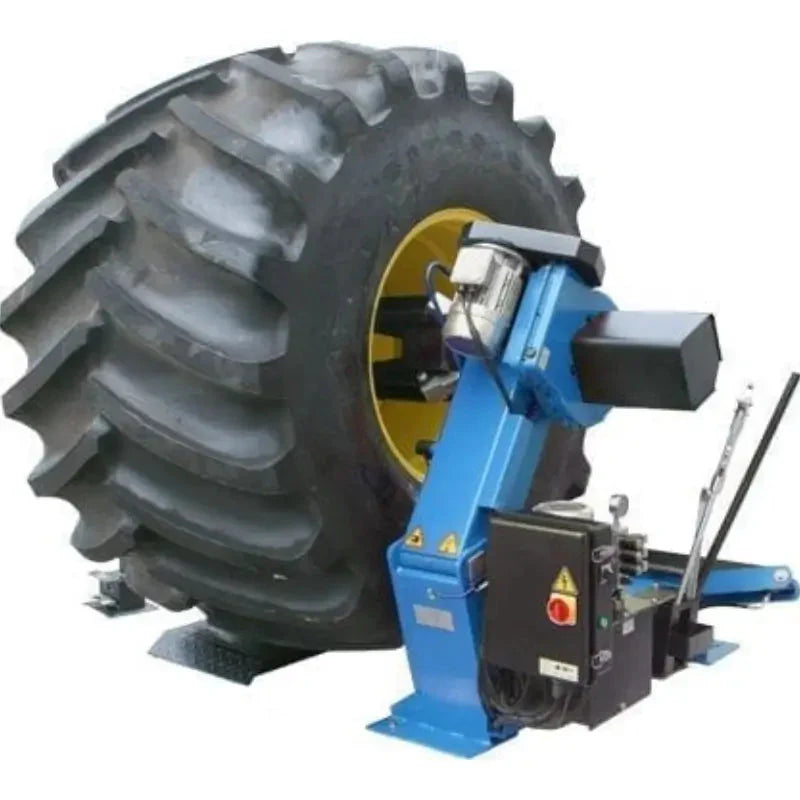

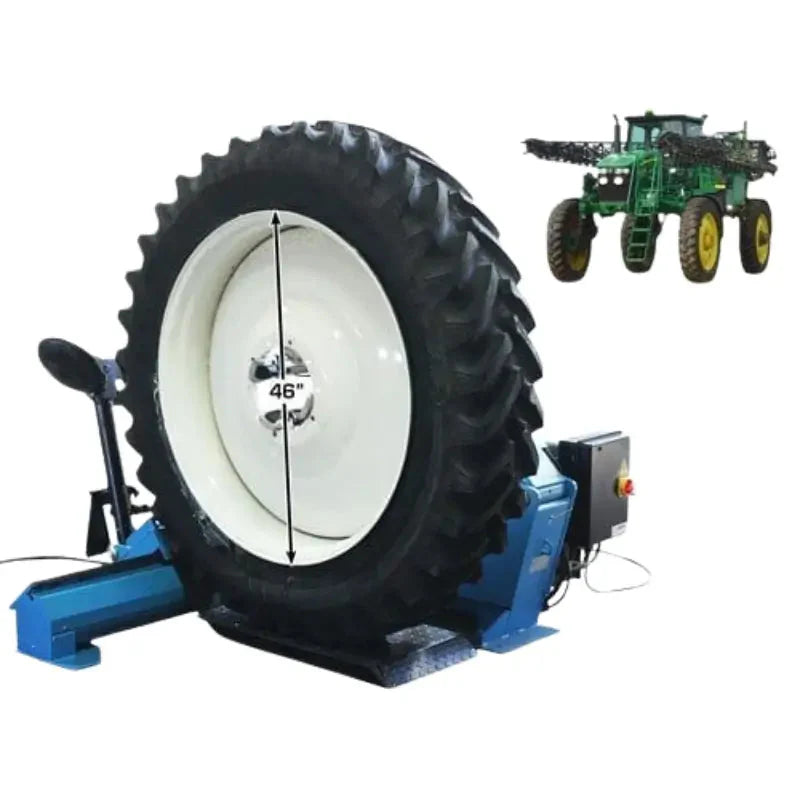

TTC303 Tire Changer
- Rim Clamping Range 14" - 46"
- Max Clamping Size W/ Extensions 56""
- Max Wheel Weight 3,300 lbs.
- Max Tire Diameter 90 1/2" (7' 6 1/2")
- Max Tire Width 42" (3' 6")
- Clamping Power 13,173 lbs.
- Operating Pressure 0-1885 PSI
- Acoustic Pressure <70dBA
- Bead Breaker Force 5930 lbs.
- Tool Arm Positioning Manual
- Tool Head Positioning Manual
- Construction Single Piece Frame w/ Solid Floor Plate
- Hydraulic Motor Power 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
- Chuck Motor Power 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
- Shipping Weight 1,800 lbs.

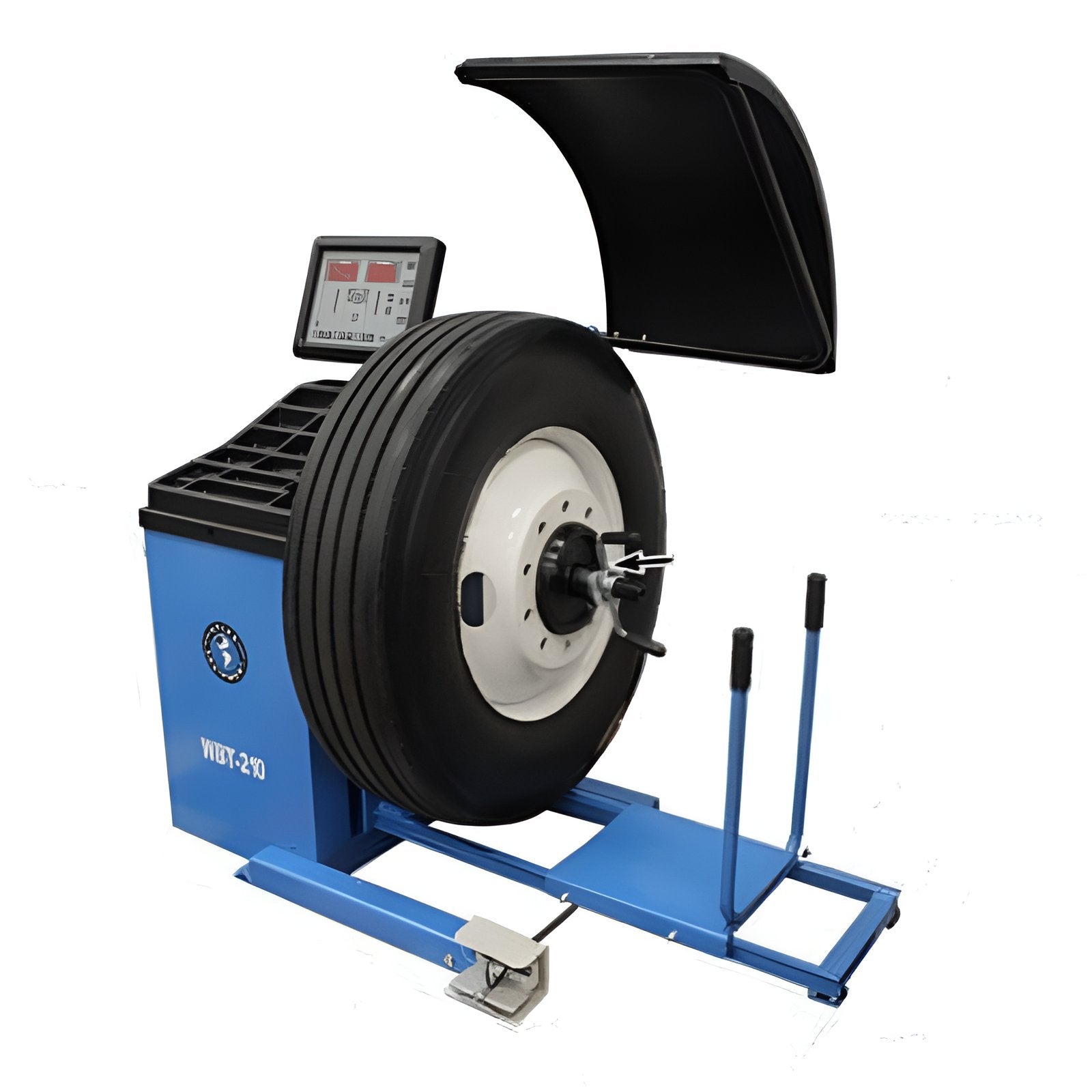

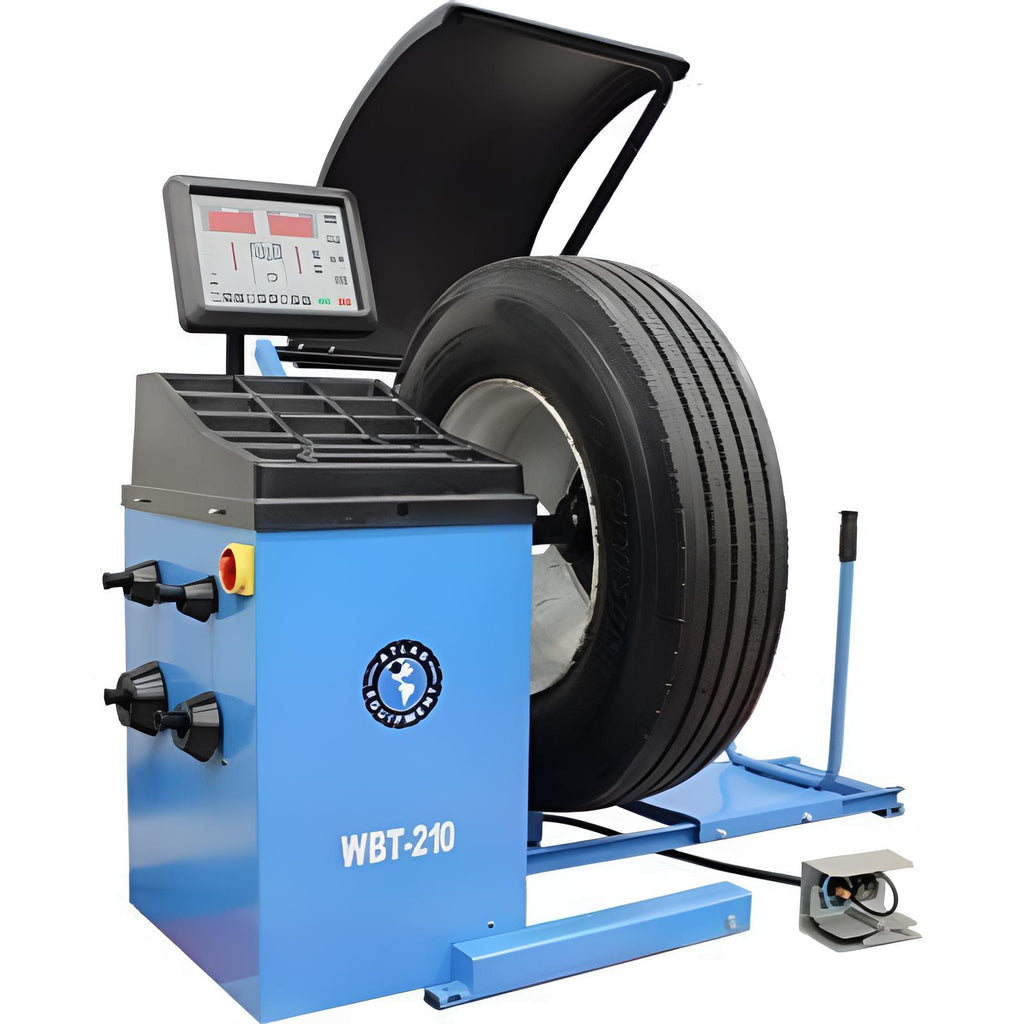

WBT-210 Wheel Balancer
- Max Tire Diameter: 47"
- Rim Sizes (Cars And Light Trucks): 10"-32"
- Rim Width: 1 1/2"-20"
- Shaft Size: 40mm
- Max. Wheel Weight: 440 lbs.
- Balancing Speed: 150 rpm Car-Light Truck Mode/90 rpm Truck Mode
- Data Entry: All Dimensions Manual Entry
- Measurements: Standard Or Metric
- Accuracy: 1 gram Car-Light Truck Mode/10 gram Truck Mode
- Weight Position Resolution: 1.4 Degrees
- Self Calibration: Yes
- Motor: 1/3 HP
- Air Requirement: 115-140 PSI (MUST NOT EXCEED 140 PSI)
- Power Supply: 220volt +/- 5% (209-231 volts) 1phase, 30 amp breaker required
- Shipping Weight: 725 lbs.
TTC303 Tire Changer + WBT-210 Wheel Balancer Special Features:
TTC303
- Super Duty Truck Tire Changer
- 220VOLT 1 PHASE ELECTRIC
- Handles rims from 14″ to 56″ and tire diameters in excess of 90″
- Accommodates tires with a max width of up to 42″
- Bead Breaker
- Mount/Demount Head
- Electric/Hydraulic Self-Centering Four Jaw Chuck
- 5 different rim locking positions
- Wired Mobile Control Unit
- Heavy Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set w/ Plastic Inserts Included
- 1 Year Parts Only Warranty
WBT-210
- Computer Controlled Heavy Duty Spin Balancer
- Cone sets for car and light truck tires
- Cone and spacer set for truck, bus, or implement tires
- Plastic Quick Release Nut included
- Heavy duty steel wing nut included
- Pneumatic wheel lift (external air supply required)
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-diagnosis
- Self-calibration
- Exceptional stability in reading the unbalance between planes
- Display in grams or ounces, and in mm or inches
- Wheel Weight Pliers Included
- Wheel Width Calipers Included
- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty
- Large Universal Adapter for WBT-210
TTC303 + WBT-210 Manual
Atlas TTC303 Tire Changer Optional Item (Sold Separately)
- Atlas TTC303 Tire Changer
- Atlas WBT-210 Wheel Balancer
Warehouse Pickup locations (No shipping charge):
- Atlanta, GA
- Dallas, TX
- Fresno, CA
- Indianapolis, IN
- Phoenix, AZ
- Somerset, NJ
