Description

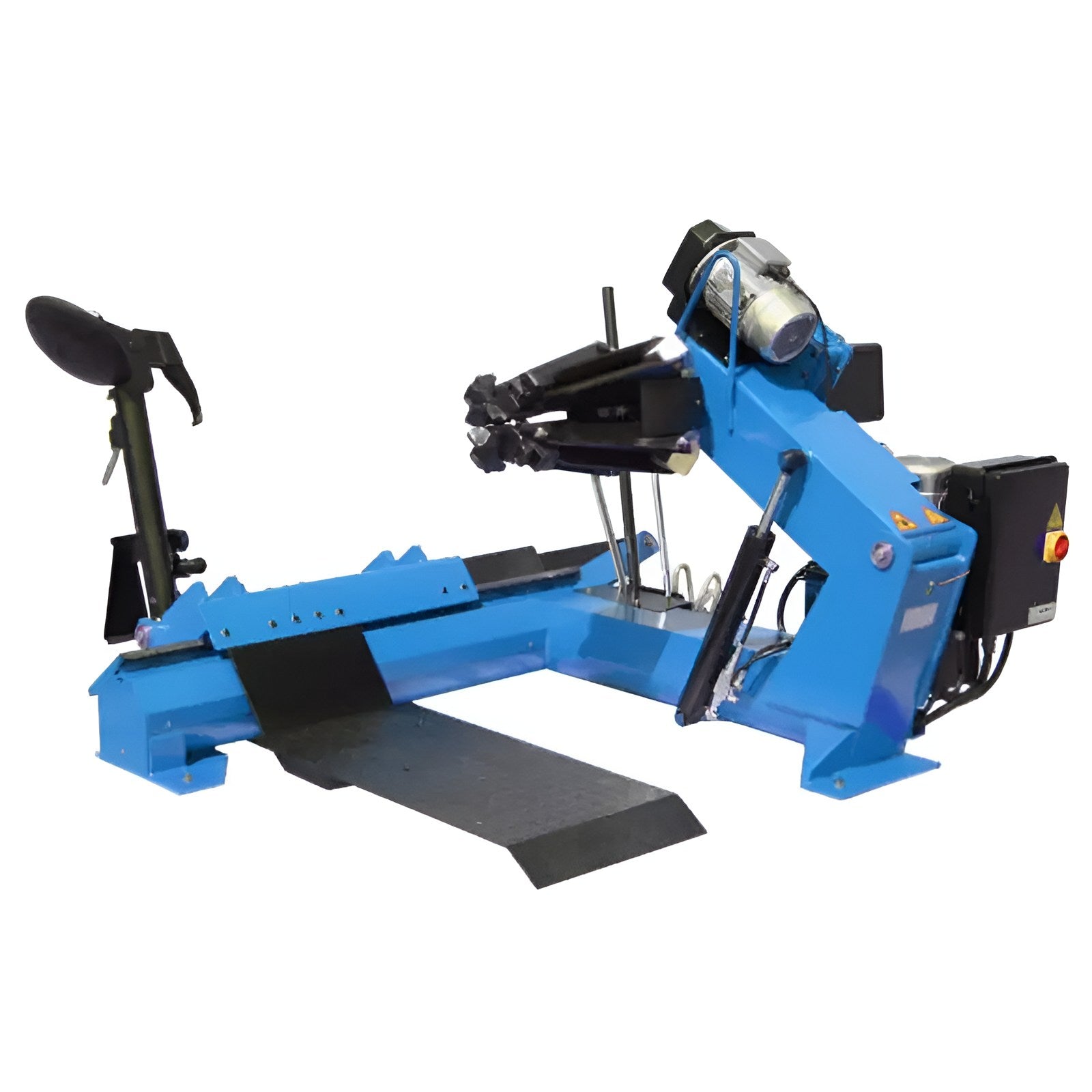

Atlas Large Truck Tire Changer SKU ATEATTC303
Introducing the Super Duty Atlas TTC303 truck tire changer, the heavyweight champion of the tire world. This beast tackles rim sizes from a petite 4-1/4 inches all the way up to a massive 56 inches, and it doesn't break a sweat handling tires over 90 inches in diameter. Born from a collaboration between Italian design genius and Asian manufacturing prowess, it's the tire changer that makes other machines look like toys.
With a clamping power of 13,173 lbs and a bead breaker force of 5,930 lbs, it manhandles everything from off-road monsters to agricultural giants and skidder tires. Its single-piece frame construction ensures rock-solid stability, while the manual tool arm and head positioning give you pinpoint control. Whether you're running a high-volume truck tire shop or tackling the toughest agricultural wheels, this tire changer is your gateway to effortless changes.
Tire Changer TTC303 Specification:
- Rim Clamping Range: 14" - 46"
- Max Clamping Size W/ Extensions: 56""
- Max Wheel Weight: 3,300 lbs.
- Max Tire Diameter: 90 1/2" (7' 6 1/2")
- Max Tire Width: 42" (3' 6")
- Clamping Power: 13,173 lbs.
- Operating Pressure: 0-1885 PSI
- Acoustic Pressure: <70dBA
- Bead Breaker Force: 5930 lbs.
- Tool Arm Positioning: Manual
- Tool Head Positioning: Manual
- Construction: Single Piece Frame w/ Solid Floor Plate
- Hydraulic Motor Power: 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
- Chuck Motor Power: 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
- Shipping Weight: 1,800 lbs.
TTC303 Tire Changer Special Features:
- Super Duty Truck Tire Changer
- 220VOLT 1 PHASE ELECTRIC
- Handles rims from 14″ to 56″ and tire diameters in excess of 90″
- Accommodates tires with a max width of up to 42″
- Bead Breaker
- Mount/Demount Head
- Electric/Hydraulic Self-Centering Four Jaw Chuck
- 5 different rim locking positions
- Wired Mobile Control Unit
- Heavy Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set w/ Plastic Inserts Included
- 1 Year Parts Only Warranty
- Buy as a Combo Atlas TTC303 + WBT-210
TTC303 Manual
